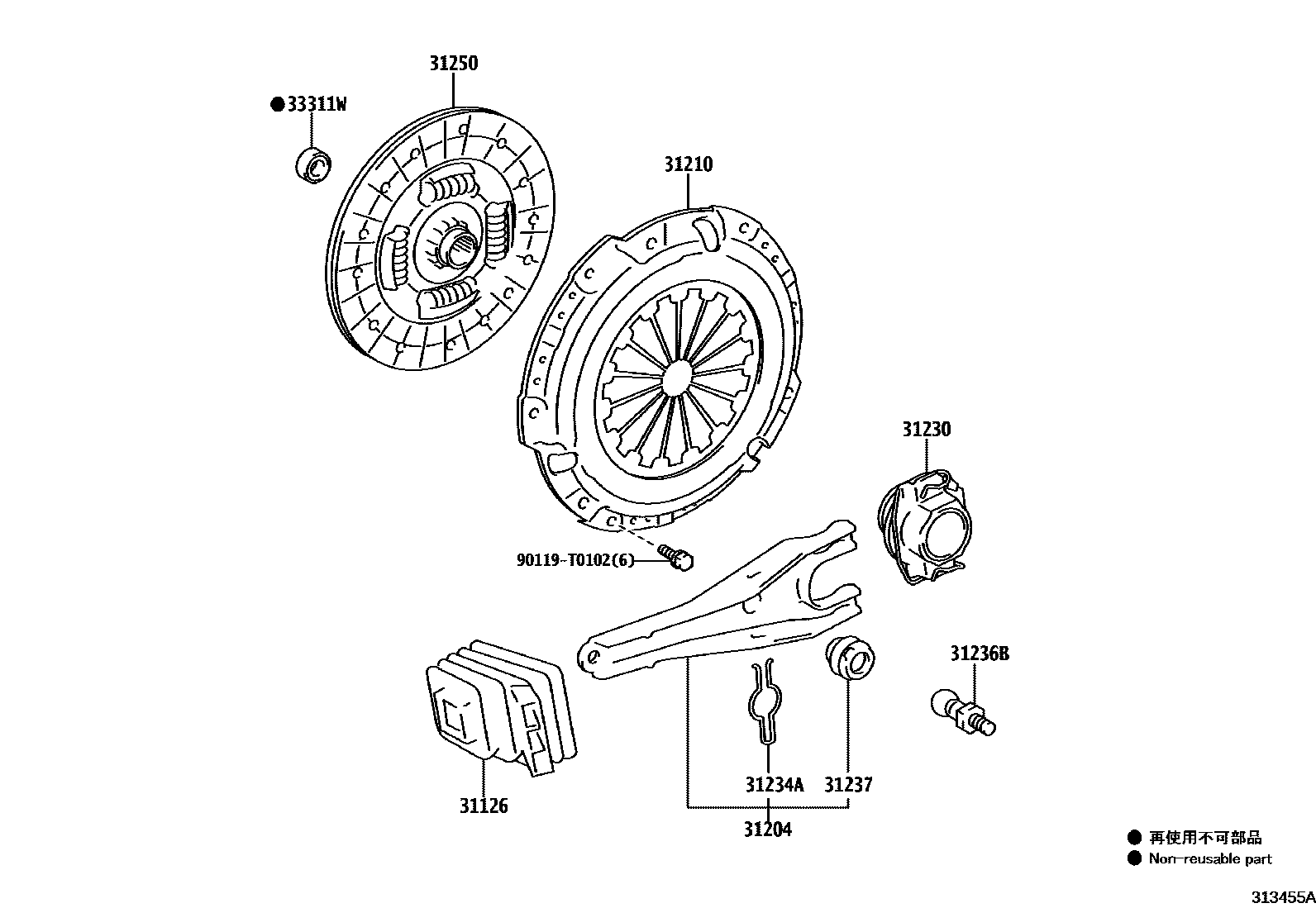

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0K080iGUN156..AGTSU..6F202007-202110

main31126-0K090iTGN156..L..GEN202007-202009

TYPE B:REFER 33-01

main31126-0K110iLAN155202009-202109

TYPE C:REFER 33-01

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K110iGUN166..6F..SA;GUN15#,165..(IDNSU,INDSU,SASUV,VNSUV)..6F202007-202204

TYPE B:REFER 33-01

main31204-0K120iTGN156,166..5F202007-202108

TYPE A:REFER 33-01

31210COVER ASSY, CLUTCH

main31210-0K260iTGN156,166..5F202007-202110

main31210-0K281iGUN156..AGTSU..6F202011-202110

TYPE B:REFER ILLUST.

main31210-0K420iLAN155202009-202109

31230BEARING ASSY, CLUTCH RELEASE

main31230-71052iGUN166..6F..SA;GUN15#,165..(IDNSU,INDSU,SASUV,VNSUV)..6F202007-202204

TYPE B:REFER 33-01

main31230-71061iTGN156..L..GEN202007-202009

TYPE B:REFER 33-01

31234ASPRING, RELEASE FORK SUPPORT

main31234-71020iTGN156..L..GEN202007-202009

TYPE B:REFER 33-01

31236BSUPPORT, RELEASE FORK

main31236-0K010iGUN166..6F..SA;GUN15#,165..(IDNSU,INDSU,SASUV,VNSUV)..6F202007-202204

TYPE B:REFER 33-01

main31236-0K020iTGN156,166..5F202007-202108

TYPE A:REFER 33-01

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-0K020iLAN155,TGN156,166..5F202007-202110

TYPE C:REFER 33-01

31250DISC ASSY, CLUTCH

main31250-0K261iTGN156,166..5F202007-202110

sub31250-0K262

main31250-0K281iGUN156..AGTSU..6F202011-202110

TYPE B:REFER ILLUST.

main31250-0K440iLAN155202009-202109

33311WBEARING (FOR INPUT SHAFT)

main90363-12024iLAN155202009-202109

main90363-T0006iGUN15#,16#..(IDNSU,INDSU,SASUV,VNSUV)..6F202007-202204

main90363-T0019iTGN156,166..5F202007-202110

90119T0102

main90119-T0102

10 parts on this diagram · 5 diagrams in section
