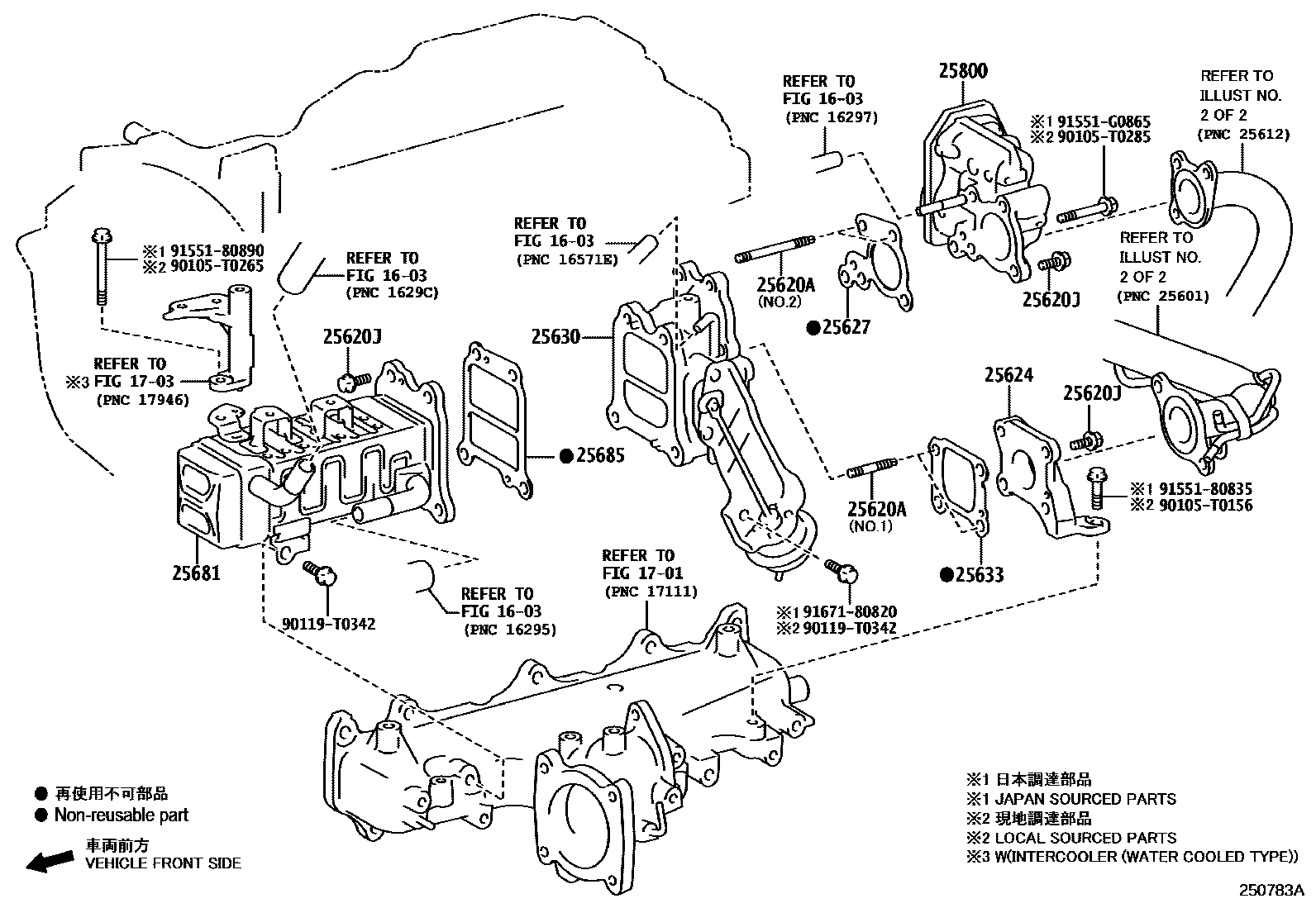

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0003 1 0005 1EURO 2 0007 1EURO 2 0009 1EURO 0

1603

1701

1703

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i1GDFTV,2GDFTV..GUN156,165..AGTSU¥80202006-202204

NO.1

main90126-08052i1GDFTV..GUN156..LHD..6FC..(GEN,SA);1GDFTV,2GDFTV..GUN15#,16#..RHD..(IDNSU,MASUV,PKNSU,SASUV)¥80202006-202201

NO.1

main90126-08064i2GDFTV..GUN155,165..THSUV¥120202006-202108

(J),NO.2

main90126-T0018i1GDFTV..GUN156..PKN¥190202006-202204

(L),NO.2

25620JBOLT(FOR EGR VALVE)

main90119-T0238i1GDFTV..GUN156..LHD..6F..SA¥80202009-202109

SUB-SAHARAN AFRICA SPEC(EURO 2),(L)

main90119-T0238i1GDFTV..GUN156..RHD..6F..SA¥80202006-202204

(L)

main90119-T0238i1GDFTV..GUN156..RHD..6F..SA¥80202009-202109

EXPORT FROM SOUTH AFRICA,(L)

main90119-T0238i1GDFTV..GUN156..RHD..6F..SA¥80202009-202109

EXPORT FROM SOUTH AFRICA&EXHAUST EMISSION CONTROL-WITHOUT,(L)

main90119-T0238i1GDFTV..GUN156,166..IND¥80202101-202109

main91671-80825i2GDFTV..GUN155,165..THSUV¥80202006-202108

(J)

25624ADAPTER, EGR VALVE

main25607-0E020i1GDFTV..GUN156..RHD..6F..SA202009-202109

EXPORT FROM SOUTH AFRICA&EXHAUST EMISSION CONTROL-WITHOUT

main25607-0E020i1GDFTV..GUN156..LHD..6F..SA202009-202109

EXPORT FROM SOUTH AFRICA

main25607-11010i1GDFTV..GUN156..LHD..6FC..(GEN,SA);1GDFTV,2GDFTV..GUN15#,16#..RHD..(IDNSU,MASUV,PKNSU,SASUV)202006-202201

main25624-0E010i2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..ARL,GCC,PH,TH,VN202006-202204

THA SOURCED PARTS

main25624-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main25624-11010i2GDFTV..GUN155,165..THSUV¥2,240202006-202108

JAPAN SOURCED PARTS

25627GASKET, EGR VALVE

main25627-0E010i1GDFTV..GUN156..PKN202006-202204

THA SOURCED PARTS

main25627-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main25627-11050i2GDFTV..GUN155,165..THSUV¥270202006-202108

JAPAN SOURCED PARTS

25630VALVE ASSY, EGR, NO.2

main25630-0E030i1GDFTV,2GDFTV..GUN156,165..AGTSU¥35,100202006-202204

IDN SOURCED PARTS

sub25630-0E031¥31,900

main25630-0E040i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

sub25630-0E041

main25630-11011i2GDFTV..GUN155,165..THSUV¥35,100202006-202108

JAPAN SOURCED PARTS

sub25630-11012¥31,900

25633GASKET, EGR VALVE

main25633-0E010i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202204

THA SOURCED PARTS

main25633-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main25633-11010i2GDFTV..GUN155,165..THSUV¥410202006-202108

JAPAN SOURCED PARTS

25681COOLER, EGR, NO.1

main25681-0E010i2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..ARL,GCC,PH,TH,VN¥33,500202006-202204

THA SOURCED PARTS

main25681-0E020i1GDFTV..GUN156,166..IND202101-202109

THA SOURCED PARTS

main25681-0E030i1GDFTV..GUN156,166..IND202101-202109

IND SOURCED PARTS

25685GASKET, EGR COOLER, NO.1

main25685-0E010i2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..ARL,GCC,PH,TH,VN202006-202204

THA SOURCED PARTS

main25685-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main25685-11010i2GDFTV..GUN155,165..THSUV¥410202006-202108

JAPAN SOURCED PARTS

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0E010i1GDFTV..GUN156..LHD..(IDNSU,SASUV,THSUV,VNSUV)..6FC;1GDFTV..GUN156..RHD..(IDNSU,INDSU,MASUV,SASUV,THSUV);1GDFTV,2GDFTV..GUN155,16#..IDNSU,INDSU,MASUV,SASUV,THSUV,VN202006-202204

(L)

main25800-11010i2GDFTV..GUN155,165..THSUV¥20,200202006-202108

(J)

90105T0156

main90105-T0156

90105T0265

main90105-T0265

90105T0285

main90105-T0285

90119T0342

main90119-T0342

9155180835

main91551-80835¥80

9155180890

main91551-80890¥120

91551G0865

main91551-G0865¥100

9167180820

main91671-80820¥80

20 parts on this diagram · 5 diagrams in section
