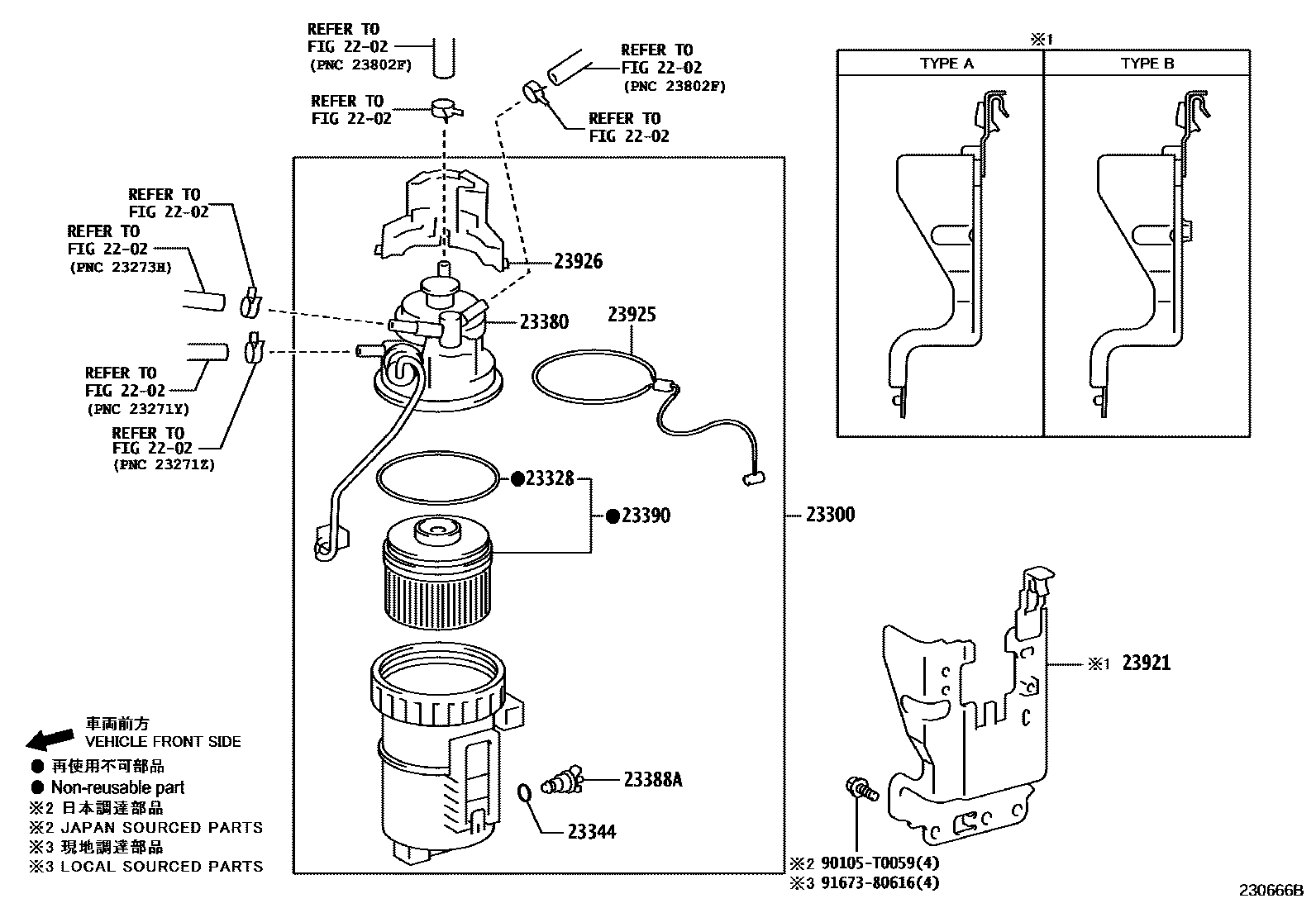

FUEL FILTER

0001 1FUEL FILTER 0002 1PRESSURIZED FUEL FILTER 0003 1

2202

23300FILTER ASSY, FUEL

main23300-0L101i1GDFTV..GUN156..(H,S)..BZAGT;1GDFTV,2GDFTV..GUN15#,16#..ARL,SA,TH202006-202110

main23300-0L111i5LE..LAN155202006-202110

sub23300-0L112¥12,500

main23300-0L112i1GDFTV,2GDFTV..GUN156,165..VN¥12,500202111-202204

23328GASKET(FOR FUEL FILTER)

main23344-0L070i1GDFTV,2GDFTV..GUN156,165..VN¥270202006-202204

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i1GDFTV,2GDFTV..GUN156,165..AGTSU¥340202006-202204

23380CAP ASSY, FUEL FILTER

main23380-0L091i1GDFTV..GUN156..(H,S)..BZAGT;1GDFTV,2GDFTV..GUN15#,16#..ARL,SA,TH¥4,560202006-202110

main23380-0L111i5LE..LAN155202006-202204

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i1GDFTV,2GDFTV..GUN156,165..AGTSU¥390202006-202204

23390ELEMENT ASSY, FUEL FILTER

main23390-0L070i5LE..LAN155¥5,700202006-202111

main23390-0L100i1GDFTV..GUN156..PKN¥5,700202111-202204

23921SUPPORT, FUEL FILTER

main23921-0L130i1GDFTV..GUN156..PKN202006-202204

TYPE A:REFER ILLUST.

main23921-0L130i5LE..LAN155202009

main23921-0L210i1GDFTV..GUN156,166..IND¥2,590202101-202109

TYPE B:REFER ILLUST.

23925STAY, FUEL FILTER SUPPORT

main23925-0L020i5LE..LAN155¥280202006-202204

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-0L020i1GDFTV..GUN156..PKN¥1,680202006-202204

90105T0059

main90105-T0059

9167380616

main91673-80616¥60

12 parts on this diagram · 3 diagrams in section
