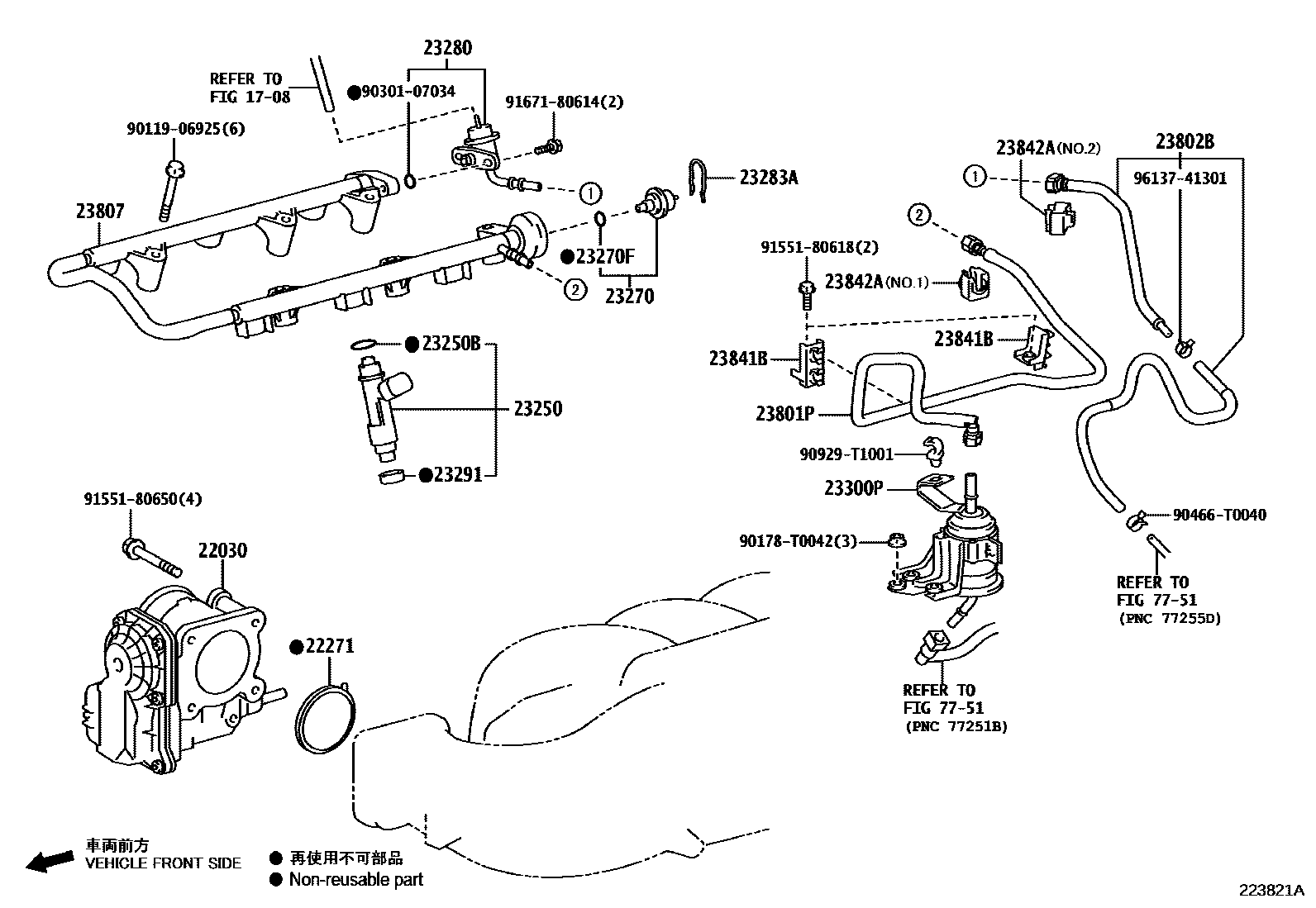

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C030i2TRFE..TGN156,166..PKN202006-202204

(L)

main22030-0C060i2TRFE..TGN166..IDN202008-202108

main22030-31010i1GRFE..GGN155..LA202006-202203

main22030-75040i2TRFE..TGN156,166..EPT,GCC,GEN,IND,MA,SA,VN202006-202204

(J)

22271GASKET, THROTTLE BODY

main22271-0C021i2TRFE..TGN156,166..AGTSU202006-202204

main22271-31012i1GRFE..GGN155..LA202006-202203

main22271-75060i2TRFE..TGN168202011-202110

23250INJECTOR ASSY, FUEL

main23209-09180i2TRFE..TGN168202011-202110

main23209-09320i2TRFE..TGN156,166..PKN202006-202204

(L)

main23209-39075i1GRFE..GGN155..EPT,GCC,GEN202006-202203

sub23209-39015

main23209-79215i2TRFE..TGN156,166..AGTSU202006-202204

(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033i1GRFE..GGN155..LA202006-202203

main90301-07037i2TRFE..TGN156,16#..AGTSU202006-202204

(J)

main90301-T0051i2TRFE..TGN168;2TRFE..TGN156,166..THSUV202006-202110

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31140i1GRFE..GGN155..LA202006-202203

main23270-75050i2TRFE..TGN156,166..PKN202006-202204

main23270-75080i2TRFE..TGN168202011-202110

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i1GRFE..GGN155..LA202006-202203

main90301-07037i2TRFE..TGN156,166..PKN202006-202204

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31041i1GRFE..GGN155..EPT,GCC,GEN202006-202203

main23280-75100i2TRFE..TGN156,166..AGTSU202006-202204

main23280-75120i2TRFE..TGN168202011-202110

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GGN155..EPT,GCC,GEN202006-202203

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

THA SOURCED PARTS

main23291-0C020i2TRFE..TGN156,16#..AGTSU202007-202204

IDN SOURCED PARTS

main23291-23010i1GRFE..GGN155..EPT,GCC,GEN202006-202203

main23291-73010i2TRFE..TGN156,166..THSUV202006-202108

JAPAN SOURCED PARTS

23300PFILTER, FUEL(FOR EFI)

main23300-0D100i2TRFE..TGN168202011-202110

main23300-31120i1GRFE..GGN155..EPT,GCC,GEN202006-202203

main23300-75140i2TRFE..TGN156,166..PKN202006-202204

main23300-75160i2TRFE..TGN166..IDN202008-202108

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31250i1GRFE..GGN155..LA202006-202203

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31190i1GRFE..GGN155..LA202006-202203

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31010i1GRFE..GGN155..LA202006-202203

main23807-75120i2TRFE..TGN168202011-202110

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31030i1GRFE..GGN155..EPT,GCC,GEN202006-202203

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i1GRFE..GGN155..EPT,GCC,GEN202006-202203

NO.1

main23842-31030i1GRFE..GGN155..LA202006-202203

NO.2

7751

9011906925

main90119-06925

90178T0042

main90178-T0042

9030107034

main90301-07034

90466T0040

main90466-T0040

90929T1001

main90929-T1001

9155180618

main91551-80618

9155180650

main91551-80650

9167180614

main91671-80614

9613741301

main96137-41301

26 parts on this diagram · 3 diagrams in section
