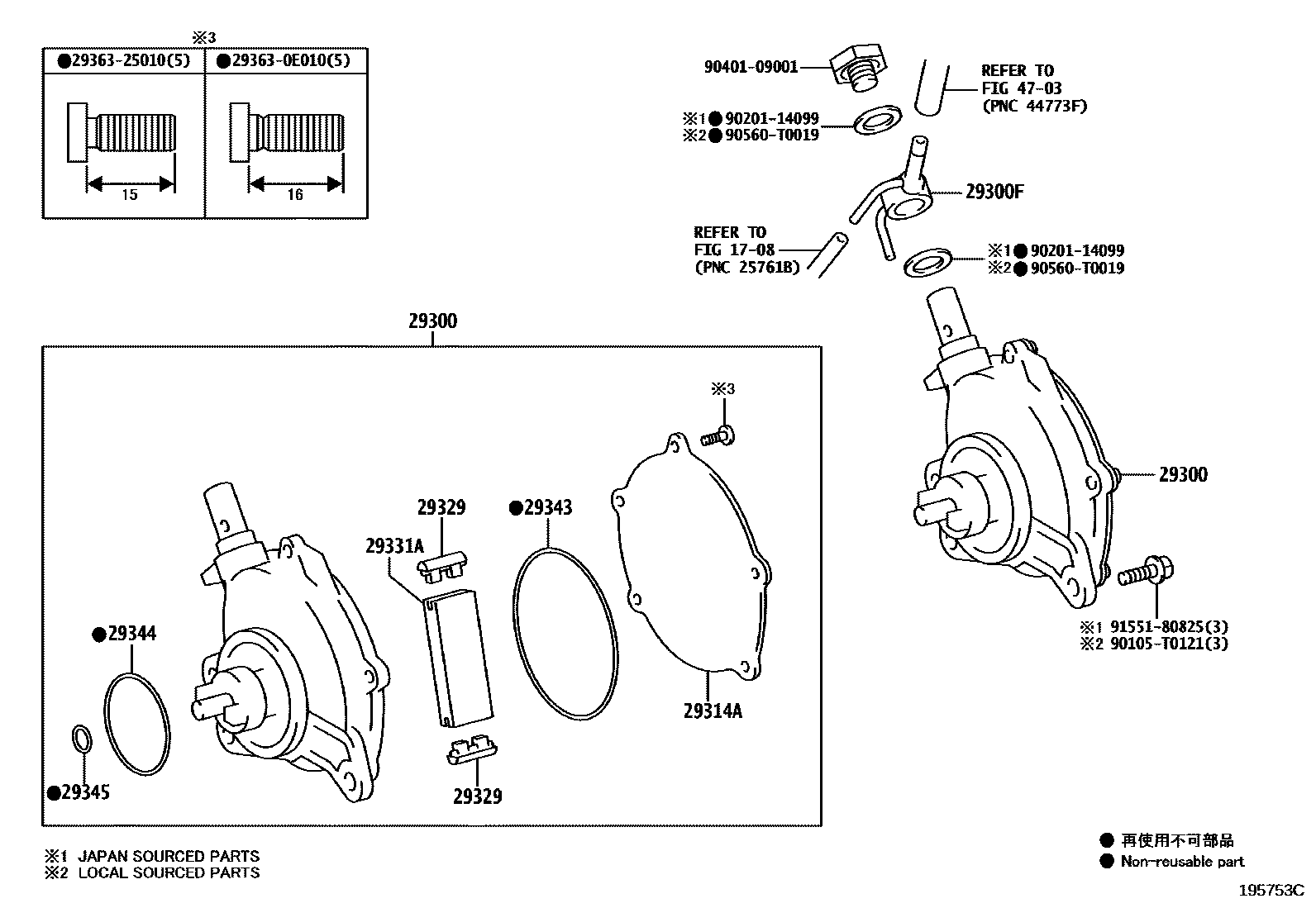

VACUUM PUMP
1708
29300PUMP ASSY, VACUUM
(L),*502,MAGNA
(J),*272
29300FUNION
(J)
main90405-09194i2GDFTV..GUN155,165..LHD..GEN;1GDFTV,2GDFTV..GUN15#,16#..ARL,GCC,IND,PH,TH,VN202006-202204
(J)
(L)
main90405-T0005i1GDFTV..GUN156,166..GEN,MA,PKN,SA;2GDFTV..GUN155,165..RHD..(IDNSU,MASUV,SASUV)202006-202201
29314RING, STOP
29314ACOVER, END
(L),*502,TAIHO
(J),*501
29329CAP, VACUUM PUMP VANE
(L),*501
(J),*501
29331BLADE, VACUUM PUMP, A
29331AVANE, VACUUM PUMP
(L),*502,TAIHO
(J),*272
29343RING, O VACUUM PUMP, NO.1
(L),*502,TAIHO
(J),*272
29344RING, O VACUUM PUMP, NO.2
(L),*501
MAGNA
(J)
29345RING, O VACUUM PUMP, NO.3
*468
MAGNA
(J),*272
4703
293630E010SCREW, HOLLOW VACUUM PUMP
main29363-0E010
2936325010SCREW, HOLLOW VACUUM PUMP
main29363-25010
90105T0121
main90105-T0121
9020114099
main90201-14099
9040109001
main90401-09001
90560T0019
main90560-T0019
9155180825
main91551-80825
19 parts on this diagram · 3 diagrams in section
