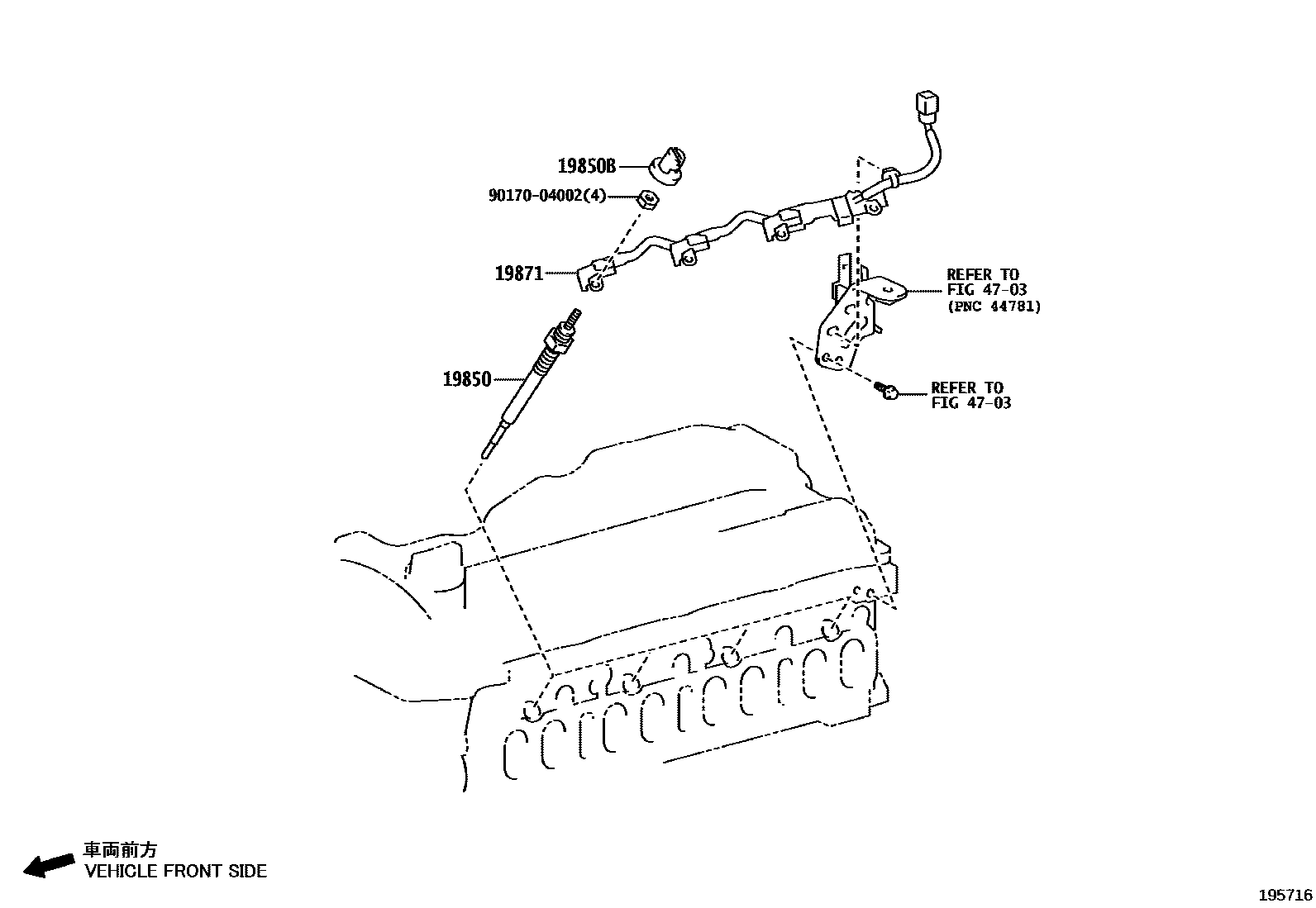

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19850PLUG ASSY, GLOW

main19850-11040i2GDFTV..GUN165..LA202011-202106

*BV-GV=12V-7V,CENTRAL AND SOUTH AMERICA SPEC

main19850-11040i2GDFTV..GUN165..LA202011-202106

*BV-GV=12V-7V,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT

main19850-11040i1GDFTV..GUN156..PKN202006-202204

*BV-GV=12V-7V

main19850-54140i5LE..LAN155202009-202109

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i2GDFTV..GUN155,165..THSUV202006-202108

(J)

main90189-T0001i1GDFTV..GUN156..PKN202006-202204

(L)

main90189-T0001i2GDFTV..GUN165..LA202011-202106

CENTRAL AND SOUTH AMERICA SPEC,(L)

main90189-T0001i2GDFTV..GUN165..LA202011-202106

CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)

19871CONNECTOR, GLOW PLUG NO.1

main19871-0E010i2GDFTV..GUN165..LA202011-202106

CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA SOURCED PARTS

main19871-0E010i1GDFTV..GUN156..6F..LA202011-202106

CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS

main19871-0E010i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202204

THA SOURCED PARTS

main19871-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main19871-11010i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

main19871-54020i5LE..LAN155202009-202109

4703

9017004002

main90170-04002

5 parts on this diagram · 4 diagrams in section
