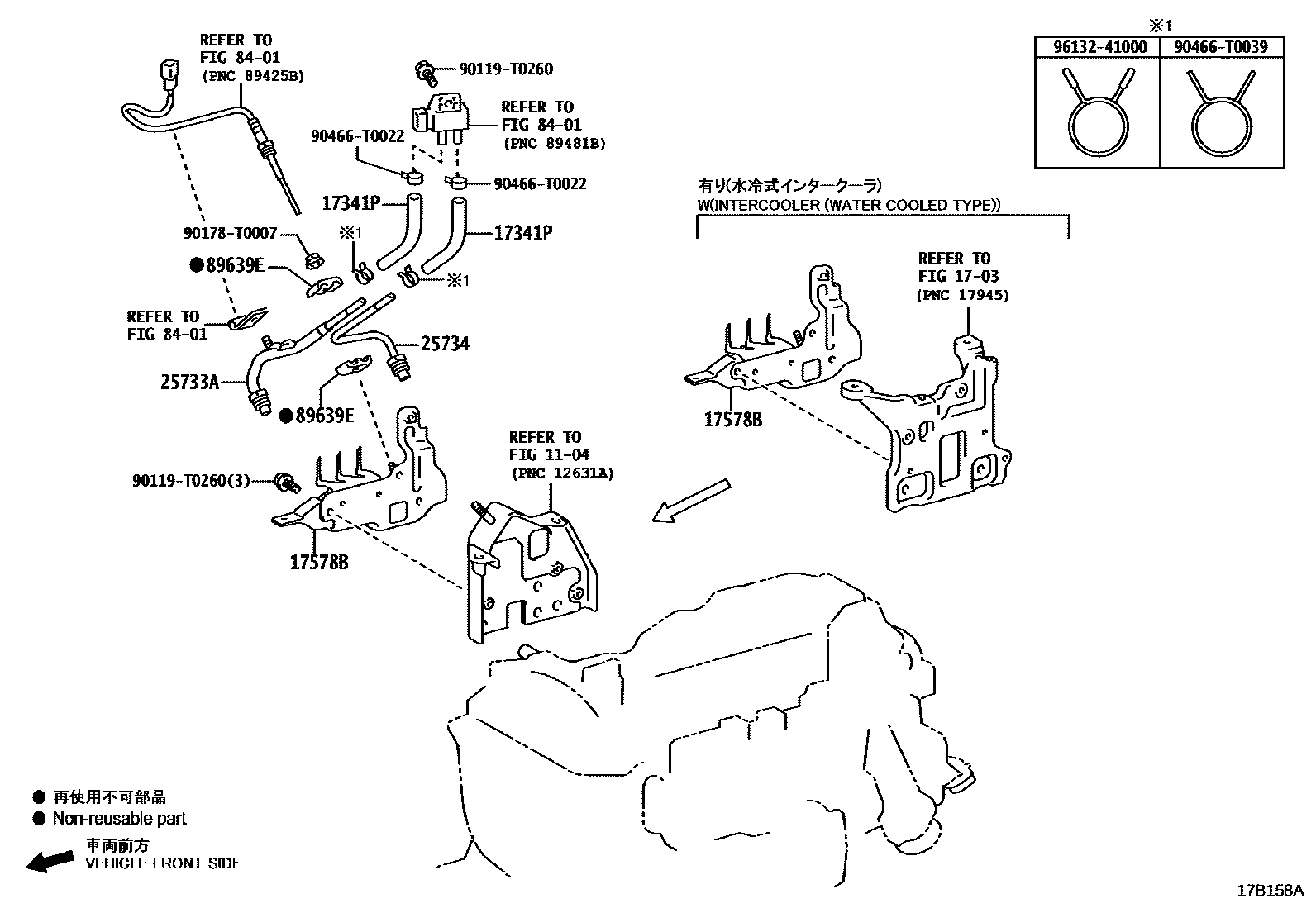

VACUUM PIPING
1104
1703
17341PHOSE, AIR
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,THA SOURCED PARTS
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,THA SOURCED PARTS
THA SOURCED PARTS
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
IND SOURCED PARTS
17578BCLAMP, PIPE
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
25733APIPE, VACUUM, NO.1
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
25734PIPE, VACUUM, NO.2
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
8401
89639ECLAMP
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
90119T0260
main90119-T0260
90178T0007
main90178-T0007
90466T0022
main90466-T0022
90466T0039
main90466-T0039
9613241000
main96132-41000
13 parts on this diagram · 6 diagrams in section
