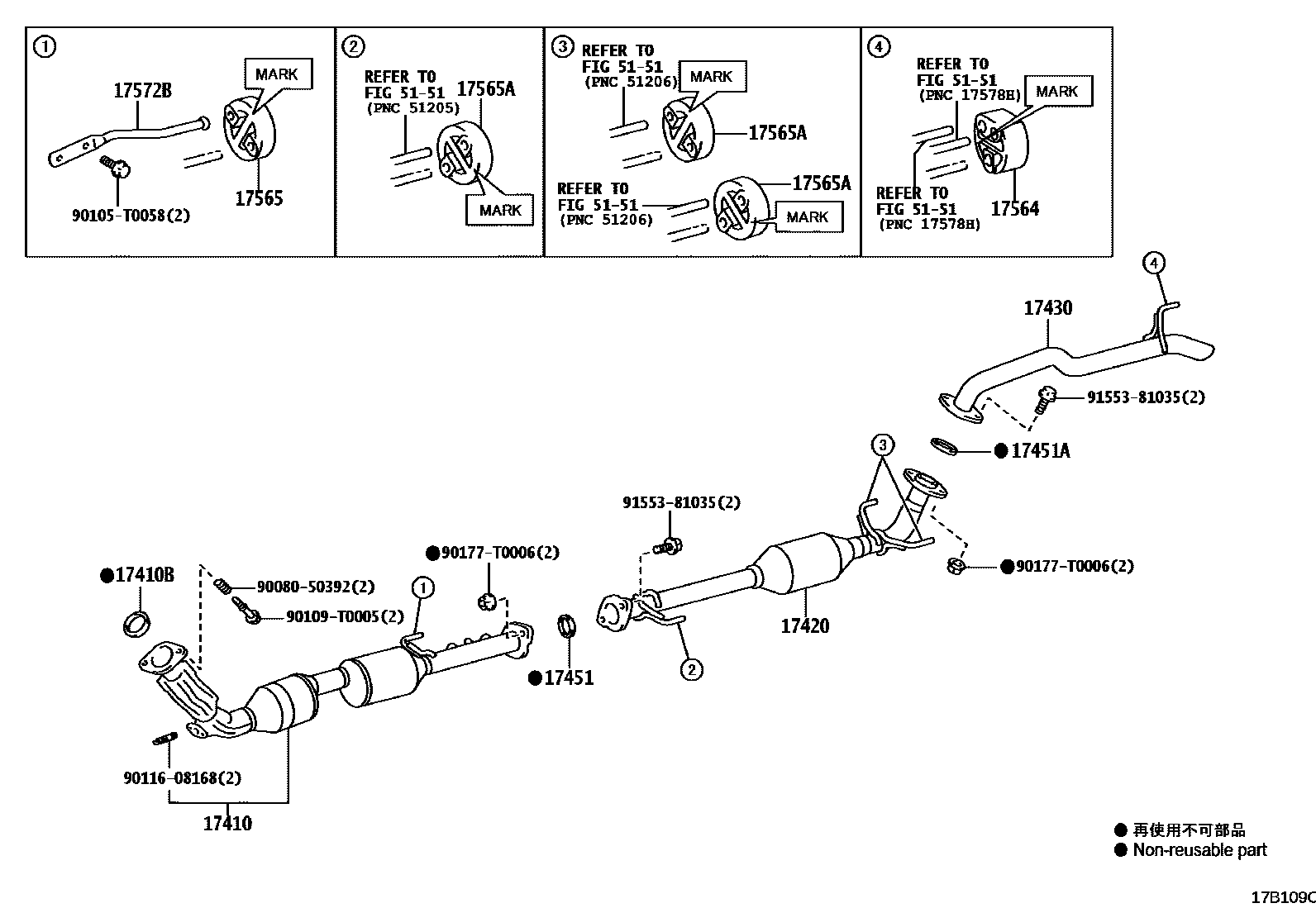

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
sub17401-05111
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS)
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),TYPE A:REFERILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
sub17410-0E081
TYPE B:REFER ILLUST.
17410BGASKET, EXHAUST PIPE
MADE IN THAILAND
MADE IN INDIA
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
main90917-T6002i2TRFE..TGN166..EPTSU,IDNSU,INDSU,THSUV,VNSUV;1G#,2GDFTV,5LE,2TRFE..GGN155,GUN15#,16#,LAN155,TGN156..EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV202006-202204
17564SUPPORT,EXHAUST PIPE, NO.4
main17565-0L100i1G#,2GDFTV,5LE,2TRFE..GGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204
MARK:17565-0L100
main17565-0L110i2TRFE..TGN166;1G#,2GDFTV,5LE,2TRFE..GGN155,GUN15#,16#,LAN155,TGN156,168..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV202006-202108
MARK:17565-0L110
MARK:17565-0L120
main17565-0L130i1G#,2GDFTV,5LE,2TRFE..GGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,PKNSU,SASUV,THSUV,VNSUV202006-202111
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-0L070i2TRFE..TGN156,16#;1GDFTV..GUN156,166..GEN,MA,PKN,SA;2GDFTV..GUN155,165..RHD..(IDNSU,MASUV,SASUV)202006-202108
MARK:17565-0L070
MARK:17565-0L080
MARK:17565-0L090
NO MARK
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-0L070i2TRFE..TGN166;1G#,2GDFTV,5LE,2TRFE..GGN155,GUN15#,16#,LAN155,TGN156,168..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV202006-202108
MARK:17565-0L070
MARK:17565-0L080
main17565-0L090i1G#,2GDFTV,5LE,2TRFE..GGN155,GUN15#,16#,LAN155,TGN156,166..EPTSU,IDNSU,INDSU,MASUV,PKNSU,SASUV,THSUV,VNSUV202006-202111
MARK:17565-0L090
NO MARK
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
main17572-0L030i1GDFTV..GUN156,166..GEN,MA,PKN,SA;2GDFTV..GUN155,165..RHD..(IDNSU,MASUV,SASUV)202006-202201
5151
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035
18 parts on this diagram · 5 diagrams in section
