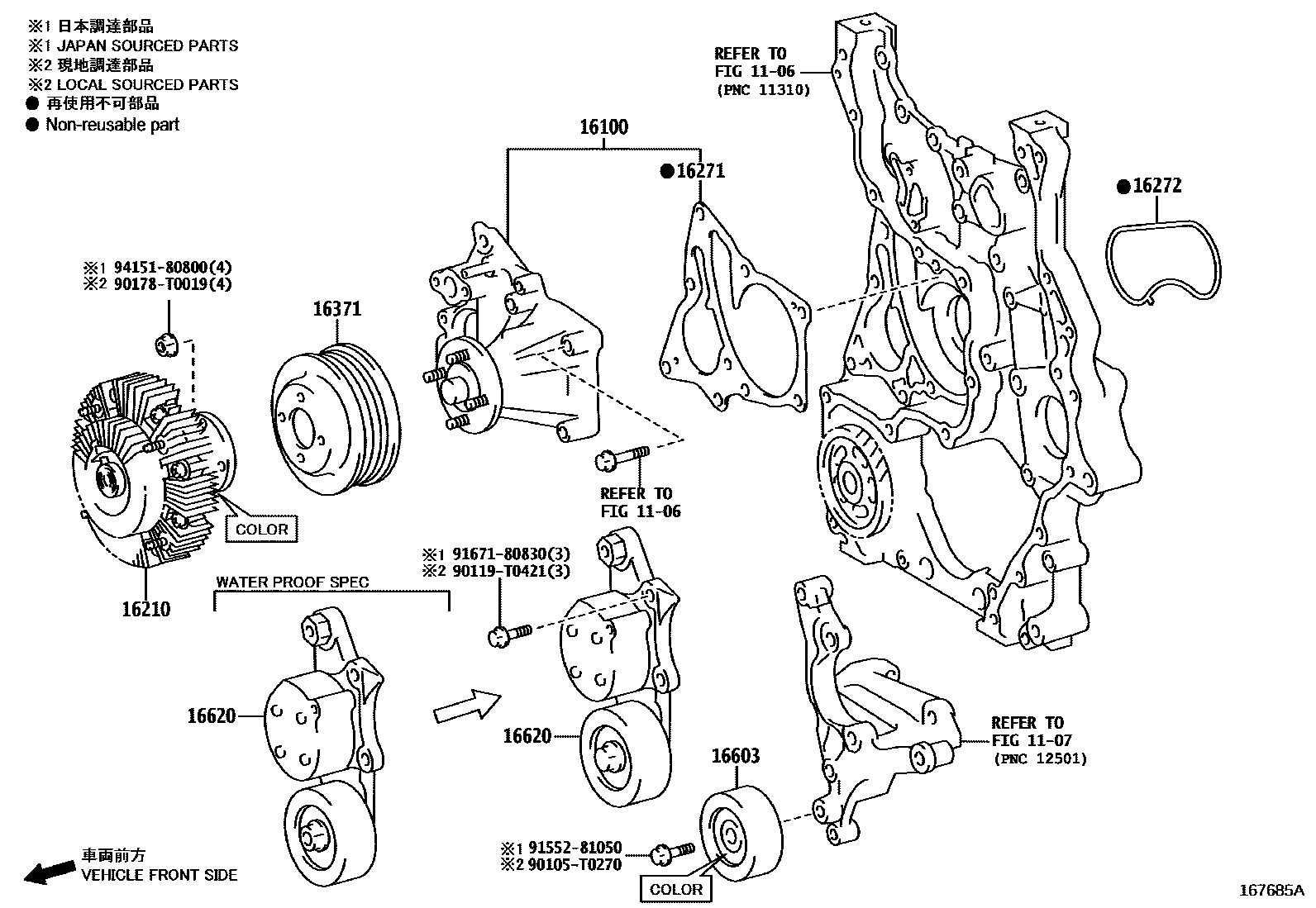

WATER PUMP
1106
1107
16100PUMP ASSY, ENGINE WATER
(L)
(J)
16210COUPLING ASSY, FLUID
GRAY
main16210-0E020i2GDFTV..GUN165..6F;2GDFTV..GUN155,165..LHD..GEN;2GDFTV..GUN155,165..6FC..(GCC,PH,TH,VN)202006-202204
GREEN
main16210-0E040i1GDFTV..GUN166..H;1GDFTV..GUN166..6F..SA;1GDFTV..GUN156..RHD..6F;1GDFTV..GUN156..6FC..(GCC,IND,PH,TH,VN)202006-202204
YELLOW
MOSS GREEN
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,LIGHT GRAY
16271GASKET, WATER PUMP
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
16272GASKET, WATER PUMP, NO.2
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
16371PULLEY, FAN
(L)
THA SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
(J)
16603PULLEY SUB-ASSY, IDLER, NO.1
main16603-0C013i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..AGTSU..6FC..(H,S);1GDFTV,2GDFTV..GUN156,165..6FC..L..LA202006-202204
(L),BLACK
main16603-0E010i1GDFTV..GUN156..LHD..6F..SA;1GDFTV..GUN156..6FC..(ARL,GEN,MA,PKN,SA);1GDFTV,2GDFTV..GUN155,16#..RHD..(IDNSU,MASUV,SASUV)..6FC202006-202204
(L)
(J),BLACK
(J)
16620TENSIONER ASSY, V-RIBBED BELT
main16620-0E010i1GDFTV..GUN156..AGTSU..6F;1GDFTV..GUN156..AGTSU..6FC..(H,S);1GDFTV,2GDFTV..GUN156,165..6FC..L..LA202006-202204
(L)
main16620-0E020i1GDFTV..GUN156..LHD..6F..SA;1GDFTV..GUN156..6FC..(ARL,GEN,MA,PKN,SA);1GDFTV,2GDFTV..GUN155,16#..RHD..(IDNSU,MASUV,SASUV)..6FC202006-202201
WATER PROOF SPEC
(J)
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
main91552-81050
9167180830
main91671-80830
9415180800
main94151-80800
15 parts on this diagram · 4 diagrams in section
