EPC Data

CRANKSHAFT & PISTON

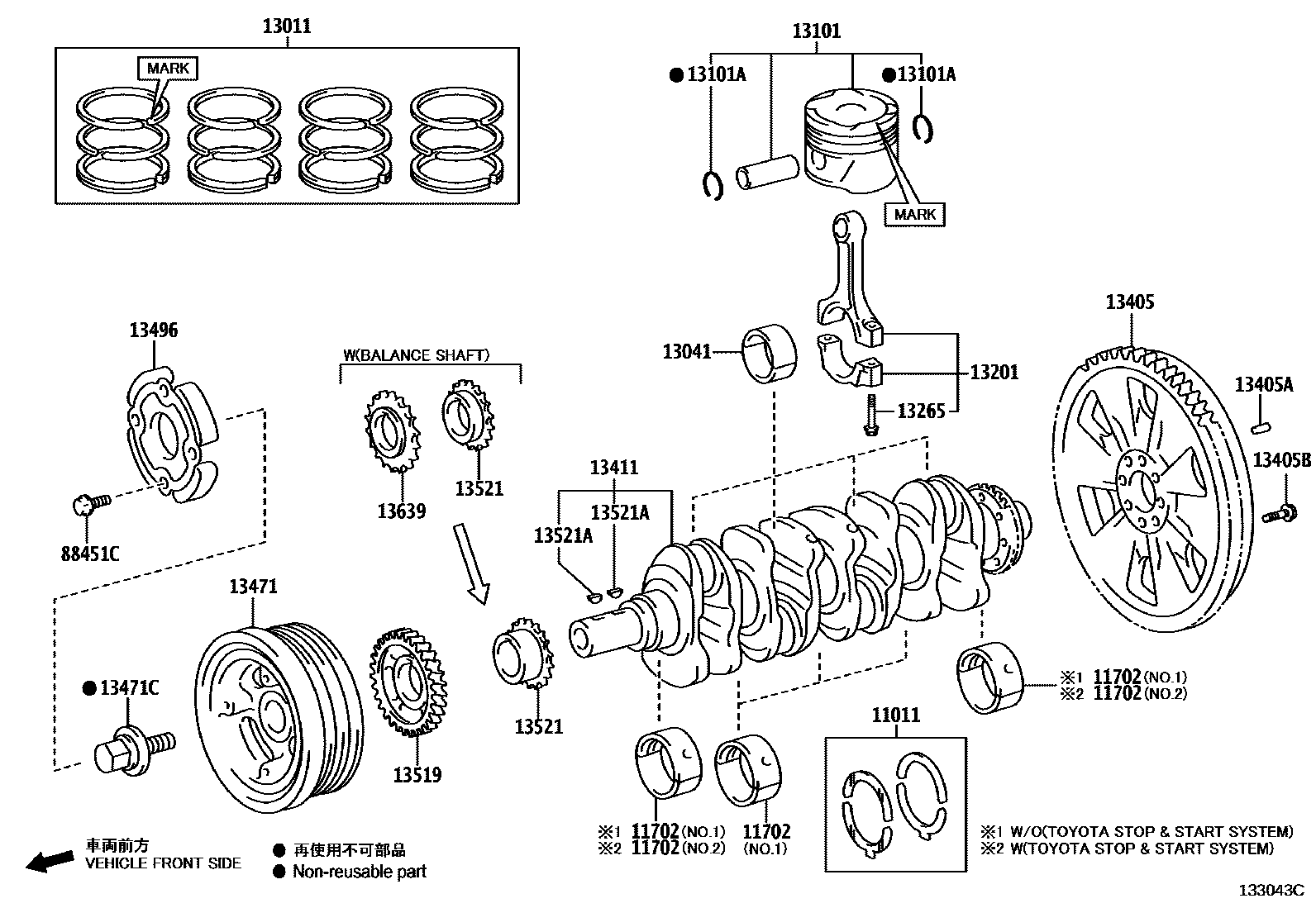

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-0C010i202006-202204
STD
main11011-0L020i202006-202204
STD,(L)
main11011-0L020i202011-202106
STD,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
main11011-0L020i202011-202106
STD,CENTRAL AND SOUTH AMERICA SPEC,(L)
main11011-30010i202006-202108
STD,(J)
main11011-31071i202006-202203
STD
main11011-54020i202009-202109
STD
main11012-54020i202009-202109
O/S 0.125
main11013-54020i202009-202109
O/S 0.250
11702BEARING SET, CRANKSHAFT
main11071-31050-01i202006-202203
STD,MARK 1,NO.2,REFER R/M
main11071-31050-02i202006-202203
STD,MARK 2,NO.2,REFER R/M
main11071-31050-03i202006-202203
STD,MARK 3,NO.2,REFER R/M
main11071-31050-04i202006-202203
STD,MARK 4,NO.2,REFER R/M
main11071-31050-05i202006-202203
STD,MARK 5,NO.2,REFER R/M
main11701-0E010-02i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK 2,NO.1,REFER R/M,*652
main11701-0E010-02i202011-202110
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 2,NO.1,REFERR/M,*652
main11701-0E010-02i202007-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),MARK 2,NO.1,REFER R/M,*652
main11701-0E010-02i202007-202108
OCEANIA GENERAL(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARDDIAGNOSIS),MARK 2,NO.1,REFER R/M,*652
main11701-0E010-02i202007-202108
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 2,NO.1,REFER R/M,*652
main11701-0E010-02i202006-202204
MARK 2,NO.1,REFER R/M,*652
main11701-0E010-02i202011-202110
PERU SPEC,MARK 2,NO.1,REFER R/M,*652
main11701-0E010-02i202008-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK 2,NO.1,REFER R/M,*652
main11701-0E010-03i202007-202108
OCEANIA GENERAL(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARDDIAGNOSIS),MARK 3,NO.1,REFER R/M,*652
main11701-0E010-03i202011-202110
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 3,NO.1,REFERR/M,*652
main11701-0E010-03i202011-202110
PERU SPEC,MARK 3,NO.1,REFER R/M,*652
main11701-0E010-03i202006-202204
MARK 3,NO.1,REFER R/M,*652
main11701-0E010-03i202008-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK 3,NO.1,REFER R/M,*652
main11701-0E010-03i202007-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),MARK 3,NO.1,REFER R/M,*652
main11701-0E010-03i202007-202108
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 3,NO.1,REFER R/M,*652
main11701-0E010-03i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK 3,NO.1,REFER R/M,*652
main11701-0E010-04i202007-202108
OCEANIA GENERAL(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARDDIAGNOSIS),MARK 4,NO.1,REFER R/M,*652
main11701-0E010-04i202007-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),MARK 4,NO.1,REFER R/M,*652
main11701-0E010-04i202007-202108
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 4,NO.1,REFER R/M,*652
main11701-0E010-04i202011-202110
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 4,NO.1,REFERR/M,*652
main11701-0E010-04i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK 4,NO.1,REFER R/M,*652
main11701-0E010-04i202006-202204
MARK 4,NO.1,REFER R/M,*652
main11701-0E010-04i202008-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK 4,NO.1,REFER R/M,*652
main11701-0E010-04i202011-202110
PERU SPEC,MARK 4,NO.1,REFER R/M,*652
main11701-0E010-05i202011-202110
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 5,NO.1,REFERR/M,*652
main11701-0E010-05i202007-202108
OCEANIA GENERAL(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARDDIAGNOSIS),MARK 5,NO.1,REFER R/M,*652
main11701-0E010-05i202007-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),MARK 5,NO.1,REFER R/M,*652
main11701-0E010-05i202007-202108
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 5,NO.1,REFER R/M,*652
main11701-0E010-05i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK 5,NO.1,REFER R/M,*652
main11701-0E010-05i202006-202204
MARK 5,NO.1,REFER R/M,*652
main11701-0E010-05i202008-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK 5,NO.1,REFER R/M,*652
main11701-0E010-05i202011-202110
PERU SPEC,MARK 5,NO.1,REFER R/M,*652
main11701-0E010-06i202007-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),MARK 6,NO.1,REFER R/M,*652
main11701-0E010-06i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK 6,NO.1,REFER R/M,*652
main11701-0E010-06i202011-202110
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 6,NO.1,REFERR/M,*652
main11701-0E010-06i202007-202108
OCEANIA GENERAL(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARDDIAGNOSIS),MARK 6,NO.1,REFER R/M,*652
main11701-0E010-06i202007-202108
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 6,NO.1,REFER R/M,*652
main11701-0E010-06i202008-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK 6,NO.1,REFER R/M,*652
main11701-0E010-06i202006-202204
MARK 6,NO.1,REFER R/M,*652
main11701-0E010-06i202011-202110
PERU SPEC,MARK 6,NO.1,REFER R/M,*652
main11701-0E020-02i202007-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),MARK 2,NO.2,REFER R/M,*652
main11701-0E020-02i202008-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK 2,NO.2,REFER R/M,*652
main11701-0E020-02i202011-202110
PERU SPEC,MARK 2,NO.2,REFER R/M,*652
main11701-0E020-02i202007-202108
OCEANIA GENERAL(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARDDIAGNOSIS),MARK 2,NO.2,REFER R/M,*652
main11701-0E020-02i202006-202204
MARK 2,NO.2,REFER R/M,*652
main11701-0E020-03i202006-202204
MARK 3,NO.2,REFER R/M,*652
main11701-0E020-03i202007-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),MARK 3,NO.2,REFER R/M,*652
main11701-0E020-03i202008-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK 3,NO.2,REFER R/M,*652
main11701-0E020-03i202011-202110
PERU SPEC,MARK 3,NO.2,REFER R/M,*652
main11701-0E020-03i202007-202108
OCEANIA GENERAL(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARDDIAGNOSIS),MARK 3,NO.2,REFER R/M,*652
main11701-0E020-04i202007-202108
OCEANIA GENERAL(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARDDIAGNOSIS),MARK 4,NO.2,REFER R/M,*652
main11701-0E020-04i202007-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),MARK 4,NO.2,REFER R/M,*652
main11701-0E020-04i202006-202204
MARK 4,NO.2,REFER R/M,*652
main11701-0E020-04i202011-202110
PERU SPEC,MARK 4,NO.2,REFER R/M,*652
main11701-0E020-04i202008-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK 4,NO.2,REFER R/M,*652
main11701-0E020-05i202007-202108
OCEANIA GENERAL(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARDDIAGNOSIS),MARK 5,NO.2,REFER R/M,*652
main11701-0E020-05i202008-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK 5,NO.2,REFER R/M,*652
main11701-0E020-05i202006-202204
MARK 5,NO.2,REFER R/M,*652
main11701-0E020-05i202007-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),MARK 5,NO.2,REFER R/M,*652
main11701-0E020-05i202011-202110
PERU SPEC,MARK 5,NO.2,REFER R/M,*652
main11701-0E020-06i202007-202108
OCEANIA GENERAL(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARDDIAGNOSIS),MARK 6,NO.2,REFER R/M,*652
main11701-0E020-06i202007-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),MARK 6,NO.2,REFER R/M,*652
main11701-0E020-06i202011-202110
PERU SPEC,MARK 6,NO.2,REFER R/M,*652
main11701-0E020-06i202006-202204
MARK 6,NO.2,REFER R/M,*652
main11701-0E020-06i202008-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK 6,NO.2,REFER R/M,*652
main11701-0E030-02i202008-202109
MARK 2,NO.1,REFER R/M,*650
main11701-0E030-03i202008-202109
MARK 3,NO.1,REFER R/M,*650
main11701-0E030-04i202008-202109
MARK 4,NO.1,REFER R/M,*650
main11701-0E030-05i202008-202109
MARK 5,NO.1,REFER R/M,*650
main11701-0E030-06i202008-202109
MARK 6,NO.1,REFER R/M,*650
main11701-11030-02i202006-202108
MARK 2,NO.1,REFER R/M,*657
main11701-11030-03i202006-202108
MARK 3,NO.1,REFER R/M,*657
main11701-11030-04i202006-202108
MARK 4,NO.1,REFER R/M,*657
main11701-11030-05i202006-202108
MARK 5,NO.1,REFER R/M,*657
main11701-11030-06i202006-202108
MARK 6,NO.1,REFER R/M,*657
main11701-11040-02i202006-202108
MARK 2,NO.2,REFER R/M,*657
sub11701-35040
main11701-11040-03i202006-202108
MARK 3,NO.2,REFER R/M,*657
sub11701-35040
main11701-11040-04i202006-202108
MARK 4,NO.2,REFER R/M,*657
sub11701-35040
main11701-11040-05i202006-202108
MARK 5,NO.2,REFER R/M,*657
sub11701-35040
main11701-11040-06i202006-202108
MARK 6,NO.2,REFER R/M,*657
sub11701-35040
main11701-31080-01i202006-202203
STD,MARK 1,NO.1,REFER R/M
main11701-31080-02i202006-202203
STD,MARK 2,NO.1,REFER R/M
main11701-31080-03i202006-202203
STD,MARK 3,NO.1,REFER R/M
main11701-31080-04i202006-202203
STD,MARK 4,NO.1,REFER R/M
main11701-31080-05i202006-202203
STD,MARK 5,NO.1,REFER R/M
main11704-54081i202009-202109
U/S 0.25
main11704-75032i202006-202204
U/S 0.25
sub11704-75033
main11705-54081i202009-202109
U/S 0.50
13011RING SET, PISTON
main13011-0C090i202006-202204
STD,(L)
main13011-0E022i202011-202110
STD,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK=1G
main13011-0E022i202011-202110
STD,CENTRAL AND SOUTH AMERICA SPEC,MARK=1G
main13011-0E022i202011-202110
STD,CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),MARK=1G
main13011-0E022i202007-202108
STD,ASEAN GENERAL SPEC,MARK=1G
main13011-0E022i202006-202201
STD,MARK=1G
main13011-0E022i202009-202109
STD,EXPORT FROM SOUTH AFRICA&EXHAUST EMISSION CONTROL-WITHOUT,MARK=1G
main13011-0E022i202009-202109
STD,EXPORT FROM SOUTH AFRICA,MARK=1G
main13011-0E041i202007-202011
STD,EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK=1H,*652
sub13011-0E042
main13011-0E041i202007-202011
STD,OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),MARK=1H,*652
sub13011-0E042
main13011-0E041i202007-202011
STD,OCEANIA GENERAL(EURO 4 REGULATION),MARK=1H,*652
sub13011-0E042
main13011-0E041i202007-202011
STD,NEPAL, SRI LANKA SPEC(EURO 4 REGULATION),MARK=1H,*652
sub13011-0E042
main13011-0E041i202006-202012
STD,MARK=1H,*652
sub13011-0E042
main13011-0E041i202011-202012
STD,CENTRAL AND SOUTH AMERICA SPEC,MARK=1H,*652
sub13011-0E042
main13011-0E041i202011-202012
STD,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK=1H,*652
sub13011-0E042
main13011-0E042i202012-202108
STD,OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),MARK=1H,*652
main13011-0E042i202012-202106
STD,CENTRAL AND SOUTH AMERICA SPEC,MARK=1H,*652
main13011-0E042i202012-202106
STD,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK=1H,*652
main13011-0E042i202012-202108
STD,OCEANIA GENERAL(EURO 4 REGULATION),MARK=1H,*652
main13011-0E042i202012-202108
STD,NEPAL, SRI LANKA SPEC(EURO 4 REGULATION),MARK=1H,*652
main13011-0E042i202012-202108
STD,EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),MARK=1H,*652
main13011-0E042i202012-202204
STD,MARK=1H,*652
main13011-0E051i202008-202109
STD,MARK=1H,*650
sub13011-0E052
main13011-11221i202006-202108
STD,MARK=1H,(J)
main13011-31200i202006-202203
STD
main13011-54130i202009-202109
STD
main13011-75200i202006-202204
STD,(J)
main13011-75240i202011-202110
STD
main13013-54130i202009-202109
O/S 0.50
main13013-75200i202006-202204
O/S 0.50
main13013-75240i202011-202110
O/S 0.50
13041BEARING, CONNECTING ROD
main13041-0C060-04i202006-202204
MARK 4,(L),REFER R/M
main13041-0C060-05i202006-202204
MARK 5,(L),REFER R/M
main13041-0C060-06i202006-202204
MARK 6,(L),REFER R/M
main13041-0E010-02i202006-202103
MARK 2,THA SOURCED, *RRM
sub13041-0E011
main13041-0E010-02i202011-202103
CENTRAL AND SOUTH AMERICA SPEC,MARK 2,THA SOURCED, *RRM
sub13041-0E011
main13041-0E010-03i202011-202103
CENTRAL AND SOUTH AMERICA SPEC,MARK 3,THA SOURCED, *RRM
sub13041-0E011
main13041-0E010-03i202006-202103
MARK 3,THA SOURCED, *RRM
sub13041-0E011
main13041-0E010-04i202006-202103
MARK 4,THA SOURCED, *RRM
sub13041-0E011
main13041-0E010-04i202011-202103
CENTRAL AND SOUTH AMERICA SPEC,MARK 4,THA SOURCED, *RRM
sub13041-0E011
main13041-0E010-05i202006-202103
MARK 5,THA SOURCED, *RRM
sub13041-0E011
main13041-0E010-05i202011-202103
CENTRAL AND SOUTH AMERICA SPEC,MARK 5,THA SOURCED, *RRM
sub13041-0E011
main13041-0E010-06i202006-202103
MARK 6,THA SOURCED, *RRM
sub13041-0E011
main13041-0E010-06i202011-202103
CENTRAL AND SOUTH AMERICA SPEC,MARK 6,THA SOURCED, *RRM
sub13041-0E011
main13041-0E011-02i202104-202204
MARK 2,THA SOURCED, *RRM
main13041-0E011-02i202104-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK 2,THA SOURCED, *RRM
main13041-0E011-03i202104-202204
MARK 3,THA SOURCED, *RRM
main13041-0E011-03i202104-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK 3,THA SOURCED, *RRM
main13041-0E011-04i202104-202204
MARK 4,THA SOURCED, *RRM
main13041-0E011-04i202104-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK 4,THA SOURCED, *RRM
main13041-0E011-05i202104-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK 5,THA SOURCED, *RRM
main13041-0E011-05i202104-202204
MARK 5,THA SOURCED, *RRM
main13041-0E011-06i202104-202204
MARK 6,THA SOURCED, *RRM
main13041-0E011-06i202104-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK 6,THA SOURCED, *RRM
main13041-0E020-02i202006-202103
MARK 2,THA SOURCED, *RRM
sub13041-0E021
main13041-0E020-02i202011-202103
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 2,THA SOURCED, *RRM
sub13041-0E021
main13041-0E020-03i202006-202103
MARK 3,THA SOURCED, *RRM
sub13041-0E021
main13041-0E020-03i202011-202103
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 3,THA SOURCED, *RRM
sub13041-0E021
main13041-0E020-04i202006-202103
MARK 4,THA SOURCED, *RRM
sub13041-0E021
main13041-0E020-04i202011-202103
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 4,THA SOURCED, *RRM
sub13041-0E021
main13041-0E020-05i202006-202103
MARK 5,THA SOURCED, *RRM
sub13041-0E021
main13041-0E020-05i202011-202103
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 5,THA SOURCED, *RRM
sub13041-0E021
main13041-0E020-06i202006-202103
MARK 6,THA SOURCED, *RRM
sub13041-0E021
main13041-0E020-06i202011-202103
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 6,THA SOURCED, *RRM
sub13041-0E021
main13041-0E021-02i202104-202204
MARK 2,THA SOURCED, *RRM
main13041-0E021-02i202104-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 2,THA SOURCED, *RRM
main13041-0E021-03i202104-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 3,THA SOURCED, *RRM
main13041-0E021-03i202104-202204
MARK 3,THA SOURCED, *RRM
main13041-0E021-04i202104-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 4,THA SOURCED, *RRM
main13041-0E021-04i202104-202204
MARK 4,THA SOURCED, *RRM
main13041-0E021-05i202104-202204
MARK 5,THA SOURCED, *RRM
main13041-0E021-05i202104-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 5,THA SOURCED, *RRM
main13041-0E021-06i202104-202204
MARK 6,THA SOURCED, *RRM
main13041-0E021-06i202104-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 6,THA SOURCED, *RRM
main13041-0E040-02i202008-202105
MARK 2,IND SOURCED, *RRM
sub13041-0E041
main13041-0E040-03i202008-202105
MARK 3,IND SOURCED, *RRM
sub13041-0E041
main13041-0E040-04i202008-202105
MARK 4,IND SOURCED, *RRM
sub13041-0E041
main13041-0E040-05i202008-202105
MARK 5,IND SOURCED, *RRM
sub13041-0E041
main13041-0E040-06i202008-202105
MARK 6,IND SOURCED, *RRM
sub13041-0E041
main13041-0E041-02i202106-202109
MARK 2,IND SOURCED, *RRM
main13041-0E041-03i202106-202109
MARK 3,IND SOURCED, *RRM
main13041-0E041-04i202106-202109
MARK 4,IND SOURCED, *RRM
main13041-0E041-05i202106-202109
MARK 5,IND SOURCED, *RRM
main13041-0E041-06i202106-202109
MARK 6,IND SOURCED, *RRM
main13041-11050-02i202006-202108
MARK 2,JAPAN SOURCED, *RRM
sub13041-11051
main13041-11050-03i202006-202108
MARK 3,JAPAN SOURCED, *RRM
sub13041-11051
main13041-11050-04i202006-202108
MARK 4,JAPAN SOURCED, *RRM
sub13041-11051
main13041-11050-05i202006-202108
MARK 5,JAPAN SOURCED, *RRM
sub13041-11051
main13041-11050-06i202006-202108
MARK 6,JAPAN SOURCED, *RRM
sub13041-11051
main13041-31090-01i202006-202203
MARK 1,REFER REPAIR MANUAL
main13041-31090-02i202006-202203
MARK 2,REFER REPAIR MANUAL
main13041-31090-03i202006-202203
MARK 3,REFER REPAIR MANUAL
main13041-31090-04i202006-202203
MARK 4,REFER REPAIR MANUAL
main13041-54042-01i202009-202109
MARK1,REFER REPAIR MANUAL
main13041-54042-02i202009-202109
MARK2,REFER REPAIR MANUAL
main13041-54042-03i202009-202109
MARK3,REFER REPAIR MANUAL
main13041-75070-04i202006-202204
MARK 4,(J),REFER R/M
main13041-75070-05i202006-202204
MARK 5,(J),REFER R/M
main13041-75070-06i202006-202204
MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
main13101-0C070i202007-202204
STD,IDN SOURCED PARTS
main13101-0C090i202006-202108
STD,THA SOURCED PARTS
main13101-0C100i202011-202110
STD
main13101-0E050-01i202006-202111
STD,MARK 1,MARK=2GD50
sub13101-0E051
main13101-0E050-01i202011-202106
STD,CENTRAL AND SOUTH AMERICA SPEC,MARK 1,MARK=2GD50
sub13101-0E051
main13101-0E050-02i202006-202111
STD,MARK 2,MARK=2GD50
sub13101-0E051
main13101-0E050-02i202011-202106
STD,CENTRAL AND SOUTH AMERICA SPEC,MARK 2,MARK=2GD50
sub13101-0E051
main13101-0E051-01i202104-202106
STD,CENTRAL AND SOUTH AMERICA SPEC,MARK 1,MARK=2GD51
main13101-0E051-01i202104-202204
STD,MARK 1,MARK=2GD51
main13101-0E051-02i202104-202106
STD,CENTRAL AND SOUTH AMERICA SPEC,MARK 2,MARK=2GD51
main13101-0E051-02i202104-202204
STD,MARK 2,MARK=2GD51
main13101-0E070i202008-202011
STD,MARK=1GD70
sub13101-0E071
main13101-0E070-01i202006-202111
STD,MARK 1,MARK=1GD70
sub13101-0E071
main13101-0E070-01i202011-202106
STD,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 1,MARK=1GD70
sub13101-0E071
main13101-0E070-02i202006-202111
STD,MARK 2,MARK=1GD70
sub13101-0E071
main13101-0E070-02i202011-202106
STD,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK 2,MARK=1GD70
sub13101-0E071
main13101-0E071-01i202111-202204
STD,MARK 1,MARK=1GD71
main13101-0E071-02i202111-202204
STD,MARK 2,MARK=1GD71
main13101-0E080-01i202011-202104
STD,MARK 1,MARK=1GD80
sub13101-0E081
main13101-0E080-02i202011-202104
STD,MARK 2,MARK=1GD80
sub13101-0E081
main13101-0E081-01i202108-202109
STD,MARK 1,MARK=1GD81
main13101-0E081-02i202108-202109
STD,MARK 2,MARK=1GD81
main13101-11230i202006-202101
STD,MARK=2GD20
sub13101-11231
main13101-11231-01i202101-202108
STD,MARK 1,MARK=2GD21
main13101-11231-02i202101-202108
STD,MARK 2,MARK=2GD21
main13101-31030-A0i202006-202203
STD,MARK A,REFER R/M
sub13101-31030
main13101-31030-B0i202006-202203
STD,MARK B,REFER R/M
sub13101-31030
main13101-31030-C0i202006-202203
STD,MARK C,REFER R/M
sub13101-31030
main13101-54120-01i202009-202109
STD,MARK 1,REFER REPAIR MANUAL
main13101-54120-02i202009-202109
STD,MARK 2,REFER REPAIR MANUAL
main13101-54120-03i202009-202109
STD,MARK 3,REFER REPAIR MANUAL
main13103-0C100i202011-202110
O/S 0.50
main13103-54120i202009-202109
O/S 0.50
main13103-75200i202006-202204
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i202006-202204
main90520-32013i202006-202204
main90520-32013i202011-202104
CENTRAL AND SOUTH AMERICA SPEC
main90520-32013i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
main90521-31001i202009-202109
13201ROD SUB-ASSY, CONNECTING
main13201-09673i202006-202204
IDN SOURCED PARTS
main13201-09B81i202006-202204
THA SOURCED PARTS
main13201-0E010-A0i202006-202204
MARK A,THA, REFER R/M
main13201-0E010-A0i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK A,THA, REFER R/M
main13201-0E010-B0i202006-202204
MARK B,THA, REFER R/M
main13201-0E010-B0i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK B,THA, REFER R/M
main13201-0E010-C0i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,MARK C,THA, REFER R/M
main13201-0E010-C0i202006-202204
MARK C,THA, REFER R/M
main13201-0E020-A0i202006-202204
MARK A,THA, REFER R/M
main13201-0E020-A0i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK A,THA, REFERR/M
main13201-0E020-B0i202006-202204
MARK B,THA, REFER R/M
main13201-0E020-B0i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK B,THA, REFERR/M
main13201-0E020-C0i202006-202204
MARK C,THA, REFER R/M
main13201-0E020-C0i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,MARK C,THA, REFERR/M
main13201-0E040-A0i202008-202109
MARK A,IND, REFER R/M
main13201-0E040-B0i202008-202109
MARK B,IND, REFER R/M
main13201-0E040-C0i202008-202109
MARK C,IND, REFER R/M
main13201-11040-A0i202006-202204
MARK A,JAPAN, REFER R/M
main13201-11040-B0i202006-202204
MARK B,JAPAN, REFER R/M
main13201-11040-C0i202006-202204
MARK C,JAPAN, REFER R/M
main13201-11050-A0i202006-202204
MARK A,JAPAN, REFER R/M
main13201-11050-B0i202006-202204
MARK B,JAPAN, REFER R/M
main13201-11050-C0i202006-202204
MARK C,JAPAN, REFER R/M
main13201-39235-A0i202006-202203
MARK A,REFER R/M
sub13201-39235
main13201-39235-B0i202006-202203
MARK B,REFER R/M
sub13201-39235
main13201-39235-C0i202006-202203
MARK C,REFER R/M
sub13201-39235
main13201-59216i202009-202109
13265BOLT, CONNECTING ROD
main13265-0C010i202006-202204
IDN SOURCED PARTS
main13265-0C020i202006-202204
THA SOURCED PARTS
main13265-22031i202006-202204
main13265-22031i202011-202106
CENTRAL AND SOUTH AMERICA SPEC
main13265-22031i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
main13265-28020i202006-202203
main13265-54021i202009-202109
13405FLYWHEEL SUB-ASSY
main13405-0C030i202007-202110
IDN SOURCED PARTS
main13405-0E020i202006-202204
THA SOURCED PARTS
main13405-0E020i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
main13405-0E030i202007-202204
THA SOURCED PARTS
main13405-0E030i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA SOURCED PARTS
main13405-0E070i202011-202110
ARG SOURCED PARTS
main13405-0E080i202011-202110
ARG SOURCED PARTS
main13405-0E100i202008-202103
IND SOURCED PARTS
sub13405-0E101
main13405-0E101i202104-202109
IND SOURCED PARTS
main13405-0E110i202101-202109
IND SOURCED PARTS
sub13405-0E111
main13405-11090i202006-202108
JAPAN SOURCED PARTS
main13405-54080i202009-202109
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-05121i202006-202108
L=15,OD=5,(J)
main90250-08054i202007-202110
L=23,OD=8,(J)
main90250-08054i202009-202109
L=23,OD=8
main90250-T0008i202007-202204
L=22,OD=10,(L)
main90250-T0008i202011-202106
L=22,OD=10,CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
main90250-T0010i202007-202110
L=23,OD=8,(L)
main90250-T0013i202006-202204
L=15,OD=5,(L)
main90250-T0013i202011-202106
L=15,OD=5,CENTRAL AND SOUTH AMERICA SPEC,(L)
13405BBOLT, FLYWHEEL SETTING
main90105-12109i202009-202109
main90105-T0203i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
main90105-T0203i202007-202204
(L)
main90910-02116i202007-202110
(J)
main90910-T2004i202007-202110
(L)
13411CRANKSHAFT
main13401-0C022i202007-202204
main13401-0C022i202006-202108
(L)
main13401-0E010i202006-202204
THA SOURCED PARTS
main13401-0E010i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
main13401-0E020i202006-202204
THA SOURCED PARTS
main13401-0E040i202008-202109
IND SOURCED PARTS
main13401-11090i202011-202110
JAPAN SOURCED PARTS
main13401-11090i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,JAPAN SOURCED PARTS
main13401-31011i202006-202203
JAPAN SOURCED PARTS
main13401-54100i202009-202109
main13401-75021i202006-202108
(J)
sub13401-0C022
13471PULLEY, CRANKSHAFT
main13408-0C030i202007-202204
IDN SOURCED PARTS
main13408-0C040i202006-202108
THA SOURCED PARTS
sub13408-0C030
main13408-0E010i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
sub13408-0E011
main13408-0E010i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA SOURCED PARTS
sub13408-0E011
main13408-0E010i202006-202204
THA SOURCED PARTS
sub13408-0E011
main13408-0E020i202008-202109
IND SOURCED PARTS
main13408-11060i202006-202108
JAPAN SOURCED PARTS
sub13408-11061
main13408-54090i202009-202109
main13470-31014i202006-202203
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-16041i202006-202204
(J)
main90109-T0038i202006-202204
(L)
main90119-16004i202006-202203
main90119-18003i202006-202108
(J)
main90119-T0218i202006-202204
(L)
main90119-T0218i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,(L)
main90119-T0218i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(L)
main90901-19028i202009-202109
13496COVER, CRANKSHAFT PULLY
main13496-0E010i202006-202204
THA SOURCED PARTS
main13496-0E020i202101-202109
IND SOURCED PARTS
13519GEAR, OIL PUMP DRIVE
main13519-0E010i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
main13519-0E010i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA SOURCED PARTS
main13519-0E010i202006-202204
THA SOURCED PARTS
main13519-0E030i202008-202109
IND SOURCED PARTS
main13519-11010i202006-202108
JAPAN SOURCED PARTS
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0C011i202006-202108
THA SOURCED PARTS
main13521-0C030i202007-202204
IDN SOURCED PARTS
main13521-0E010i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA SOURCED PARTS
main13521-0E010i202011-202110
CENTRAL AND SOUTH AMERICA SPEC,THA SOURCED PARTS
main13521-0E010i202006-202204
THA SOURCED PARTS
main13521-0E010i202009-202109
EXPORT FROM SOUTH AFRICA,THA SOURCED PARTS
main13521-0E020i202101-202109
IND SOURCED PARTS
main13521-0E030i202006-202204
THA SOURCED PARTS
main13521-0E030i202006-202108
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS),THA SOURCED PARTS
main13521-0E030i202007-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
main13521-0E030i202007-202108
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
main13521-11040i202006-202108
JAPAN SOURCED PARTS
main13521-11050i202007-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main13521-11050i202006-202204
JAPAN SOURCED PARTS
main13521-11050i202007-202108
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main13521-11050i202006-202108
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main13521-31060i202006-202203
main13521-75021i202006-202204
JAPAN SOURCED PARTS
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-T0002i202006-202204
(L)
main95161-30516i202006-202110
(J)
main95161-30516i202011-202106
CENTRAL AND SOUTH AMERICA SPEC,(J)
main95161-30516i202011-202106
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,(J)
main95161-30516i202006-202203
main95161-30622i202009-202109
13639SPROCKET, BALANCESHAFT TIMING
main13639-0E010i202007-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(L)
main13639-0E010i202007-202108
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),(L)
main13639-0E010i202006-202204
(L)
main13639-0E010i202006-202108
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS),(L)
main13639-11010i202007-202108
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),(J)
main13639-11010i202006-202108
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(ON BOARD DIAGNOSIS),(J)
main13639-11010i202007-202108
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS),(J)
main13639-11010i202006-202204
(J)
88451CBOLT, FLANGE W/WASHER
main90119-T0236i202006-202204

20 parts on this diagram · 5 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
