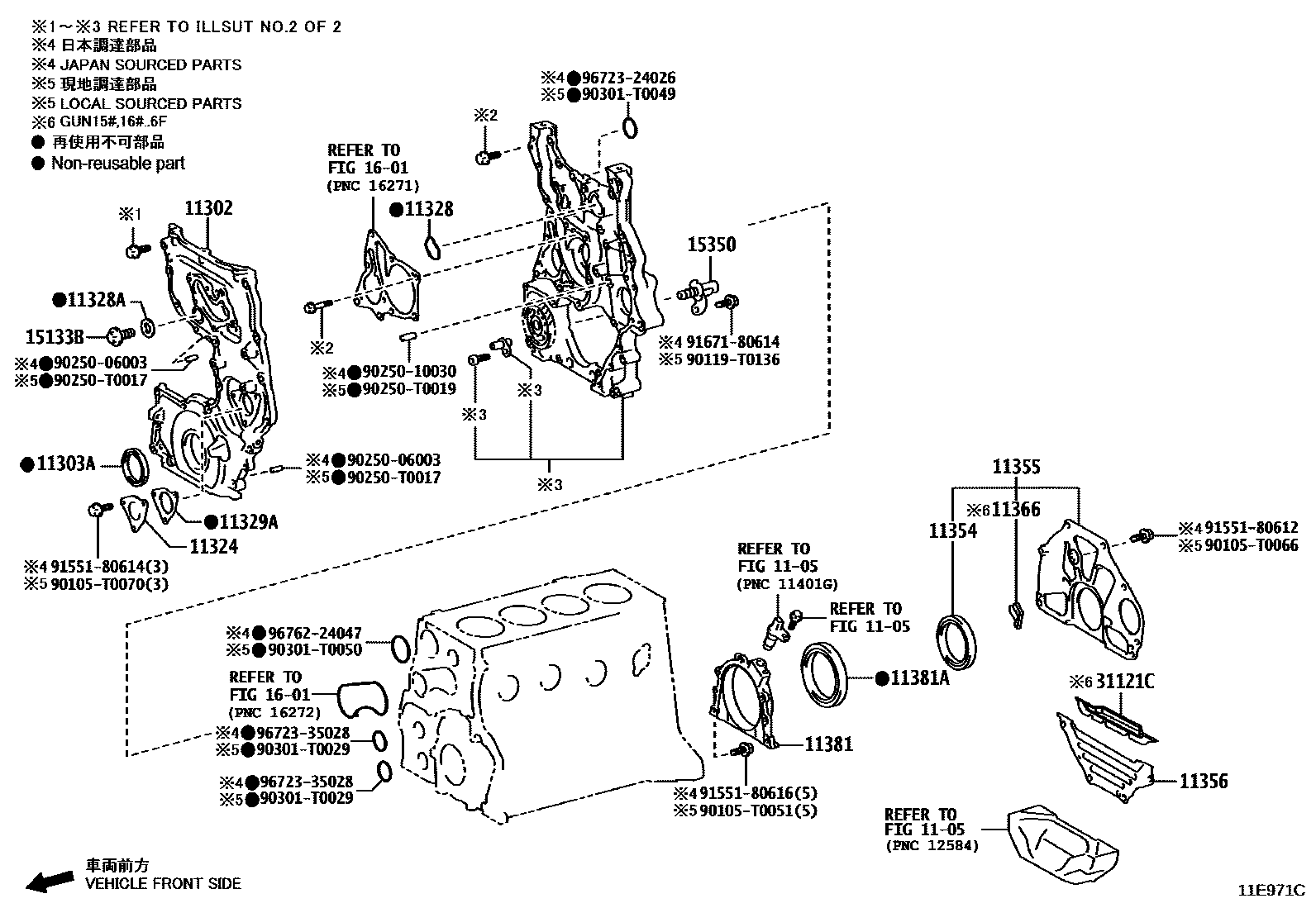

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1105

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0C040i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main11321-0E010i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

THA SOURCED PARTS

main11321-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main11321-11120i2GDFTV..GUN155,165..THSUV202006-202204

JAPAN SOURCED PARTS

sub11321-35040

main11321-54021i5LE..LAN155202009-202109

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-42031i5LE..LAN155202009-202109

main90311-42048i1GRFE..GGN155..LA202006-202110

main90311-50051i2GDFTV..GUN155,165..THSUV202006-202108

(J)

main90311-T0054i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

(L)

main90311-T0099i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,VNSUV202007-202204

IDN SOURCED PARTS

main90311-T0100i2TRFE..TGN156,166..THSUV202006-202108

THA SOURCED PARTS

11324PLATE, TIMING CHAIN COVER

main11324-0C010i2TRFE..TGN156,16#..AGTSU202006-202110

main11324-0E010i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

THA SOURCED PARTS

main11324-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main11324-11010i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

main11324-31020i1GRFE..GGN155..EPT,GCC,GEN202006-202203

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-05010i5LE..LAN155202009-202109

(L)

main11328-0C010i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,THSUV,VNSUV202006-202204

main11328-0E010i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

THA SOURCED PARTS

main11328-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main11328-11070i2GDFTV..GUN155,165..THSUV202006-202108

(J)

main11328-31030i1GRFE..GGN155..EPT,GCC,GEN202006-202203

main11328-54021i5LE..LAN155202009-202109

(J)

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

11329GASKET, TIMING GEAR REAR COVER

main11329-05010i5LE..LAN155202009-202109

(L)

main11329-54021i5LE..LAN155202009-202109

(J)

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-0E010i1GDFTV,2GDFTV..GUN15#,16#..IDNSU,MASUV,SASUV,THSUV,VNSUV202006-202204

THA SOURCED PARTS

main11329-0E020i1GDFTV..GUN156,166..ARL,IND202008-202109

main11329-11020i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

11354SEAL, FLYWHEEL HOUSING DUST

main11354-0L020i1GDFTV..GUN156,166..6FC..(ARL,IND)202008-202109

main11354-30010i2GDFTV..GUN155,165..THSUV202006-202108

(J)

main11354-54010i5LE..LAN155202009-202109

11355PLATE, REAR END

main11355-0C010i2TRFE..TGN156,16#..AGTSU202007-202110

main11355-0C020i2TRFE..TGN156,166..THSUV202006-202108

(L)

main11355-0E010i1GDFTV,2GDFTV..GUN156,165..AGTSU..6FC202006-202110

THA SOURCED PARTS

main11355-0E020i1GDFTV..GUN156,166..6FC..(ARL,IND)202008-202109

IND SOURCED PARTS

main11355-0E040i1GDFTV,2GDFTV..GUN15#,16#..(IDNSU,SASUV,VNSUV)..6F202007-202204

THA SOURCED PARTS

main11355-0E050i1GDFTV..GUN156,166..6F..IND202101-202109

IND SOURCED PARTS

main11355-11040i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

main11355-54120i5LE..LAN155202009-202109

main11355-75021i2TRFE..TGN156,166..THSUV202006-202108

(J)

11356PLATE, REAR END, NO.2

main11356-0L012i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

THA SOURCED PARTS

main11356-0L022i1GDFTV,2GDFTV..GUN15#,16#..SA202009-202109

ZAF SOURCED PARTS

main11356-0L032i1GDFTV,2GDFTV..GUN156,165..AGTSU202011-202110

ARG SOURCED PARTS

main11356-0L042i1GDFTV..GUN156,166..IND202101-202109

ARG SOURCED PARTS

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main11366-0E010i1GDFTV..GUN156..AGTSU..6F202007-202110

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0C012i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,VNSUV202007-202204

IDN SOURCED PARTS

main11381-0C022i2TRFE..TGN156,166..THSUV202006-202108

THA SOURCED PARTS

main11381-0E010i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

THA SOURCED PARTS

main11381-0E030i2GDFTV..GUN165..LA;1GDFTV..GUN156..AGTSU..6F202011-202110

ARG SOURCED PARTS

main11381-0E040i1GDFTV..GUN156,166..ARL,IND202008-202109

IND SOURCED PARTS

main11381-11010i2GDFTV..GUN155,165..THSUV202006-202108

JAPAN SOURCED PARTS

main11381-31010i1GRFE..GGN155..LA202006-202110

main11381-54030i5LE..LAN155202009-202109

11381ASEAL, ENGINE REAR OIL

main90311-85011i5LE..LAN155202009-202109

main90311-95015i2GDFTV..GUN155,165..THSUV202006-202108

(J)

main90311-99010i1GRFE..GGN155..LA202006-202110

main90311-T0046i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

(L)

main90311-T0058i2TRFE..TGN156,166..EPTSU,IDNSU,INDSU,MASUV,SASUV,VNSUV202007-202204

IDN SOURCED PARTS

main90311-T0098i2TRFE..TGN156,166..THSUV202006-202108

THA SOURCED PARTS

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

15350VALVE ASSY, OIL PRESSURE SWITCHING

main15350-11010i1GDFTV,2GDFTV..GUN156,165..AGTSU202006-202110

1601

31121CCOVER, CLUTCH HOUSING ADAPTER PLATE

main31121-26030iGUN15#,16#..(IDNSU,INDSU,SASUV,VNSUV)..6F202007-202204

90105T0051

main90105-T0051

90105T0066

main90105-T0066

90105T0070

main90105-T0070

90119T0136

main90119-T0136

9025006003

main90250-06003

9025010030

main90250-10030

90250T0017

main90250-T0017

90250T0019

main90250-T0019

90301T0029

main90301-T0029

90301T0049

main90301-T0049

90301T0050

main90301-T0050

9155180612

main91551-80612

9155180614

main91551-80614

9155180616

main91551-80616

9167180614

main91671-80614

9672324026

main96723-24026

9672335028

main96723-35028

9676224047

main96762-24047

36 parts on this diagram · 6 diagrams in section
