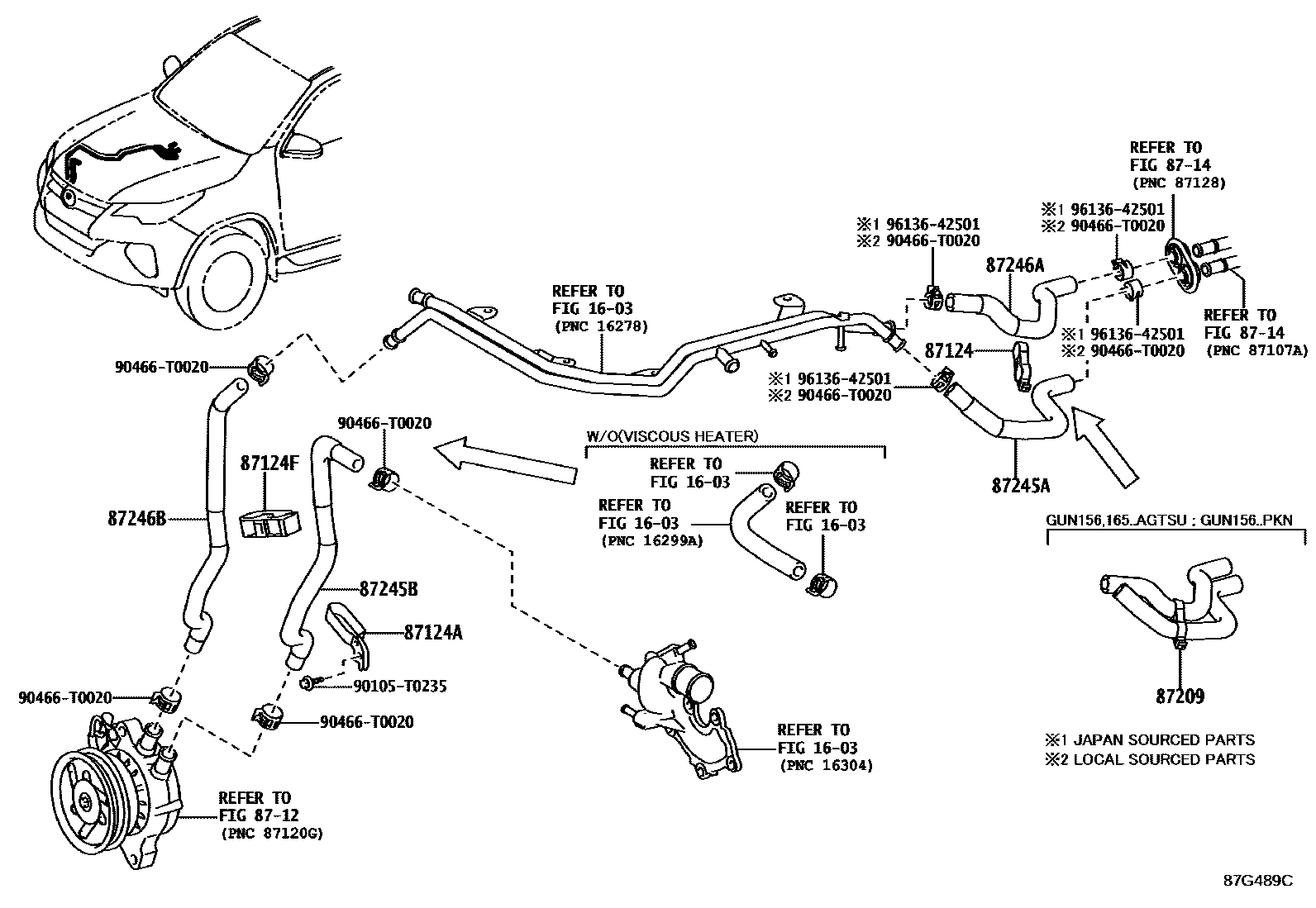

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

8712

87124CLAMP, HEATER

main87124-0K070iGGN155,165..EPTSU,SASUV,THSUV201601-202101

main87124-0K110iGGN155,165..IDNSU201601-202007

main87124-0K130iGGN155..AGTSU201512-202010

main87124-0K150iGUN165..M..TH;GUN15#,166..SASUV,THSUV,VNSUV;GUN165..(SASUV,THSUV,VNSUV)..(GCC,SA,VN)201806-202009

main87124-0K170iGUN155,165..M..MA201806-202012

main87124-0K240iGUN15#,166..SASUV,THSUV;GUN165..(SASUV,THSUV)..6FC;GUN165..(SASUV,THSUV)..6F..L201507-201806

main87124-0K250iGUN15#..IDNSU;GUN165..M..PH;GUN165..IDNSU..(GCC,GEN,IDN,VN)201601-201806

main87124-0K260iGUN156,166..IND201610-201806

main87124-0K290iGUN15#,165..IDNSU201806-202007

main87124-0K300iGUN156,166..IND201806-202012

main87124-0K310iGUN155,165..M..MA201709-201806

main87124-42030iLAN155201603-202009

87124ACLAMP, HEATER

main87124-0K060iLAN155201603-202009

main87124-0K200iGUN156..THSUV..(M,S)..GEN201708-202005

main87124-0K210iGGN155..SA201603-202009

87124FCLAMP, HEATER HOSE, NO.1

main87124-60110iGUN156..THSUV..(M,S)..GEN201708-202005

8714

87209HOSE SUB-ASSY, WATER

main87209-0K631iGUN156..PKN201802-201806

main87209-0K632iGUN156..PKN201806-202104

main87209-0K780iGUN156..AGTSU201512-201708

sub87209-0K781

main87209-0K781iGUN156..AGTSU201709-201806

main87209-0K782iGUN156,165..AGTSU201806-202010

87245AHOSE, HEATER WATER, INLET A

main87245-0KA61iGUN15#,165..IDNSU201806-202007

main87245-0KA70iTGN156,166..LHD..IDNSU..(GCC,GEN,LA,VN)201601-202007

main87245-0KA70iTGN166..PH201601-201708

FRONT AIR CONDITIONER-AUTO

main87245-0KB20iTGN156,166..LHD..(EPTSU,SASUV,THSUV,VNSUV)201601-202101

main87245-0KB40iTGN166..IND,SA,TH201507-202012

main87245-0KB81iGUN155,165..M..MA201709-201806

main87245-0KB82iGUN155,165..M..MA201806-202012

main87245-0KC20iTGN156,16#..AGTSU201512-202010

main87245-0KC80iTGN156,166..RHD..IDNSU201601-202007

main87245-0KD30iTGN156,166..PKN201612-202104

main87245-0KD70iTGN156..MA201605-202012

main87245-0KE00iGUN15#,166..SASUV,THSUV;GUN165..(SASUV,THSUV)..6FC;GUN165..(SASUV,THSUV)..6F..L201507-201609

sub87245-0KE01

main87245-0KE01iGUN15#,166..SASUV,THSUV;GUN165..(SASUV,THSUV)..6FC;GUN165..(SASUV,THSUV)..6F..L201610-201806

main87245-0KE02iGUN165..M..TH;GUN15#,166..SASUV,THSUV,VNSUV;GUN165..(SASUV,THSUV,VNSUV)..(GCC,SA,VN)201806-202009

main87245-0KE20iGUN15#..IDNSU;GUN165..M..PH;GUN165..IDNSU..(GCC,IDN,VN)201601-201609

sub87245-0KE21

main87245-0KE21iGUN15#..IDNSU;GUN165..M..PH;GUN165..IDNSU..(GCC,GEN,IDN,VN)201610-201806

main87245-0KE40iGUN156,166..IND201610-201712

sub87245-0KE41

main87245-0KE41iGUN156,166..IND201801-201806

main87245-0KG60iGGN155,165..EPTSU,THSUV201601-202101

main87245-0KG80iGGN155,165..IDNSU201601-202007

main87245-0KJ00iGGN155..AGTSU201512-202010

main87245-0KJ30iGGN155..SA201603-202009

main87245-0KJ60iKUN156,165..SA201603-201709

main87245-0KJ70iKUN156..IDNSU201601-201707

main87245-0KJ80iKUN156..AGTSU201512-201709

main87245-0KK30iLAN155201603-202009

main87245-0KL31iGUN156,166..IND201806-202012

87245BHOSE, HEATER WATER, INLET B

main87245-0K290iGGN155,165..IDNSU201601-202007

main87245-0K310iKUN156,165..SA201603-201709

main87245-0K480iGGN155..AGTSU201512-202010

main87245-0K590iGGN155,165..EPTSU,SASUV,THSUV201601-202101

main87245-0K660iKUN156..AGTSU201512-201709

main87245-0KA10iKUN156..IDNSU201601-201707

main87245-0KE80iGUN156..THSUV..(M,S)..GEN201708-202005

main87245-0KF30iTGN166..IND201507-202101

main87245-0KF50iTGN166..PH201601-201708

FRONT AIR CONDITIONER-AUTO

main87245-0KF50iTGN156,166..IDNSU..(GCC,GEN,IDN,LA,VN)201601-202007

main87245-0KG10iTGN156,16#..AGTSU201512-202010

87246AHOSE, HEATER WATER, OUTLET A

main87245-0K810iTGN156,166..RHD..IDNSU201601-202007

main87245-0K850iTGN166..IND,SA,TH201507-202012

main87245-0KA80iTGN166..PH201601-201708

FRONT AIR CONDITIONER-AUTO

main87245-0KA80iTGN166..PH201601-202007

main87245-0KB10iKUN156,165..SA201603-201709

main87245-0KB30iTGN156,166..LHD..(EPTSU,SASUV,THSUV,VNSUV)201601-202101

main87245-0KB60iKUN156..IDNSU201601-201707

main87245-0KB91iGUN155,165..M..MA201709-202012

main87245-0KC10iKUN156..AGTSU201512-201709

main87245-0KC30iTGN156,16#..AGTSU201512-202010

main87245-0KD20iTGN156,166..PKN201612-202104

main87245-0KD60iTGN156..MA201605-202012

main87245-0KE10iGUN15#,166..SASUV,THSUV;GUN165..(SASUV,THSUV)..6FC;GUN165..(SASUV,THSUV)..6F..L201507-201609

sub87245-0KE11

main87245-0KE11iGUN165..M..TH;GUN15#,166..SASUV,THSUV,VNSUV;GUN165..(SASUV,THSUV,VNSUV)..(GCC,SA,VN)201610-202009

main87245-0KE30iGUN15#..IDNSU;GUN165..M..PH;GUN165..IDNSU..(GCC,IDN,VN)201601-201609

sub87245-0KE31

main87245-0KE31iGUN165..S..PH201610-202007

main87245-0KE50iGUN156,166..IND201610-201712

sub87245-0KE51

main87245-0KE51iGUN156,166..IND201801-202012

main87245-0KG70iGGN155,165..EPTSU,THSUV201601-202101

main87245-0KG90iGGN155,165..IDNSU201601-202007

main87245-0KJ10iGGN155..AGTSU201512-202010

main87245-0KJ40iGGN155..SA201603-202009

main87245-0KK40iLAN155201603-202009

87246BHOSE, HEATER WATER, OUTLET B

main87245-0K450iGGN155,165..IDNSU201601-202007

main87245-0K490iGGN155..AGTSU201512-202010

main87245-0K600iGGN155,165..EPTSU,SASUV,THSUV201601-202101

main87245-0KE90iGUN156..THSUV..(M,S)..GEN201708-202005

main87245-0KF20iTGN156,166..EPTSU,SASUV,THSUV,VNSUV201507-202101

main87245-0KF40iTGN166..PH201601-201708

FRONT AIR CONDITIONER-AUTO

main87245-0KF40iTGN156,166..IDNSU..(GCC,GEN,IDN,LA,VN)201601-202007

main87245-0KG00iTGN156,16#..AGTSU201512-202010

main87245-0KK10iKUN156,165201512-201709

90105T0235

main90105-T0235

90466T0020

main90466-T0020

9613642501

main96136-42501

14 parts on this diagram · 6 diagrams in section
