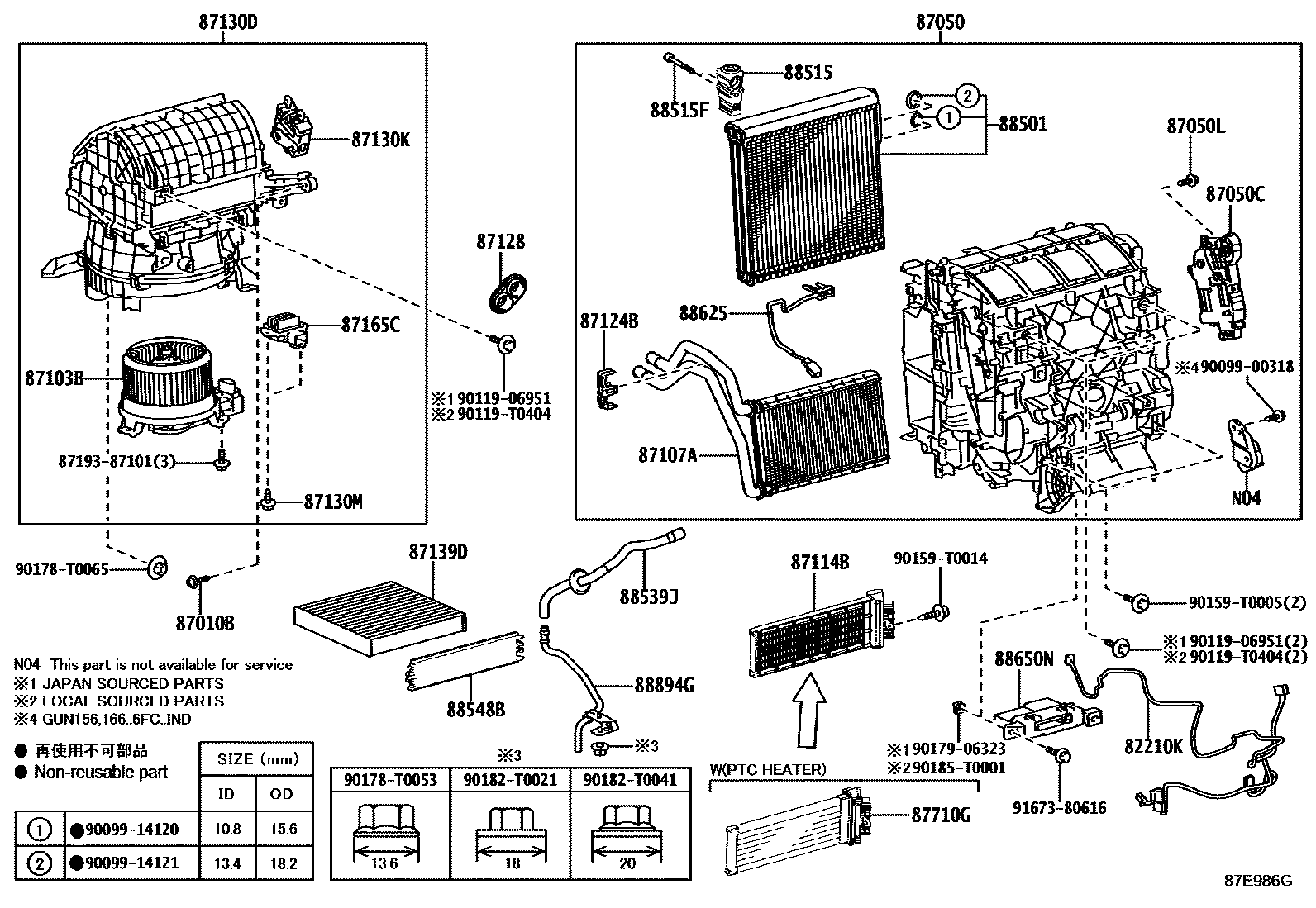

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT AUTO AIR CONDITIONER 0002 1FRONT MANUAL AIR CONDITIONER 0003 1FRONT MANUAL COOLER 0004 1FRONT AUTO AIR CONDITIONER 0005 1FRONT MANUAL AIR CONDITIONER 0006 1MANUAL COOLER 0007 1REAR AUTO COOLER 0008 1REAR MANUAL COOLER

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0K050iGUN156,166,TGN166..IND201507-202012

main82212-0K060iGUN156..S..IART;GUN156..LHD..(H,M);TGN156..(M,S)..(GCC,LA,VN);TGN166..IDNSU..S..(GCC,VN);GUN165,TGN156..(H,M)..(BZAGT,PH);TGN166..(AGTSU,THSUV,VNSUV)..(M,S)..(GCC,L201512-202101

87010BSCREW(FOR AIR CONDITIONER UNIT)

main88718-0A020×2iGUN165..6FC..TH;GUN165..THSUV..6FC..L;GUN156..THSUV..6FC..(L,M);TGN166..LHD..(EPTSU,THSUV)..6FC;GUN156..THSUV..6FC..(H,S)..(ARL,GCC);GGN155,GUN155,166,TGN156..(EPTS201507-201907

main90068-00042×2iGUN15#,16#,TGN156..THSUV..(L,M,S)..(ARL,GEN,KZS,TH)201907-202005

main90094-90426×2iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main90099-00968×2iTGN166..IDNSU..L..LA;TGN166..(IDNSU,INDSU)..(GCC,GEN,IDN,IND,PH,VN);GGN155,165,GUN15#,16#,KUN156,TGN156..IDNSU,INDSU,MASUV201601-202012

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0KC70iGUN165..S..TH201507-202005

main87050-0KD00iGUN156..(L,S)..ARL201507-202005

main87050-0KD10iGUN165..VNSUV201906-202008

main87050-0KD20iGUN156,TGN156..THSUV..(L,S)..(GEN,KZS)201708-202005

main87050-0KD30iGUN155,165,TGN156,166..(EPTSU,THSUV)..L..(EPT,GCC)201601-202101

main87050-0KD60iGUN156..M..ARL201507-202005

main87050-0KD70iGUN156,TGN166..VNSUV;GUN156..THSUV..H..GEN201806-202008

main87050-0KD90iGUN156,TGN156..THSUV..S..(GEN,KZS)201708-202005

FRONT AIR CONDITIONER-AUTO

main87050-0KE00iGGN155,165,GUN15#,165,TGN156,166..(EPTSU,THSUV)..(H,S)..(EPT,GCC)201601-202101

main87050-0KE10iGUN16#..M..TH201507-202005

TOYOTA STOP & START SYSTEM-WITH

main87050-0KE30iGUN165,TGN166..S..PH201601-201708

main87050-0KE40iTGN166..L..GEN;TGN156..IDNSU..L..(GEN,LA)201601-202007

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87050-0KE50iGUN155,165,TGN156,166..IDNSU..L..GCC201601-202007

main87050-0KE60iGGN155,165,GUN15#,165,TGN156,166..IDNSU..(H,S)..GCC201601-202007

main87050-0KE70iGUN15#,165,KUN156,TGN156,166..RHD..GEN201601-202007

main87050-0KE80iTGN166..IND;GUN156,166..6F..IND201610-202012

main87050-0KE90iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87050-0KF00iGUN156,TGN156,166..AGTSU..(H,M);GUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART)201512-202010

main87050-0KF30iGUN15#,KUN156,165,LAN155,TGN156..LHD..SA201603-202009

main87050-0KG20iGUN155,165,TGN166..L..SA201603-202009

main87050-0KG50iGGN155,GUN156,166,KUN156,TGN166..RHD..S..SA201603-202009

main87050-0KJ00iGUN155..L..MA201605-202012

main87050-0KJ10iGUN155,165,TGN156..M..MA201605-202012

main87050-0KJ30iGUN156,TGN156,166..PKN201612-202104

main87050-0KJ70iGUN165,TGN166..S..PH201708-202007

main87050-0KK40iGGN155..AGTSU201512-202010

main87050-0KK90iGUN155,165,TGN166..IDN201601-202007

main87050-0KL10iGUN156,166..6FC..IND201709-202012

main87050-0K560iGUN16#..M..TH201507-201808

TOYOTA STOP & START SYSTEM-WITH

main87050-0KF70iGUN15#,KUN156,LAN155,TGN156..LHD..S..SA201603-202009

FRONT AIR CONDITIONER-AUTO

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-0K210iGUN156,166,TGN166..IND201507-202012

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main88718-0A020iGUN156..S..ARL;GUN156..THSUV..(L,M);GUN155,16#,TGN166..TH201507-202005

main90094-90426iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main90099-00968iGUN156,TGN156..THSUV..(L,S)..(GEN,KZS)201708-202005

main90069-32076iGUN15#,KUN156,LAN155,TGN156..LHD..S..SA201603-202009

FRONT AIR CONDITIONER-AUTO

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0K320iGUN165..S..TH201507-201907

sub55607-KK030

main87103-0K321iGUN165..S..TH201907-202005

main87103-0K380iGUN165..M..TH;GUN15#,166,TGN166..RHD..THSUV201507-201907

sub55607-KK030

main87103-0K381iGUN165..M..TH;GUN15#,166..RHD..THSUV201907-202005

main87103-0K390iGUN156,TGN166..VNSUV;GUN156..THSUV..H..GEN;GGN165,GUN165..LHD..(THSUV,VNSUV)..(H,S);GUN165,TGN156,166..(THSUV,VNSUV)..MTM..(GCC,VN)201601-201908

sub55607-KK040

main87103-0K391iGUN156..THSUV..(M,S)..GEN;GGN155,GUN15#,165,TGN156,166..(EPTSU,THSUV)..(EPT,GCC,KZS)201907-202101

main87103-0K420iGUN165,TGN166..S..PH201601-201708

sub87103-0K421

sub55607-KK040

main87103-0K430iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU201601-201906

sub55607-KK030

main87103-0K431iGUN15#,165,TGN156,166..RHD..IDNSU201906-202007

main87103-0K440iGGN155,TGN166..LHD..GEN;TGN156..IDNSU..L..(GEN,LA)201601-201906

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

sub55607-KK040

main87103-0K441iGGN155,GUN15#,165,TGN156,166..LHD..IDNSU201906-202007

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87103-0K450iGUN156,166,TGN166..IND201610-202004

sub55607-KK030

main87103-0K451iGUN156,166,TGN166..IND202004-202012

main87103-0K460iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-201907

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

sub55607-KK040

main87103-0K461iGGN155,GUN156,165,TGN156,16#..AGTSU201907-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87103-0K490iGGN155,GUN15#,16#,KUN156,TGN166..RHD..SA201603-201912

sub55607-KK030

main87103-0K491iGGN155,GUN15#,16#,TGN166..RHD..SA201912-202009

main87103-0K500iGUN15#,KUN156,165,LAN155,TGN156..LHD..SA201603-201912

sub55607-KK040

main87103-0K501iGUN156,LAN155,TGN156..LHD..SA201912-202009

main87103-0K530iGUN155..L..MA201605-201907

sub55607-KK030

main87103-0K531iGUN155..L..MA201907-202012

main87103-0K540iGUN155,165,TGN156..M..MA201605-201907

sub55607-KK030

main87103-0K541iGUN155,165,TGN156..M..MA201907-202012

main87103-0K550iGUN156,TGN156,166..PKN201612-201907

sub55607-KK030

main87103-0K551iGUN156,TGN166..PKN201907-202104

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0K110iGUN165..M..TH;GUN165..LHD..(THSUV,VNSUV);GGN155,165,GUN15#,166,TGN156,166..EPTSU,THSUV,VNSUV201507-202101

main87107-0K130iGUN165..M..PH;TGN166..IDNSU..L..LA;GUN165,TGN166..IDNSU..(GCC,GEN,VN);GGN155,165,GUN15#,KUN156,TGN156..IDNSU..(GCC,GEN,LA,PH,VN)201601-202007

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87107-0K140iGUN156,166,TGN166..IND201610-202012

main87107-0K150iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87107-0K170iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main87107-0K180iGUN155,165,TGN156..M..MA201605-202012

main87107-0K190iGUN156,TGN156,166..PKN201612-202104

main87107-0K210iGUN155,165,TGN166..IDN201601-202007

main87107-0K090iGUN16#..M..TH201507-201808

TOYOTA STOP & START SYSTEM-WITH

87114BCOVER, HEATER

main87114-0K040iGUN156..ARL201904-202104

main87114-0K050iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main87114-0K060iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main87114-0K070iGUN156..(H,S)..IART;GUN156..AGTSU..(L,M);GGN155,GUN165,KUN156,TGN156,16#..AGTSU201512-202010

main87114-0K080iGUN156,166,TGN166..IND201610-202012

main87114-0K090iGUN155,165,TGN156..MA201605-202012

87124BCLAMP, HEATER

main87124-06140iGUN165,TGN166..S..PH201708-202104

main87124-0K220iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87124-0K230iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

87128GROMMET, HEATER

main87128-0K140iGUN165,TGN166..S..PH201601-201708

main87128-0K150iGUN165,TGN166..S..PH201708-202007

main87128-0K160iGUN156,166,TGN166..IND201610-202012

main87128-0K170iGUN165..S..TH201507-202005

main87128-0K180iGUN165..M..TH;GUN165..LHD..(THSUV,VNSUV);GGN155,165,GUN15#,166,TGN156,166..PKNSU,THSUV,VNSUV201507-202104

main87128-0K190iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87128-0K200iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main87128-0K210iGUN155..L..MA201605-202012

main87128-0K250iGUN155,165,TGN156..M..MA201605-202012

87130DBLOWER ASSY

main87130-0K540iGUN165..S..TH201507-201907

sub55607-KK030

main87130-0K541iGUN165..S..TH201907-202005

main87130-0K570iGUN156..(L,S)..ARL201507-201907

sub55607-KK030

main87130-0K571iGUN156..(L,S)..ARL201907-202005

main87130-0K590iGUN156,TGN156..THSUV..(L,S)..(GEN,KZS);GUN155,165,TGN156,166..(EPTSU,THSUV)..6FC..L201601-201907

sub55607-KK040

main87130-0K591iGUN165..VNSUV201908-202101

main87130-0K620iGUN15#,16#,TGN166..RHD..THSUV..M201507-201907

sub55607-KK030

main87130-0K621iGUN15#,16#..RHD..THSUV..M201907-202005

main87130-0K630iGUN156,TGN166..VNSUV;GUN156..THSUV..H..GEN;GGN165,GUN165..THSUV..(H,S)..GCC201601-201908

sub55607-KK040

main87130-0K631iGUN156,TGN166..VNSUV;GUN156..THSUV..H..GEN201908-202101

main87130-0K650iGUN165,TGN166..S..PH201601-201708

main87130-0K660iTGN166..L..GEN;TGN156..IDNSU..L..(GEN,LA)201601-201906

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

sub55607-KK040

main87130-0K661iGUN165..IDNSU..(GCC,VN);GUN155,TGN156,166..IDNSU..L201906-202007

FRONT AIR CONDITIONER-MANUAL

main87130-0K680iTGN156..IDNSU..6FC..L..GCC201708-201906

FRONT AIR CONDITIONER-AUTO

sub55607-KK040

main87130-0K681iGGN155..GEN201906-202007

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87130-0K690iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU201601-201906

sub55607-KK030

main87130-0K691iGUN15#,165,TGN156,166..RHD..IDNSU201906-202007

main87130-0K700iGUN156,166,TGN166..IND201610-202004

sub55607-KK030

main87130-0K701iGUN156,166,TGN166..IND202004-202012

main87130-0K720iTGN156..AGTSU..L201512-201907

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

sub55607-KK040

main87130-0K721iGUN165,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)201907-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main87130-0K730iGUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S)201512-201907

sub55607-KK040

main87130-0K731iGGN155,TGN168..AGTSU..(M,S);GUN156,TGN156,166..AGTSU..(H,M)201907-202010

main87130-0K770iGUN15#,KUN156,165,LAN155,TGN156..LHD..SA201603-201912

sub55607-KK040

main87130-0K771iGUN156,LAN155,TGN156..LHD..SA201912-202009

main87130-0K800iGUN155,165,TGN166..L..SA201603-201912

sub55607-KK030

main87130-0K801iGUN155,165,TGN166..SA201912-202009

main87130-0K810iGGN155,GUN156,166,KUN156,TGN166..RHD..S..SA201603-201912

sub55607-KK030

main87130-0K811iGGN155,GUN156,166..RHD..SA201912-202009

main87130-0K840iGUN155..L..MA201605-201907

sub55607-KK030

main87130-0K841iGUN155..L..MA201907-202012

main87130-0K850iGUN155,165,TGN156..M..MA201605-201907

sub55607-KK030

main87130-0K851iGUN155,165,TGN156..M..MA201907-202012

main87130-0K870iGUN156,TGN156,166..PKN201612-201907

sub55607-KK030

main87130-0K871iGUN156,TGN166..PKN201907-202104

main87130-0K600iGUN15#,KUN156,LAN155,TGN156..LHD..S..SA201603-201912

FRONT AIR CONDITIONER-AUTO

sub55607-KK040

main87130-0K601iGUN156,LAN155,TGN156..LHD..S..SA201912-202009

FRONT AIR CONDITIONER-AUTO

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0K220iGUN165,TGN166..S..PH201507-201708

main87106-0K240iGUN156..S..IART;GUN156..LHD..(H,M);TGN156..(M,S)..(GCC,LA,VN);TGN166..IDNSU..S..(GCC,VN);GUN165,TGN156..(H,M)..(BZAGT,PH);TGN166..(AGTSU,THSUV,VNSUV)..(M,S)..(GCC,L201512-201912

main87106-0K241iGUN156..LHD..(H,M);TGN156,166..(M,S)..(GCC,LA,PH,VN);GGN155,GUN155,165,TGN168..LHD..(H,M,S)..(BZAGT,EPT,GCC,GEN,LA,PH)202001-202101

main87106-0K250iGGN155,GUN156,166..RHD..SA201507-202001

main87106-0K251iGUN165..M..TH;GUN156..M..ARL;GUN165..RHD..(IDNSU,MASUV);GGN155,GUN15#,166,TGN156,166..RHD..(M,S)..(GEN,IDN,MA,PKN,SA,TH)202001-202104

87130MSCREW(FOR BLOWER)

main88718-0A020×5iGUN156,TGN166..VNSUV;GUN156..THSUV..H..GEN201908-202008

main90068-00042×5iGUN156,TGN156..S..(GEN,KZS)201907-202005

FRONT AIR CONDITIONER-AUTO

main90094-90426iGGN155,GUN156,165,TGN156,16#..AGTSU201907-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main90099-00968iGUN156,166,TGN166..IND202004-202012

87139DELEMENT, AIR REFINER

main87139-0K030iGUN15#,165,TGN166..IDN,PH201601-202007

POLLEN FILTER

main87139-0K040iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU..(GCC,GEN,LA,VN)201601-202007

POLLEN FILTER

main87139-0K050iGUN156,166,TGN166..IND201610-202012

POLLEN FILTER

main87139-0K060iGUN15#,16#,TGN166..TH201507-202005

POLLEN FILTER

main87139-0K070iGGN155,165,GUN15#,165,TGN156,166..(PKNSU,THSUV,VNSUV)..(ARL,GCC,GEN,KZS,PKN,VN)201507-202104

POLLEN FILTER

main87139-0K080iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

POLLEN FILTER

main87139-0K090iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

POLLEN FILTER

main87139-0K100iGUN155,165,TGN156..MA201605-202012

POLLEN FILTER

main87139-58010iGUN156,166,TGN166..IND201507-202012

DEODORANT FILTER

87165CCONTROL, BLOWER MOTOR

main87165-0K060iGUN156,166,TGN166..IND201507-202012

87710GQUICK HEATER ASSY

main87710-0K100iGUN156..6F..ARL;GUN156..THSUV..(M,S)..GEN201507-202005

main87710-0K120iGUN156..HDCR..BZAGT201512-202010

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K320iGUN156..ARL;GUN16#,TGN166..TH201507-202005

main88501-0K330iGUN16#..M..TH201507-202005

TOYOTA STOP & START SYSTEM-WITH

main88501-0K390iGGN155,165,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV,VNSUV)201601-202101

main88501-0K410iTGN166..IND;GUN156,166..6F..IND201610-202012

main88501-0K420iGUN15#,KUN156,165,LAN155,TGN156..LHD..SA201603-202009

main88501-0K430iGGN155,GUN15#,16#,KUN156,TGN166..RHD..SA201603-202009

main88501-0K450iGGN155,TGN166..LHD..GEN;TGN156..IDNSU..L..(GEN,LA)201601-202007

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88501-0K460iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU201601-202007

main88501-0K480iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88501-0K510iGUN155,165,TGN156..MA201605-202012

main88501-0K520iGUN156,TGN156,166..PKN201612-202104

main88501-0K550iGUN156,166..6FC..IND201709-202012

88515VALVE, COOLER EXPANSION

main88515-0K580iTGN166..L..LA;TGN166..AGTSU..M;GUN16#..GEN,IDN,LA,MA,PH,SA,TH,VN;TGN166..BZAGT,GEN,IDN,PH,PKN,SA,TH,VN;GGN155,GUN155,KUN165,LAN155..GEN,IDN,MA,SA;GUN156,KUN156,TGN1201507-202104

main88515-0K590iGUN165,TGN166..EPT,GCC;GUN156,TGN156..EPT,GCC,TH;GGN155,165,GUN155..BZAGT,EPT,GCC,LA,TH201507-202101

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04042×2iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main90099-04542×2iGUN15#,16#,TGN156,166..THSUV..(L,M,S)..(ARL,GEN,KZS,TH)201507-202005

main90069-31107×2iGUN15#,KUN156,LAN155,TGN156..LHD..S..SA201603-202009

FRONT AIR CONDITIONER-AUTO

88539JHOSE, DRAIN COOLER

main88539-0K330iGGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..IDNSU201601-202007

main88539-0K340iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU201601-202007

main88539-0K360iGUN156,166,TGN166..IND201610-202012

main88539-0K380iGGN155,165,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV,VNSUV)201601-202101

main88539-0K390iGUN15#,16#,TGN166..RHD..THSUV201507-202005

main88539-0K410iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main88539-0K420iGUN15#,KUN156,165,LAN155,TGN156..LHD..SA201603-202009

main88539-0K430iGUN15#,16#,KUN156,TGN166..RHD..SA201603-202009

main88539-0K440iGGN155..SA201603-202009

main88539-0K470iGUN155,165,TGN156..MA201605-202012

main88539-0K490iGUN156,TGN156,166..PKN201612-202104

88548BCASE, AIR FILTER

main88548-0K080iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,PKNSU,THSUV201507-201812

main88548-0K090iGGN155,TGN166..LHD..GEN;TGN156..IDNSU..L..(GEN,LA)201601-201812

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88548-0K091iGGN155,TGN156,166..LHD..GEN201901-202007

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88548-0K100iGUN156,166,TGN166..IND201610-201910

main88548-0K101iGUN156,166,TGN166..IND201911-202012

main88548-0K110iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-201812

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88548-0K111iGGN155,GUN156,165,TGN156,16#..AGTSU201901-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88548-0K120iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-201812

main88548-0K121iGGN155,GUN15#,16#,LAN155,TGN156,166..SA201901-202009

main88548-0K130iGUN155,165,TGN156..MA201605-201812

main88548-0K131iGUN155,165,TGN156..MA201901-202012

main88899-06330iGGN155,TGN156,166..EPT201901-202101

88625THERMISTOR, COOLER, NO.1

main88620-0K010iTGN166..IND;GUN156,166..6F..IND201507-202012

main88620-0K020iGUN156,166..6FC..IND201709-202012

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0K410iGUN155,165,TGN166..(L,S)..(MA,PH,TH)201507-201610

main88650-0K420iGUN165..L..GCC;GUN156..(L,S)..ARL;GUN165,TGN156..(6F,6FC)..(L,S)..(KZS,SA,VN);GUN155,TGN156,166..(EPTSU,IDNSU,SASUV,THSUV)..L;GUN15#,KUN156,165,LAN155..LHD..(IDNSU,201507-202101

main88650-0K440iGUN165,TGN166..S..PH201708-202104

main88650-0K450iGGN155,165,GUN155,165..(H,S)..GCC201601-201708

ASIA COLD COUNTRY SPEC&FRONT AIR CONDITIONER-AUTO

main88650-0K470iGUN165,TGN166..S..PH201611-201708

main88650-0K490iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010

main88650-0K500iGUN156..S..IART;GUN156,TGN156,166..AGTSU..(H,M);GGN155,KUN156,TGN168..AGTSU..(H,M,S)201512-202010

main88650-0K510iGUN156,166,TGN166..IND201610-202012

main88650-0K550iTGN156..6FC..L..GCC201708-202007

FRONT AIR CONDITIONER-AUTO

main88650-0K580iGUN156,TGN156..THSUV..S..(GEN,KZS)201708-202005

FRONT AIR CONDITIONER-AUTO

main88650-0K620iGGN155,GUN15#..H..GCC201806-202007

SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)

main88650-0K570iGUN156..6FC..H..BZAGT201710-202010

SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)

88894GCONNECTOR, DRAIN HOSE

main88894-0K010iGGN155,165,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV,VNSUV)201601-202101

main88894-0K020iGUN15#,16#,TGN156,166..RHD..(PKNSU,THSUV)201507-202104

main88894-0K040iGGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..IDNSU201601-202007

main88894-0K050iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU201601-202007

main88894-0K070iGUN156,166,TGN166..IND201610-202012

main88894-0K090iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main88894-0K100iGUN15#,KUN156,165,LAN155,TGN156..LHD..SA201603-202009

main88894-0K110iGUN15#,16#,KUN156,TGN166..RHD..SA201603-202009

main88894-0K120iGGN155..SA201603-202009

main88894-0K130iGUN155,165,TGN156..MA201605-202012

8719387101

main87193-87101

9009900318

main90099-00318

9009914120

main90099-14120

9009914121

main90099-14121

9011906951

main90119-06951

90119T0404

main90119-T0404

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90178T0053

main90178-T0053

90178T0065

main90178-T0065

9017906323

main90179-06323

90182T0021

main90182-T0021

90182T0041

main90182-T0041

90185T0001

main90185-T0001

9167380616

main91673-80616

39 parts on this diagram · 8 diagrams in section
