SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0K420iGGN155,165,GUN15#,16#,TGN156,166..THSUV201507-202005

main86160-0K430iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,PKNSU,SASUV,VNSUV201512-202104

main86160-0K440iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main86160-0K450iGUN155,165,TGN156..MA201605-202012

main86160-0K470iGUN156,166,TGN166..IND201610-202012

main86150-0K200iGUN156..M..ARL201805-202005

ACCESSORY TYPE 2 PACKAGE

main86160-0R110iGUN156..6FC..M..ARL201708-201805

SPEAKER-11SPEAKER & JBL

86160BSPEAKER ASSY, REAR

main86160-0K420iGGN155,165,GUN15#,16#,TGN156,166..THSUV201507-202005

main86160-0K430iGGN155,TGN156,166..EPT201512-202104

main86160-0K440iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main86160-0K450iGUN155,165,TGN156..MA201605-202012

main86160-0K470iGUN156,166,TGN166..IND201610-202012

main86160-0K330iGUN156..M..ARL201805-202005

ACCESSORY TYPE 2 PACKAGE

main86160-0R140iGUN15#,166..TH201603-201805

ACCESSORY TYPE 2 PACKAGE

86160JSPEAKER ASSY, FRONT NO.3

main86150-0K150iGUN15#,166..TH201603-201805

ACCESSORY TYPE 2 PACKAGE

main86150-0K180iGUN156..M..ARL201805-202005

ACCESSORY TYPE 2 PACKAGE

86160PSPEAKER ASSY, FRONT NO.2

main86150-0K160iGUN156,166,TGN166..IND201610-202012

main86150-0K260iGGN155,TGN156,166..EPT201507-202104

main86150-0K270iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main86150-0K340iGUN155,165,TGN156..MA201605-202012

main86150-0K350iGUN15#,166..TH201603-201902

ACCESSORY TYPE 2 PACKAGE

main86150-0K370iGUN156..6FC..H..BZAGT201902-201905

REAR ALL SBR & ELEGANT PACKAGE

sub86150-0K380

main86150-0K380iGUN15#,166..TH201902-202005

ACCESSORY TYPE 2 PACKAGE

86160ZSPEAKER ASSY, REAR NO.3

main86150-0K190iGUN156..M..ARL201805-202005

ACCESSORY TYPE 2 PACKAGE

main86150-0K360iGUN15#,166..TH201603-201805

ACCESSORY TYPE 2 PACKAGE

86161BRACKET, SPEAKER, FRONT NO.1

main86161-71010iGUN15#,166..TH201603-202005

ACCESSORY TYPE 1 PACKAGE,RH

main86161-71020iGUN15#,166..TH201603-202005

ACCESSORY TYPE 1 PACKAGE,LH

main86161-71050iGUN156..6FC..H..BZAGT201804-201805

REAR ALL SBR & ELEGANT PACKAGE,RH

main86161-71051iGUN156..6FC..H..BZAGT201806-201907

REAR ALL SBR & ELEGANT PACKAGE,RH

main86161-71060iGUN156..6FC..H..BZAGT201804-201805

REAR ALL SBR & ELEGANT PACKAGE,LH

main86161-71061iGUN156..6FC..H..BZAGT201806-201907

REAR ALL SBR & ELEGANT PACKAGE,LH

86163BRACKET, SPEAKER, NO.2

main86163-71010iGUN15#,166..TH201603-202005

ACCESSORY TYPE 2 PACKAGE,RH

main86163-71020iGUN15#,166..TH201603-202005

ACCESSORY TYPE 1 PACKAGE,LH

main86163-71050iGUN156..6FC..H..BZAGT201804-201907

REAR ALL SBR & ELEGANT PACKAGE,RH

main86163-71060iGUN156..6FC..H..BZAGT201804-201907

REAR ALL SBR & ELEGANT PACKAGE,LH

9011906A06

main90119-06A06

90119T0130

main90119-T0130

9026905034

main90269-05034

9415080600

main94150-80600

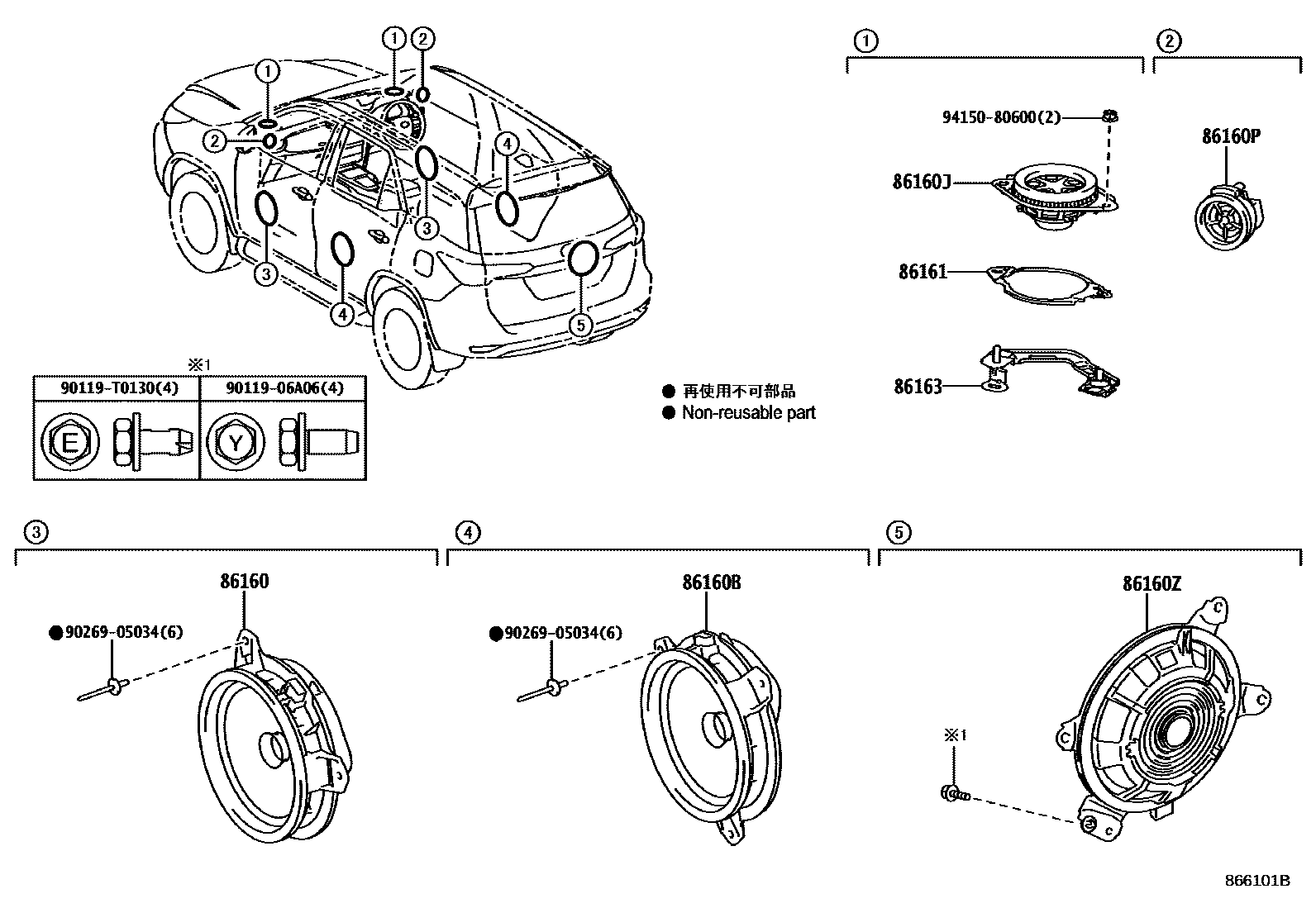

11 parts on this diagram · 1 diagram in section
