RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0KC40iGUN165..S..TH201507-201904

FUJITSU TEN,ID100435

main86120-0KC40iGUN165..S..TH201507-201904

FUJITSU TEN,ID100435,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86120-0KC40iGUN165..S..TH201507-201904

FUJITSU TEN,ID100435,AUDIO-WITHOUT

main86120-0KD30iTGN168..6FC..L201710-202010

FUJITSU TEN,ID100435,AUDIO-AVN & DVD & *BT & DIGITAL TV

main86120-0KD30iTGN168..6FC..L201710-202010

FUJITSU TEN,ID100435

main86120-0KD40iKUN165,TGN156,166..LHD..L..(EPT,SA)201603-202101

FUJITSU TEN,ID100438

sub86120-0KD41

main86120-0KD50iGUN155,165,TGN166..L..SA201603-202009

PIONEER,ID=P10799

main86120-0KD90iGUN155..MA201605-201709

FUJITSU TEN,ID100503

main86120-0KE40iGUN156,TGN156..THSUV..(L,S)..(GEN,KZS)201708-202005

PIONEER,ID=P10962

86145CONNECTOR, ANTENNA MALE

main86145-52010iGUN155..L..MA201512-202104

86183DCOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0K010iTGN156,166..M..LA;GGN155,GUN156,165,TGN168..AGTSU..(L,M)201907-202010

AUDIO-8INCH AVN & *BT & DIGITAL TV

main86190-0K010iGUN156,TGN168..6FC..L..BZAGT201907-202010

AUDIO-8INCH *DA & *BT

main86190-0K010iGUN156..6FC..S..BZAGT;GGN155,GUN156,166..RHD..SA201906-202010

main86190-0K030iTGN168..6FC201507-202101

main86190-0K070iGUN156,166,TGN166..IND201610-202012

86203WIRE, RADIO

main86203-71120iGGN155,GUN156,166..RHD..SA201507-202012

main86203-71130iTGN156..H;GUN156..S..IART;GUN156..THSUV..M..GEN;GUN156,TGN156..LHD..SA;GGN155,GUN155,KUN156,LAN155..LHD..(BZAGT,EPT,SA)201512-202101

main86203-71130iGUN156..H..IART;TGN156..S..BZAGT;GUN156,TGN16#..(H,S)..(HDCR,HTWC,HTWCF)..BZAGT201512-201907

AUDIO-*DA(10KHZ) & DVD & *BT

main86203-71200iGUN156,TGN156,16#..(H,S)..BZAGT201907-202010

AUDIO-8INCH *DA & *BT

main86203-71200iGUN156,TGN156,16#..(H,S)..BZAGT201907-202010

AUDIO-8INCH AVN & *BT & DIGITAL TV

main86203-71210iGGN155,GUN156,166..RHD..SA201906-202009

AUDIO-8INCH *DA & *BT & RDS & DAB

86211BRACKET, RADIO, NO.1

main86211-KK060iGUN156..H..IART;TGN156..S..BZAGT;GUN156,TGN16#..(H,S)..(HDCR,HTWC,HTWCF)..BZAGT201507-202104

main86211-KK080iTGN168..5F;GUN156..THSUV..H;GUN156..L..BZAGT;TGN166..GCC,GEN,IDN,LA,PH,VN;GUN156..(AGTSU,IDNSU,VNSUV)..(GCC,GEN,LA,PH,VN);GGN155,165,GUN155,165,KUN156,TGN156..GCC,G201512-202010

main86211-KK090iTGN156,166..M..LA;GGN155,GUN156,165,TGN168..AGTSU..(L,M)201907-202010

AUDIO-8INCH AVN & *BT & DIGITAL TV

main86211-KK090iGUN156,TGN168..6FC..L..BZAGT201907-202010

AUDIO-8INCH *DA & *BT

main86211-KK090iGUN156..6FC..S..BZAGT;GGN155,GUN156,166..RHD..SA201906-202010

86212BRACKET, RADIO, NO.2

main86212-KK060iGGN155,TGN156,166..EPT201507-202104

main86212-KK080iGUN156,TGN166..PKN201512-202010

main86212-KK090iTGN156,166..M..LA;GGN155,GUN156,165,TGN168..AGTSU..(L,M)201907-202010

AUDIO-8INCH AVN & *BT & DIGITAL TV

main86212-KK090iGUN156,TGN168..6FC..L..BZAGT201907-202010

AUDIO-8INCH *DA & *BT

main86212-KK090iGUN156..6FC..S..BZAGT;GGN155,GUN156,166..RHD..SA201906-202010

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-71010

main86280-0K030

main86280-0K031

main86280-0K040

86285BRACKET, AMPLIFIER, NO.1

main86285-KK010

86286BRACKET, AMPLIFIER, NO.2

main86286-KK010

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF1334-KK010

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

90119T0130

main90119-T0130

90153T0001

main90153-T0001

90159T0009

main90159-T0009

9046710183

main90467-10183

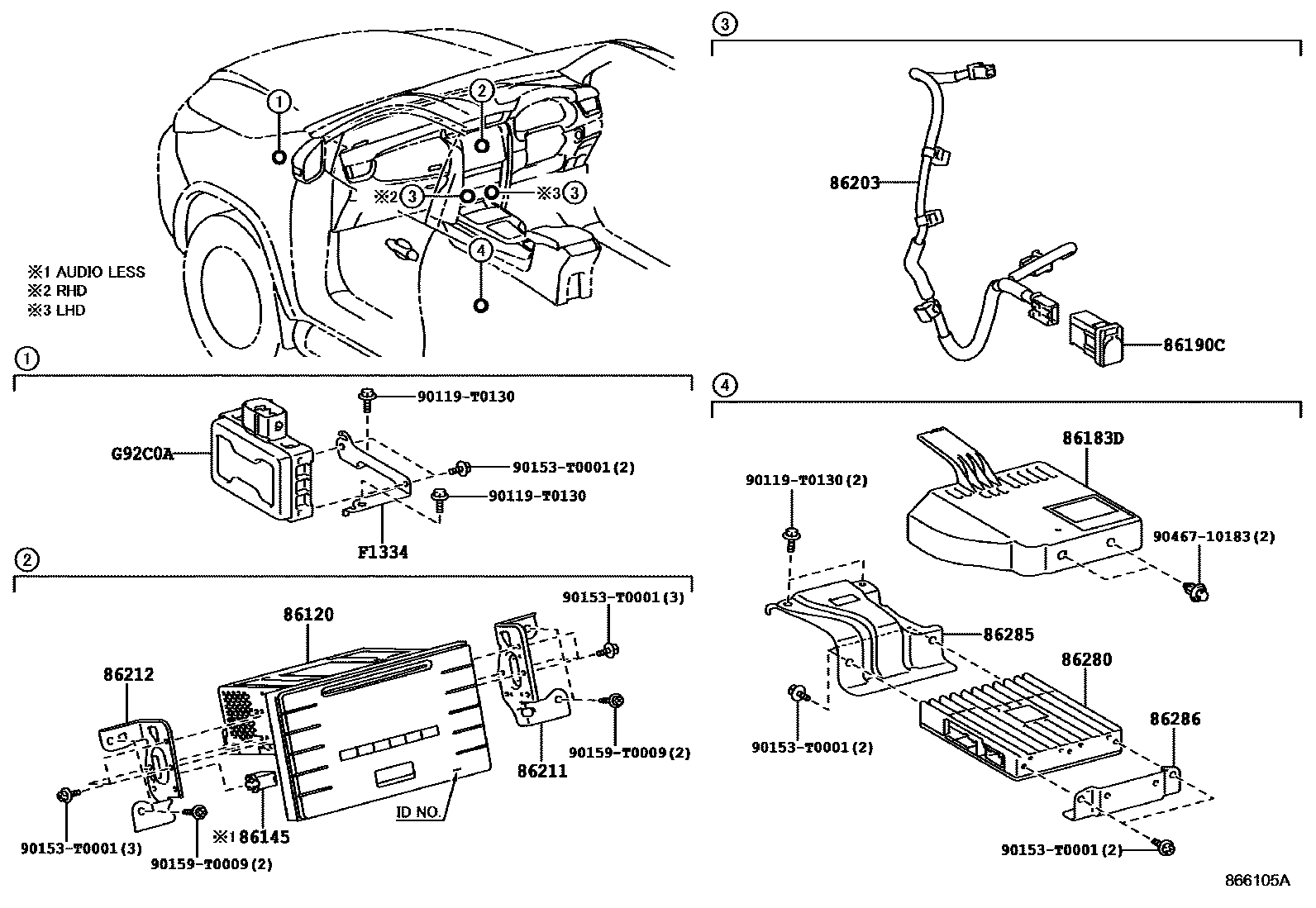

16 parts on this diagram · 1 diagram in section
