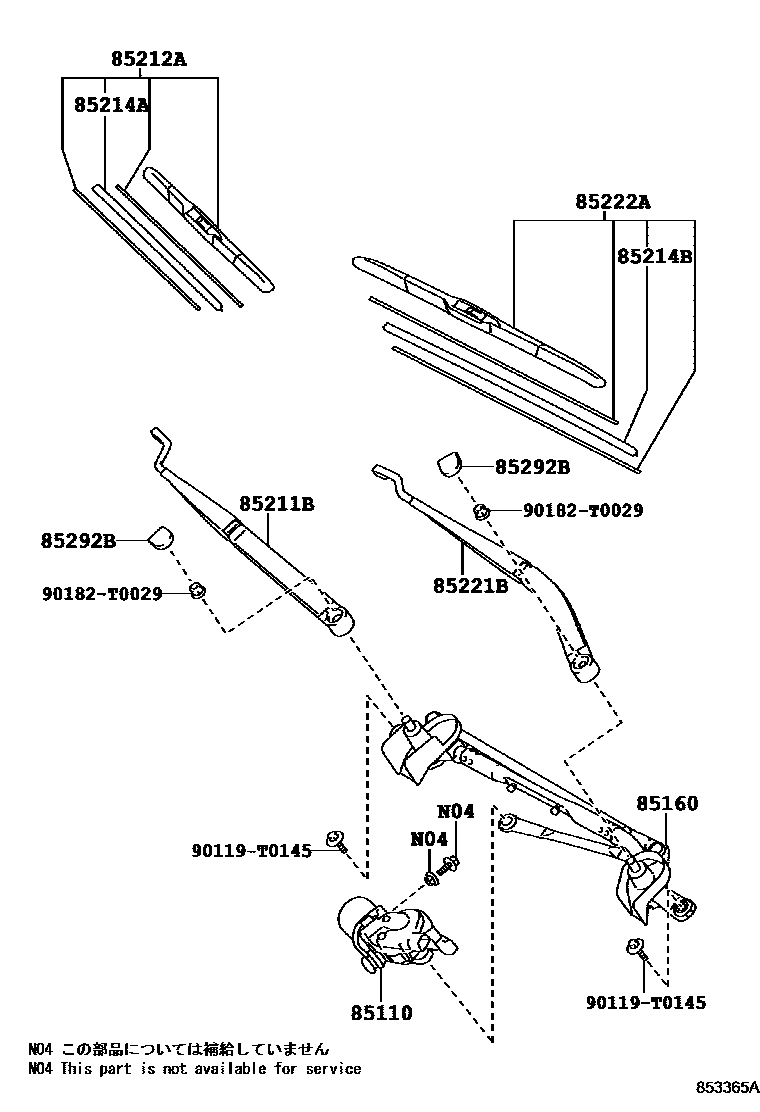

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0K171iTGN166..IDNSU..(L,M)..(GCC,LA);TGN166..LHD..(EPTSU,THSUV,VNSUV);GGN155,165,GUN15#,165,KUN156,165,LAN155,TGN156..LHD..(EPTSU,IDNSU,SASUV,THSUV,VNSUV)201601-202101

main85110-0K201iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104

main85110-0K222iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main85110-0K251iGUN156,166,TGN166..IND201610-202012

85160LINK ASSY, WINDSHIELD WIPER

main85150-0K140iGUN15#,16#,TGN166..RHD..THSUV201507-202005

main85150-0K150iGGN155,165,GUN15#,165,TGN156,166..LHD..(EPTSU,THSUV)201601-202101

main85150-0K180iGGN155,GUN15#,16#,KUN156,TGN166..RHD..SA201603-202009

main85150-0K190iGUN15#,KUN156,165,LAN155,TGN156..LHD..SA201603-202009

main85150-0K220iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main85150-0K230iGUN15#,165,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU)201601-202104

main85150-0K240iTGN166..VNSUV;TGN166..IDNSU..(L,M)..(GCC,LA);GGN155,165,GUN15#,165,KUN156,TGN156..LHD..(IDNSU,VNSUV)201601-202008

main85150-0K250iGUN156,166,TGN166..IND201610-202012

85211BARM, FRONT WIPER, RH

main85211-0K131iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104

main85211-0K140iTGN166..IDNSU..S..GCC;TGN166..LHD..IDNSU..(GEN,PH,VN)201512-202101

main85211-0K230iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

85212ABLADE, FR WIPER, RH

main85212-42130iTGN166..IDNSU..(L,M)..(GCC,LA);TGN166..LHD..(AGTSU,EPTSU,THSUV,VNSUV);GGN155,165,GUN15#,165,KUN156,165,LAN155,TGN156,168..LHD¥1,810201512-202101

main85212-71010iGUN156,166,TGN166..IND¥3,190201507-202104

85214ARUBBER, WIPER, RH

main85214-28090iTGN166..IDNSU..(L,M)..(GCC,LA);TGN166..LHD..(AGTSU,EPTSU,THSUV,VNSUV);GGN155,165,GUN15#,165,KUN156,165,LAN155,TGN156,168..LHD¥750201512-202101

main85214-53080iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)¥850201507-202104

85214BRUBBER, WIPER, LH

main85214-28090iGUN156,166,TGN166..IND¥750201507-202104

main85214-53080iTGN166..IDNSU..S..GCC;TGN166..LHD..IDNSU..(GEN,PH,VN)¥850201512-202101

85221BARM, FRONT WIPER, LH

main85221-0K130iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)¥3,180201507-202104

main85221-0K141iGUN156..H..GEN;GUN156..LHD..IDNSU..M..GEN;TGN166..IDNSU..(L,M)..(GCC,LA);GUN156..LHD..(BZAGT,GCC,LA,PH,SA,VN);TGN166..LHD..(AGTSU,EPTSU,THSUV,VNSUV);GGN155,165,GUN1201512-202101

main85221-0K150iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

85222ABLADE, FR WIPER, LH

main85222-42130iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)¥1,800201507-202104

main85222-71010iTGN166..IDNSU..(L,M)..(GCC,LA);TGN166..LHD..(AGTSU,EPTSU,THSUV,VNSUV);GGN155,165,GUN15#,165,KUN156,165,LAN155,TGN156,168..LHD201512-202101

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iTGN166..IDNSU..S..GCC;TGN166..LHD..IDNSU..(GEN,PH,VN)¥200201507-202104

90119T0145

main90119-T0145

90182T0029

main90182-T0029

11 parts on this diagram · 2 diagrams in section
