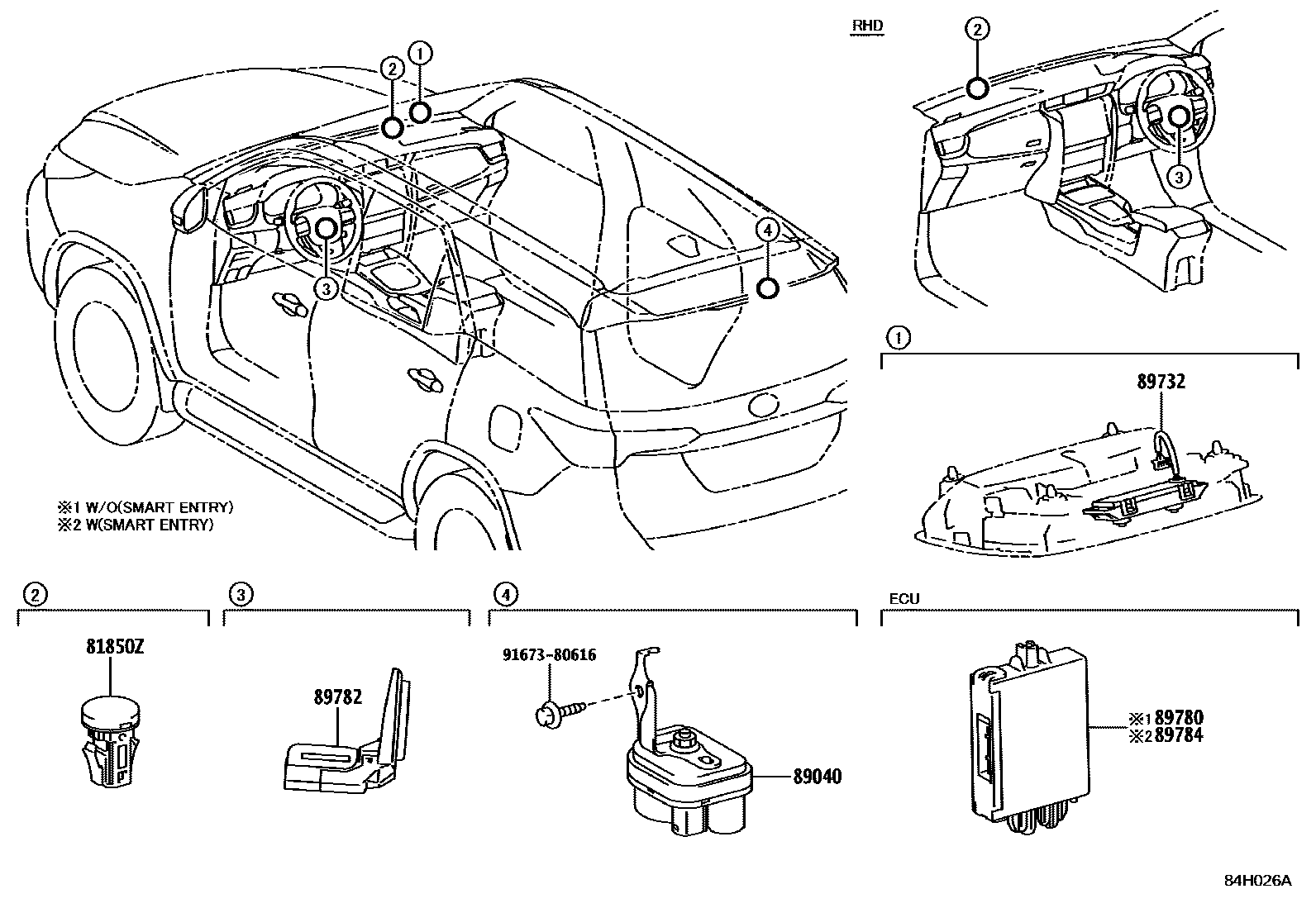

ANTI-THEFT DEVICE

81850ZLAMP ASSY, THEFT WARNING INDICATOR

main81850-0K020iGGN155,165,GUN15#,16#,TGN156,166..MASUV,PKNSU,THSUV,VNSUV201507-202104

main81850-0K030iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main81850-0K040iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV201512-202012

89040SIREN ASSY, THEFT WARNING

main89040-0K030iGUN156,166,TGN166..IND201809-202012

89732SENSOR, THEFT WARNING RADAR

main89732-71010iGUN156..H..IART;TGN156..S..BZAGT;GGN155,GUN156,TGN16#..(H,S)..(HDCR,HTWC,HTWCF)..BZAGT201512-201801

main89732-71020iGUN156..H..IART;TGN156..S..BZAGT;GGN155,LAN155..(H,L)..(BZAGT,SA);GUN156,TGN16#..(H,S)..(HDCR,HTWC,HTWCF)..BZAGT201801-202012

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-06111iGUN156..6FC..(L,S)..ARL;GUN165..(AGTSU,THSUV)..6FC..L;GUN156,TGN156,168..L..(BZAGT,KZS);GGN155,GUN155,LAN155..LHD..(SASUV,THSUV)..(5F,6FC)..(L,S);GUN156,TGN156,166.201612-201906

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main89780-06112iTGN168..L;GUN156..(L,S)..ARL;TGN166..(AGTSU,EPTSU,THSUV)..(L,S);GGN155,GUN15#,165,LAN155,TGN156..LHD..(AGTSU,EPTSU,SASUV,THSUV,VNSUV)..(L,S)201907-202101

sub89780-06114

main89780-06130iKUN165201507-201709

main89780-0K040iTGN156,166..LHD..IDNSU..(GCC,GEN,LA,PH);GGN155,165,GUN15#,165,KUN156..IDNSU..(L,S)201601-201611

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

main89780-0K041iGGN165,GUN165,TGN166..IDNSU..S..GCC201612-202007

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)

sub89780-0K042

89782COIL, TRANSPONDER KEY

main89782-02050iTGN166..LHD..(EPTSU,THSUV);GGN155,165,GUN15#,165,TGN156..(EPTSU,PKNSU,THSUV,VNSUV)..(L,S)..(ARL,EPT,GCC,GEN,KZS,PKN,VN)201507-202101

main89782-0K020iGGN155,165,GUN15#,165,KUN156..IDNSU..(L,S);TGN156,166..LHD..IDNSU..(L,S)..(GCC,GEN,LA,PH)201601-202007

main89782-0K030iGUN156,TGN168..L..BZAGT;KUN156..(AGTSU,SASUV)..(L,S);GUN15#,165,KUN165,LAN155,TGN156,166..LHD..(AGTSU,SASUV)..(L,S)..(DCR,DEFI,HDCR,HTWC)201512-202010

89784COMPUTER, IMMOBILIZER CODE

main89784-30060iGUN15#,165,TGN156..(MASUV,THSUV)..(L,M)..(GEN,MA)201603-201805

main89784-F4020iGGN155,GUN15#,16#,TGN166..RHD..SA201808-202012

9167380616

main91673-80616

7 parts on this diagram · 1 diagram in section
