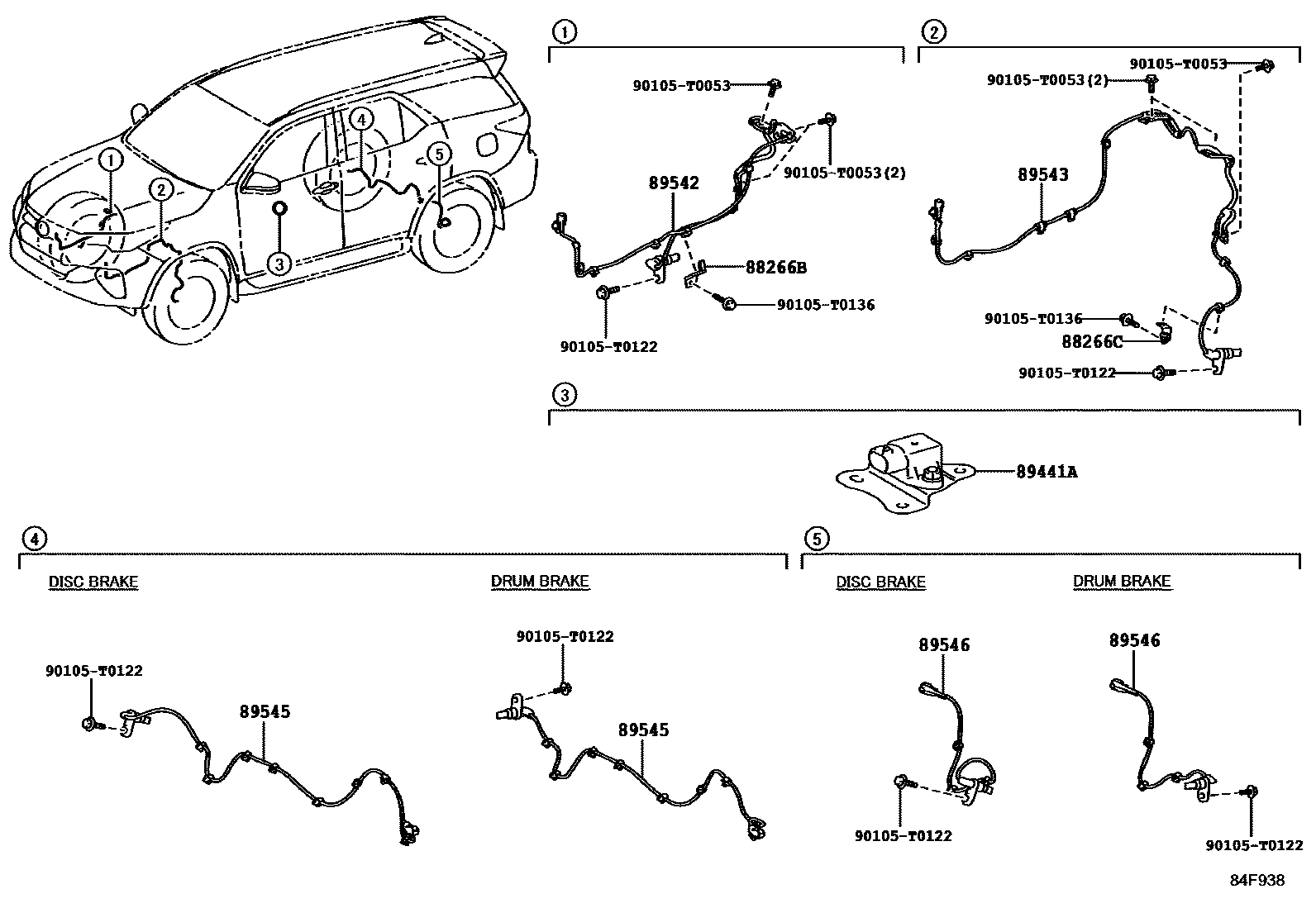

ABS & VSC

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0K020iGGN155,TGN156,166..EPT201507-202101

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0K040iGGN155,TGN156,166..EPT201507-202101

89441ASENSOR, DECELERATION

main89440-71040iGUN165..PH,VN;TGN156..M..GEN;KUN156,TGN156..PKN,SA;GUN155..(H,S)..(GEN,IDN);GUN156,165,KUN156..RHD..IDNSU;GUN156,KUN165,LAN155..LHD..SA;TGN166..6FC..(L,M,S)..(EPT,G201507-202101

89542SENSOR, SPEED, FRONT RH

main89542-0K060iGGN155,165,GUN15#,16#,KUN156,TGN156,16#..AGTSU,PKNSU,THSUV201507-202104

main89542-0K070iGUN156,166,TGN166..IND201610-202012

main89542-0K080iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IDNSU,MASUV,SASUV,VNSUV201601-202012

89543SENSOR, SPEED, FRONT LH

main89543-0K060iGUN156,16#,TGN166201507-201510

main89543-0K061iGGN155,TGN156,166..EPT201511-202101

main89543-0K071iGUN156,166,TGN166..IND201610-202012

main89543-0K081iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IDNSU,MASUV,SASUV,VNSUV201601-202012

89545SENSOR, SPEED, REAR RH

main89545-0K120iGGN155,165,GUN15#,16#,TGN156,166..THSUV..(GCC,TH)201507-201708

main89545-0K130iGGN155,TGN156,166..EPT201803-202101

main89545-0K150iGUN156,166,TGN166..IND201610-202012

main89545-0K270iTGN156,166..IDNSU..5F..GCC;TGN156,166..IDNSU..6FC..(GCC,GEN,IDN,PH,VN);GGN155,165,GUN15#,165..IDNSU..(GCC,IDN,PH,VN)201601-201708

main89545-0K300iGUN155..M..MA;TGN166..SASUV,VNSUV;TGN156,166..IDNSU..S..GCC;GUN165..(SASUV,VNSUV)..6F;GUN165..6FC..(GEN,MA,SA,VN);KUN156..(IDNSU,SASUV)..(LA,SA);GGN155,GUN155,166,K201601-202012

89546SENSOR, SPEED, REAR LH

main89546-0K120iGGN155,165,GUN15#,16#,TGN156,166..THSUV..(GCC,TH)201507-201708

main89546-0K130iTGN156..PKN201802-202104

main89546-0K150iGUN156,166,TGN166..IND201610-202012

main89546-0K270iTGN156,166..IDNSU..5F..GCC;TGN156,166..IDNSU..6FC..(GCC,GEN,IDN,PH,VN);GGN155,165,GUN15#,165..IDNSU..(GCC,IDN,PH,VN)201601-201708

main89546-0K300iGUN165..IDNSU..L..VN;TGN156..6FC..(GEN,VN);TGN166..IDNSU..(PH,VN);TGN166..IDNSU..5F..GCC;GUN156,TGN156..IDNSU..(L,M)..(GCC,PH);GGN155,165,GUN155,165..IDNSU..(GCC,ID201708-202012

90105T0053

main90105-T0053

90105T0122

main90105-T0122

90105T0136

main90105-T0136

10 parts on this diagram · 1 diagram in section
