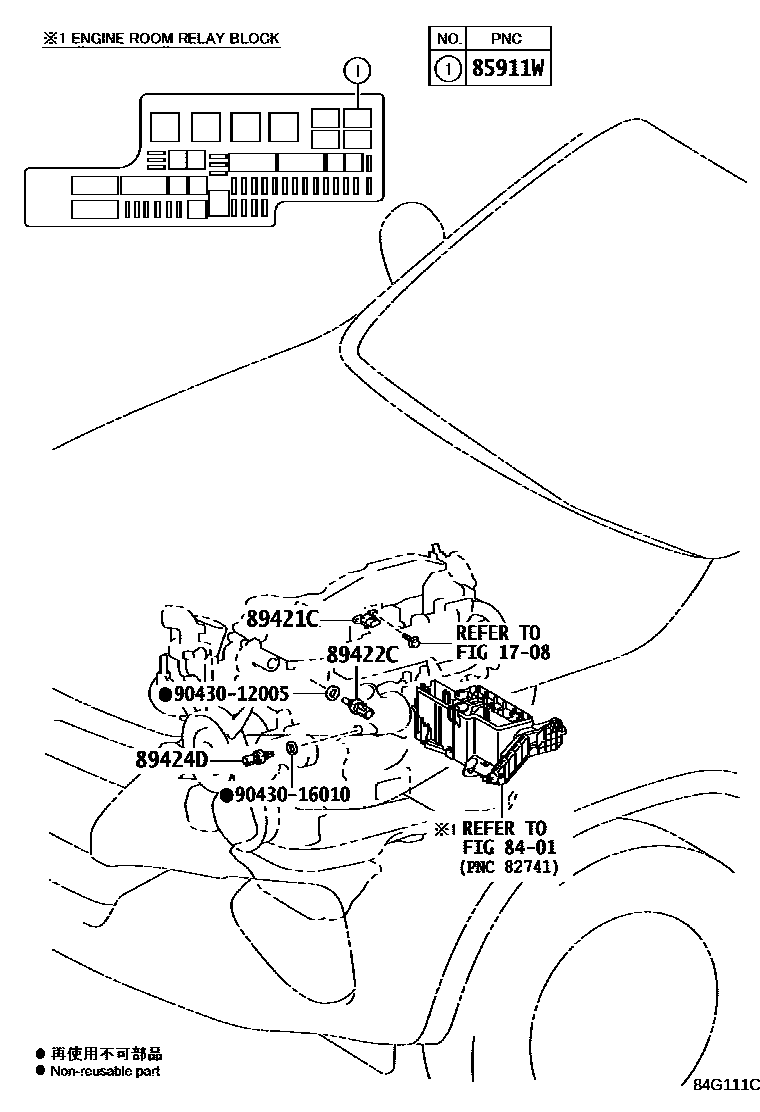

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1COWL 0005 1COWL

1708

8401

85911WRELAY, ELECTRONIC DRIVER UNIT

main90987-02027iGUN156,166..IND201507-202012

(J)

main90987-T2001iGUN15#,16#,KUN156,165..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

(L)

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-12150iLAN155201603-202009

main89421-71030iGUN156,166..IND201507-202012

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030×2iGUN165..THSUV..L;GUN155..(MASUV,THSUV)..(H,L,S)201601-202012

89424DSENSOR, INLET AIR TEMPERATURE

main89424-12010iKUN165,LAN155201603-202009

main89424-60010iGUN156,166..IND201507-202012

9043012005

main90430-12005

9043016010

main90430-16010

8 parts on this diagram · 5 diagrams in section
