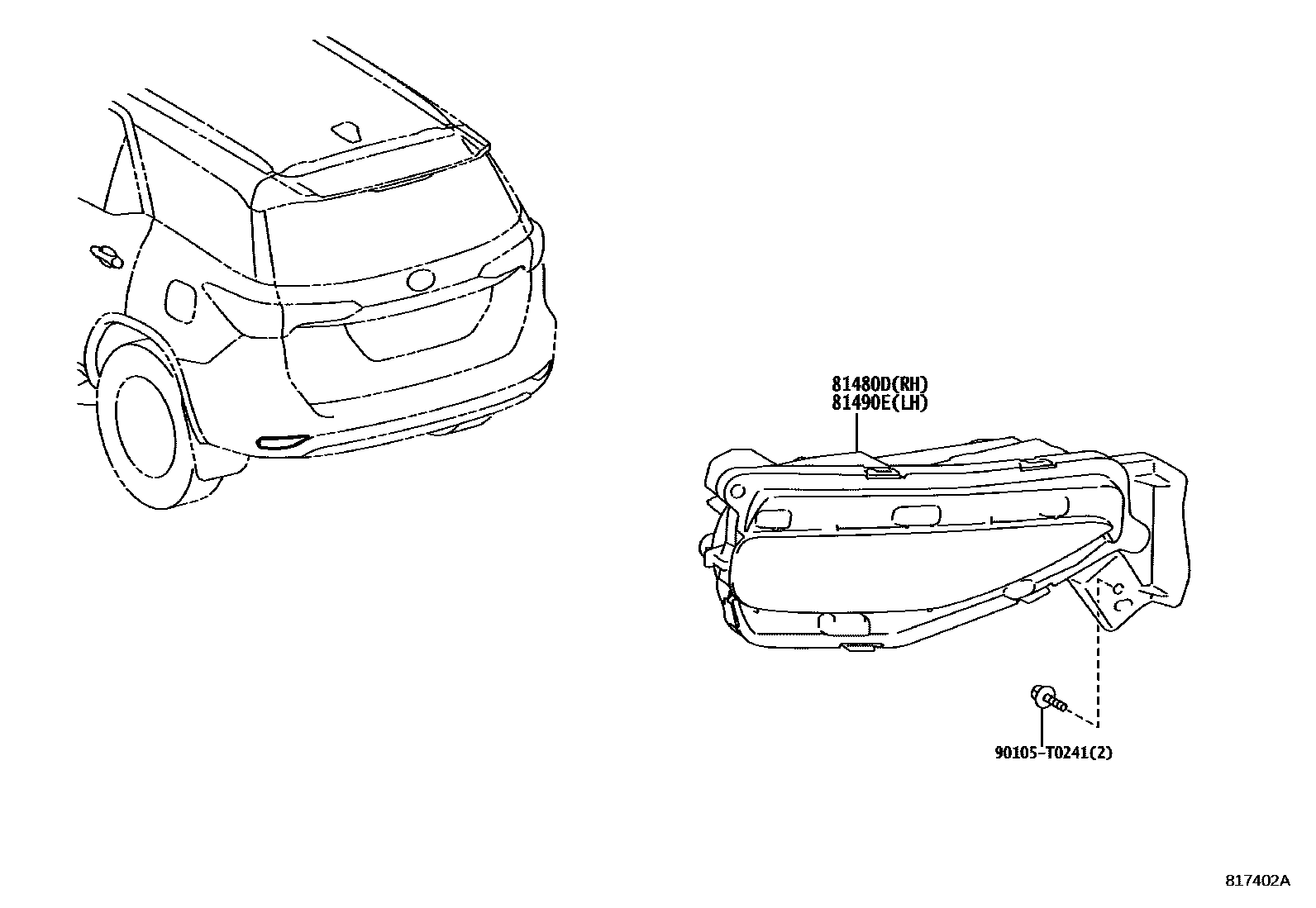

REFLEX REFLECTOR

81480DREFLECTOR ASSY, REFLEX, RH

main81480-0K010iTGN166..PKN;GUN15#,TGN166..(SASUV,THSUV)..(H,L)..(GEN,SA);GGN155,GUN156,16#,KUN156,165,LAN155,TGN156..ARL,PKN,SA201507-202104

main81480-0K010iGGN155..THSUV;TGN156..THSUV..6FC..L201603-202005

REAR FOG LAMP-WITHOUT

main81480-0K030iGGN155,GUN156,165,KUN156,TGN156,166..AGTSU..LA201512-202010

main81480-0K050iGGN155,165,GUN155,165,TGN156,166..IDNSU..GCC201601-202008

main81480-0K050iGGN155..IDNSU..GCC;TGN156..IDNSU..L..GCC;TGN166..IDNSU..6FC..L..GCC201708-201905

REAR FOG LAMP-WITHOUT

main81480-0K060iGUN156,166,TGN166..IND201610-201809

81490EREFLECTOR ASSY, REFLEX, LH

main81490-0K010iTGN166..PKN;GUN15#,TGN166..(SASUV,THSUV)..(H,L)..(GEN,SA);GGN155,GUN156,16#,KUN156,165,LAN155,TGN156..ARL,PKN,SA201507-202104

main81490-0K010iGGN155..THSUV;TGN156..THSUV..6FC..L201603-202005

REAR FOG LAMP-WITHOUT

main81490-0K030iGGN155,GUN156,165,KUN156,TGN156,166..AGTSU..LA201512-202010

main81490-0K050iGGN155,165,GUN155,165,TGN156,166..IDNSU..GCC201601-202008

main81490-0K050iGGN155..IDNSU..GCC;TGN156..IDNSU..L..GCC;TGN166..IDNSU..6FC..L..GCC201708-201905

REAR FOG LAMP-WITHOUT

main81490-0K060iGUN156,166,TGN166..IND201610-201809

90105T0241

main90105-T0241

3 parts on this diagram · 1 diagram in section
