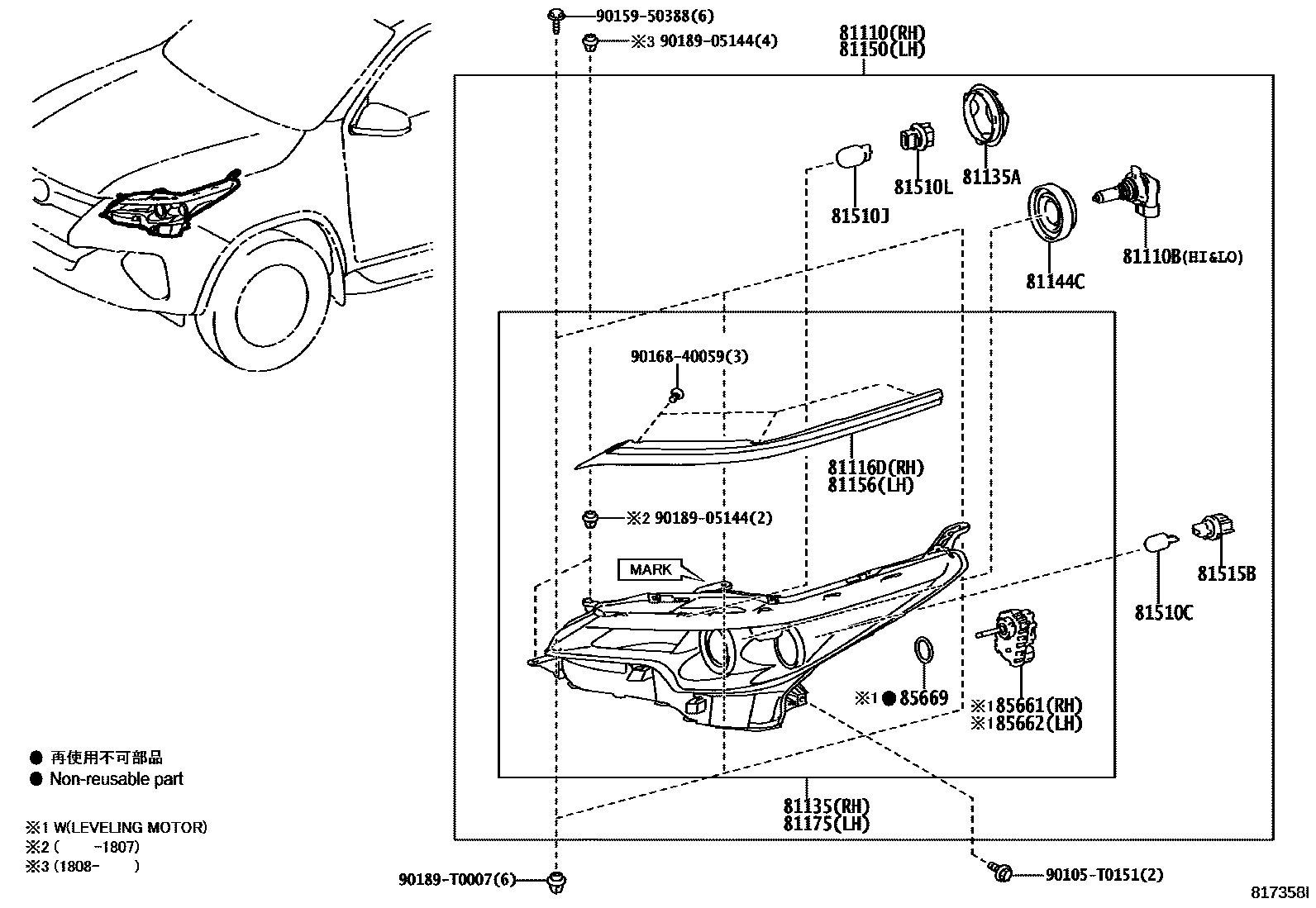

HEADLAMP
81110HEADLAMP ASSY, RH
sub90189-05144
main81110-0KA00iTGN168..6FC;TGN156,166..LHD..(SASUV,THSUV)..S..(GCC,SA);GUN15#,165..(AGTSU,THSUV)..6FC..S..(BZAGT,GCC);GGN155,165,GUN156,KUN156,165,LAN155..LHD..(SASUV,THSUV)..(L,S201512-201808
sub90189-05144
main81110-0KA01iGUN155,TGN156,166..(SASUV,THSUV)..6FC..S..(GCC,SA);GGN155,GUN156,LAN155..LHD..(SASUV,THSUV)..(L,S)..(GCC,SA)201808-202009
sub90189-05144
main81110-0KA20iGUN155,TGN166..LHD..(BZAGT,EPT,SA);GUN156,TGN156..(L,S)..(HDCR,HTWC)..(BZAGT,EPT)201512-201808
sub90189-05144
main81110-0KA21iGUN155,TGN16#..LHD..(6F,6FC)..(BZAGT,EPT,SA);GUN156,TGN156..(L,S)..(HDCR,HTWC)..(BZAGT,EPT)201808-202101
main81110-0KA50iGUN156..M..ARL;GUN165,TGN166..6FC..(M,S)..(MA,SA,TH);GGN155,GUN15#,166,KUN156,TGN156..RHD..(M,S)..(MA,PKN,SA,TH)201507-201808
sub90189-05144
main81110-0KA51supersedes 81110-0KG11iGUN156..M..ARL;GUN165,TGN166..6FC..(MA,TH);GGN155,GUN15#,166,TGN156..RHD..(M,S)..(MA,PKN,SA,TH)201808-202104
HEADLAMP-LED
COLOMBIA SPEC
sub90189-05144
COLOMBIA SPEC
sub90189-05144
main81110-0KB60iTGN156..AGTSU..(H,M);GUN156,KUN156,TGN166..AGTSU..M;GGN155,165,GUN15#,165..(AGTSU,EPTSU,THSUV)..H201512-201808
sub90189-05144
main81110-0KB61iGUN156..M..LA;GUN156..(AGTSU,THSUV)..H;GGN155,GUN155,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M)201808-202101
sub90189-05144
HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH
sub90189-05144
sub90189-05144
sub90189-05144
sub90189-05144
sub90189-05144
main81110-0KD01iTGN166..PH;GUN165..IDNSU..(L,S)..(GCC,PH);GUN155,TGN156,166..IDNSU..L..GCC201808-202007
sub90189-05144
sub90189-05144
sub90189-05144
ECUADOR SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
HEADLAMP-LED
sub90189-05144
ECUADOR SPEC&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
ECUADOR SPEC&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
HEADLAMP-LED
ASIA COLD COUNTRY SPEC
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
sub90189-05144
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
DAYTIME RUNNING LIGHT SYSTEM-WITH
sub90189-05144
DAYTIME RUNNING LIGHT SYSTEM-WITH
DAYTIME RUNNING LIGHT SYSTEM-WITH
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13091×2iGUN155,165..6F..S..(SA,TH);GGN155,165,GUN156,KUN156,165,LAN155,TGN156,168..LHD..(L,S);GUN155,165,TGN166..(L,S)..(BZAGT,EPT,GCC,GEN,IDN,LA,MA,PH,PKN,VN)201507-202104
12V 55W,HALOGEN
12V 65W(SAE),60W(UN)
81116DRIM, HEAD LAMP, RH
main81116-0K860iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008
main81116-0K870iTGN168..5F;GUN156,165,KUN156,TGN156,166..(AGTSU,THSUV)..L..(ARL,BZAGT,KZS,LA)201507-202010
main81116-0KA10iTGN156,166..AGTSU..M;GUN156..THSUV..H..GEN;GGN155,165,GUN155,166,KUN165,LAN155..AGTSU,MASUV,SASUV,THSUV;TGN156,166..(AGTSU,MASUV,PKNSU,SASUV,THSUV)..(BZAGT,GCC,MA,P201507-202104
main81116-0KC90iTGN156..IDNSU..5F..GCC;GUN165,TGN166..IDNSU..L..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);GGN155,165,GUN155,166..IDNSU,INDSU;TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156201601-202012
81135UNIT ASSY, HEADLAMP, RH
sub90189-05144
main81130-0KA00iTGN168..6FC;TGN156,166..LHD..(SASUV,THSUV)..S..(GCC,SA);GUN15#,165..(AGTSU,THSUV)..6FC..S..(BZAGT,GCC);GGN155,165,GUN156,KUN156,165,LAN155..LHD..(SASUV,THSUV)..(L,S201512-201808
sub90189-05144
main81130-0KA01iGUN155,TGN156,166..(SASUV,THSUV)..6FC..S..(GCC,SA);GGN155,GUN156,LAN155..LHD..(SASUV,THSUV)..(L,S)..(GCC,SA)201808-202009
sub90189-05144
main81130-0KA20iGUN155,TGN166..LHD..(BZAGT,EPT,SA);GUN156,TGN156..(L,S)..(HDCR,HTWC)..(BZAGT,EPT)201512-201808
sub90189-05144
main81130-0KA21iGUN155,TGN16#..LHD..(6F,6FC)..(BZAGT,EPT,SA);GUN156,TGN156..(L,S)..(HDCR,HTWC)..(BZAGT,EPT)201808-202101
COLOMBIA SPEC
sub90189-05144
COLOMBIA SPEC
sub90189-05144
sub90189-05144
sub90189-05144
sub90189-05144
sub90189-05144
main81130-0KD01iTGN166..PH;GUN165..IDNSU..(L,S)..(GCC,PH);GUN155,TGN156,166..IDNSU..L..GCC201808-202007
sub90189-05144
sub90189-05144
sub90189-05144
ECUADOR SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
main81140-0KA50iGUN156..M..ARL;GUN165,TGN166..6FC..(M,S)..(MA,SA,TH);GGN155,GUN15#,166,KUN156,TGN156..RHD..(M,S)..(MA,PKN,SA,TH)201507-201808
sub90189-05144
main81140-0KA51supersedes 81130-0KG11iGUN156..M..ARL;GUN165,TGN166..6FC..(MA,TH);GGN155,GUN15#,166,TGN156..RHD..(M,S)..(MA,PKN,SA,TH)201808-202104
HEADLAMP-LED
main81140-0KB60iTGN156..AGTSU..(H,M);GUN156,KUN156,TGN166..AGTSU..M;GGN155,165,GUN15#,165..(AGTSU,EPTSU,THSUV)..H201512-201808
sub90189-05144
main81140-0KB61iGUN156..M..LA;GUN156..(AGTSU,THSUV)..H;GGN155,GUN155,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M)201808-202101
sub90189-05144
HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH
sub90189-05144
HEADLAMP-LED
HEADLAMP-LED,NOT APPLICABLE
ECUADOR SPEC&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
ECUADOR SPEC&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
ASIA COLD COUNTRY SPEC
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
sub90189-05144
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
DAYTIME RUNNING LIGHT SYSTEM-WITH
sub90189-05144
DAYTIME RUNNING LIGHT SYSTEM-WITH
DAYTIME RUNNING LIGHT SYSTEM-WITH
81135ACAP, LOCKING
81144CCOVER, HEADLAMP SOCKET
main90075-65006×2iTGN166..L..SA;GUN165..6F..TH;GUN156..(L,S)..ARL;GGN155,GUN156,KUN156..LHD..(L,S);TGN166..(AGTSU,EPTSU,IDNSU,PKNSU,THSUV,VNSUV)..(L,S);GGN165,GUN155,165,KUN165,LAN15201507-202104
81150HEADLAMP ASSY, LH
sub90189-05144
main81150-0KA00iTGN168..6FC;TGN156,166..LHD..(SASUV,THSUV)..S..(GCC,SA);GUN15#,165..(AGTSU,THSUV)..6FC..S..(BZAGT,GCC);GGN155,165,GUN156,KUN156,165,LAN155..LHD..(SASUV,THSUV)..(L,S201512-201808
sub90189-05144
main81150-0KA01iGUN155,TGN156,166..(SASUV,THSUV)..6FC..S..(GCC,SA);GGN155,GUN156,LAN155..LHD..(SASUV,THSUV)..(L,S)..(GCC,SA)201808-202009
sub90189-05144
main81150-0KA20iGUN155,TGN166..LHD..(BZAGT,EPT,SA);GUN156,TGN156..(L,S)..(HDCR,HTWC)..(BZAGT,EPT)201512-201808
sub90189-05144
main81150-0KA21iGUN155,TGN16#..LHD..(6F,6FC)..(BZAGT,EPT,SA);GUN156,TGN156..(L,S)..(HDCR,HTWC)..(BZAGT,EPT)201808-202101
main81150-0KA50iGUN156..M..ARL;GUN165,TGN166..6FC..(M,S)..(MA,SA,TH);GGN155,GUN15#,166,KUN156,TGN156..RHD..(M,S)..(MA,PKN,SA,TH)201507-201808
sub90189-05144
main81150-0KA51supersedes 81150-0KG11iGUN156..M..ARL;GUN165,TGN166..6FC..(MA,TH);GGN155,GUN15#,166,TGN156..RHD..(M,S)..(MA,PKN,SA,TH)201808-202104
HEADLAMP-LED
COLOMBIA SPEC
sub90189-05144
COLOMBIA SPEC
sub90189-05144
main81150-0KB60iTGN156..AGTSU..(H,M);GUN156,KUN156,TGN166..AGTSU..M;GGN155,165,GUN15#,165..(AGTSU,EPTSU,THSUV)..H201512-201808
sub90189-05144
main81150-0KB61iGUN156..M..LA;GUN156..(AGTSU,THSUV)..H;GGN155,GUN155,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M)201808-202101
sub90189-05144
HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH
sub90189-05144
sub90189-05144
sub90189-05144
sub90189-05144
sub90189-05144
main81150-0KD01iTGN166..PH;GUN165..IDNSU..(L,S)..(GCC,PH);GUN155,TGN156,166..IDNSU..L..GCC201808-202007
sub90189-05144
sub90189-05144
sub90189-05144
ECUADOR SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
HEADLAMP-LED
HEADLAMP-LED
sub90189-05144
ECUADOR SPEC&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
ECUADOR SPEC&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
HEADLAMP-LED
ASIA COLD COUNTRY SPEC
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
sub90189-05144
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
DAYTIME RUNNING LIGHT SYSTEM-WITH
sub90189-05144
DAYTIME RUNNING LIGHT SYSTEM-WITH
DAYTIME RUNNING LIGHT SYSTEM-WITH
81156RIM, HEADLAMP, LH
main81156-0K860iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008
main81156-0K870iTGN168..5F;GUN156,165,KUN156,TGN156,166..(AGTSU,THSUV)..L..(ARL,BZAGT,KZS,LA)201507-202010
main81156-0KA10iTGN156,166..AGTSU..M;GUN156..THSUV..H..GEN;GGN155,165,GUN155,166,KUN165,LAN155..AGTSU,MASUV,SASUV,THSUV;TGN156,166..(AGTSU,MASUV,PKNSU,SASUV,THSUV)..(BZAGT,GCC,MA,P201507-202104
main81156-0KC90iTGN156..IDNSU..5F..GCC;GUN165,TGN166..IDNSU..L..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);GGN155,165,GUN155,166..IDNSU,INDSU;TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156201601-202012
81175UNIT ASSY, HEADLAMP, LH
main81070-0KA50iGUN156..M..ARL;GUN165,TGN166..6FC..(M,S)..(MA,SA,TH);GGN155,GUN15#,166,KUN156,TGN156..RHD..(M,S)..(MA,PKN,SA,TH)201507-201808
sub90189-05144
main81070-0KA51supersedes 81170-0KG11iGUN156..M..ARL;GUN165,TGN166..6FC..(MA,TH);GGN155,GUN15#,166,TGN156..RHD..(M,S)..(MA,PKN,SA,TH)201808-202104
HEADLAMP-LED
main81070-0KB60iTGN156..AGTSU..(H,M);GUN156,KUN156,TGN166..AGTSU..M;GGN155,165,GUN15#,165..(AGTSU,EPTSU,THSUV)..H201512-201808
sub90189-05144
main81070-0KB61iGUN156..M..LA;GUN156..(AGTSU,THSUV)..H;GGN155,GUN155,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M)201808-202101
sub90189-05144
HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH
sub90189-05144
HEADLAMP-LED
HEADLAMP-LED
sub90189-05144
main81170-0KA00iTGN168..6FC;TGN156,166..LHD..(SASUV,THSUV)..S..(GCC,SA);GUN15#,165..(AGTSU,THSUV)..6FC..S..(BZAGT,GCC);GGN155,165,GUN156,KUN156,165,LAN155..LHD..(SASUV,THSUV)..(L,S201512-201808
sub90189-05144
main81170-0KA01iGUN155,TGN156,166..(SASUV,THSUV)..6FC..S..(GCC,SA);GGN155,GUN156,LAN155..LHD..(SASUV,THSUV)..(L,S)..(GCC,SA)201808-202009
sub90189-05144
main81170-0KA20iGUN155,TGN166..LHD..(BZAGT,EPT,SA);GUN156,TGN156..(L,S)..(HDCR,HTWC)..(BZAGT,EPT)201512-201808
sub90189-05144
main81170-0KA21iGUN155,TGN16#..LHD..(6F,6FC)..(BZAGT,EPT,SA);GUN156,TGN156..(L,S)..(HDCR,HTWC)..(BZAGT,EPT)201808-202101
COLOMBIA SPEC
sub90189-05144
COLOMBIA SPEC
sub90189-05144
sub90189-05144
sub90189-05144
sub90189-05144
sub90189-05144
main81170-0KD01iTGN166..PH;GUN165..IDNSU..(L,S)..(GCC,PH);GUN155,TGN156,166..IDNSU..L..GCC201808-202007
sub90189-05144
sub90189-05144
sub90189-05144
ECUADOR SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
sub90189-05144
HEADLAMP-LED,NOT APPLICABLE
ECUADOR SPEC&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
ECUADOR SPEC&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
ASIA COLD COUNTRY SPEC
ECUADOR SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
sub90189-05144
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
DAYTIME RUNNING LIGHT SYSTEM-WITH
sub90189-05144
DAYTIME RUNNING LIGHT SYSTEM-WITH
DAYTIME RUNNING LIGHT SYSTEM-WITH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15021×2iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
12V 21W,AMBER
81510JBULB(FOR DAYTIME RUNNING LAMP)
main90981-13088×2iGUN155,165..6F..S..(SA,TH);TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..(L,S);GGN155,165,GUN156,KUN156,165,LAN155,TGN168..LHD..(L,S);GUN155,165,TGN166..(L,S)..(BZAGT,EP201507-202104
12V 21/5W
81510LSOCKET, DAYTIME RUNNING LAMP
main90075-60086×2iGUN155,165..6F..S..(SA,TH);TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..(L,S);GGN155,165,GUN156,KUN156,165,LAN155,TGN168..LHD..(L,S);GUN155,165,TGN166..(L,S)..(BZAGT,EP201507-202104
81515BSOCKET, FRONT TURN SIGNAL LAMP
85661MOTOR, HEADLAMP LEVELING, RH
main85661-02040iGUN156..IDNSU..M..(LA,PH);GUN155..IDNSU..(H,M)..(GCC,IDN);TGN156,166..(H,M)..(GEN,IDN,VN);GGN155,165,GUN165,KUN156..IDNSU..(H,M)201704-202104
(L)
main85661-12020supersedes 85661-0D020iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU..(H,M)201507-201704
85662MOTOR, HEADLAMP LEVELING, LH
main85661-02040iTGN156..H;GUN156..RHD..SA;GUN156..AGTSU..M;TGN166..(M,S)..(LA,SA,TH);GUN155..(H,M)..(GEN,MA,TH);GGN155,GUN166,KUN156..RHD..(SA,TH);GUN165,TGN156..6FC..(M,S)..(LA,MA201604-202104
(L)
main85661-12020supersedes 85661-0D020iTGN156..H;GUN156..RHD..SA;GUN156..AGTSU..M;TGN166..(M,S)..(LA,SA,TH);GUN155..(H,M)..(GEN,MA,TH);GGN155,GUN166,KUN156..RHD..(SA,TH);GUN165,TGN156..6FC..(M,S)..(LA,MA201604-202104
(J)
85669PACKING, HEADLAMP LEVELING MOTOR BASE
main90075-99120×2iTGN156..M..GEN;TGN166..L..(EPT,SA);GUN156,TGN156..(M,S)..(GCC,LA);GUN155,165..(H,S)..(GCC,SA,TH,VN);TGN156..BZAGT,EPT,KZS,MA,PKN,SA,VN;GUN155,165..(H,L,M)..(GEN,IDN201507-202104
90105T0151
main90105-T0151
9015950388
main90159-50388
9016840059
main90168-40059
9018905144
main90189-05144
90189T0007
main90189-T0007
21 parts on this diagram · 10 diagrams in section
