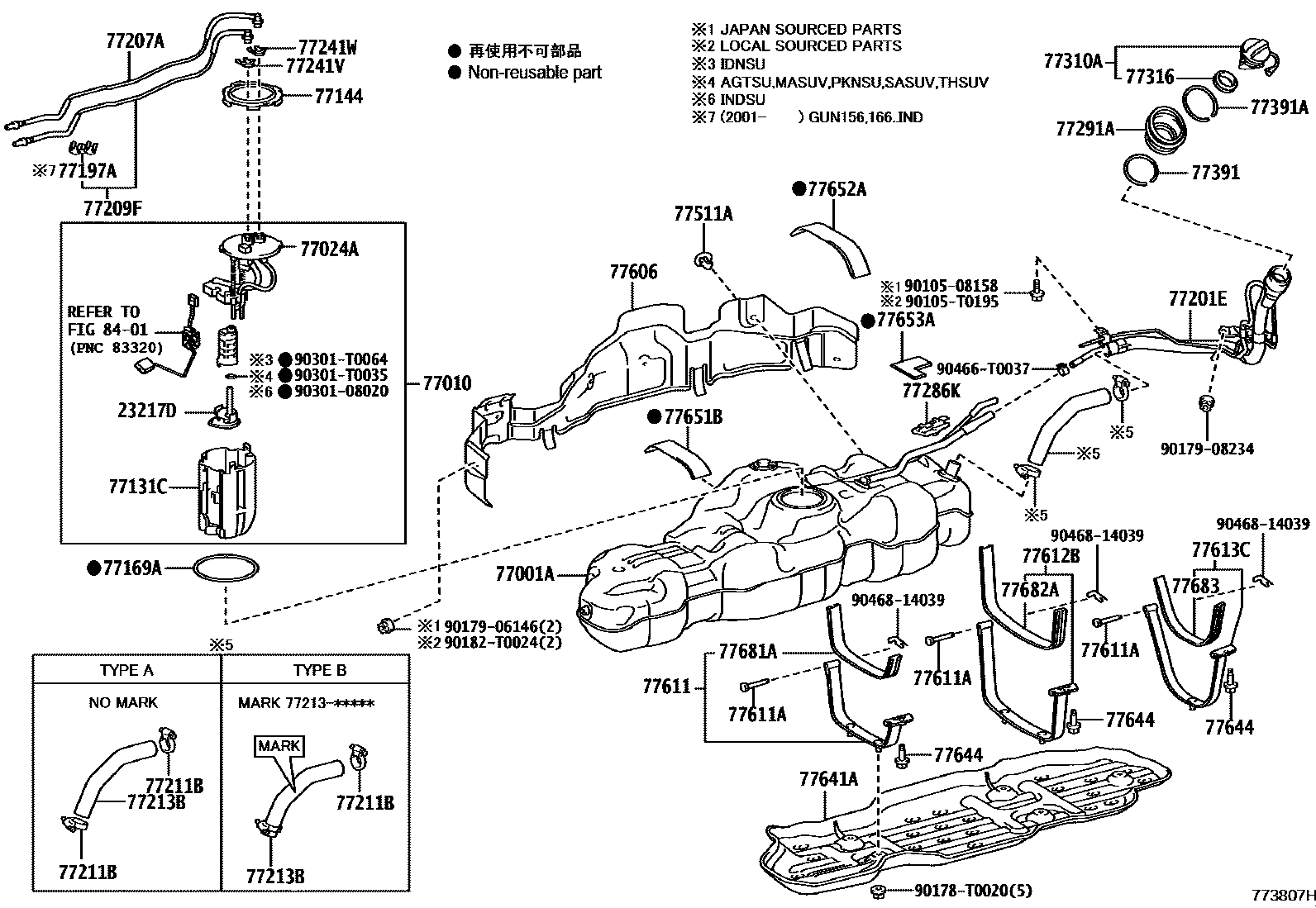

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER

23217DFILTER, FUEL PUMP

main23217-0D140i2TRFE..TGN168201607-202010

main23217-0L020i1GDFTV..GUN156..(H,L)..IART;2GDFTV..GUN155,165..AGTSU,MASUV,SASUV,THSUV,VNSUV;1GDFTV,1KDFTV,2KDFTV,5LE..GUN156,166,KUN156,165,LAN155..(AGTSU,PKNSU,SASUV,THSUV,VNSUV201507-202104

main23217-0L030i1GDFTV,2GDFTV,1KDFTV..GUN15#,165,KUN156..IDNSU201601-202007

77001ATANK SUB-ASSY, FUEL

main77001-0K500iGGN155,165,TGN156,166..IDNSU,INDSU201601-202012

main77001-0K510iGGN155,TGN156,166..EPT201507-202101

main77001-0K520iGUN15#,165,KUN156..IDNSU201601-202007

main77001-0K540iGUN15#,16#,KUN156,165,LAN155..SA201603-202009

main77001-0K550iGGN155,TGN156,16#..AGTSU201512-202010

main77001-0K560iGUN15#,16#..MASUV,PKNSU,THSUV,VNSUV201507-202104

main77001-0K580iGUN156,166..IND201610-202012

main77001-0K600iGUN156..S..IART201512-201805

main77001-0K730iGGN155,TGN156,166..SA201603-202009

77010TUBE ASSY, FUEL TANK VENT

main77010-0K210iGUN15#,165,KUN156..IDNSU201601-202007

sub77010-0K211

main77010-0K240iGUN156..(H,L)..IART;GUN15#,16#,KUN156,165,LAN155..(AGTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..(DCR,DEFI,HDCR)201507-202104

sub77010-0K241

main77010-0K250iGUN156,166..IND201610-202012

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0K160iGUN156..(H,L)..IART;GUN15#,16#,KUN156,165,LAN155..(AGTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..(DCR,DEFI,HDCR)201507-202104

main77024-0K210iGGN155,165,TGN156,166..IDNSU,INDSU201601-202012

main77024-0K220iGGN155,165,TGN156,166..AGTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

main77024-0K270iGUN15#,165,KUN156..IDNSU201601-202007

main77024-0K280iGUN156,166..IND201610-202012

77131CSUB-TANK, FUEL, NO.1

main77131-0K100iGGN155,TGN156,166..EPT201507-202101

main77131-0K110iGUN156..(H,L)..IART;GUN15#,16#,KUN156,165,LAN155..(AGTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..(DCR,DEFI,HDCR)201507-202104

main77131-0K120iGGN155,165,TGN156,166..IDNSU,INDSU201601-202012

main77131-0K140iGUN15#,165,KUN156..IDNSU201601-202007

main77131-0K150iGUN156,166..IND201610-202012

77144RETAINER, FUEL PUMP GAUGE

main77144-0K040iTGN166..IDNSU,INDSU;GGN155,165,GUN15#,165,TGN156..IDNSU201507-201802

main77144-0K050iTGN166..IDNSU,INDSU;GGN155,165,GUN15#,165,TGN156..IDNSU201802-202012

main77144-30030iTGN168201607-202010

MARK C:REFER TO ILL.

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iGGN155,TGN156,166..EPT201507-202101

main77169-0K040iGUN156..S..IART201507-201805

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-52010iGUN156,166..IND202002-202012

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-71040iTGN156..KZS201708-202005

main77201-71050iGUN156..THSUV..(M,S)..GEN201708-202005

main77201-KK160supersedes 77201-KK290iGGN155,TGN156,166..EPT201601-202101

main77201-KK170iKUN156;GUN156..(M,S)..ARL;GUN156..THSUV..(H,L);GUN155,16#,KUN165,LAN155..GCC,GEN,SA;GUN156..(IDNSU,PKNSU,SASUV)..(GCC,GEN,LA,PKN,SA)201507-202104

main77201-KK180iTGN156,166..IDN,MA,PH,TH,VN201507-202012

main77201-KK190iGUN15#,16#..IDN,MA,PH,TH,VN201507-202012

main77201-KK280iGUN156,165..AGTSU201710-202010

main77201-KK290iGGN155,TGN156,16#..AGTSU201512-201710

main77201-KK300iTGN166..AGTSU;TGN156..AGTSU..(L,S)201710-201808

main77201-KK330iGGN155,TGN156..AGTSU..M201710-202010

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-0K080iGUN156,166..IND202002-202012

main77204-0K090iGGN155,TGN156,166..EPT201507-202101

main77204-0K110iGUN156..S..IART201507-201805

main77204-0K120iGUN156,166..IND201610-202002

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K140iGUN156,166..IND202002-202012

main77209-0K150iGGN155,165,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

main77209-0K170iGUN156..(H,L)..IART;GUN15#,16#,KUN156,165,LAN155..(AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..(DCR,DEFI,HDCR)201507-202104

main77209-0K180iGUN156,166..IND201610-202002

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005×2iGUN156,16#,TGN166201507-201510

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-KK020iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201510-202104

TYPE A:REFER ILLUST.

main77213-KK050iGUN156,16#,TGN166201510-201511

TYPE B:REFER ILLUST.

main77213-KK051iGUN156,166,TGN166..IND201512-202012

TYPE B:REFER ILLUST.

77241VCLIP, TUBE JOINT

main77241-0K020iGUN156..S..IART201507-201805

77241WCLIP, TUBE JOINT

main77241-0K010×2iGUN156..(H,L)..IART;GUN15#,16#,KUN156,165,LAN155..(AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..(DCR,DEFI,HDCR)201507-202104

77286KCLAMP, FUEL TUBE, NO.2

main77286-0K180iGUN156,166,TGN166..IND201507-202012

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0K110iGGN155,TGN156,166..EPT201507-202101

main77291-0K120iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

main77291-0K130iGGN155,GUN156,16#,KUN156,TGN156,16#..AGTSU,INDSU201512-202012

77310ACAP ASSY, FUEL TANK

main77300-0K010iGGN155,165,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

main77300-0K020iGUN156,166..IND201507-202012

77316GASKET, FUEL TANK CAP

main77316-0K020iGUN156,166,TGN166..IND201507-202012

77391RING, FUEL INLET BOX

main77391-0K010iGUN156,166,TGN166..IND201507-202012

77391ARING, FUEL INLET BOX

main77391-0K110iGUN156,166,TGN166..IND201507-202012

77511ABRACKET, FUEL TANK

main77512-0K010×4iTGN166..IDNSU,INDSU;GGN155,165,GUN15#,165,KUN156,TGN156..IDNSU201601-202012

main77644-0K010×4iGUN156..S..IART201507-201805

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0K070iTGN166..IDNSU,INDSU;GGN155,165,GUN15#,165,KUN156,TGN156..IDNSU201601-202012

main77606-0K080iGUN156,166..IND201507-202012

77611BAND, FUEL TANK

main77601-71020iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

main77601-KK060iGUN156,166,TGN166..IND201507-202012

77611APIN (FOR FUEL TANK BAND)

main77653-0K041×3iGUN156,166,TGN166..IND201507-202012

77612BBAND, FUEL TANK, NO.2

main77602-71020iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

main77602-KK040iGUN156,166,TGN166..IND201507-202012

77613CBAND, FUEL TANK, NO.3

main77603-71010iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

main77603-KK020iGUN156..THSUV..(H,L);GUN156..RHD..THSUV..(M,S);GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GGN155,165,GUN155,16#,KUN156,165,LAN155,TGN156,16#..BZAGT,GCC,GEN,IDN,LA,MA,PH,201507-202104

77641APROTECTOR, FUEL TANK, NO.1

main77641-KK020iGGN155,TGN156,166..EPT201507-202101

main77641-KK040iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IND,SA201603-202012

77644BOLT, FUEL TANK

main77644-35030×3iGUN156,166,TGN166..IND201507-202012

77651BCUSHION, FUEL TANK

main77651-0K050iTGN166..IDNSU,INDSU;GGN155,165,GUN15#,165,KUN156,TGN156..IDNSU201601-202012

main77651-0K060iGGN155,TGN156,166..EPT201507-202101

main77651-0K120iGUN156,166..IND201610-202012

77652ACUSHION, FUEL TANK, NO.2

main77652-0K060iTGN166..IDNSU,INDSU;GGN155,165,GUN15#,165,KUN156,TGN156..IDNSU201601-202012

sub77654-0K060

main77652-0K070iGUN156..S..IART201507-201805

main77652-0K150iGUN156,166..IND201610-202012

77653ACUSHION, FUEL TANK, NO.3

main77653-0K110iTGN166..IDNSU,INDSU;GGN155,165,GUN15#,165,KUN156,TGN156..IDNSU201601-202012

main77653-0K120iGUN156..(H,L)..IART;GGN155..AGTSU,SASUV,THSUV;GGN165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..(DCR,DEFI,HDCR,HTWC,HTWCF)201507-202104

main77653-0K150iGUN156,166..IND201610-202012

77681ASEAT, FUEL TANK BAND

main77681-71020iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

main77681-KK030iGUN156,166,TGN166..IND201507-202012

77682ASEAT, FUEL TANK BAND, NO.2

main77682-71020iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

main77682-KK020iGUN156,166,TGN166..IND201507-202012

77683SEAT, FUEL TANK BAND, NO.3

main77681-42020iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

main77683-KK020iGUN156,166,TGN166..IND201507-202012

8401

9010508158

main90105-08158

90105T0195

main90105-T0195

90178T0020

main90178-T0020

9017906146

main90179-06146

9017908234

main90179-08234

90182T0024

main90182-T0024

9030108020

main90301-08020

90301T0035

main90301-T0035

90301T0064

main90301-T0064

90466T0037

main90466-T0037

9046814039

main90468-14039
