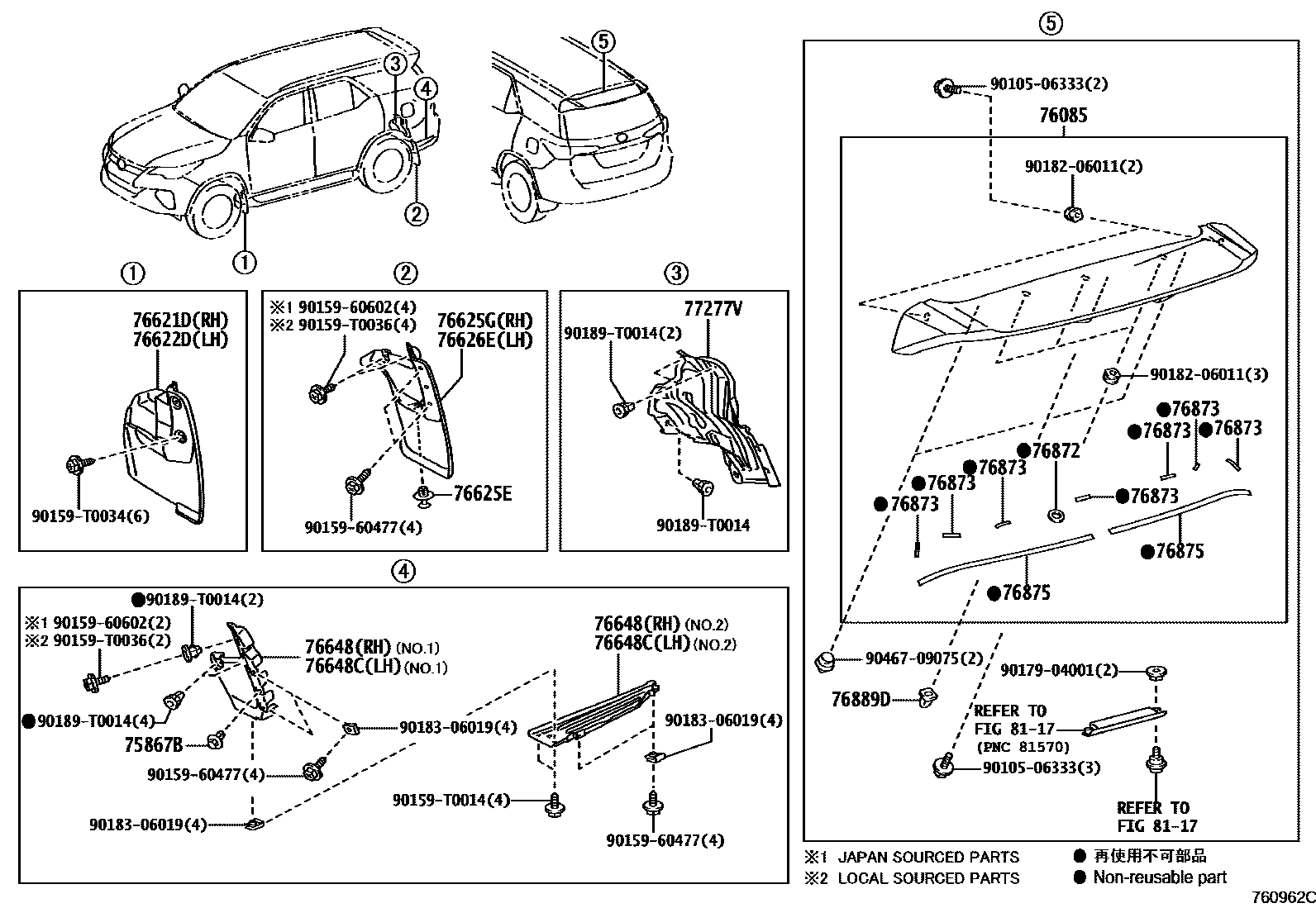

SPOILER & SIDE MUDGUARD

75867BCLIP, ROCKER PANEL MOULDING

main75867-33050iTGN166..PKN;GUN15#,165,TGN156..(L,M)..(MA,PKN)201507-202101

76085SPOILER SUB-ASSY, REAR

main76085-0K902iGGN155,165,GUN15#,16#,TGN156,166..MASUV,PKNSU,THSUV201507-202104

main76085-0K903iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main76085-0K904iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main76085-0K905iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main76085-0K906iGUN156,166,TGN166..IND201610-202012

76621DMUDGUARD, FRONT FENDER, RH

main76621-0K190iGUN156..ARL201507-201605

MUDGUARD-WITH(FRONT & REAR)

sub76621-0K300

main76621-0K191iGUN156,TGN156,166..(PKNSU,THSUV)..(L,M,S)..(ARL,GEN,KZS,PKN)201605-202104

main76621-0K201iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main76621-0K221iGUN155,165,TGN156..MA201605-202012

main76621-0K210iGGN155,GUN156,KUN156,TGN156,166..AGTSU201512-201603

MUDGUARD-WITH(FRONT & REAR)

sub76621-0K300

main76621-0K211iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201603-202010

MUDGUARD-WITH(FRONT & REAR)

main76621-0K220iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-201603

MUDGUARD-WITH(FRONT & REAR)

sub76621-0K190

sub76621-0K300

main76621-0K231iGUN156,166,TGN166..IND201610-202012

MUDGUARD-WITH(FRONT & REAR)

76622DMUDGUARD, FRONT FENDER, LH

main76622-0K190iGUN156..ARL201507-201605

MUDGUARD-WITH(FRONT & REAR)

sub76622-0K120

main76622-0K191iGGN155,TGN156,166..EPT201605-202104

main76622-0K201iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main76622-0K221iGUN155,165,TGN156..MA201605-202012

main76622-0K210iGGN155,GUN156,KUN156,TGN156,166..AGTSU201512-201603

MUDGUARD-WITH(FRONT & REAR)

sub76622-0K120

main76622-0K211iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201603-202010

MUDGUARD-WITH(FRONT & REAR)

main76622-0K220iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-201603

MUDGUARD-WITH(FRONT & REAR)

sub76622-0K120

sub76622-0K190

main76622-0K231iGUN156,166,TGN166..IND201610-202012

MUDGUARD-WITH(FRONT & REAR)

76625ECLIP

main75867-33050iGGN155,TGN156,166..EPT201507-202104

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-0K340iGGN155,TGN156,166..EPT201507-202104

main76625-0K350iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main76625-0K360iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

MUDGUARD-WITH(FRONT & REAR)

main76625-0K380iGUN156,166,TGN166..IND201610-202012

MUDGUARD-WITH(FRONT & REAR)

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-0K340iGGN155,TGN156,166..EPT201507-202104

main76626-0K350iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main76626-0K360iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

MUDGUARD-WITH(FRONT & REAR)

main76626-0K380iGUN156,166,TGN166..IND201610-202012

MUDGUARD-WITH(FRONT & REAR)

76648SUPPORT, REAR BODY MUDGUARD, RH

main66251-0K010iTGN156..EPTSU,PKNSU,THSUV;GGN155,165,GUN15#,16#,TGN166..EPTSU,THSUV201507-202101

NO.1

main66251-0K020iTGN156..EPTSU,PKNSU,THSUV;GGN155,165,GUN15#,16#,TGN166..EPTSU,THSUV201507-202101

NO.2

main66251-0K030iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

NO.1

main66251-0K040iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

NO.2

main66251-0K050iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

NO.1

main66251-0K060iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

NO.2

main66251-0K070iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

NO.1

main66251-0K080iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

NO.2

main66251-0K090iGUN156,166,TGN166..IND201610-202012

NO.1

main66251-0K100iGUN156,166,TGN166..IND201610-202012

NO.2

76648CSUPPORT, REAR BODY MUDGUARD, LH

main66252-0K010iTGN156..EPTSU,PKNSU,THSUV;GGN155,165,GUN15#,16#,TGN166..EPTSU,THSUV201507-202101

NO.1

main66252-0K020iTGN166..PKN;GUN15#,165,TGN156..(L,M)..(MA,PKN)201507-202101

NO.2

main66252-0K030iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

NO.1

main66252-0K040iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

NO.2

main66252-0K050iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

NO.1

main66252-0K060iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

NO.2

main66252-0K070iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

NO.1

main66252-0K080iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

NO.2

main66252-0K090iGUN156,166,TGN166..IND201610-202012

NO.1

main66252-0K100iGUN156,166,TGN166..IND201610-202012

NO.2

76872PROTECTOR, REAR SPOILER, NO.1

main76872-0K050iGGN155,TGN156,166..EPT201507-202104

main76872-0K060iGUN156,166,TGN166..IND201610-202012

76873PROTECTOR, REAR SPOILER, NO.2

main76873-0K040iKUN156;GGN155,165,GUN15#,16#,KUN165,LAN155,TGN156,16#..AGTSU,PKNSU,SASUV,THSUV201507-202104

main76875-0K020iTGN156..MA;GUN155..L..MA201708-202012

main76875-0K030iGUN156,166,TGN166..IND201610-202012

76875PROTECTOR, REAR SPOILER, NO.4

main76875-0K040iGGN155,TGN156,166..EPT201507-202104

main76875-0K050iGUN156,166,TGN166..IND201610-202012

76889DCLIP, REAR SPOILER, NO.2

main76889-44020iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

77277VPROTECTOR, FUEL TANK FILLER PIPE, NO.1

main77277-0K040iGGN155,165,GUN15#,16#,KUN156,TGN156,16#..AGTSU,MASUV,PKNSU,THSUV201507-202104

main77277-0K070iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main77277-0K090iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main77277-0K100iGUN156,166,TGN166..IND201610-202012

8117

9010506333

main90105-06333

9015960477

main90159-60477

9015960602

main90159-60602

90159T0014

main90159-T0014

90159T0034

main90159-T0034

90159T0036

main90159-T0036

9017904001

main90179-04001

9018206011

main90182-06011

9018306019

main90183-06019

90189T0014

main90189-T0014

9046709075

main90467-09075

26 parts on this diagram · 1 diagram in section
