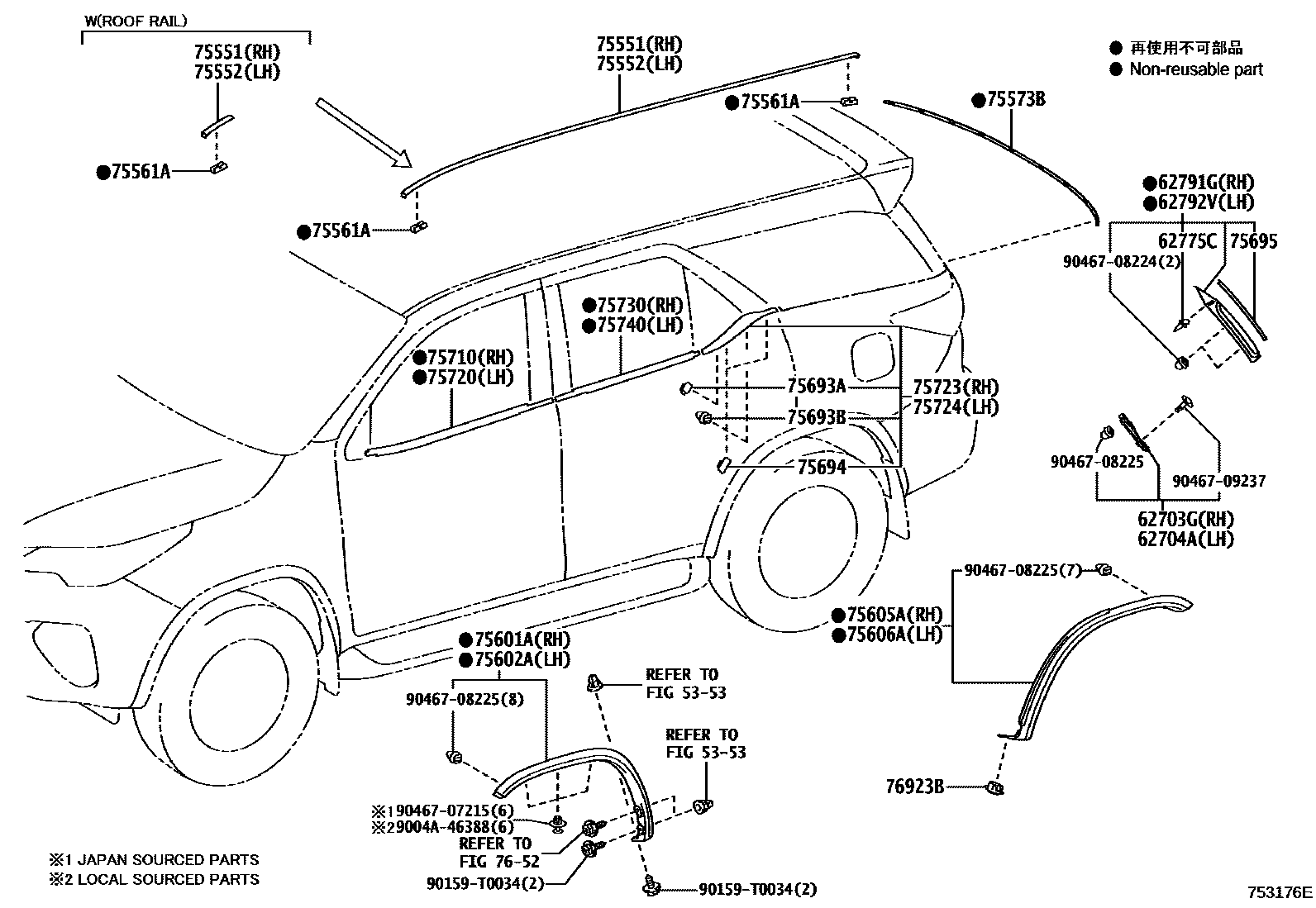

MOULDING

5353

62703GRETAINER SUB-ASSY, QUARTER WINDOW GLASS, REAR RH

main62703-0K011iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,MASUV,PKNSU,SASUV,THSUV201507-202104

main62703-0K020iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main62703-0K030iGUN156,166,TGN166..IND201610-202012

62704ARETAINER SUB-ASSY, QUARTER WINDOW GLASS, REAR LH

main62704-0K011iGGN155,TGN156,166..EPT201507-202104

main62704-0K020iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main62704-0K030iGUN156,166,TGN166..IND201610-202012

62775CCLIP, QUARTER WINDOW

main62775-76010iGGN155,GUN15#,165,KUN156,TGN156,16#..AGTSU,MASUV¥170201507-202104

62791GMOULDING, QUARTER WINDOW, UPPER RH

main62791-0K010iGGN155,165,GUN15#,16#,TGN156,166..MASUV,PKNSU,THSUV201507-202104

main62791-0K020iGUN156,166,TGN166..IND201610-202012

main62791-0K030iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main62791-0K040iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main62791-0K050iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

62792VMOULDING, QUARTER WINDOW, UPPER LH

main62792-0K010iGGN155,165,GUN15#,16#,KUN156,TGN156,16#..AGTSU,MASUV,PKNSU,THSUV201507-202104

main62792-0K020iGUN156,166,TGN166..IND201610-202012

main62792-0K030iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main62792-0K050iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0K190iTGN156..S..KZS;TGN166..THSUV..5F;GUN156,TGN166..(PKNSU,THSUV)..(H,M,S);GGN155,165,GUN155,16#,TGN156..(PKNSU,THSUV)..(GCC,PKN,TH)201507-202104

main75551-0K190iTGN166..THSUV..6FC..L201507-201905

NO PAINT REQ.

main75551-0K200iTGN166..THSUV..L201507-202009

main75551-0K210iTGN166..IDNSU..S..GCC;TGN166..IDNSU..5F..GCC;TGN166..(IDNSU,VNSUV)..(GEN,IDN,LA,VN);GUN165..(IDNSU,VNSUV)..(GCC,GEN,IDN,VN);GGN155,165,GUN15#,KUN156,TGN156..IDNSU,V201601-202008

main75551-0K210iTGN166..IDNSU..6FC..L..GCC201601-201905

NO PAINT REQ.

main75551-0K220iGUN155..IDNSU..L;TGN156..IDNSU..GCC;TGN166..IDNSU..5F..GCC;GGN155,165,GUN165..LHD..IDNSU..(L,M,S)..(GCC,GEN)201601-202007

ROOF RAIL-WITHOUT

main75551-0K220iGUN165..M..PH201601-201708

NO PAINT REQ.

main75551-0K220iGUN165..M..PH201601-201708

NO PAINT REQ.,ROOF RAIL-WITHOUT

main75551-0K220iTGN166..IDNSU..L..GCC201905-202007

main75551-0K230iGUN156,KUN156,TGN156..AGTSU;GUN15#,KUN156..RHD..(IND,SA);GGN155,GUN16#,TGN16#..AGTSU,INDSU,SASUV201512-202012

main75551-0K250iGUN155,165,TGN156..MA201605-202012

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0K190iTGN156..S..KZS;TGN166..THSUV..5F;GUN156,TGN166..(PKNSU,THSUV)..(H,M,S);GGN155,165,GUN155,16#,TGN156..(PKNSU,THSUV)..(GCC,PKN,TH)201507-202104

main75552-0K190iTGN166..THSUV..6FC..L201507-201905

NO PAINT REQ.

main75552-0K200iGUN156,TGN156..L..(ARL,KZS);GUN15#,KUN156,165,LAN155,TGN156..LHD..SA201507-202009

main75552-0K210iTGN166..IDNSU..6FC..L..GCC201601-201905

NO PAINT REQ.

main75552-0K210iTGN166..IDNSU..S..GCC;TGN166..IDNSU..5F..GCC;TGN166..(IDNSU,VNSUV)..(GEN,IDN,LA,VN);GUN165..(IDNSU,VNSUV)..(GCC,GEN,IDN,VN);GGN155,165,GUN15#,KUN156,TGN156..IDNSU,V201601-202008

main75552-0K220iGGN155,165,GUN155,165..IDNSU..H201601-201708

NO PAINT REQ.

main75552-0K220iGUN165,TGN166..S..PH201601-202007

ROOF RAIL-WITHOUT

main75552-0K220iTGN166..IDNSU..L..GCC201905-202007

main75552-0K220iGUN165..M..PH201601-201708

NO PAINT REQ.,ROOF RAIL-WITHOUT

main75552-0K230iGUN156,KUN156,TGN156..AGTSU;GUN15#,KUN156..RHD..(IND,SA);GGN155,GUN16#,TGN16#..AGTSU,INDSU,SASUV201512-202012

main75552-0K250iGUN155,165,TGN156..MA201605-202012

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020iGUN165..M..PH¥160201507-202104

75573BMOULDING, BACK WINDOW, OUTSIDE

main75573-0K010iGUN156,166,TGN166..IND201507-202104

main75573-0K060iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV)..(L,S)201507-202101

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

main75601-0K020iGUN156,16#,TGN166..THSUV201507-201602

NO PAINT REQ.

sub75601-0K021

main75601-0K021iGGN155,165,GUN15#,16#,TGN156,166..MASUV,PKNSU,THSUV201602-202104

main75601-0K031iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main75601-0K041iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main75601-0K051iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main75601-0K061iGUN156,166,TGN166..IND201610-202012

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

main75602-0K020iGGN155,165,GUN155,165,TGN156,166..THSUV..GCC201507-201602

NO PAINT REQ.

sub75602-0K021

main75602-0K021iGGN155,TGN156,166..EPT201602-202104

main75602-0K031iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main75602-0K041iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main75602-0K051iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main75602-0K061iGUN156,166,TGN166..IND201610-202012

75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH

main75605-0K020iGGN155,TGN156,166..EPT201507-202104

main75605-0K030iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main75605-0K040iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main75605-0K050iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main75605-0K060iGUN156,166,TGN166..IND201610-202012

75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH

main75606-0K020iGGN155,TGN156,166..EPT201507-202104

main75606-0K030iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main75606-0K040iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main75606-0K050iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main75606-0K060iGUN156,166,TGN166..IND201610-202012

75693ARETAINER, QUARTER BELT MOULDING

main75693-0K010iGUN156,166,TGN166..IND201507-202104

75693BRETAINER, QUARTER BELT REAR MOULDING, NO.1

main90467-08224iGUN156,166,TGN166..IND¥60201507-202104

75694RETAINER, QUARTER BELT REAR MOULDING, NO.2

main75694-0K010iGUN156,166,TGN166..IND201507-202104

75695PAD, QUARTER OUTSIDE MOULDING

main76655-0K010iGUN155,165,TGN156..MA201605-202012

THAILAND PRODUCT

main76655-0K010iGGN155,165,GUN15#,16#,TGN156,166..PKNSU,THSUV201507-202104

main76655-0K010iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

LH

main76655-0K020iGUN156,166,TGN166..IND201610-201909

sub76655-0K010

main76655-0K030iGUN155,165,TGN156..MA201605-202012

INDONESIA PRODUCT

main76655-0K030iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main76655-0K040iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

RH

main76655-0K050iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

75710MOULDING ASSY, FRONT DOOR BELT, RH

main68160-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,MASUV,SASUV,THSUV)..(L,S)¥2,880201507-202101

main68160-0K070iTGN156..H;TGN156,166..(AGTSU,MASUV,PKNSU,THSUV)..(M,S)..(LA,MA,PKN,TH);GGN155,165,GUN15#,16#,KUN156..(AGTSU,MASUV,PKNSU,THSUV)..(H,M)¥2,880201507-202104

main68160-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)201601-202008

main68160-0K110iGUN156,166,TGN166..IND201610-202012

main68160-0K120iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(L,S)201601-202008

75720MOULDING ASSY, FRONT DOOR BELT, LH

main68210-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,MASUV,SASUV,THSUV)..(L,S)¥2,880201507-202101

main68210-0K070iTGN156..H;TGN156,166..(AGTSU,MASUV,PKNSU,THSUV)..(M,S)..(LA,MA,PKN,TH);GGN155,165,GUN15#,16#,KUN156..(AGTSU,MASUV,PKNSU,THSUV)..(H,M)¥2,880201507-202104

main68210-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)201601-202008

main68210-0K110iGUN156,166,TGN166..IND201610-202012

main68210-0K120iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(L,S)201601-202008

75723MOULDING, REAR DOOR BELT, REAR RH

main75723-0K020iTGN156..H;TGN156,166..(AGTSU,MASUV,PKNSU,THSUV)..(M,S)..(LA,MA,PKN,TH);GGN155,165,GUN15#,16#,KUN156..(AGTSU,MASUV,PKNSU,THSUV)..(H,M)201507-202104

sub75723-0K021

main75723-0K050iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)201601-202008

main75723-0K060iGUN156,166,TGN166..IND201610-202012

sub75723-0K061

main75723-0K070iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,MASUV,SASUV,THSUV)..(L,S)201507-202101

sub75723-0K071

main75723-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(L,S)201601-202008

sub75723-0K101

75724MOULDING, REAR DOOR BELT, REAR LH

main75724-0K020iTGN156..H;TGN156,166..(AGTSU,MASUV,PKNSU,THSUV)..(M,S)..(LA,MA,PKN,TH);GGN155,165,GUN15#,16#,KUN156..(AGTSU,MASUV,PKNSU,THSUV)..(H,M)201507-202104

sub75724-0K021

main75724-0K050iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)201601-202008

main75724-0K060iGUN156,166,TGN166..IND201610-202012

sub75724-0K061

main75724-0K070iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,MASUV,SASUV,THSUV)..(L,S)201507-202101

sub75724-0K071

main75724-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(L,S)201601-202008

sub75724-0K101

75730MOULDING ASSY, REAR DOOR BELT, RH

main68180-0K040iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,MASUV,SASUV,THSUV)..(L,S)201507-202101

main68180-0K050iGGN155..EPT201507-202104

main68180-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)201601-202008

main68180-0K110iGUN156,166,TGN166..IND201610-202012

main68180-0K150iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(L,S)201601-202008

75740MOULDING ASSY, REAR DOOR BELT, LH

main68230-0K040iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..(AGTSU,EPTSU,MASUV,SASUV,THSUV)..(L,S)201507-202101

main68230-0K050iGGN155..EPT201507-202104

main68230-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)201601-202008

main68230-0K110iGUN156,166,TGN166..IND201610-202012

main68230-0K150iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(L,S)201601-202008

7652

76923BRETAINER, SIDE MUDGUARD

main76924-12040iGUN156,166,TGN166..IND¥110201507-202104

9004A46388

main9004A-46388¥110

90159T0034

main90159-T0034

9046707215

main90467-07215¥80

9046708224

main90467-08224¥60

9046708225

main90467-08225¥60

9046709237

main90467-09237¥80

32 parts on this diagram · 1 diagram in section
