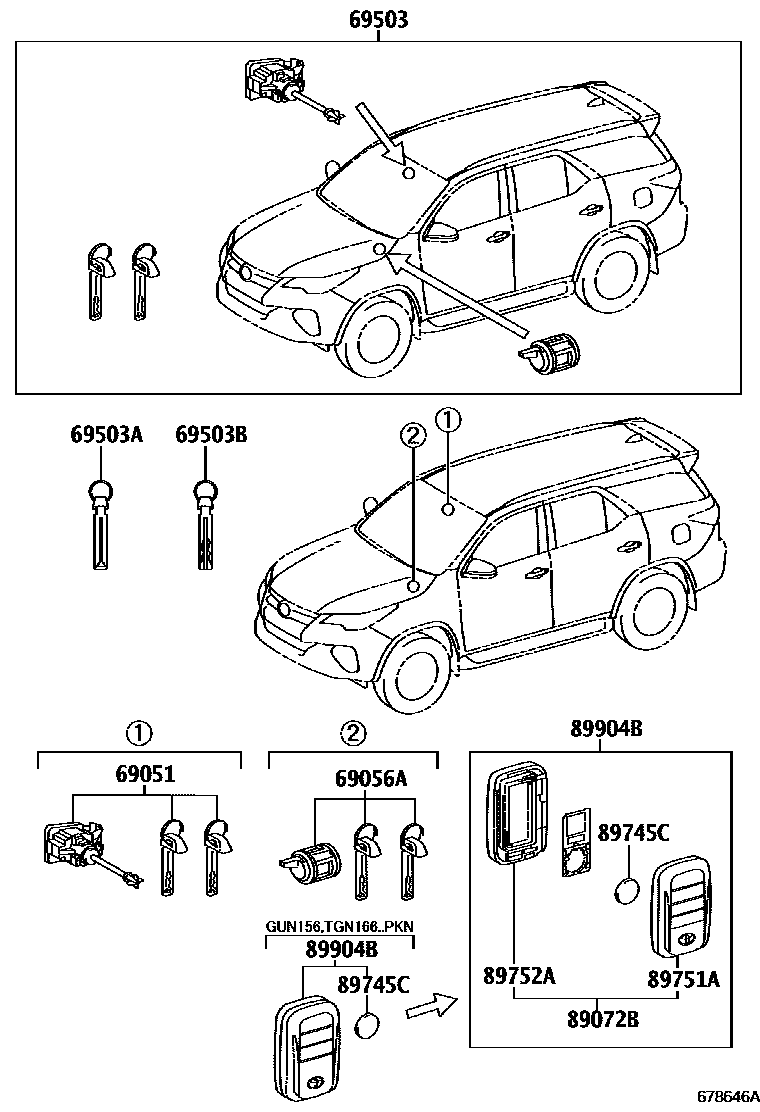

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-0K060iGUN156..S..IART;TGN156..(AGTSU,MASUV)..(H,M);GUN15#,165,TGN166..RHD..(MA,PKN,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);GGN155,165,GUN15#,165,KUN156,TGN166..201507-202104
main69056-0K080iTGN156,166..LHD..IDNSU..(L,S)..(GCC,GEN,LA,PH);GGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(L,S)201601-202008
main69056-0K090iGGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(H,M);TGN156,166..(IDNSU,VNSUV)..(H,M,S)..(GEN,IDN,LA,VN)201601-202008
69503CYLINDER SET, LOCK
main69005-0KC70iGUN156,KUN156,TGN168..AGTSU..(M,S)..(DCR,HTWCF,IART);GGN155,165,GUN15#,165,TGN156,166..LHD..(AGTSU,EPTSU,THSUV)..(H,M)201512-202101
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main69005-0KF80iTGN166..(IDNSU,VNSUV)..(M,S)..(LA,VN);GGN155,165,GUN15#,165,KUN156,TGN156..LHD..(IDNSU,VNSUV)..(H,M)201601-202008
main69005-0KJ20iGUN165..LHD..GEN;GUN156,TGN156,166..(EPTSU,THSUV)..(L,S)..(EPT,GEN,KZS)201705-202101
main89704-0KJ80iGGN155,165,GUN15#,165,KUN156,TGN156,166..(AGTSU,THSUV)..(L,S)..(GCC,LA)201512-201710
sub89704-0KJ81
sub89704-0KL81
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
sub89704-0KL81
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
sub89704-0KM01
main89704-0KQ10iGGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..IDNSU..(L,S)..(GCC,GEN,LA)201601-201707
sub89704-0KQ11
main89704-0KQ11iTGN156,166..LHD..IDNSU..(L,S)..(GCC,GEN,LA);GGN155,165,GUN15#,165..IDNSU..(L,S)..(GCC,LA)201708-202007
sub89704-0KQ21
sub89704-0KQ22
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
sub89704-0KQ51
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
69503AKEY, BLANK
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
main69515-33120iGGN155,165,GUN15#,16#,KUN156..(IDNSU,INDSU,VNSUV)..(H,M);TGN156,166..(IDNSU,INDSU,VNSUV)..(H,M,S)..(GEN,IDN,IND,LA,VN)201601-202012
MASTER KEY,W(*68),FOR SMART KEY
69503BKEY, CUT
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
main69515-33110iGGN155,165,GUN15#,16#,KUN156..(IDNSU,INDSU,VNSUV)..(H,M);TGN156,166..(IDNSU,INDSU,VNSUV)..(H,M,S)..(GEN,IDN,IND,LA,VN)201601-202012
MASTER KEY,W(*68),FOR SMART KEY
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
sub89072-0K381
sub89072-0K382
sub89072-0K391
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89072-0K400iGUN155..H..GCC;KUN156..LHD..M..GEN;KUN156,TGN166..H..GEN;GUN155..(IDNSU,MASUV)..M;GUN156..LHD..(H,M)..(GCC,GEN);GGN155,165,GUN165,TGN156,166..(H,M)..(EPT,GCC,IDN,MA201601-201712
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
sub89072-0K401
main89072-0K401iGUN155..H..GCC;TGN166..H..GEN;GUN155..(IDNSU,MASUV)..M;GUN156..LHD..(H,M)..(GCC,GEN);GGN155,165,GUN165,TGN156,166..(H,M)..(EPT,GCC,IDN,MA)201801-202101
sub89072-0K402
main89072-0K410iGGN155..GEN,SA;TGN156..M..(GEN,VN);GUN156..IDNSU..M..(LA,PH,VN);GUN155,16#,KUN156..M..(LA,PH,TH);GUN156,KUN156,TGN166..RHD..M..(GEN,TH)201507-201712
sub89072-0K411
main89072-0K411iTGN156..M..(GEN,VN);GUN156..RHD..(GEN,TH);GUN155,16#..M..(PH,TH);GUN156..IDNSU..M..(LA,PH,VN);GGN155,TGN166..(M,S)..(GEN,SA,TH)201711-202010
sub89072-0K491
89745CBATTERY, TRANSMITTER
CR2032
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
main89752-0K090iTGN166..(L,M)..(SA,TH);GGN155,GUN15#,16#,TGN156..RHD..(MA,SA,TH);GGN155,165,GUN15#,165..LHD..(EPTSU,THSUV)..(H,M)201507-201801
sub89752-0K091
main89752-0K091iGUN165..6FC..S..TH;GUN156..THSUV..H..GEN;GGN155,GUN156,TGN166..(AGTSU,VNSUV)..(M,S)..(LA,VN)201711-202101
sub89752-0K092
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
sub89752-0K171
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
sub89904-0K011
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
sub89904-0K071
main89904-0K071iTGN166..H..GEN;GUN155..IDNSU..M;GUN156..LHD..IDNSU..(GCC,GEN);GGN155,165,GUN155..IDNSU..H..GCC;GUN165,TGN166..IDNSU..(H,M)..(GCC,IDN)201801-202007
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
sub89904-0K091
sub89904-0K171
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
sub89904-0K191
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWERBACK & PANIC BUTTON)
sub89904-0K201
main89904-0K200iGUN156,KUN156..RHD..M..GEN;GUN156,KUN156..IDNSU..M..(LA,PH,VN);GGN155,GUN165,TGN156,166..M..(GEN,PH,VN)201601-201712
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
sub89904-0K201
main89904-0K200iGUN156,KUN156..RHD..M..GEN;GUN156,KUN156..IDNSU..M..(LA,PH,VN);GGN155,GUN165,TGN156,166..M..(GEN,PH,VN)201601-201712
POWER BACK DOOR-WITH
sub89904-0K201
POWER BACK DOOR-WITH
main89904-0K201iGUN156..RHD..GEN;GUN156..IDNSU..M..(LA,PH,VN);GGN155,GUN165,TGN156,166..M..(GEN,PH,VN)201801-202007
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
main89904-0K201iGUN156..RHD..GEN;GUN156..IDNSU..M..(LA,PH,VN);GGN155,GUN165,TGN156,166..M..(GEN,PH,VN)201801-202007
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWERBACK & PANIC BUTTON)
sub89904-0K231
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main89904-0K260iGGN155,165,GUN15#,165,TGN156..(EPTSU,MASUV,THSUV)..(H,M)..(EPT,GCC,GEN,MA)201601-201712
sub89904-0K261
main89904-0K261iGGN155,165,GUN15#,165,TGN156..(EPTSU,MASUV,THSUV)..(H,M)..(EPT,GCC,GEN,MA)201801-202101
sub89904-0K401
10 parts on this diagram · 6 diagrams in section
