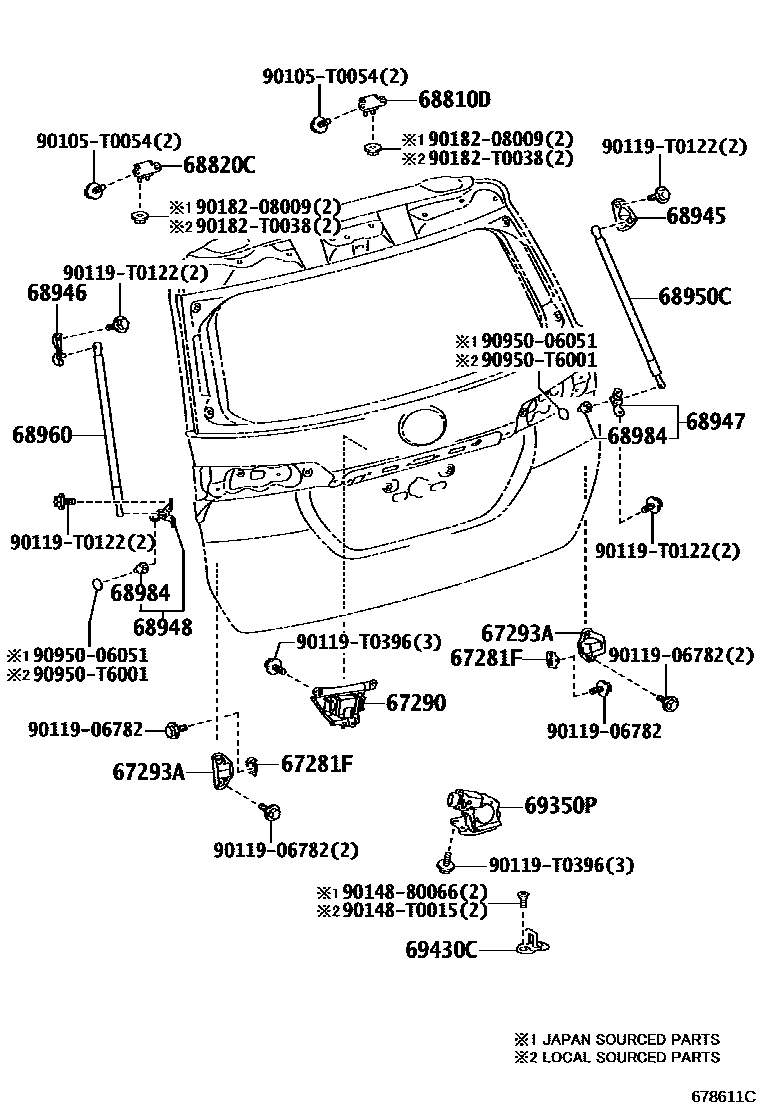

BACK DOOR LOCK & HINGE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

67281FSTOPPER, BACK DOOR, LOWER

main67281-0K020×2iGUN156,166,TGN166..IND201507-202012

67290DAMPER ASSY, BACK DOOR

main67290-0K030iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

main67290-0K040iGUN156,166,TGN166..IND201610-202012

67293ACUSHION, BACK DOOR STOPPER

main67293-0K020×2iGUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);TGN156,166..IDNSU..S..GCC;TGN156..S..(BZAGT,GEN,KZS,PKN,SA);TGN166..BZAGT,GEN,IDN,LA,PH,PK201507-202104

main67293-0K030×2iGUN156,166,TGN166..IND201610-202012

68810DHINGE ASSY, BACK DOOR, RH

main68810-0K070iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,THSUV201507-202101

PAD T=1.6

main68810-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,PKNSU,VNSUV201601-202104

PAD T=1.6

main68810-0K140iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IND,SA201603-202012

PAD T=2.0

main68810-0K150iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

PAD T=1.0

main68810-0K180iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

PAD T=1.6

main68810-0K190iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-0K070iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,THSUV201507-202101

PAD T=1.6

main68810-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,PKNSU,VNSUV201601-202104

PAD T=1.6

main68810-0K140iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..IND,SA201603-202012

PAD T=2.0

main68810-0K150iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

PAD T=1.0

main68810-0K180iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

PAD T=1.6

main68810-0K190iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0K011iGGN155..EPT201512-202101

main68945-0K020iTGN168..S201507-201907

main68945-0K030iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(L,S)201601-202008

main68945-0K041iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)201601-202008

POWER BACK DOOR-WITH

main68945-0K051iTGN168..S201907-202012

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0K011iGGN155,165,GUN15#,16#,TGN156,166..(MASUV,PKNSU,THSUV)..(H,M)201512-202104

main68946-0K020iTGN168..S201507-201907

main68946-0K030iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(L,S)201601-202008

main68946-0K041iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M)201601-202008

POWER BACK DOOR-WITH

main68946-0K051iTGN168..S201907-202012

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0K010iGUN165..MA;GUN165..THSUV..(H,L,S);GUN156..(PKNSU,THSUV)..(GCC,GEN,PKN);GUN156,TGN166..THSUV..(L,S)..(ARL,GCC);GGN155,165,GUN155,TGN156..MASUV,PKNSU,THSUV201507-202104

main68947-0K020iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main68947-0K030iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV201512-202012

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0K010iGGN155,TGN156,166..EPT201507-202101

main68948-0K020iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main68948-0K030iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV201512-202012

68950CSTAY ASSY, BACK DOOR, RH

main68950-0K370iGUN165..S201507-201511

main68950-0K371iTGN166..PH;GUN165..RHD..S;GUN165..(L,S)..(PH,VN);GUN155,TGN156..(L,S)..(IDN,MA,PKN)201512-202012

main68950-0K380iGUN156..L,S201507-201511

main68950-0K381iGUN165..LHD..GEN;GUN156,TGN168..L..BZAGT;GGN155,TGN156..LHD..(L,S);GUN165..(L,S)..(GCC,LA,SA);GGN165,GUN15#,166,KUN156,165,LAN155,TGN166..(L,S)..(DCR,DEFI,HDCR,HTWC201512-202101

main68950-0K391iTGN166..PKN,VN201601-202104

main68950-0K401iTGN156..S..GEN;GUN156,TGN168..6FC..S..BZAGT201512-201907

68960STAY ASSY, BACK DOOR, LH

main68960-0K370iGUN165..S201507-201511

main68960-0K371iTGN166..PH;GUN165..RHD..S;GUN165..(L,S)..(PH,VN);GUN155,TGN156..(L,S)..(IDN,MA,PKN)201512-202012

main68960-0K380iGUN156..L,S201507-201511

main68960-0K381iGUN165..LHD..GEN;GUN156,TGN168..L..BZAGT;GGN155,TGN156..LHD..(L,S);GUN165..(L,S)..(GCC,LA,SA);GGN165,GUN15#,166,KUN156,165,LAN155,TGN166..(L,S)..(DCR,DEFI,HDCR,HTWC201512-202101

main68960-0K391iTGN166..PKN,VN201601-202104

main68960-0K401iTGN156..S..GEN;GUN156,TGN168..6FC..S..BZAGT201512-201907

68984STOPPER, BACK DOOR STAY

main68984-42010×2iGUN156,166,TGN166..IND201507-202012

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0K190iGGN155,LAN155..LHD..S;GUN156,TGN156,168..L..(BZAGT,GEN);GUN165..(IDNSU,SASUV,THSUV,VNSUV)..(L,S);TGN156..(L,S)..(BZAGT,EPT,GCC,KZS,LA,PKN,SA);GGN165,GUN15#,166,KUN1201507-202101

main69350-0K290iGGN155..EPT201507-202101

main69350-0K310iGUN156,166,TGN166..IND202004-202012

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0K070iGUN156,166,TGN166..IND201507-202004

main69430-0K120iGUN156,166,TGN166..IND202004-202012

INDIA PRODUCT

90105T0054

main90105-T0054

9011906782

main90119-06782

90119T0122

main90119-T0122

90119T0396

main90119-T0396

9014880066

main90148-80066

90148T0015

main90148-T0015

9018208009

main90182-08009

90182T0038

main90182-T0038

9095006051

main90950-06051

90950T6001

main90950-T6001

24 parts on this diagram · 2 diagrams in section
