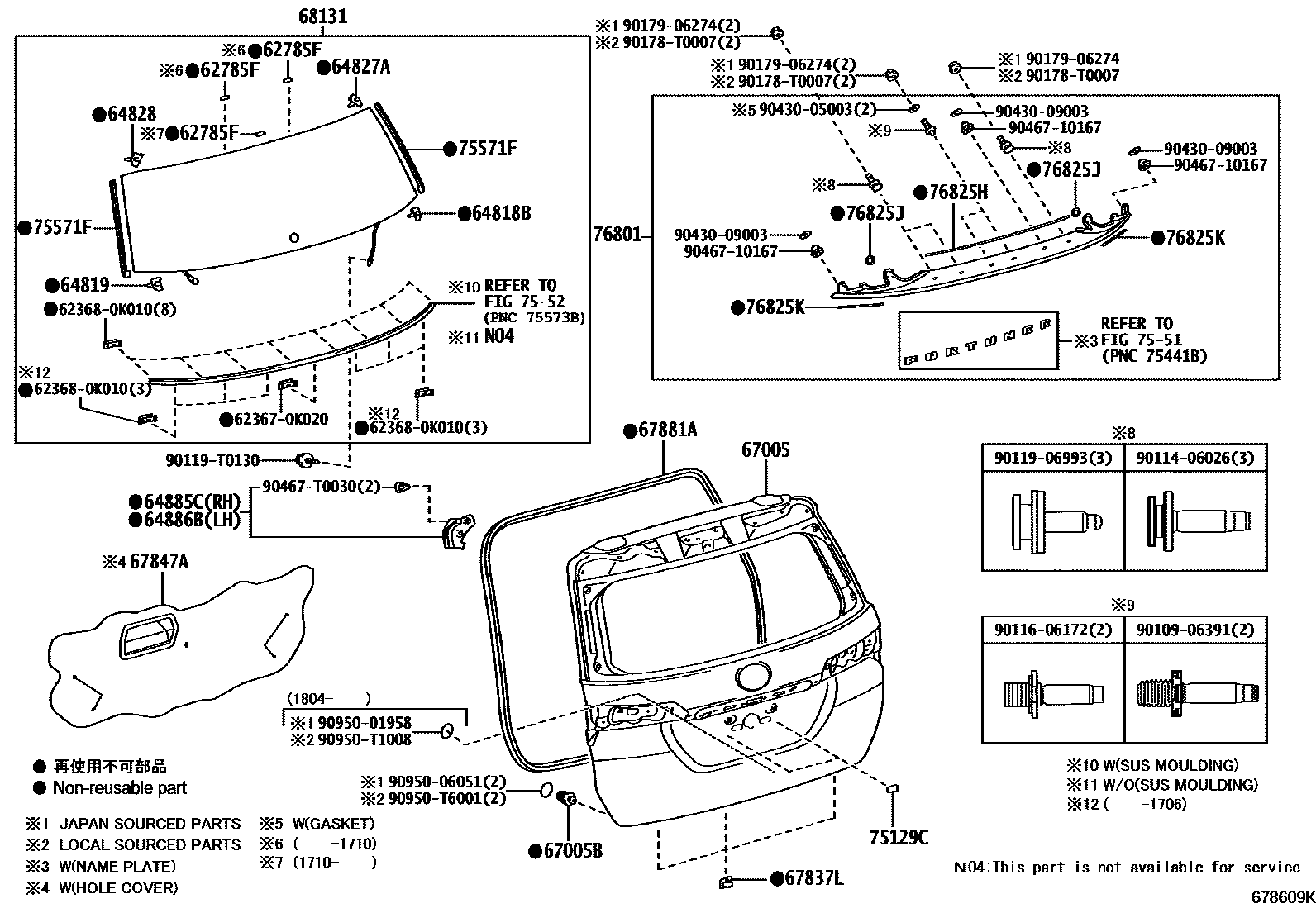

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-16030iGUN156,16#,TGN166201507-201511

main68294-26030iGUN156,166,TGN166..IND201512-202104

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0K120iGGN155,TGN156,166..EPT201507-202104

main64818-0K160iGUN156,166,TGN166..IND201610-202012

main64818-0K200iGUN155,165,TGN156..MA201605-202012

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-0K140iGGN155,TGN156,166..EPT201507-202104

main64819-0K180iGUN156,166,TGN166..IND201610-202012

main64819-0K200iGUN155,165,TGN156..MA201605-202012

64827ACLIP, BACK WINDOW GLASS, RH

main64827-0K060iGGN155,TGN156,166..EPT201507-202104

main64827-0K100iGUN156,166,TGN166..IND201610-202012

main64827-0K170iGUN155,165,TGN156..MA201605-202012

64828CLIP, BACK WINDOW GLASS, LH

main64828-0K060iGGN155,TGN156,166..EPT201507-202104

main64828-0K100iGUN156,166,TGN166..IND201610-202012

main64828-0K110iGUN155,165,TGN156..MA201605-202012

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-0K080iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..PKNSU,SASUV,THSUV201507-202104

main64885-0K090iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main64885-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

main64885-0K110iGUN156,166,TGN166..IND201610-202012

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-0K080iGGN155,TGN156,166..EPT201507-202104

main64886-0K090iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main64886-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

main64886-0K110iGUN156,166,TGN166..IND201610-202012

67005PANEL SUB-ASSY, BACK DOOR

main67005-KK010iTGN166..IDNSU..S;TGN166..(IDNSU,SASUV)..L;GUN165..(IDNSU,SASUV)..(L,S);GGN155,165,GUN15#,KUN156,TGN156..IDNSU..(L,S)201507-202104

sub67005-KK120

main67005-KK020iGUN156..PKN;KUN156..RHD..H;GUN156..THSUV..H;GGN155,165,GUN155,165,TGN156..(MASUV,THSUV)..(H,M)..(GCC,MA)201601-202104

sub67005-KK130

main67005-KK020iKUN156..LHD..H;KUN156..IDNSU..M;GGN155,165,GUN15#,165,TGN156,166..IDNSU..(H,M)201601-201704

POWER BACK DOOR-WITH

sub67005-KK130

main67005-KK030iGUN156,165,KUN156,TGN156,166..AGTSU..L..LA201512-202010

main67005-KK040iGGN155,GUN156,KUN156,TGN156,166..AGTSU..M201512-202010

main67005-KK050iTGN168..5F;GUN156..L..BZAGT201607-202010

main67005-KK060iGUN156..(L,S)..ARL;GUN165,TGN166..6FC..S..(SA,TH)201507-202005

sub67005-KK140

main67005-KK070iGGN155..SA;GUN156,166,TGN166..IND201507-202101

sub67005-KK150

main67005-KK080iGUN156,TGN156,166..S..(HDCR,HTWC)..BZAGT201512-202010

main67005-KK090iGUN156,TGN156..H..(HDCR,HTWC)..BZAGT201512-202010

main67005-KK100iTGN168..6FC201512-201907

main67005-KK110iGGN155,GUN156..H..(HTWC,IART)..BZAGT201512-202010

main67005-KK120iTGN166..L..SA;GUN155..(IDNSU,SASUV)..6FC..(L,S);GUN165..(IDNSU,SASUV,VNSUV)..(L,S);GGN155,165,GUN156,KUN156,TGN156,166..(IDNSU,VNSUV)..(L,S)201704-202009

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main67005-KK130iTGN166..VN201704-202008

POWER BACK DOOR-WITH

main67005-KK140iLAN155;GUN15#,166,KUN156,TGN156..S..SA201704-202009

main67005-KK150iGGN155..SA;GUN156,166,TGN166..IND201704-202012

67005BCUSHION(FOR BACK DOOR PANEL)

main69478-0K010iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201704-202008

main69478-48010iTGN166..THSUV..L;TGN156..S..(BZAGT,KZS,PKN,SA);TGN156..(AGTSU,MASUV,THSUV)..(H,L,M);GUN156..(AGTSU,THSUV)..H..(BZAGT,GCC);GGN155,165,GUN155,16#,KUN156,165,LAN155,TG201507-202104

67837LSEAL, DOOR DUST PROOF

main67837-0K180iGGN155,TGN156,166..EPT201507-202104

main67837-0K190iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-0K070iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main67847-0K080iGUN156,KUN156..IDNSU..LA;GGN155,TGN156,166..LHD..IDNSU..(GEN,LA)201601-202007

CS AMERICA SPEC

67881AWEATHERSTRIP, BACK DOOR

main67881-0K050iGGN155,TGN156,166..EPT201507-202104

main67881-0K060iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main67881-0K070iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main67881-0K080iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main67881-0K090iGUN156,166,TGN166..IND201610-202012

68131GLASS, BACK DOOR

main68105-0K250iGUN156,166,TGN156,166..PKN,TH;GGN155,165,GUN155,165..THSUV..(H,M)201507-201705

sub68105-0K251

main68105-0K251iGGN165,GUN165..THSUV..(H,M);GUN155,166,TGN156,166..PKN,TH;GUN156..(PKNSU,THSUV)..(H,M)..(GEN,PKN,TH)201706-202104

main68105-0K260iGUN156..M..ARL201507-201612

sub68105-0K261

main68105-0K261iGGN155,GUN156..(H,M)..(ARL,EPT)201701-202101

main68105-0K320iGGN155,GUN156,KUN156,TGN156,166..AGTSU..M201512-202010

main68105-0K330iGGN155,GUN156,TGN156..H..BZAGT201512-202010

main68105-0K340iGGN155,GUN15#..IDNSU..H..GCC201601-202008

main68105-0K350iGUN165,TGN166..M..IDN;GUN155..(H,M)..(GEN,IDN)201601-202007

main68105-0K360iGUN156,166,TGN166..IND201610-201809

main68105-0K390iGUN156..L..ARL;GGN155,165,GUN155,165,TGN156,166..THSUV..(L,S)201507-201705

sub68105-0K391

main68105-0K391iGUN156..L..ARL;GGN155,165,GUN15#,165,TGN156,166..THSUV..(L,S)..(GCC,GEN,KZS,TH)201706-202005

main68105-0K400iGUN156..S..ARL201507-201612

sub68105-0K401

main68105-0K401iGUN156..S..ARL;TGN156,166..EPT201701-202101

main68105-0K410iGUN156,165,KUN156,TGN156,16#..AGTSU..L201512-202010

main68105-0K420iGUN156,TGN156,16#..S..BZAGT201512-202010

main68105-0K430iGUN165..RHD..GEN;TGN156,166..(IDNSU,VNSUV)..(L,S);GGN155,165,GUN15#,165,KUN156..(IDNSU,VNSUV)..(L,S)..(GCC,LA,PH,VN)201601-202008

main68105-0K440iGUN165..LHD..GEN;GUN155,165..S..IDN201601-202007

main68105-0K450iGUN155..L..MA201605-202012

main68105-0K460iGUN155,165,TGN156..M..MA201605-202012

main68105-0K470iTGN166..L..SA;KUN156..LHD..SA;GUN165,KUN165,LAN155,TGN156..SA201603-201705

sub68105-0K471

main68105-0K471iTGN166..L..SA;GUN156,KUN156..LHD..SA;GUN155,165,KUN165,LAN155,TGN156..SA201706-202009

main68105-0K480iTGN166..L..SA;KUN156..LHD..SA;GUN165,KUN165,LAN155,TGN156..SA201603-201612

BACK GLASS-FIX TYPE(PRIVACY)

sub68105-0K481

main68105-0K481iTGN166..L..SA;GUN156,KUN156..LHD..SA;GUN155,165,KUN165,LAN155,TGN156..SA201701-202009

BACK GLASS-FIX TYPE(PRIVACY)

main68105-0K510iGGN155,GUN15#..THSUV..H..GCC201806-202005

main68105-0K530iGGN155,GUN15#..IDNSU..H..GCC201806-202007

main68105-0K540iGUN156,166,TGN166..IND201809-202012

sub68105-0K570

75129CCUSHION, REAR LICENCE PLATE

main75129-0K010iGUN156..6F..(L,S)..ARL;GGN155,GUN155,16#..THSUV;TGN166..THSUV..6FC..(L,M);GUN156,TGN156..THSUV..(H,L)..(GCC,KZS);GUN156,TGN156..THSUV..6FC..(L,M,S)..(ARL,GEN,KZS,TH201801-202005

main75129-13020iGUN156..6F..(L,S)..ARL;GUN156,TGN166..THSUV..6FC..(ARL,GCC,TH);GGN155,GUN155,16#,TGN156..THSUV..(GCC,TH)201507-202104

main75129-36010iGUN156,TGN156..THSUV..(GEN,KZS)201708-201801

7551

7552

75571FMOULDIMG, BACK DOOR WINDOW

main75571-0K090iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,MASUV,PKNSU,SASUV,THSUV201507-202104

RH

main75571-0K120iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

RH

main75571-0K130iGUN156,166,TGN166..IND201610-202012

RH

main75572-0K010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,MASUV,PKNSU,SASUV,THSUV201507-202104

LH

main75572-0K040iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

LH

main75572-0K050iGUN156,166,TGN166..IND201610-202012

LH

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-0K330iGUN156..L..ARL201507-202005

main76801-0K340iGUN165..6FC..TH;GUN15#,TGN156,166..(M,S)..(ARL,SA,TH);GGN155,GUN166,KUN156,LAN155..EPT,SA,TH201507-202101

main76801-0K350iTGN156,166..EPT201507-202104

main76801-0K390iTGN168..5F;GUN156..L..BZAGT201607-202010

main76801-0K420iTGN168..6FC201512-201710

PLATED

main76801-0K420iGGN155,GUN156,TGN156,16#..(H,S)..BZAGT201512-202010

main76801-0K430iTGN168..6FC..L201710-202010

main76801-0K450iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..IDNSU..L..(GEN,LA,VN)201601-202007

main76801-0K470iGUN156,165,TGN166..VNSUV..6FC201601-202007

main76801-0K480iGUN156,166,TGN166..IND201610-202012

main76801-0K560iGUN156,165,KUN156,TGN156,166..(AGTSU,THSUV)..L..(KZS,LA)201512-202010

main76801-0K570iTGN156..S..KZS201708-201905

PLATED

main76801-0K630iGUN156..S..GEN201708-202005

AUDIO-*DA & CD & *BT & RDS & DAB

main76801-0K640iTGN156..S..KZS201708-202005

76825HPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76825-0K120iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV201507-202104

76825JPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2

main76825-0K130iGUN156,165,TGN166..VNSUV201507-202104

76825KPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.3

main76825-0K140iGUN156,165,TGN166..VNSUV201507-202104

623670K020CLIP, DOOR WINDOW GLASS, NO.1

main62367-0K020

623680K010CLIP, DOOR WINDOW GLASS, NO.2

main62368-0K010

9010906391

main90109-06391

9011406026

main90114-06026

9011606172

main90116-06172

9011906993

main90119-06993

90119T0130

main90119-T0130

90178T0007

main90178-T0007

9017906274

main90179-06274

9043005003

main90430-05003

9043009003

main90430-09003

9046710167

main90467-10167

90467T0030

main90467-T0030

9095001958

main90950-01958

9095006051

main90950-06051

90950T1008

main90950-T1008

90950T6001

main90950-T6001

38 parts on this diagram · 2 diagrams in section
