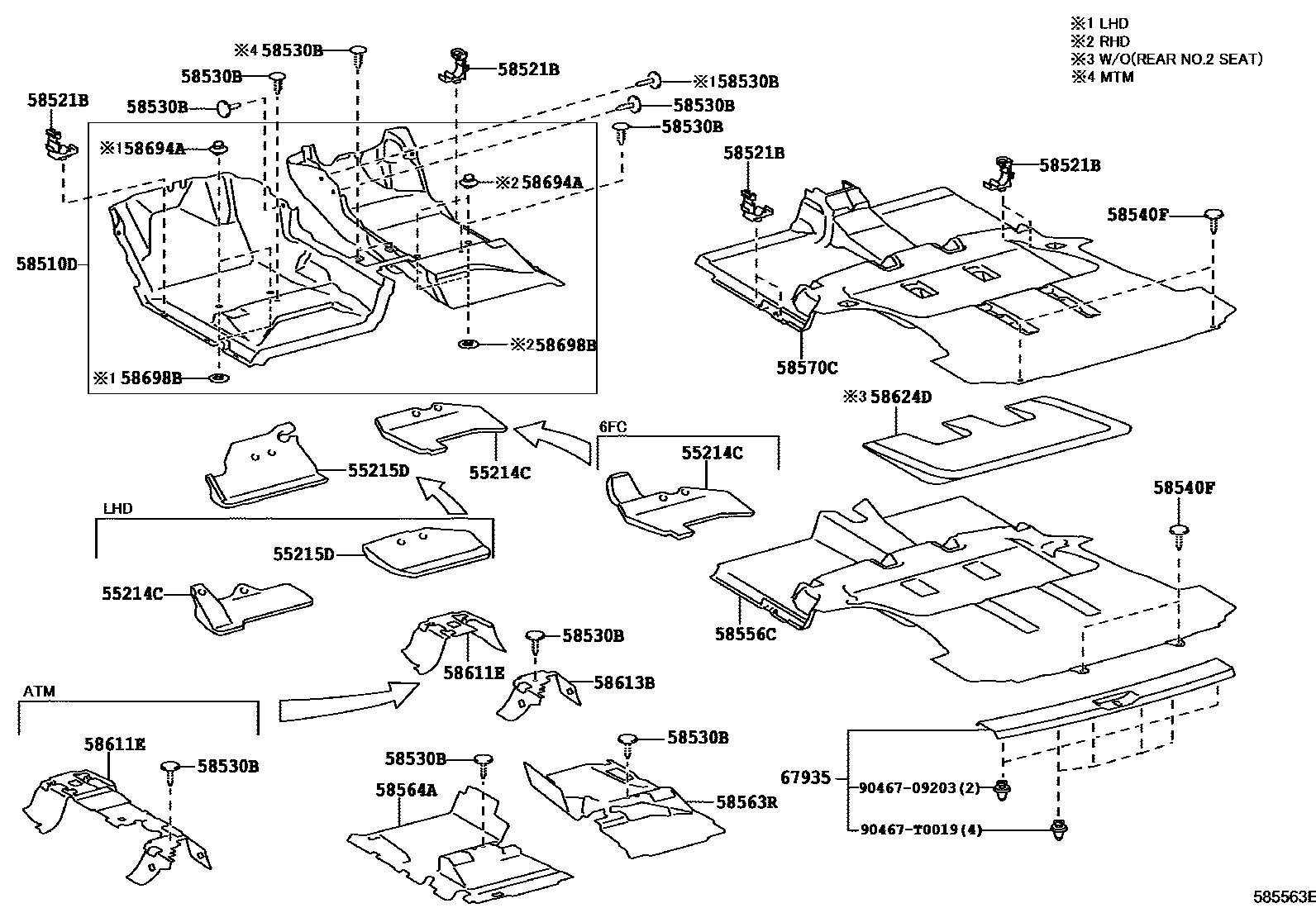

FLOOR MAT & SILENCER PAD

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-KK010iGGN155,165,GUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD201512-202101

main55214-KK020iGUN156,16#,KUN156,TGN166..RHD..MTM..(IDN,IND,SA)201601-202012

main55214-KK030iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV)..ATM201601-202104

main55214-KK040iGUN156,165..RHD..THSUV..6F201507-201904

main55214-KK050iGUN15#,16#,TGN166..RHD..THSUV..6FC201507-202005

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-KK010iGGN155,165,GUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD201512-202101

main55215-KK020iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104

58510DCARPET ASSY, FLOOR, FRONT

main58500-0K380-C0iGUN165..S..TH201708-201904

BLACK,TRIM4#

main58500-0K390-C0iGUN165,TGN166..6FC..TH201708-202005

BLACK,TRIM4#

main58500-0K390-C0iGUN15#,166..TH201708-202005

BLACK,TRIM3#,4#

main58500-0K600-C0iGUN156,165,KUN156,TGN156,166..LHD..IDNSU..MTM201601-202007

BLACK,TRIM4#

main58500-0K610-C0iTGN166..IDNSU..(PH,VN);TGN156,166..LHD..IDNSU..6FC..(L,M);GGN155,165,GUN15#,165,KUN156..LHD..IDNSU..ATM201601-202007

BLACK,TRIM4#

main58500-0K610-C1iGGN155,TGN156,166..EPT201705-202101

BLACK,TRIM4#

main58500-0K620-C0iGUN165..6F..IDN201601-202007

BLACK,TRIM4#

main58500-0K630-C0iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU..ATM201601-202007

BLACK,TRIM4#

main58500-0K710-C0iGUN156,KUN156,TGN168..AGTSU..MTM..(L,S)201512-201709

BLACK,TRIM4#

sub58500-0K711

main58500-0K710-C0iGUN156,KUN156,TGN168..AGTSU..MTM..(L,S)201512-201709

BLACK,TRIM3#,4#

sub58500-0K711

main58500-0K711-C0iGUN156..AGTSU..6F..LA201710-202010

BLACK,TRIM4#

main58500-0K730-C0iGUN156,KUN156,TGN156,16#..AGTSU..ATM..(L,M,S)..(DCR,HDCR,HTWC,HTWCF)201512-201709

BLACK,TRIM0#,3#,4#

sub58500-0K731

main58500-0K730-C0iGUN156..6FC..H..BZAGT201512-201709

BLACK,TRIM3#,4#

sub58500-0K731

main58500-0K730-C0iGUN156..6FC..H..BZAGT201512-201709

BLACK,TRIM4#

sub58500-0K731

main58500-0K731-C0iGUN165..LA201710-202010

BLACK,TRIM4#

main58500-0K731-C0iGUN156..6FC..H..BZAGT201710-202010

BLACK,TRIM0#,4#

main58500-0K790-C0iGUN165..VNSUV..L201906-202008

BLACK,TRIM4#

main58500-0K800-C0iGUN15#,KUN156,165,LAN155..LHD..MTM..SA201603-202009

BLACK,TRIM4#

main58500-0K810-C0iGUN156,KUN156,TGN156..LHD..ATM..SA201603-202009

BLACK,TRIM4#

main58500-0K820-C0iGUN156,16#,KUN156..RHD..6F..SA201603-202009

BLACK,TRIM4#

main58500-0K830-C0iGGN155,GUN15#,16#,KUN156,TGN166..RHD..ATM..SA201603-202009

BLACK,TRIM4#

main58500-0K840-C0iGUN156,165,TGN166..VNSUV..6FC201906-202008

BLACK,TRIM4#

main58500-0KA00-C0iGUN156,166,TGN166..MTM..IND201610-202002

BLACK,TRIM4#

main58500-0KA01-C0iGUN156,166,TGN166..MTM..IND202002-202012

BLACK,TRIM4#

main58500-0KA10-C0iGUN156,166,TGN166..6FC..IND201610-202002

BLACK,TRIM4#

main58500-0KA11-C0iGUN156,166,TGN166..6FC..IND202002-202012

BLACK,TRIM4#

main58500-0KB40-C0iGUN156..6F..LA202003-202010

BLACK,TRIM4#

main58500-0KB50-C0iGGN155,GUN156,165,TGN156,166..6FC..LA202003-202010

BLACK,TRIM4#

main58510-0KY00-C1iGUN156..6F..(L,M)..ARL201507-201805

BLACK,TRIM3#,4#

main58510-0KY00-C1iGUN156..6F..S..ARL201507-201805

BLACK,TRIM4#

main58510-0KY10-C1iGUN165..S..TH201507-201708

BLACK,TRIM4#

main58510-0KY30-C1iGUN156..6FC..(M,S)..ARL201507-202005

BLACK,TRIM4#

main58510-0KY30-C1iGUN156..6FC..L..ARL201507-202005

BLACK,TRIM3#,4#

main58510-0KY40-C1iGUN156,TGN156,166..PKN201507-202104

BLACK,TRIM4#

main58510-0KY40-C1iGUN165,TGN166..M..TH201507-201708

BLACK,TRIM3#,4#

main58510-0KY60-C1iGUN165,TGN156,166..THSUV..MTM..GCC201601-201904

BLACK,TRIM4#

main58510-0KY70-C1iTGN156,166..THSUV..S..GCC201808-202005

BLACK,TRIM3#,4#

main58510-0KY70-C1iGUN156..THSUV..H..GEN201601-202005

BLACK,TRIM4#

main58510-0KY80-C0iGUN156,TGN156..THSUV..(M,S)..(GEN,KZS)201708-202005

BLACK,TRIM4#

main58510-0KY90-C1iTGN156..L..KZS201708-202005

BLACK,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-0K030iGUN156,TGN156,166..PKN201507-202104

main58521-0K120iGUN165..LA201610-202010

main58521-KK010iTGN156,166..IDNSU..L..GCC;GGN155,165,GUN15#,16#,KUN156,165,LAN155..IDNSU,INDSU,MASUV,SASUV,VNSUV;TGN156,166..(IDNSU,INDSU,MASUV,SASUV,VNSUV)..(GEN,IDN,IND,LA,MA,PH,201601-202012

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-T0031-C0iGUN156..6FC..H..BZAGT201507-202104

BLACK,TRIM4#

main90467-T0031-C0iGUN156..6F..S..ARL201507-202010

BLACK,TRIM3#,4#

main90467-T0031-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-T0031-C0iGUN156,166,TGN166..IND201507-202104

BLACK,TRIM4#

main90467-T0031-C0iGUN156..6F..S..ARL;GUN156..6F..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART);GUN156..RHD..THSUV..6FC..(M,S);GGN155,GUN155,166,TGN156..(H,M)..(BZAGT,TH)201507-202010

BLACK,TRIM3#,4#

main90467-T0031-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

58556CSILENCER, REAR FLOOR

main58556-0K010iTGN156,166..IDNSU..L..GCC;GGN155,165,GUN15#,165,KUN156..IDNSU,VNSUV;TGN156,166..(IDNSU,VNSUV)..(GEN,IDN,LA,PH,VN)201601-202008

main58556-0K020iGUN156,166,TGN166..IND201610-202012

main58569-0K010iGGN155,TGN156,166..EPT201507-202104

main58569-0K060iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-202010

main58569-0K110iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

58563RSILENCER, FRONT FLOOR, NO.3

main58563-0K070iGUN156,TGN156,166..PKN201802-202104

main58563-0K100iGUN15#,16#,TGN166..TH201507-202005

main58563-0K110iGUN156..THSUV..H..GEN;TGN156,166..THSUV..S..GCC201601-202101

main58563-0K120iGUN156..ARL201507-202005

main58563-0K130iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

main58563-0K540iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-202010

main58563-0K670iGUN15#,KUN156,165,LAN155,TGN156..LHD..SA201603-202009

main58563-0K700iGGN155,GUN15#,16#,KUN156,TGN166..RHD..SA201603-202009

main58563-0KJ00iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU201601-202007

main58563-0KJ10iTGN166..IDNSU..L..GCC;TGN156..LHD..IDNSU..(L,M);TGN166..LHD..(IDNSU,VNSUV)..(GEN,LA,PH,VN);GGN155,165,GUN15#,165,KUN156..LHD..(IDNSU,VNSUV)201601-202008

main58563-0KJ20iGUN156,166,TGN166..IND201610-202012

main58563-0KJ40iGUN155,165,TGN156..MA201605-202012

58564ASILENCER, FRONT FLOOR, NO.4

main58564-0K070iGUN156,TGN156,166..PKN201802-202104

main58564-0K100iTGN156..PKN201507-202005

main58564-0K110iGUN156..THSUV..H..GEN;TGN156,166..THSUV..S..GCC201601-202101

main58564-0K120iGUN156..ARL201507-202005

main58564-0K130iGUN156,TGN156..THSUV..(L,M,S)..(GEN,KZS)201708-202005

main58564-0K210iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU201601-202007

sub58564-0K211

main58564-0K220iTGN166..IDNSU..L..GCC;TGN156..LHD..IDNSU..(L,M);TGN166..LHD..(IDNSU,VNSUV)..(GEN,LA,PH,VN);GGN155,165,GUN15#,165,KUN156..LHD..(IDNSU,VNSUV)201601-202008

main58564-0K230iGUN156,166,TGN166..IND201610-202012

main58564-0K240iGUN165..LA201512-202010

main58564-0K250iGUN15#,KUN156,165,LAN155,TGN156..LHD..SA201603-202009

main58564-0K270iGGN155,GUN15#,16#,KUN156,TGN166..RHD..SA201603-202009

main58564-0K330iGUN155,165,TGN156..MA201605-202012

58570CCARPET ASSY, REAR FLOOR

main58570-0K510-C0iGUN156,165,TGN166..VNSUV201906-202008

BLACK,TRIM4#

main58570-0K600-C0iGUN156..THSUV..H..GEN201507-202005

BLACK,TRIM3#,4#

main58570-0K600-C0iTGN156,166..THSUV..S..GCC201507-202104

BLACK,TRIM4#

main58570-0K700-C1iTGN156,166..IDNSU..S..GCC201601-202101

BLACK,TRIM4#

main58570-0K800-C1iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010

BLACK,TRIM0#,3#,4#

main58570-0K800-C1iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM3#,4#

main58570-0K800-C1iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM4#

main58570-0KA00-C1iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

BLACK,TRIM4#

main58570-0KB00-C1iGUN156,166,TGN166..IND201610-202012

BLACK,TRIM4#

main58570-0KB40-C0iGUN155,165,TGN156..MA201605-202012

BLACK,TRIM4#

58611ESHEET, FRONT FLOOR SILENCER

main58661-0K010iGUN156,165..RHD..THSUV..6F201507-201904

main58661-0K020iGUN165,TGN156,166..THSUV..MTM..L201601-202005

main58661-0K030iGUN15#,16#,TGN156,166..RHD..(MASUV,PKNSU,THSUV)..6FC201507-202104

main58661-0K040iTGN156,166..(EPTSU,THSUV)..6FC..L;GUN156,TGN156..THSUV..(M,S)..(GEN,KZS);GGN155,165,GUN15#,165..(EPTSU,THSUV)..6FC..(EPT,GCC)201601-202101

main58661-0K060iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU..ATM201601-202007

main58661-0K070iGUN165..6F..IDN201601-202007

main58661-0K080iTGN156,166..IDNSU..S..GCC201601-202008

main58661-0K090iGUN156,165,KUN156,TGN156,166..LHD..(IDNSU,VNSUV)..MTM201601-202008

main58661-0K100iGUN156,166,TGN166..6FC..IND201610-202012

main58661-0K110iGUN156,166,TGN166..MTM..IND201610-202012

main58661-0K130iGUN165..LA201512-202010

main58661-0K140iGUN156,KUN156,TGN168..AGTSU..MTM201512-202010

main58661-0K150iGUN156,KUN156,TGN156..LHD..ATM..SA201603-202009

main58661-0K160iGUN15#,KUN156,165,LAN155..LHD..MTM..SA201603-202009

main58661-0K170iGUN156,16#,KUN156..RHD..6F..SA201603-202009

main58661-0K180iGGN155,GUN15#,16#,KUN156,TGN166..RHD..ATM..SA201603-202009

58613BSHEET, FRONT FLOOR SILENCER, CENTER

main58662-0K010iGUN156,165..RHD..THSUV..6F201507-201904

main58662-0K020iGUN165,TGN156,166..THSUV..MTM..L201601-202005

main58662-0K060iGUN156,KUN156,TGN168..AGTSU..MTM201512-202010

main58662-0K070iGUN15#,KUN156,165,LAN155..LHD..MTM..SA201603-202009

main58662-0K100iGUN156,16#,KUN156..RHD..6F..SA201603-202009

main58662-0K120iGUN165..6F..IDN201601-202007

main58662-0K130iGUN156,165,KUN156,TGN156,166..LHD..(IDNSU,VNSUV)..MTM201601-202008

main58662-0K140iGUN156,166,TGN166..MTM..IND201610-202012

58624DPAD, CENTER FLOOR SILENCER

58694APLATE, MAT SET, UPPER

main58694-0K010iGGN155,165,GUN155,16#..THSUV;GUN156,TGN156,166..THSUV..(H,L)..(GCC,KZS);GUN156,TGN156,166..(PKNSU,THSUV)..(6F,6FC)..(L,M,S)..(ARL,GEN,KZS,PKN,TH)201707-202104

(L)

main58694-76010iTGN156,166..IDNSU..L..GCC;GUN165..IDNSU,MASUV,SASUV,VNSUV;TGN156,166..BZAGT,EPT,GEN,IDN,LA,MA,PH,SA,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,I201507-202101

main58694-76010iGGN155,165,GUN155,16#..THSUV;GUN156,TGN156,166..THSUV..(H,L)..(GCC,KZS);GUN156,TGN156,166..(PKNSU,THSUV)..(6F,6FC)..(L,M,S)..(ARL,GEN,KZS,PKN,TH)201707-202104

(J)

58698BPLATE, MAT SET, LOWER

main58698-0K070iGUN156..THSUV..H..GEN;TGN156,166..THSUV..S..GCC201707-202104

(L)

main58698-76010iGGN155,165,GUN15#,16#,TGN156,166..PKNSU,THSUV201507-202101

main58698-76010iGGN155,165,GUN155,16#..THSUV;GUN156,TGN156,166..THSUV..(H,L)..(GCC,KZS);GUN156,TGN156,166..(PKNSU,THSUV)..(6F,6FC)..(L,M,S)..(ARL,GEN,KZS,PKN,TH)201707-202104

(J)

67935PLATE, BACK DOOR SCUFF

main67935-0K080-C0iTGN156,166..THSUV..S..GCC201507-202104

BLACK,TRIM4#

main67935-0K080-C0iGUN156..6F..S..ARL;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005

BLACK,TRIM3#,4#

main67935-KK010-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010

BLACK,TRIM3#,4#

main67935-KK010-C0iGUN156..6FC..H..BZAGT201512-202010

BLACK,TRIM0#,3#,4#

main67935-KK010-C0iLAN155..S;GUN156..S..HDCR..BZAGT;TGN156..(L,M,S)..(BZAGT,GEN,LA,SA,VN);TGN166..BZAGT,GEN,IDN,IND,LA,PH,SA,VN;GUN156,TGN156,16#..(AGTSU,IDNSU)..L..(BZAGT,GCC);GGN165201512-202012

BLACK,TRIM4#

9046709203

main90467-09203

90467T0019

main90467-T0019

18 parts on this diagram · 1 diagram in section
