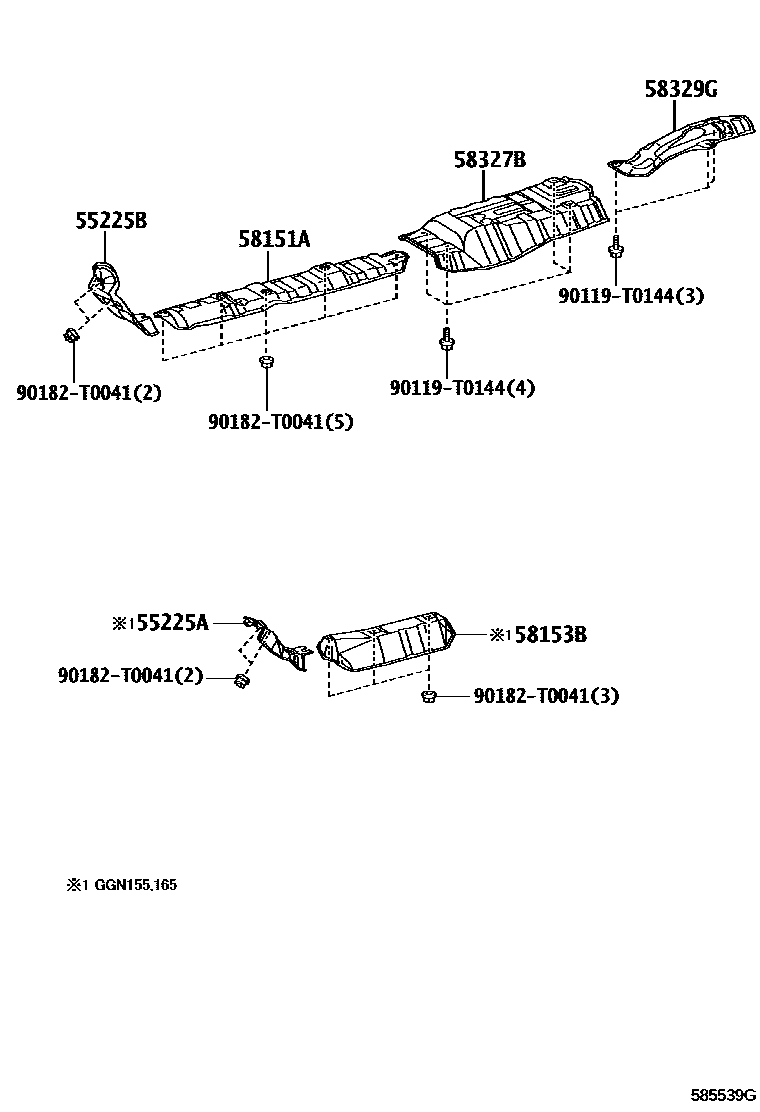

FLOOR INSULATOR

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K021iGGN155,165201512-202101

55225BINSULATOR, DASH PANEL HEAT

main55225-KK010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#201507-201702

sub55225-KK011

main55225-KK011iGUN156,166,TGN166..IND201703-202104

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#201507-201702

sub58151-KK011

main58151-KK011iTGN156..L..KZS;GUN165..THSUV..6FC..(L,M);TGN166..LHD..(EPTSU,THSUV)..6FC;GGN155,GUN15#,166,TGN156..(EPTSU,THSUV)..6FC201703-202010

sub58151-KK020

main58151-KK020iGUN156,166,TGN166..IND201905-202104

58153BINSULATOR, FLOOR HEAT, NO.3

main58153-0K011iGGN155,165201512-202101

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K030iGUN156,166,TGN166..IND201507-202104

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main58329-0K020iGUN156,166,TGN166..IND201512-202104

sub58329-0K030

main58329-0K030iGGN155,165,GUN15#,16#,TGN156,166..EPTSU,THSUV201507-202101

90119T0144

main90119-T0144

90182T0041

main90182-T0041

8 parts on this diagram · 1 diagram in section
