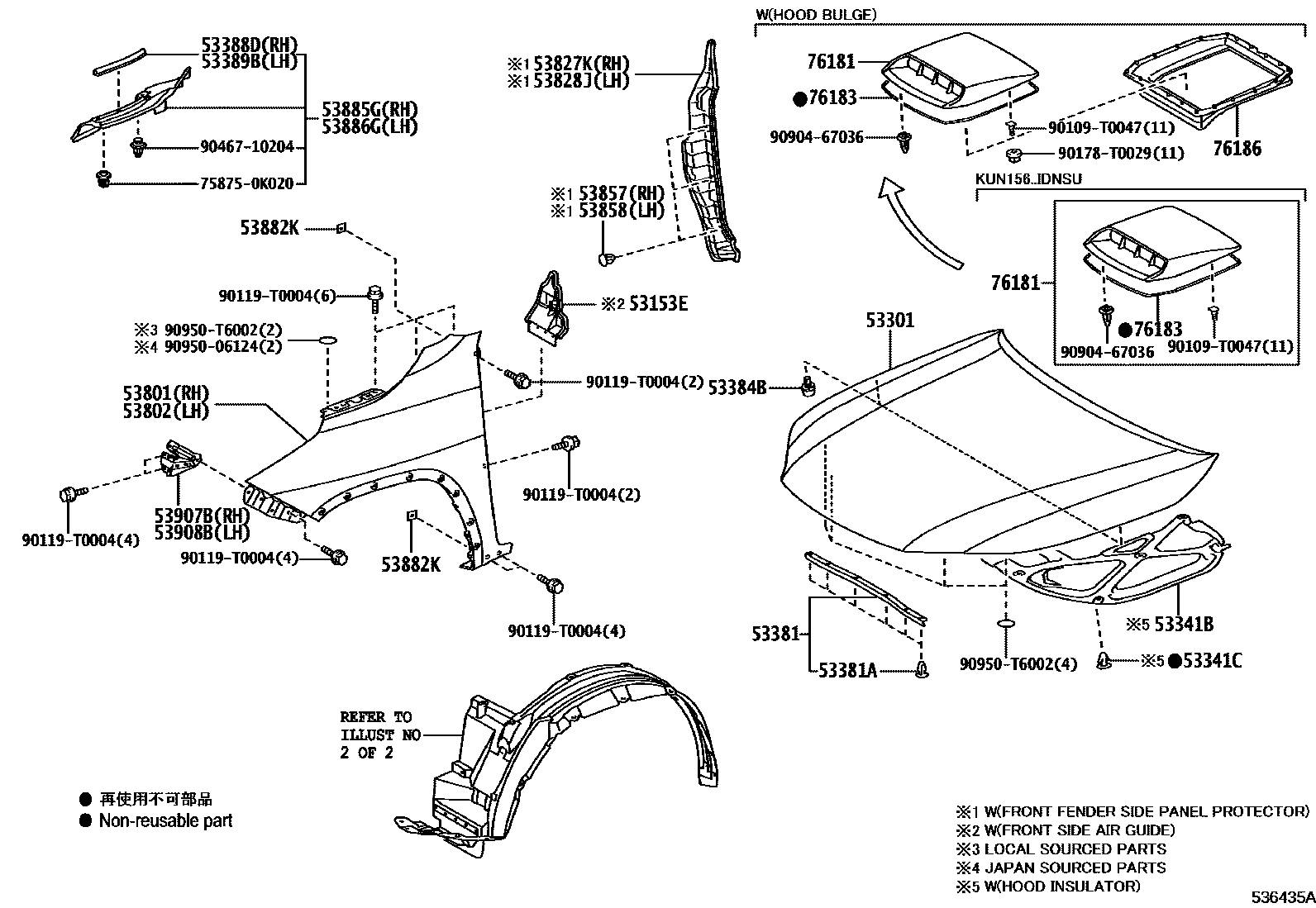

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153EGUIDE, FRONT SIDE AIR

main53153-0K040iGUN15#,16#,KUN156..AGTSU,PKNSU,THSUV201507-202104

main53153-0K050iGUN15#,16#,KUN156,165..SA201603-202009

main53153-0K070iGUN156,166..IND201610-202012

main53153-0K080iGUN15#,165,KUN156..IDNSU,MASUV,VNSUV201601-202012

53301HOOD SUB-ASSY

main53301-KK030iGGN155,165,GUN15#,16#,KUN165,LAN155,TGN156,16#201507-201709

sub53301-KK031

main53301-KK031iGUN156,166,TGN166..IND201709-202104

main53301-KK040iKUN156201512-201709

53341BINSULATOR, HOOD

main53341-0K250iTGN156,166..THSUV..GCC201601-201708

GCC SPEC(EURO 4 REGULATION)

sub53341-0K251

main53341-0K250iTGN156,166..THSUV..GCC201601-201708

QATAR SPEC(EURO 4 REGULATION)

sub53341-0K251

main53341-0K250iTGN156,166..THSUV..GCC201601-201708

SAUDI ARABIA SPEC(EURO4 REGULATION)

sub53341-0K251

main53341-0K250iGGN155,TGN156,166..EPT201507-202104

sub53341-0K251

main53341-0K270iGGN155,GUN15#,16#,KUN165,LAN155,TGN156,166..SA201603-202009

main53341-0K280iKUN156..SA201603-201709

main53341-0K290iGGN155,GUN156,165,TGN156,16#..AGTSU201512-202010

main53341-0K300iKUN156..AGTSU201512-201709

main53341-0K310iTGN156,166..IDNSU..GCC201601-201708

GCC SPEC(EURO 4 REGULATION)

main53341-0K310iTGN156,166..IDNSU..GCC201601-201708

QATAR SPEC(EURO 4 REGULATION)

main53341-0K310iTGN156,166..IDNSU..GCC201601-201708

SAUDI ARABIA SPEC(EURO4 REGULATION)

main53341-0K310iTGN156,166..IDNSU..S..GCC;GGN155,165,GUN15#,165..IDNSU,VNSUV;TGN156,166..(IDNSU,VNSUV)..6FC..(GEN,IDN,LA,PH,VN)201601-202008

main53341-0K320iKUN156..IDNSU201601-201707

main53341-0K330iGUN156,166,TGN166..IND201610-202012

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014iTGN156,166..GCC201601-201708

SAUDI ARABIA SPEC(EURO4 REGULATION)

main90467-T0014iTGN156,166..GCC201601-201708

GCC SPEC(EURO 4 REGULATION)

main90467-T0014iTGN156,166..GCC201601-201708

QATAR SPEC(EURO 4 REGULATION)

main90467-T0014iKUN156201507-202104

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0K080iTGN166..(AGTSU,THSUV)..L;TGN166..(AGTSU,PKNSU,SASUV,THSUV)..(M,S);GUN155,KUN156,165..(AGTSU,SASUV)..(5FC,6F);GGN155,165,GUN15#,16#,TGN156,168..AGTSU,MASUV,PKNSU,THS201507-202104

main53381-0K090iGUN156,166,TGN166..IND201610-202012

main53381-0K110iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main53381-0K120iGGN155,GUN15#,16#,LAN155,TGN156,166..SA201911-202009

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-T0013iGGN155,TGN156,166..EPT201507-202104

53384BCUSHION, HOOD, CENTER

main53384-0K040iGUN156,166,TGN166..IND201507-202104

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0K080iGGN155,TGN156,166..EPT201507-202104

main53388-0K090iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53388-0K110iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

main53388-0K120iGUN156,166,TGN166..IND201610-202012

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-0K080iGGN155,TGN156,166..EPT201507-202104

main53388-0K090iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53388-0K110iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

main53388-0K120iGUN156,166,TGN166..IND201610-202012

53801FENDER SUB-ASSY, FRONT RH

main53801-KK020iGUN156,166,TGN166..IND201507-202104

53802FENDER SUB-ASSY, FRONT LH

main53802-KK020iGUN156,166,TGN166..IND201507-202104

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0K010iGGN155,165,GUN15#,16#,TGN156,166..(MASUV,PKNSU,THSUV)..(H,M,S)201507-202104

main53827-0K020iGGN155,GUN15#,166,KUN156,LAN155,TGN156,166..S..SA201603-202009

main53827-0K030iGGN155,GUN156,KUN156,TGN156,16#..AGTSU..(H,M,S)201512-202010

main53827-0K040iGUN165..IDNSU..S..VN201601-202008

main53827-0K050iGUN156,166,TGN166..IND201610-202012

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0K010iGGN155,165,GUN15#,16#,TGN156,166..(MASUV,PKNSU,THSUV)..(H,M,S)201507-202104

main53828-0K020iGGN155,GUN15#,166,KUN156,LAN155,TGN156,166..S..SA201603-202009

main53828-0K030iGGN155,GUN156,KUN156,TGN156,16#..AGTSU..(H,M,S)201512-202010

main53828-0K040iGUN165..IDNSU..S..VN201601-202008

main53828-0K050iGUN156,166,TGN166..IND201610-202012

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-06030iGGN155..EPT201908-202104

(L)

main53857-0K010iGGN155,GUN15#,16#,LAN155,TGN156,16#..(AGTSU,IDNSU,INDSU,SASUV,VNSUV)..(H,M,S)202001-202012

main53857-47011iGGN155,GUN15#,16#,LAN155,TGN156,16#..(AGTSU,IDNSU,INDSU,SASUV,VNSUV)..(H,M,S)201908-202104

(J)

main53857-47011iGUN165..IDNSU..S..VN201507-201908

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-06030iGGN155..EPT201908-202104

(L)

main53857-0K010iGGN155,GUN15#,16#,LAN155,TGN156,16#..(AGTSU,IDNSU,INDSU,SASUV,VNSUV)..(H,M,S)202001-202012

main53857-47011iGGN155..EPT201908-202104

(J)

main53857-47011iGUN165..VNSUV..S;GUN165..(H,M,S)..(GCC,GEN,IDN,MA,PH,TH);GGN155,165,GUN15#,166,KUN156,LAN155,TGN156,16#..H,M,S201507-201908

53882KSEAL, FRONT FENDER

main53882-33060iGUN156,166,TGN166..IND201507-202104

53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH

main53807-0K180iGGN155,TGN156,166..EPT201507-202104

main53807-0K200iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53807-0K240iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

main53807-0K250iGUN156,166,TGN166..IND201610-202012

53886GSEAL, FENDER APRON MUDGUARD, LH

main53808-0K180iGGN155,TGN156,166..EPT201507-202104

main53808-0K200iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53808-0K240iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

main53808-0K250iGUN156,166,TGN166..IND201610-202012

53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH

main53941-KK070iGUN156,166,TGN166..IND201507-202104

53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH

main53942-KK070iGUN156,166,TGN166..IND201507-202104

76181BULGE, HOOD

main76180-0K910iKUN156..IDNSU201601-201707

main76181-0K909iKUN156..SA201603-201709

main76181-0K910iKUN156..AGTSU201512-201709

76183PROTECTOR, HOOD BULGE, NO.1

main76183-0K090iKUN156..IDNSU201512-201709

76186SEAL, HOOD AIR INTAKE

main76186-0K090iKUN156..IDNSU201601-201709

main76186-0K110iKUN156..AGTSU201512-201709

sub76186-0K090

758750K020MOULDING, BACK DOOR OUTSIDE, UPPER

main75875-0K020

90109T0047

main90109-T0047

90119T0004

main90119-T0004

90178T0029

main90178-T0029

9046710204

main90467-10204

9090467036

main90904-67036

9095006124

main90950-06124

90950T6002

main90950-T6002

31 parts on this diagram · 2 diagrams in section
