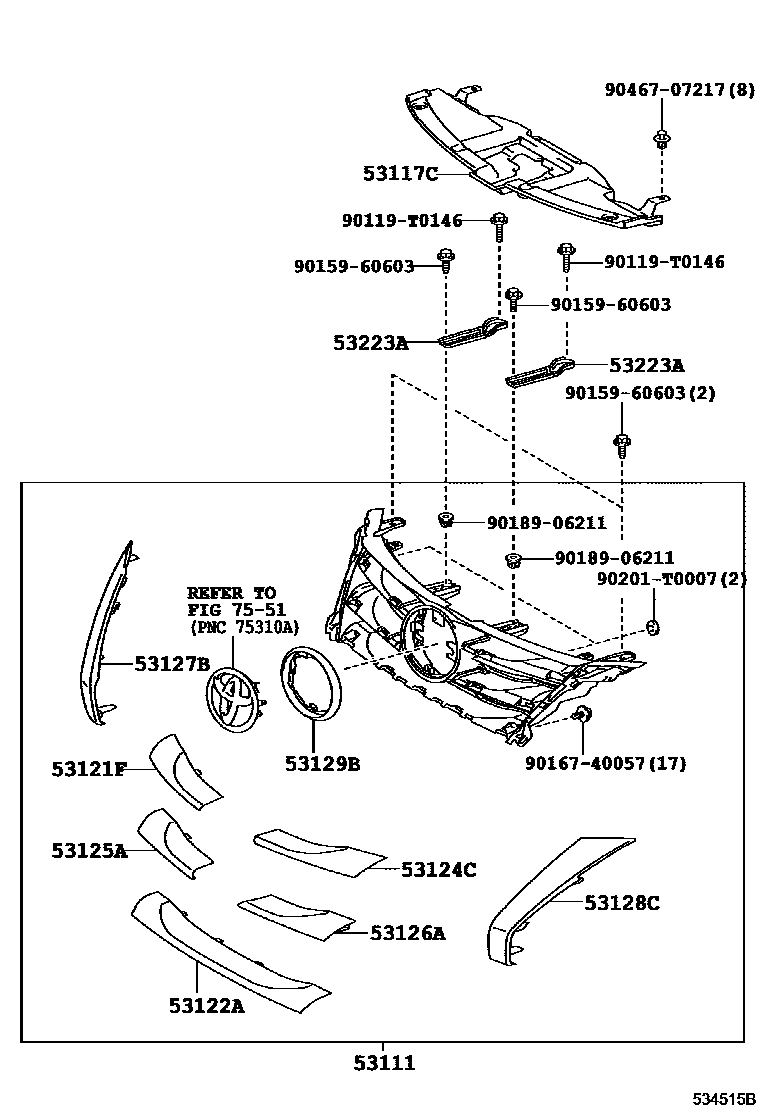

RADIATOR GRILLE

0001 1 0003 1

53111GRILLE, RADIATOR

main53100-0K850iGUN156..THSUV..(M,S)..GEN201708-202005

main53100-0K913iGUN156..(M,S)..ARL201908-202005

main53100-0K914iGUN156..L..ARL201908-202005

main53100-0KC10iGUN156..6FC..L..ARL201507-201908

NO PAINT REQ.

main53100-0KC30supersedes 53100-0KE60iTGN156..PKN201507-201806

PLATED

main53100-0KC40iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53100-0KC70iGGN155,TGN168..AGTSU..6FC;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010

main53100-0KC80iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008

main53100-0KD00iTGN166..IDNSU..M..LA;GUN165..IDNSU..L..GCC;TGN156,166..IDNSU..5F..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156,165,KUN156..(IDN201601-202008

main53100-0KD10iGUN156,166,TGN166..IND201610-202012

main53100-0KF20iGUN15#,166..TH201603-202005

ACCESSORY TYPE 2 PACKAGE

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-0K070iTGN156..PKN201507-201806

main53117-0K080iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53117-0K090iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main53117-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main53117-0K110iGUN156,166,TGN166..IND201610-202012

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-0K410iGUN156..THSUV..(M,S)..GEN201708-202005

main53121-0K660iTGN168..5F;GUN156,165,KUN156,TGN156,166..(AGTSU,THSUV)..L..(ARL,BZAGT,KZS,LA)201507-202010

main53121-0K670supersedes 53121-0K410iTGN156..PKN201507-201806

main53121-0K680iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53121-0K710iGGN155,TGN168..AGTSU..6FC;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010

main53121-0K740iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008

main53121-0K750iTGN166..IDNSU..M..LA;GUN165..IDNSU..L..GCC;TGN156,166..IDNSU..5F..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156,165,KUN156..(IDN201601-202008

main53121-0K760iGUN156,166,TGN166..IND201610-202012

main53121-0K390iGUN15#,166..TH201603-202005

ACCESSORY TYPE 2 PACKAGE

53122AMOULDING, RADIATOR GRILLE, LOWER

main53125-0K110iTGN168..5F;GUN156,165,KUN156,TGN156,166..(AGTSU,THSUV)..L..(ARL,BZAGT,KZS,LA)201507-202010

main53125-0K120iTGN156..PKN201507-201806

main53125-0K130iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53125-0K160iGGN155,TGN168..AGTSU..6FC;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010

main53125-0K180iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008

main53125-0K190iTGN166..IDNSU..M..LA;GUN165..IDNSU..L..GCC;TGN156,166..IDNSU..5F..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156,165,KUN156..(IDN201601-202008

main53125-0K200iGUN156,166,TGN166..IND201610-202012

main53125-0K300supersedes 53125-0K300iGUN156..THSUV..(M,S)..GEN201708-202005

main53125-0K290iGUN15#,166..TH201603-202005

ACCESSORY TYPE 2 PACKAGE

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53122-0K300iTGN168..5F;GUN156,165,KUN156,TGN156,166..(AGTSU,THSUV)..L..(ARL,BZAGT,KZS,LA)201507-202010

main53122-0K310iGGN155,TGN156,166..EPT201507-202101

main53122-0K320iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53122-0K350iGGN155,TGN168..AGTSU..6FC;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010

main53122-0K380iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008

main53122-0K390iTGN166..IDNSU..M..LA;GUN165..IDNSU..L..GCC;TGN156,166..IDNSU..5F..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156,165,KUN156..(IDN201601-202008

main53122-0K400iGUN156,166,TGN166..IND201610-202012

main53122-0K560supersedes 53122-0K560iGUN156..THSUV..(M,S)..GEN201708-202005

main53122-0K530iGUN15#,166..TH201603-202005

ACCESSORY TYPE 2 PACKAGE

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53123-0K130iTGN168..5F;GUN156,165,KUN156,TGN156,166..(AGTSU,THSUV)..L..(ARL,BZAGT,KZS,LA)201507-202010

main53123-0K140iTGN156..PKN201507-201806

main53123-0K150iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53123-0K180iGGN155,TGN168..AGTSU..6FC;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010

main53123-0K210iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008

main53123-0K220iTGN166..IDNSU..M..LA;GUN165..IDNSU..L..GCC;TGN156,166..IDNSU..5F..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156,165,KUN156..(IDN201601-202008

main53123-0K230iGUN156,166,TGN166..IND201610-202012

main53123-0K390supersedes 53123-0K390iGUN156..THSUV..(M,S)..GEN201708-202005

main53123-0K360iGUN156..THSUV..H..GEN201905-202005

TRD PACKAGE

53126AMOULDING, RADIATOR GRILLE, CENTER LH

main53124-0K130iTGN168..5F;GUN156,165,KUN156,TGN156,166..(AGTSU,THSUV)..L..(ARL,BZAGT,KZS,LA)201507-202010

main53124-0K140iGUN156..THSUV..H;TGN156..(MASUV,THSUV)..(GCC,MA);GUN156..RHD..(PKNSU,THSUV)..(M,S);GGN155,165,GUN155,16#,TGN166..MASUV,PKNSU,THSUV201507-202104

main53124-0K150iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53124-0K180iGGN155,TGN168..AGTSU..6FC;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010

main53124-0K210iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008

main53124-0K220iTGN166..IDNSU..M..LA;GUN165..IDNSU..L..GCC;TGN156,166..IDNSU..5F..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156,165,KUN156..(IDN201601-202008

main53124-0K230iGUN156,166,TGN166..IND201610-202012

main53124-0K390supersedes 53124-0K390iGUN156..THSUV..(M,S)..GEN201708-202005

main53124-0K360iGUN15#,166..TH201603-202005

ACCESSORY TYPE 2 PACKAGE

53127BMOULDING, RADIATOR GRILLE, NO.7

main53127-0K140iGGN155,TGN156,166..EPT201507-202101

main53127-0K150iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53127-0K160iGGN155,TGN168..AGTSU..6FC;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010

main53127-0K170iTGN166..IDNSU..M..LA;GUN165..IDNSU..L..GCC;TGN156,166..IDNSU..5F..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156,165,KUN156..(IDN201601-202008

main53127-0K180iGUN156,166,TGN166..IND201610-202012

main53127-0K190iTGN168..5F;GUN156,165,KUN156,TGN156,166..(AGTSU,THSUV)..L..(ARL,BZAGT,KZS,LA)201507-202010

main53127-0K210iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008

main53127-0K280supersedes 53127-0K280iGUN156..THSUV..(M,S)..GEN201708-202005

53128CMOULDING, RADIATOR GRILLE, NO.8

main53128-0K010iGUN156..THSUV..(M,S)..GEN201708-202005

main53128-0K140supersedes 53128-0K230iGUN156..THSUV..H;TGN156..(MASUV,THSUV)..(GCC,MA);GUN156..RHD..(PKNSU,THSUV)..(M,S);GGN155,165,GUN155,16#,TGN166..MASUV,PKNSU,THSUV201507-202104

main53128-0K150iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53128-0K160iGGN155,TGN168..AGTSU..6FC;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010

main53128-0K170iTGN166..IDNSU..M..LA;GUN165..IDNSU..L..GCC;TGN156,166..IDNSU..5F..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156,165,KUN156..(IDN201601-202008

main53128-0K180iGUN156,166,TGN166..IND201610-202012

main53128-0K190iTGN168..5F;GUN156,165,KUN156,TGN156,166..(AGTSU,THSUV)..L..(ARL,BZAGT,KZS,LA)201507-202010

main53128-0K210iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008

53129BMOULDING, RADIATOR GRILLE, NO.9

main53129-0K010iGUN156..6FC..(M,S)..ARL201507-201908

main53129-0K020iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53129-0K030iGGN155,TGN168..AGTSU..6FC;GUN156,KUN156,TGN156,166..AGTSU..(H,M,S)201512-202010

main53129-0K040iTGN166..IDNSU..M..LA;GUN165..IDNSU..L..GCC;TGN156,166..IDNSU..5F..GCC;TGN156..IDNSU..(M,S)..(GCC,LA);TGN156..IDNSU..6FC..(L,M)..(GCC,GEN,VN);GUN156,165,KUN156..(IDN201601-202008

main53129-0K050iGUN156,166,TGN166..IND201610-202012

main53129-0K060iGUN156..6FC..L..ARL201507-201908

main53129-0K080iTGN156..IDNSU..(L,S)..(GEN,LA);GUN156,165,KUN156,TGN166..(IDNSU,VNSUV)..L..(GEN,LA,VN)201601-202008

main53129-0K120supersedes 53129-0K120iGUN156..THSUV..(M,S)..GEN201708-202005

main53129-0K260iGUN156..(M,S)..ARL201908-202005

main53129-0K270iGUN156..L..ARL201908-202005

main53129-0K110iGUN156..THSUV..H..GEN201905-202005

TRD PACKAGE

53223ABRACKET, RADIATOR GRILLE MOUNTING

main53115-0K070×2iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main53115-0K080×2iTGN156..AGTSU,MASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,TGN16#..AGTSU,MASUV,PKNSU,THSUV201507-202104

main53115-0K090×2iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main53115-0K110×2iGUN156,166,TGN166..IND201610-202012

7551

90119T0146

main90119-T0146

9015960603

main90159-60603

9016740057

main90167-40057

9018906211

main90189-06211

90201T0007

main90201-T0007

9046707217

main90467-07217

18 parts on this diagram · 2 diagrams in section
