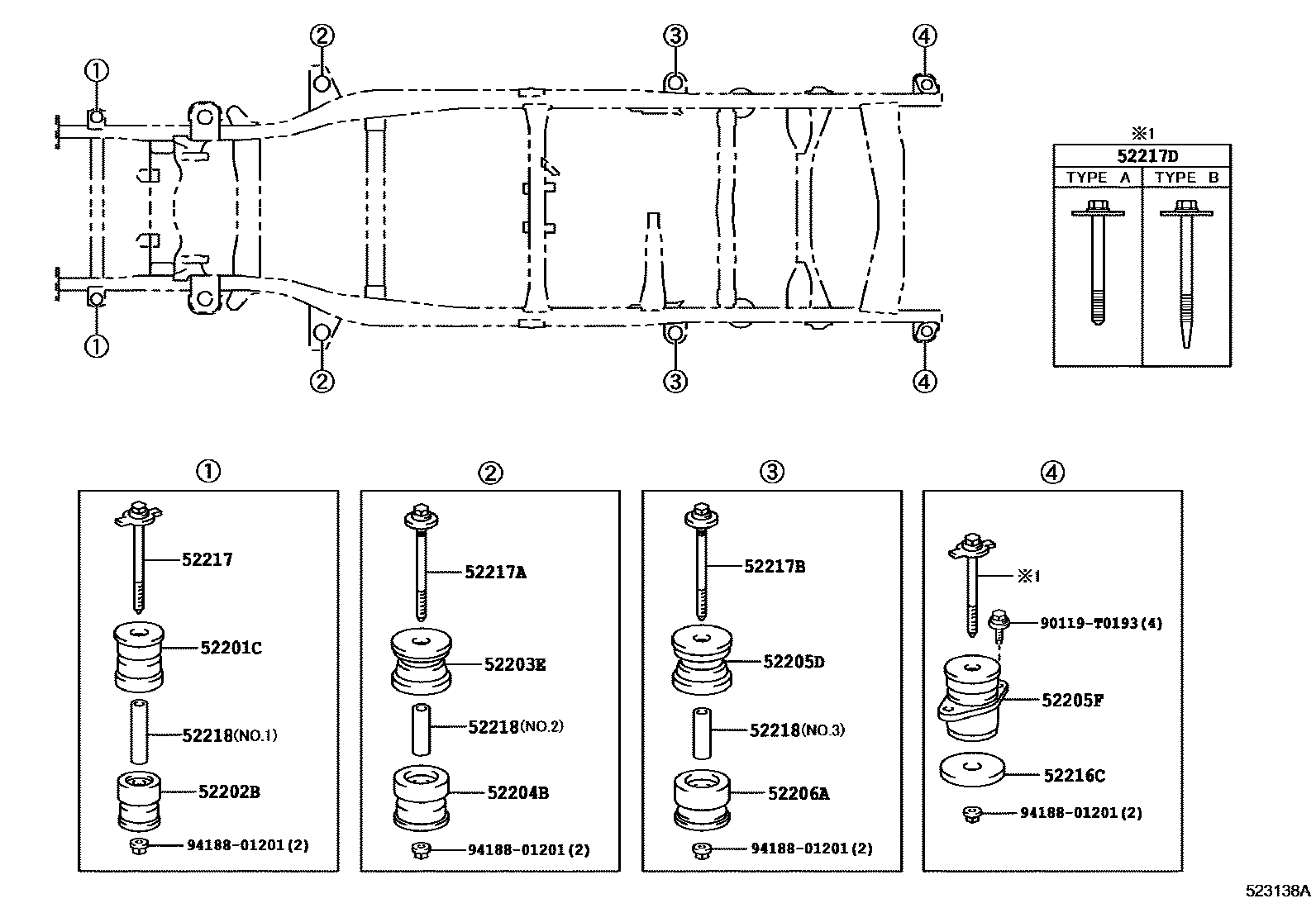

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K060iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main52201-0K070iGUN156,166,TGN166..IND201610-202012

main52201-0K080iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-201712

sub52201-0K100

main52201-0K100iLAN155..L201507-202104

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K060iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main52202-0K070iGUN156,166,TGN166..IND201610-202012

main52202-0K080iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-201712

sub52202-0K100

main52202-0K100iGUN156..S..IART;TGN156,166..AGTSU;GGN155,TGN168..BZAGT;GUN156..6F..S..BZAGT;GUN156..AGTSU..(H,L,M)201507-202104

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K080iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main52203-0K090iGUN156,166,TGN166..IND201610-202012

main52203-0K110iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-201712

sub52203-0K130

main52203-0K130iGUN165,LAN155..LHD..L..(LA,SA)201507-202104

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K080iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main52204-0K090iGUN156,166,TGN166..IND201610-202012

main52204-0K110iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-201712

sub52204-0K130

main52204-0K130iGGN155,TGN156,166..EPT201507-202104

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K090iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main52205-0K100iGUN156,166,TGN166..IND201610-202012

main52205-0K180iGGN155,TGN156,166..EPT201507-202104

main52205-0K190iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-201712

sub52205-0K180

52205FCUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-0K070iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main52207-0K080iGUN156,166,TGN166..IND201610-202012

main52207-0K090iGGN155,TGN156,166..EPT201507-202104

main52207-0K100iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-201712

sub52207-0K090

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K040iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU201601-202007

main52206-0K050iGUN156,166,TGN166..IND201610-202012

main52206-0K140iGUN156..S..IART;TGN156,166..AGTSU;GGN155,TGN168..BZAGT;GUN156..6F..S..BZAGT;GUN156..AGTSU..(H,L,M)201507-202104

main52206-0K150iGGN155,GUN156,KUN156,TGN156,16#..AGTSU201512-201712

sub52206-0K140

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-KK010iGGN155,TGN156,166..EPT201507-202104

52217BOLT, BODY MOUNTING

main52217-0K010iGUN156,166,TGN166..IND201507-202104

52217ABOLT, BODY MOUNTING

main52217-0K020iGUN156,166,TGN166..IND201507-202104

52217BBOLT, BODY MOUNTING

main52217-0K020iGUN156,166,TGN166..IND201507-202104

52217DBOLT, BODY MOUNTING

main52217-0K050iGGN155,TGN156,166..EPT201507-202104

TYPE A:REFER ILLUST.

main52217-0K060iGUN165,LAN155..LHD..L..(LA,SA)201507-202104

TYPE B:REFER ILLUST.

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010iGGN155,TGN156,166..EPT201507-202104

NO.1

main52219-0K010iGGN155,TGN156,166..EPT201507-202104

NO.2

main52219-KK010iLAN155..S;GUN165..IDNSU,MASUV,SASUV,THSUV,VNSUV;GGN155,165,GUN15#,166,KUN156,165,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

NO.3

90119T0193

main90119-T0193

9418801201

main94188-01201

15 parts on this diagram · 1 diagram in section
