FRAME

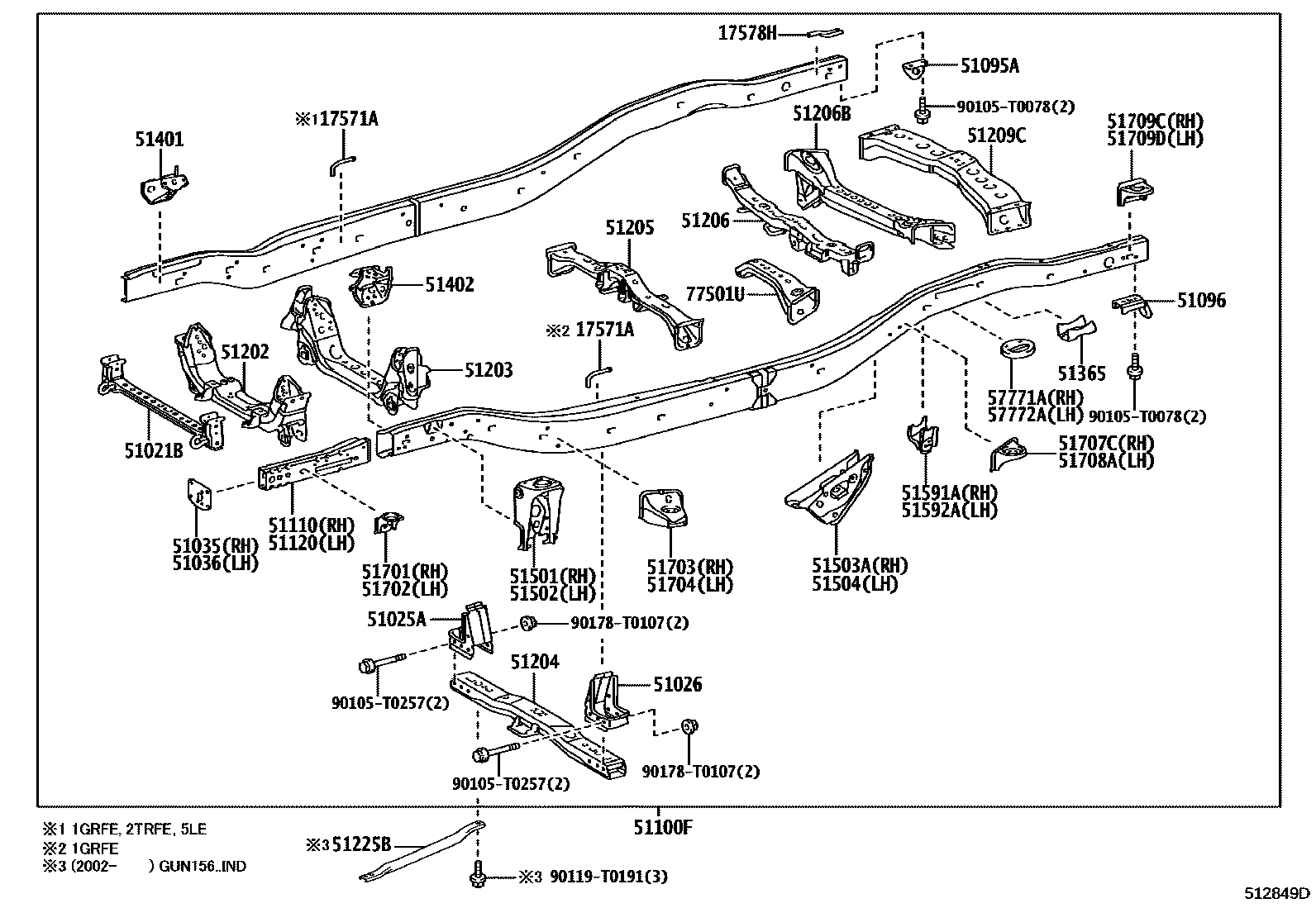

Parts diagram
17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9
main17571-0L010i201507-202101
17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10
main17505-0L020i201507-202104
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
main51021-KK010i201507-202104
main51021-KK020i201709-202012
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
main51025-KK010i201507-202104
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
main51026-KK010i201507-202104
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
main51035-KK010i201507-202104
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
main51036-KK010i201507-202104
51095AHOOK SUB-ASSY, TRANSPORT, REAR RH
main51095-0K010i201507-202104
51096HOOK SUB-ASSY, TRANSPORT, REAR LH
main51096-0K010i201507-202104
51100FFRAME SUB-ASSY
main51001-KK490i201512-202101
sub51001-KK492
main51001-KK500i201512-202101
sub51001-KK502
main51001-KK510i201507-202104
sub51001-KK512
main51001-KK520i201603-202009
sub51001-KK522
main51001-KK530i201507-202008
sub51001-KK871
sub51001-KKD20
main51001-KK540i201601-202007
sub51001-KK880
sub51001-KK884
sub51001-KKD30
main51001-KK550i201601-201805
sub51001-KK890
main51001-KK560i201507-201904
sub51001-KK562
sub51001-KK564
sub51001-KKD40
main51001-KK570i201507-202008
sub51001-KKA01
sub51001-KKC60
main51001-KK610i201603-202009
sub51001-KK612
main51001-KK610i201601-201708
ASIA COLD COUNTRY SPEC
sub51001-KK612
main51001-KK620i201603-202009
sub51001-KK621
main51001-KK630i201603-202009
sub51001-KK632
main51001-KK640i201603-202009
sub51001-KK641
main51001-KK650i201603-202009
sub51001-KK652
main51001-KK660i201603-202009
sub51001-KK662
main51001-KK870i201702-201902
sub51001-KK871
main51001-KK871i201903-202104
sub51001-KK873
main51001-KK880i201702-201805
sub51001-KK881
main51001-KK890i201702-201805
sub51001-KK892
main51001-KKA00i201702-201902
sub51001-KKA01
main51001-KKA01i201903-202012
sub51001-KKA03
main51001-KKB10i201710-202007
main51001-KKB20i201710-202007
main51001-KKB30i201709-202008
sub51001-KKD00
main51001-KKB40i201710-201903
main51001-KKB50i201709-202008
sub51001-KKD40
main51001-KKB80i201710-201903
main51001-KKB90i201808-201903
main51001-KKC60i201903-202012
main51001-KKC70i201903-202010
sub51001-KKC72
main51001-KKC90i201903-202010
sub51001-KKC92
main51001-KKD00i201903-202012
main51001-KKD20i201903-202012
main51001-KKD30i201903-202012
main51001-KKD40i202002-202012
51110EXTENSION ASSY, SIDE RAIL, RH
main51110-KK901i201507-202009
sub51110-KK907
main51110-KK901i201601-201705
ASIA COLD COUNTRY SPEC
sub51110-KK907
main51110-KK907i201703-202104
main51110-KK907i201705-201708
ASIA COLD COUNTRY SPEC
51120EXTENSION ASSY, SIDE RAIL, LH
main51122-KK901i201507-202009
sub51122-KK907
main51122-KK901i201601-201705
ASIA COLD COUNTRY SPEC
sub51122-KK907
main51122-KK907i201703-202104
main51122-KK907i201705-201708
ASIA COLD COUNTRY SPEC
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
main51201-KK020i201507-202104
sub51201-KK050
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
main51202-KK010i201507-202104
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
main51203-KK010i201507-202009
sub51203-KK100
main51203-KK020i201601-202007
sub51203-KK110
sub51203-KK230
main51203-KK030i201507-202009
main51203-KK040i201507-202104
sub51203-KK250
main51203-KK050i201512-202101
sub51203-KK260
main51203-KK100i201702-201903
sub51203-KK190
main51203-KK110i201702-201903
sub51203-KK130
main51203-KK120i201903-202012
sub51203-KK240
main51203-KK130i201903-202012
sub51203-KK230
main51203-KK140i202002-202012
main51203-KK150i201903-202012
main51203-KK190i201903-202104
sub51203-KK210
main51203-KK200i201903-202010
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
main51204-KK060i201507-202104
main51204-KK080i201507-202104
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
main51205-KK050i201507-202104
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
main51206-KK020i201507-202104
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
main51209-KK010i201507-202104
51225BBRACKET, FRONT SUSPENSION MEMBER, RH
main51225-KK010i202002-202012
51365STOPPER, REAR BUMPER
main57081-KK010i201507-202104
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
main51401-KK010i201603-202009
main51401-KK020i201507-202104
main51401-KK030i201512-202101
main51401-KK040i201507-202104
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
main51402-KK010i201603-202009
main51402-KK020i201507-202104
main51402-KK030i201512-202101
main51402-KK040i201507-202104
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
main51501-KK020i201507-202104
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
main51502-KK020i201507-202104
51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
main51503-KK010i201507-202104
51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
main51504-KK010i201507-202104
51591ASUPPORT, STABILIZER, RH
main51508-KK010i201507-202104
51592ASUPPORT, STABILIZER, LH
main51509-KK010i201507-202104
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
main51701-KK010i201507-202104
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
main51701-KK010i201507-202104
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
main51703-KK010i201507-202104
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
main51704-KK010i201507-202104
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
main51707-KK010i201507-202104
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
main51708-KK010i201507-202104
51709CBRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH
main51709-KK010i201507-202104
51709DBRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH
main51709-KK010i201507-202104
57771APLATE, REAR SPRING, RH
main57771-KK010i201507-202104
57772APLATE, REAR SPRING, LH
main57771-KK010i201507-202104
77501UBRACKET SUB-ASSY, FUEL TANK
main77501-KK040i201507-202104
90105T0078
main90105-T0078
90105T0257
main90105-T0257
90119T0191
main90119-T0191
90178T0107
main90178-T0107

44 parts on this diagram · 3 diagrams in section
