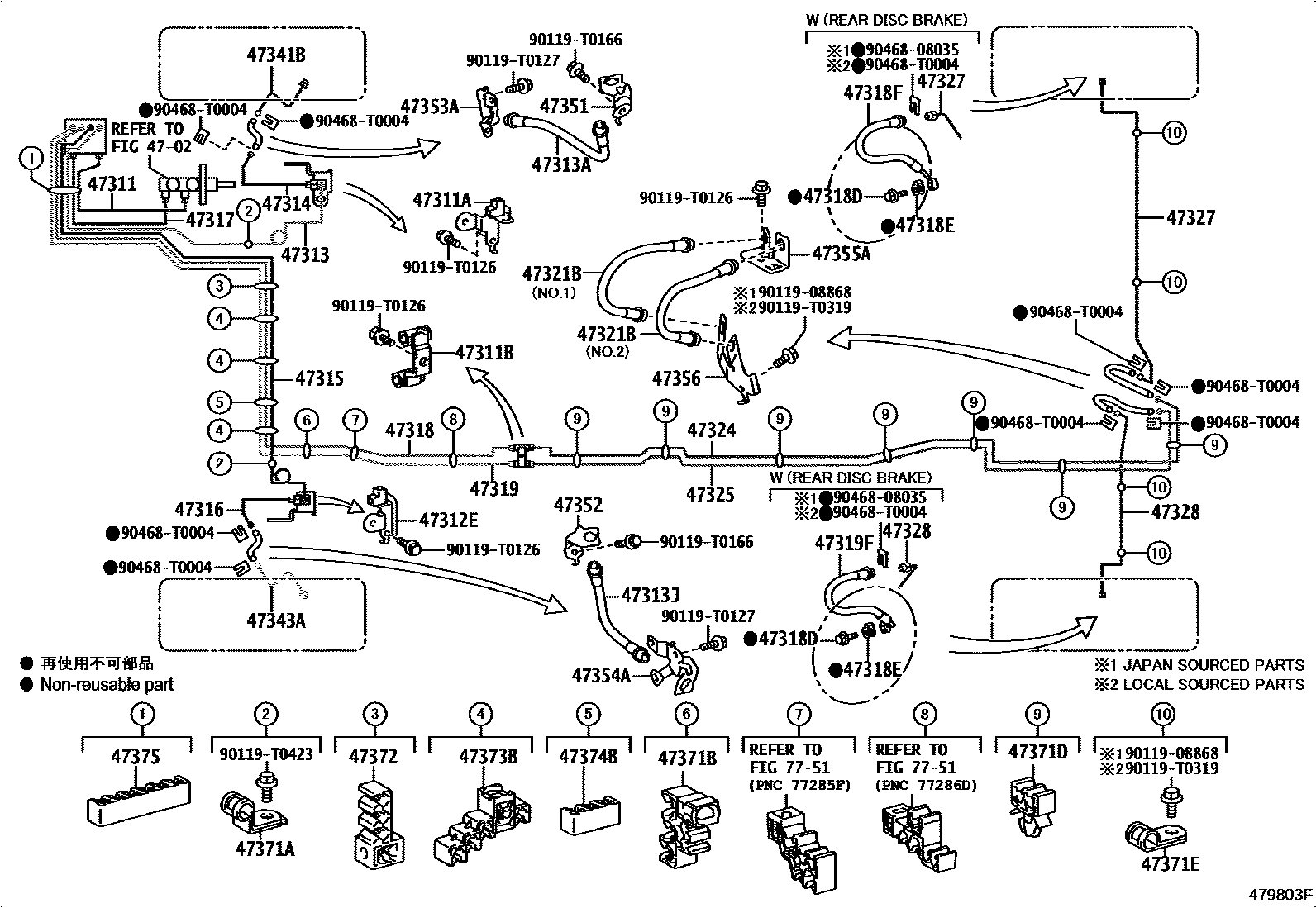

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE, W(ABS) 0002 1BRAKE TUBE, W(VSC) 0003 1BRAKE TUBE, W(ABS) 0004 1BRAKE TUBE, W(VSC) 0005 1BRAKE ACTUATOR 0006 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-KK020supersedes 47311-KK020iGUN166,TGN166..M..IND201809-202012

main47311-KK030iGUN155..L..MA;GUN166,TGN166..M..IND201507-201809

main47311-KK050supersedes 47311-KK060iTGN156..S..GCC;TGN166..(M,S)..(BZAGT,GCC,LA,VN);TGN156..LHD..(BZAGT,EPT,GEN,KZS,LA,VN);GUN155,TGN166..LHD..(L,S)..(GEN,LA,SA);GUN156..LHD..(AGTSU,IDNSU,THSUV,VNSUV)201512-202101

main47311-KK060iGUN155,TGN156..LHD..6FC..(GEN,SA);GUN156,TGN166..LHD..(L,S)..(EPT,PH,SA);GUN165,KUN156,165,LAN155..LHD..(PH,SA,VN)201601-202101

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10307iGGN155,GUN15#,16#,LAN155,TGN156,16#201902-202007

(J)

main90412-T0009iGGN155,GUN15#,16#,LAN155,TGN156,16#201902-202007

(L)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10301iGUN165..L..GCC;TGN166..L..GEN;GUN156..AGTSU..6F..LA;TGN156..(L,M)..(GEN,KZS);GGN155,GUN155,166,LAN155,TGN168;GUN165..GEN,IDN,LA,MA,PH,SA,TH,VN;GUN156,TGN156..(AGTSU201507-201902

main90412-T0007iGGN155,GUN15#,16#,LAN155,TGN156,16#201902-202007

(L)

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10308iGUN156,166,TGN166..IND202007-202012

main90412-T0010iGGN155,GUN15#,16#,LAN155,TGN156,16#201902-202007

(L)

47313TUBE, FRONT BRAKE, NO.3

main47313-KK010iTGN166..RHD..6FC..M;GUN156,TGN156..RHD..M..GEN;GUN155,TGN156..S..(IDN,PKN);GUN165,KUN156..RHD..(IDNSU,SASUV)..(H,M,S)201507-202007

main47313-KK030supersedes 47313-KK030iTGN156..S..GEN;GUN155,TGN156..M..MA;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(MASUV,PKNSU,SASUV,THSUV)201507-202104

main47313-KK040iGUN155,TGN156..LHD..6FC..(GEN,SA);GUN156,TGN166..LHD..(L,S)..(EPT,PH,SA);GUN165,KUN156,165,LAN155..LHD..(PH,SA,VN)201601-202101

main47313-KK060supersedes 47313-KK060iTGN156..S..GCC;TGN166..(M,S)..(BZAGT,GCC,LA,VN);TGN156..LHD..(BZAGT,EPT,GEN,KZS,LA,VN);GUN155,TGN166..LHD..(L,S)..(GEN,LA,SA);GUN156..LHD..(AGTSU,IDNSU,THSUV,VNSUV)201512-202101

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2098iGGN155,TGN156,166..EPT201507-202101

main90947-T2122iGUN156,166,TGN166..IND201610-202012

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2098iGGN155,TGN156,166..EPT201507-202101

main90947-T2122iGUN156,166,TGN166..IND201610-202012

47314TUBE, FRONT BRAKE, NO.4

main47314-KK020iGUN156,166,TGN166..IND201507-202012

47315TUBE, FRONT BRAKE, NO.5

main47315-KK010iGUN155..L..MA;GUN166,TGN166..M..IND201507-201809

main47315-KK030supersedes 47315-KK030iGUN166,TGN166..M..IND201809-202012

main47315-KK040iGUN155,TGN156..LHD..6FC..(GEN,SA);GUN156,TGN166..LHD..(L,S)..(EPT,PH,SA);GUN165,KUN156,165,LAN155..LHD..(PH,SA,VN)201601-202101

main47315-KK060supersedes 47315-KK060iTGN156..S..GCC;TGN166..(M,S)..(BZAGT,GCC,LA,VN);TGN156..LHD..(BZAGT,EPT,GEN,KZS,LA,VN);GUN155,TGN166..LHD..(L,S)..(GEN,LA,SA);GUN156..LHD..(AGTSU,IDNSU,THSUV,VNSUV)201512-202101

47316TUBE, FRONT BRAKE, NO.6

main47316-KK020iGGN155,TGN156,166..EPT201507-202101

47317TUBE, FRONT BRAKE, NO.7

main47321-KK010iGUN155..L..MA;GUN166,TGN166..M..IND201507-201809

main47321-KK020supersedes 47321-KK020iGUN166,TGN166..M..IND201809-202012

main47321-KK030iGUN155,TGN156..LHD..6FC..(GEN,SA);GUN156,TGN166..LHD..(L,S)..(EPT,PH,SA);GUN165,KUN156,165,LAN155..LHD..(PH,SA,VN)201601-202101

main47321-KK040supersedes 47321-KK040iTGN156..S..GCC;TGN166..(M,S)..(BZAGT,GCC,LA,VN);TGN156..LHD..(BZAGT,EPT,GEN,KZS,LA,VN);GUN155,TGN166..LHD..(L,S)..(GEN,LA,SA);GUN156..LHD..(AGTSU,IDNSU,THSUV,VNSUV)201512-202101

47318TUBE, FRONT BRAKE, NO.8

main47322-KK010supersedes 47322-KK010iTGN156..S..GEN;GUN155,TGN156..M..MA;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(MASUV,PKNSU,SASUV,THSUV)201507-202104

main47322-KK020iTGN166..RHD..6FC..M;GUN156,TGN156..RHD..M..GEN;GUN155,TGN156..S..(IDN,PKN);GUN165,KUN156..RHD..(IDNSU,SASUV)..(H,M,S)201507-202007

main47322-KK040supersedes 47322-KK050iTGN156..S..GCC;TGN166..(M,S)..(BZAGT,GCC,LA,VN);TGN156..LHD..(BZAGT,EPT,GEN,KZS,LA,VN);GUN155,TGN166..LHD..(L,S)..(GEN,LA,SA);GUN156..LHD..(AGTSU,IDNSU,THSUV,VNSUV)201512-202101

main47322-KK050iGUN155,TGN156..LHD..6FC..(GEN,SA);GUN156,TGN166..LHD..(L,S)..(EPT,PH,SA);GUN165,KUN156,165,LAN155..LHD..(PH,SA,VN)201601-202101

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV201507-201708

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iGUN165..M..TH;TGN166..5F..GCC;TGN156..6FC..GEN;GUN156,166..PH,TH;TGN166..IDNSU..(PH,VN);TGN156..(L,M)..(GCC,VN);GGN155,165,GUN155,165..GCC,IDN,PH;GUN165..(IDNSU,THS201708-202104

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2115iTGN156..MA;GUN155..L..MA201709-202104

main90947-T2125iGUN156,166,TGN166..IND201610-201708

47319TUBE, FRONT BRAKE, NO.9

main47323-KK030supersedes 47323-KK030iGUN166,TGN166..M..IND201809-202012

sub47323-KK180

main47323-KK040iTGN166..RHD..6FC..M;GUN156,TGN156..RHD..M..GEN;GUN155,TGN156..S..(IDN,PKN);GUN165,KUN156..RHD..(IDNSU,SASUV)..(H,M,S)201507-202007

sub47323-KK190

main47323-KK080supersedes 47323-KK090iTGN156..S..GCC;TGN166..(M,S)..(BZAGT,GCC,LA,VN);TGN156..LHD..(BZAGT,EPT,GEN,KZS,LA,VN);GUN155,TGN166..LHD..(L,S)..(GEN,LA,SA);GUN156..LHD..(AGTSU,IDNSU,THSUV,VNSUV)201512-202101

main47323-KK090iGUN155,TGN156..LHD..6FC..(GEN,SA);GUN156,TGN166..LHD..(L,S)..(EPT,PH,SA);GUN165,KUN156,165,LAN155..LHD..(PH,SA,VN)201601-202101

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2116iGGN155,GUN156,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,SASUV201507-201708

main90947-T2126iGUN156,166,TGN166..IND201610-201708

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2099iGGN155,TGN156,166..EPT201507-202101

NO.1:REFER ILLUST.

main90947-T2103iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

NO.2:REFER ILLUST.

main90947-T2123iGUN156,166,TGN166..IND201610-202012

NO.1:REFER ILLUST.

main90947-T2124iGUN156,166,TGN166..IND201610-202012

NO.2:REFER ILLUST.

47324TUBE, REAR BRAKE, NO.4

main47324-KK030iGUN156,166,TGN166..IND201507-202012

47325TUBE, REAR BRAKE, NO.5

main47325-KK050iGGN155,TGN156,166..EPT201507-202101

47327TUBE, REAR BRAKE, NO.7

main47327-KK140iTGN166..IDN,PH,TH,VN201507-201708

main47327-KK170iTGN166..5F..GCC;TGN156..6FC..GEN;TGN166..6FC..(GCC,GEN);GGN155,165,GUN15#,16#,TGN156..GCC,IDN,PH,TH,VN201507-201708

main47327-KK190iGUN155..M..MA;TGN156..S..GCC;GUN155..GEN,SA,TH;TGN166..L..(GEN,LA,SA);GUN165..(MASUV,VNSUV)..(L,M);GUN165,KUN156..(5FC,6F)..(LA,SA);TGN156..LHD..(BZAGT,GEN,KZS,LA,S201507-202104

main47327-KK230iTGN166..IDN,PH,TH,VN201708-202008

47328TUBE, REAR BRAKE, NO.8

main47328-KK140iTGN166..IDN,PH,TH,VN201507-201708

main47328-KK170iTGN156..PKN201507-201802

main47328-KK190iGUN156,166,TGN166..IND201507-202012

main47328-KK230iTGN166..IDN,PH,TH,VN201708-202008

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-0K070iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main47341-0K080iGGN155,TGN156,166..EPT201507-202101

main47341-0K090iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main47341-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main47341-0K110iGUN156,166,TGN166..IND201610-202012

main47341-0K130iGUN155,165,TGN156..MA201605-202012

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-0K070iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

main47343-0K080iGGN155,165,GUN15#,16#,TGN156,166..PKNSU,THSUV201507-202104

main47343-0K090iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

main47343-0K100iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main47343-0K110iGUN156,166,TGN166..IND201610-202012

main47343-0K130iGUN155,165,TGN156..MA201605-202012

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-KK010iGUN156,166,TGN166..IND201507-202012

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-KK010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2

main47353-KK010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2

main47354-KK010iGGN155,TGN156,166..EPT201507-202101

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-KK030iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-KK020iGGN155,TGN156,166..EPT201507-202101

47371ACLAMP, BRAKE TUBE, NO.1

main90461-T0007×2iGUN156,166,TGN166..IND201507-202012

47371BCLAMP, BRAKE TUBE, NO.6

main90949-T1032iGUN156,166,TGN166..IND201507-202012

47371DCLAMP, BRAKE TUBE, NO.8

main90949-T1006×7iGUN156,166,TGN166..IND201507-202012

47371ECLAMP, BRAKE TUBE, NO.9

main90461-T0001×4iGUN156,166,TGN166..IND201507-202012

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1003iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104

main90949-T1028supersedes 90949-T1029iTGN156..S..GCC;TGN166..(M,S)..(BZAGT,GCC,LA,VN);TGN156..LHD..(BZAGT,EPT,GEN,KZS,LA,VN);GUN155,TGN166..LHD..(L,S)..(GEN,LA,SA);GUN156..LHD..(AGTSU,IDNSU,THSUV,VNSUV)201512-202101

main90949-T1029iGUN155,TGN156..LHD..6FC..(GEN,SA);GUN156,TGN166..LHD..(L,S)..(EPT,PH,SA);GUN165,KUN156,165,LAN155..LHD..(PH,SA,VN)201601-202101

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1016×3iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104

main90949-T1030×4iGGN155,165,GUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD201512-202101

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1027iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104

main90949-T1032iGGN155,165,GUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD201512-202101

47375CLAMP, BRAKE TUBE, NO.5

main90949-T1028supersedes 90949-T1028iTGN156..S..GEN;GUN155,TGN156..M..MA;TGN166..6FC..(H,L,S)..(GEN,PKN,SA);GUN155..RHD..(IDNSU,SASUV,THSUV)..(L,M);GGN155,GUN156,16#..RHD..(MASUV,PKNSU,SASUV,THSUV)201507-202104

main90949-T1029iGUN155..L..MA;GUN166,TGN166..M..IND201507-201809

main90949-T1031iGGN155,165,GUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD201512-202101

7751

9011908868

main90119-08868

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0166

main90119-T0166

90119T0319

main90119-T0319

90119T0423

main90119-T0423

9046808035

main90468-08035

90468T0004

main90468-T0004

48 parts on this diagram · 6 diagrams in section
