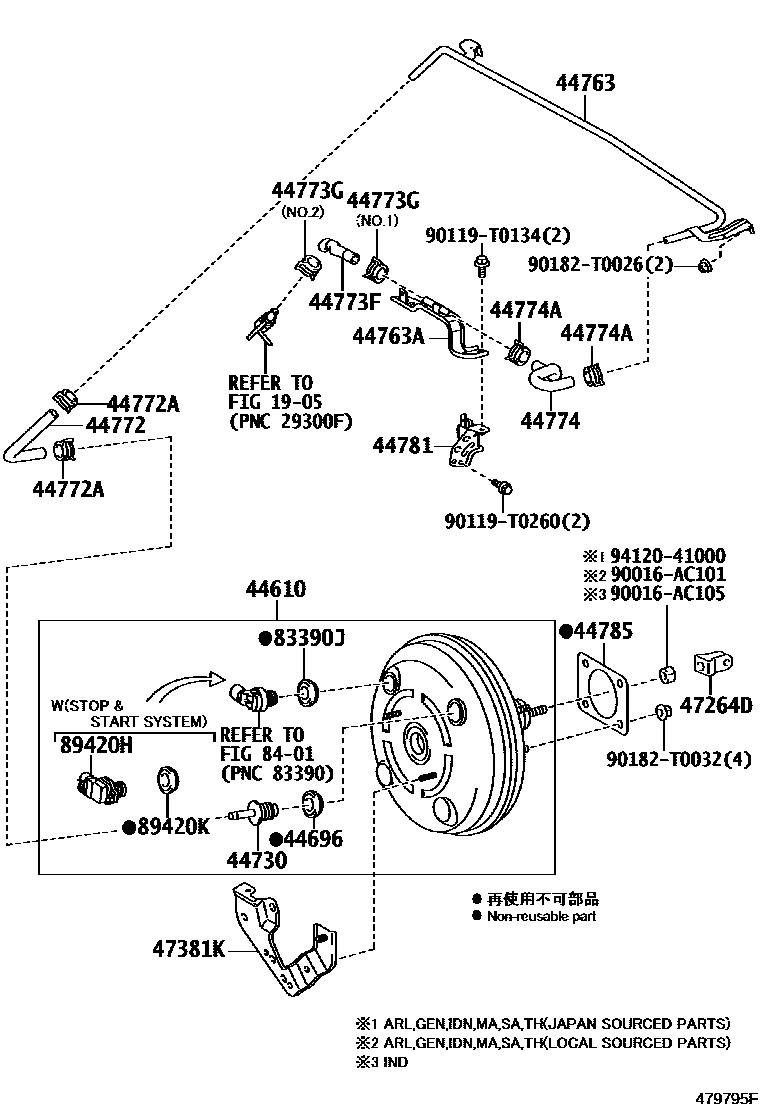

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1905

44610BOOSTER ASSY, BRAKE

main44610-0K270iTGN166..IND201610-202012

main44610-0K430iTGN156,166..IDNSU,VNSUV201601-202008

main44610-0K440iGGN155,165..IDNSU201601-202007

main44610-0K450iGUN15#,165,KUN156..LHD..(IDNSU,VNSUV)201601-202008

main44610-0K460iGUN15#,165,KUN156..RHD..IDNSU201601-202007

main44610-0K550iGUN156,166..6F..IND201610-202012

main44610-0K560iTGN156,166..EPT201507-202104

main44610-0K570iGGN155..SA201603-202009

main44610-0K580iGUN15#..RHD..(ARL,MA,PKN,SA);GUN16#,KUN156..RHD..(MA,SA,TH)201507-202104

main44610-0K590iGUN15#..TH201507-202005

TOYOTA STOP & START SYSTEM-WITH

main44610-0K600iGUN15#,165,KUN156,165,LAN155..LHD..(SASUV,THSUV)201601-202009

main44610-0K810iGGN155,165..EPTSU,THSUV201601-202101

main44610-0K840iGUN156,166..6FC..IND201710-202012

main44610-71010iTGN156,16#..AGTSU201512-202010

main44610-71020iGGN155..AGTSU201512-202010

main44610-71030iGUN156,165,KUN156..AGTSU201512-202010

44696GROMMET, CHECK VALVE

main90016-AT003iGGN155,165,GUN15#,165,KUN156..IDNSU,VNSUV201601-202012

main90016-AT003iTGN156..KZS201708-201905

RUSSIA & UKRAINE SPEC

main90080-48050iTGN166..M..IND201507-202104

main90480-24439iGGN155,GUN156,16#,KUN156..AGTSU,INDSU201512-202012

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGUN156,166..IND201507-202104

44763TUBE, BOOSTER VACUUM

main44763-0K020iKUN156,165..LHD201512-201709

main44763-KK010iGGN155..SA201603-202009

main44763-KK020iTGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104

main44763-KK030iLAN155201603-202009

main44763-KK040iGUN156,166..IND201507-202104

main44763-KK050iGUN15#,165..LHD201512-202010

main44763-KK160iTGN156,16#..LHD201512-202101

44763ATUBE, HOSE TO HOSE, NO.1

main44763-KK010iKUN156..RHD201601-201709

main44763-KK080iGUN156..PKN201507-202012

main44763-KK170iGUN156..PKN202011-202104

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-KK010iGUN156,166..IND201507-202104

main44772-KK040iTGN166..IND201507-202104

main44772-KK070iGUN15#,165..LHD201512-202010

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-T0019iGUN156,166,TGN166..IND201507-202104

44773FHOSE, UNION TO CHECK VALVE

main44773-0K020iLAN155201603-202009

main44773-KK020iGGN155,165..LHD201512-202101

main44773-KK030iGUN156,166..IND201507-202104

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90466-T0019iGUN156,166..IND201507-202104

NO.1

main90466-T0019iGGN155,165..LHD201512-202101

main90467-16014iGUN156,166..IND201507-202104

NO.2

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0K020iKUN156,165201512-201709

sub44774-0K021

main44774-KK010iTGN166..IND201507-202104

main44774-KK020iTGN156,16#..LHD201512-202101

main44774-KK030iGGN155..SA201603-202009

main44774-KK040iGUN156,166..IND201507-202104

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0019iGGN155,GUN166,KUN165,TGN168..(L,M,S)..(BZAGT,SA,TH);GUN15#,165,KUN156,TGN156,166..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

44781BRACKET, HOSE

main44781-KK020iGUN156,166..IND201507-202104

44785GASKET, BRAKE BOOSTER

main44785-17010iGUN156,166,TGN166..IND201507-202104

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-04010iGGN155,TGN156,166..EPT201507-202104

main47264-0K070iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main47264-0K080iGUN156,166..IND201610-202012

main47264-26030iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU201512-202010

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-0K050iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main47381-0K060iGUN156,166..IND201610-202012

main47381-0K070iTGN166..IND201507-202104

83390JGROMMET, VACUUM WARNING SWITCH

main90016-AT003iGUN15#,165,KUN156..IDNSU,VNSUV201601-202008

main90080-48050iGUN16#,KUN156,165,LAN155..MASUV,SASUV,THSUV;GUN15#..(MASUV,PKNSU,SASUV,THSUV)..(ARL,GCC,GEN,MA,PKN,SA)201507-202104

main90480-24439iGUN156,16#,KUN156..AGTSU,INDSU201512-202012

8401

89420HSENSOR ASSY, VACUUM

main89421-52020iGUN16#..M..TH201507-202005

TOYOTA STOP & START SYSTEM-WITH

main89421-52020iGUN166..H;GUN15#..6FC..(IND,TH)201507-202012

89420KGROMMET, VACUUM SENSOR

main90080-48050iGUN15#..TH201507-202005

TOYOTA STOP & START SYSTEM-WITH

main90080-48050iGUN15#..TH201507-202005

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)

90016AC101

main90016-AC101

90016AC105

main90016-AC105

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90182T0026

main90182-T0026

90182T0032

main90182-T0032

9412041000

main94120-41000

27 parts on this diagram · 9 diagrams in section
