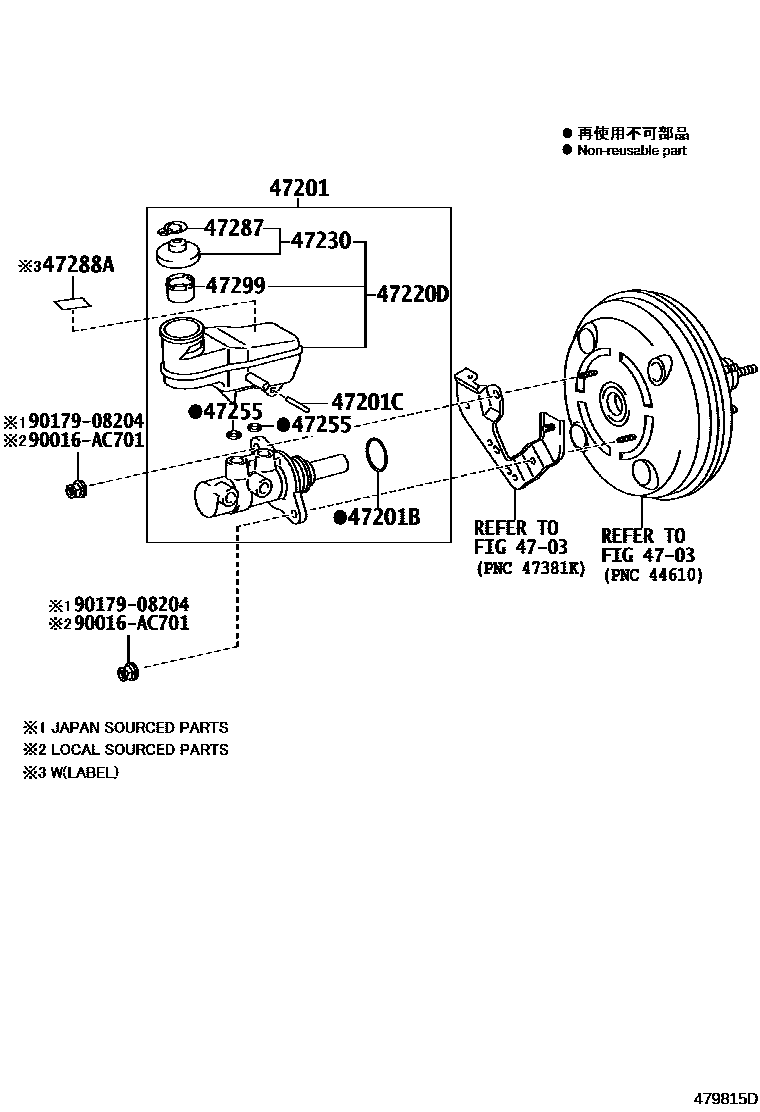

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0K240iGUN155..S..IDN;TGN156,166..RHD..IDNSU..M;GUN156,165,KUN156..RHD..IDNSU..ATM201601-201904

sub47201-0K680

main47201-0K250iGUN165..6F..IDN201601-201904

sub47201-0K690

main47201-0K260iTGN156,166..IDNSU..6FC..L..GCC201601-201905

VEHICLE STABILITY CONTROL-WITHOUT

sub47201-0K700

main47201-0K270iTGN156..IDNSU..5F..GCC201601-201905

VEHICLE STABILITY CONTROL-WITHOUT

sub47201-0K710

main47201-0K270iGUN165..6F..(PH,VN)201601-201904

sub47201-0K710

main47201-0K350iGUN166..M..IND201610-201809

main47201-0K380iTGN166..TH;KUN156,TGN156..RHD..ATM..(PKN,SA)201507-201904

main47201-0K380iGUN156..RHD..6FC..SA201710-202009

VEHICLE STABILITY CONTROL-WITHOUT

main47201-0K390iKUN156,TGN166..RHD..MTM201603-201809

main47201-0K390iGUN156..RHD..6F..SA201710-202009

VEHICLE STABILITY CONTROL-WITHOUT

main47201-0K400iGGN155..THSUV;TGN156..THSUV..6FC..L201708-201905

VEHICLE STABILITY CONTROL-WITHOUT

main47201-0K400iGGN155,165,GUN155,165,TGN156,166..THSUV..6FC..GCC201601-202101

main47201-0K410iGUN155,TGN156..(SASUV,THSUV)..MTM..(GCC,SA)201708-201905

VEHICLE STABILITY CONTROL-WITHOUT

main47201-0K410iGUN156,KUN156,165,LAN155..LHD..MTM..SA201601-202009

main47201-0K440iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU..ATM201512-201901

sub47201-0K441

main47201-0K441iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC201902-202010

main47201-0K450iGUN156,KUN156,TGN168..AGTSU..MTM201512-201901

sub47201-0K451

main47201-0K451iGUN156,TGN168..AGTSU..MTM201902-202010

main47201-0K460iTGN168..6FC..L;GUN156..S..IART;GGN155,KUN156,TGN156,166..AGTSU..ATM..(L,M,S)201512-201907

VEHICLE STABILITY CONTROL-WITHOUT

main47201-0K461iGUN156,165..AGTSU..6FC..(L,M)201902-201907

VEHICLE STABILITY CONTROL-WITHOUT

main47201-0K470iGUN156..AGTSU..6F..(L,S)201512-201906

VEHICLE STABILITY CONTROL-WITHOUT

main47201-0K471iGUN156..AGTSU..6F..(L,S)201902-201907

VEHICLE STABILITY CONTROL-WITHOUT

main47201-0K580iTGN156,166..THSUV..6FC..L;GGN155,165,GUN155,165..THSUV..6FC..GCC201705-202101

main47201-0K580iGGN155,165,GUN155,165,TGN156,166..THSUV..6FC..GCC201601-202009

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

main47201-0K590iGUN155,165,TGN156,166..LHD..(SASUV,THSUV)..MTM201708-202005

main47201-0K590iGUN156..LHD..6F..SA201601-202009

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

main47201-0K600iTGN166..PKN,SA;GUN165..6FC..(MA,SA,TH);GUN15#,166..RHD..(PKNSU,SASUV,THSUV)..6FC;GGN155,GUN155,TGN156..RHD..(M,S)..(MA,SA)201507-202104

main47201-0K600iGUN155..L..MA201507-201904

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

main47201-0K610iGUN156,16#..RHD..(SASUV,THSUV)..6F201507-202012

main47201-0K620iGUN165..6FC..(PH,VN);GUN155,TGN166..LHD..6FC..(GEN,PH)201601-201904

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

sub47201-0K740

main47201-0K620iTGN156,166..IDNSU..6FC..L..GCC;GGN155,165,GUN155,165..IDNSU..6FC..GCC201708-201904

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)

sub47201-0K740

main47201-0K630iGUN165..6F..(PH,VN)201601-201904

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

sub47201-0K750

main47201-0K630iGUN165,TGN156,166..IDNSU..MTM..GCC201708-201904

sub47201-0K750

main47201-0K640iGUN155..S..IDN;GUN156,165,KUN156,TGN166..RHD..IDNSU..ATM..(M,S)201601-201904

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

sub47201-0K760

main47201-0K640iGUN155..S..IDN;GUN156,165,KUN156,TGN166..RHD..IDNSU..ATM..(M,S)201601-201904

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)

sub47201-0K760

main47201-0K650iGUN165..6F..IDN201601-201904

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

sub47201-0K770

main47201-0K660iGUN156,166..6FC..IND201610-202012

main47201-0K670iGUN166..M..IND201610-202012

main47201-0K680iGUN155..S..IDN;GUN156,165,TGN156,166..RHD..IDNSU..6FC201905-202007

main47201-0K690iGUN165..6F..IDN201905-202007

main47201-0K700iGUN165..6FC..(PH,VN);GUN155,TGN166..LHD..6FC..(GEN,PH)201905-202008

main47201-0K700iGUN165..LHD..GEN201905-202007

VEHICLE STABILITY CONTROL-WITHOUT

main47201-0K710iGUN165..LHD..6F201905-202008

main47201-0K740iGUN165..6FC..(PH,VN);GUN155,TGN166..LHD..6FC..(GEN,PH)201905-202008

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

main47201-0K740iGUN155..H..GEN201905-202007

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)

main47201-0K750iGUN165..LHD..6F201905-202008

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

main47201-0K750iTGN156,166..L..GEN201905-202007

main47201-0K760iGUN155..IDNSU..M201905-202007

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

main47201-0K760iTGN156..M..GEN201905-202007

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)

main47201-0K770iGUN165..6F..IDN201905-202007

VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iTGN166..AGTSU,IDNSU,VNSUV;GGN155,165,GUN15#,16#,KUN156,TGN156,168..AGTSU,IDNSU,INDSU,VNSUV201512-202012

main90016-AH903iTGN166..IND201507-202104

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0K100iTGN166..H..IND201507-202104

main47220-0K110iTGN166..M..IND;GUN156,16#,KUN156..RHD..(SASUV,THSUV)..6F201507-202012

main47220-0K120iGGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..(EPTSU,SASUV,THSUV)..ATM201601-202101

main47220-0K130iGUN15#,165,KUN156,165,LAN155,TGN156,166..LHD..(SASUV,THSUV)..MTM201601-202009

main47220-0K160iGUN15#,165,KUN156,TGN156,166..RHD..IDNSU..ATM201601-202007

main47220-0K170iGUN165..6F..IDN201601-202007

main47220-0K180iGGN155,165,GUN15#,165,KUN156,TGN156,166..LHD..(IDNSU,VNSUV)..ATM201601-202008

main47220-0K190iGUN156,165,KUN156,TGN156,166..LHD..(IDNSU,VNSUV)..MTM201601-202008

main47220-0K200iTGN168..6FC..L;GGN155,TGN156,166..AGTSU..(L,M,S)201901-201907

VEHICLE STABILITY CONTROL-WITHOUT

sub47220-0K201

main47220-0K200iGGN155,GUN156,165,KUN156,TGN156,16#..AGTSU..ATM201512-201901

sub47220-0K201

main47220-0K201iGGN155,GUN156,165,TGN156,16#..AGTSU..6FC201902-202010

main47220-0K210iGUN156,KUN156,TGN168..AGTSU..MTM201512-201901

sub47220-0K211

main47220-0K210iTGN168..5F201901-201906

VEHICLE STABILITY CONTROL-WITHOUT

sub47220-0K211

main47220-0K211iGUN156,TGN168..AGTSU..MTM201902-202010

main47220-0K220iGUN156,166..6FC..IND201610-202012

main47220-0K230iGUN156,166..6F..IND201610-202012

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iGUN156,166,TGN166..IND201507-202104

main47230-0D221iTGN168..L;GGN155,TGN156,166..AGTSU..(L,M,S)201902-201907

VEHICLE STABILITY CONTROL-WITHOUT

main47230-20140iGGN155,GUN156,165,TGN156,16#..AGTSU201902-202010

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001iTGN166..IND201507-202104

main90016-AT004iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,VNSUV201601-202008

main90029-48001iTGN166..AGTSU;GGN155,GUN156,16#,KUN156,TGN156,168..AGTSU,INDSU201512-202012

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGUN156,166,TGN166..IND201507-202104

47288ALABEL, BRAKE FLUID NOTICE

main47288-30010iTGN156..KZS201708-201905

RUSSIA & UKRAINE SPEC

main47288-30010iTGN156..KZS201905-202005

main47288-52010iGUN156..THSUV..(M,S)..GEN201708-202005

main47288-71010iGGN155,165,GUN15#,165,TGN156,166..GCC201608-202007

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iGGN155,TGN156,166..EPT201507-202104

main47299-0D100iTGN168..L;GGN155,TGN156,166..AGTSU..(L,M,S)201902-201907

VEHICLE STABILITY CONTROL-WITHOUT

main47299-0K200iGGN155,GUN156,165,TGN156,16#..AGTSU201902-202010

90016AC701

main90016-AC701

9017908204

main90179-08204

12 parts on this diagram · 2 diagrams in section
