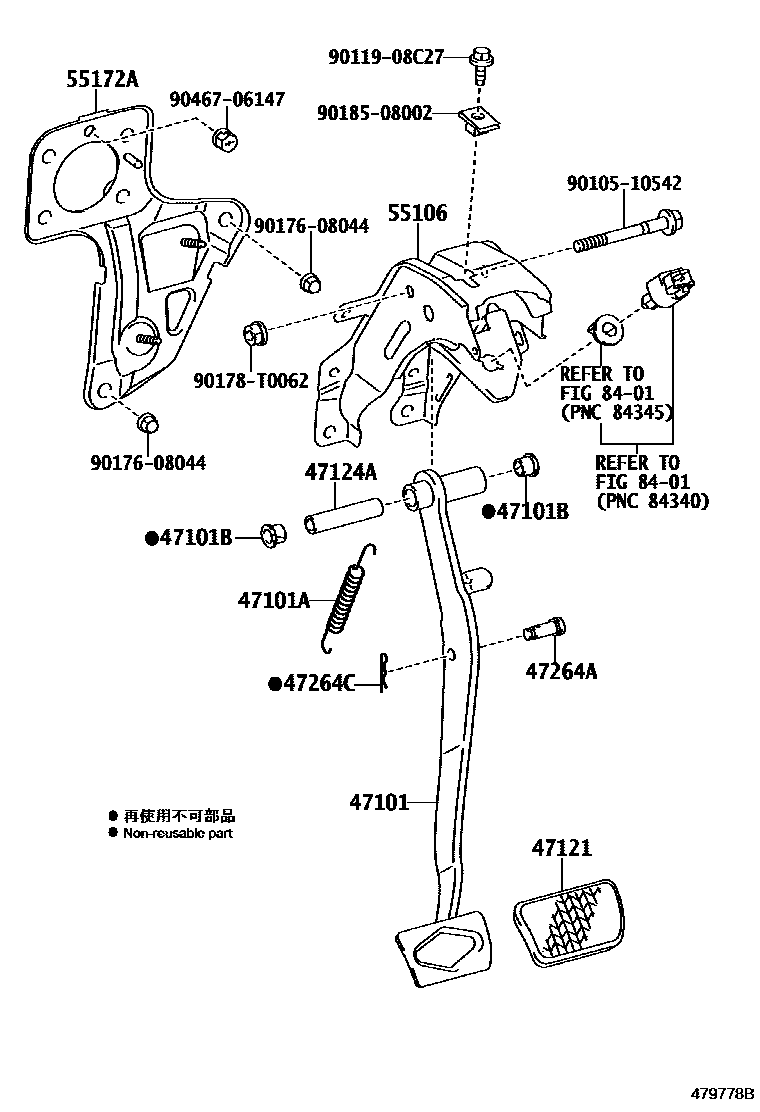

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-KK010iGUN156,16#,KUN156,TGN166..RHD..MTM201507-202012

main47101-KK020iGUN15#,165,KUN156,165,LAN155,TGN156,16#..LHD..MTM201512-202010

main47101-KK030iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)..ATM201507-202104

main47101-KK040iGGN155,165,GUN15#,165,KUN156,TGN156,16#..LHD..ATM201512-202101

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iGGN155,TGN156,166..EPT201507-202104

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

47121PAD, BRAKE PEDAL

main31321-02020iGUN15#,16#,KUN156,165,LAN155,TGN156,16#..MTM201507-202012

main47121-02030iGGN155,TGN156,166..EPT201507-202104

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10121iGGN155,TGN156,166..EPT201507-202104

47264APIN(FOR PUSH ROD)

main47148-35010iGUN156,166,TGN166..IND201507-202104

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGUN156,166,TGN166..IND201507-202104

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK010iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,PKNSU,SASUV,THSUV,VNSUV201507-202104

main55106-KK030iGGN155,165,GUN15#,16#,KUN156,TGN156,166..IDNSU,INDSU,MASUV201601-202012

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK010iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104

main55172-KK020iGUN155..GCC201708-201710

GCC SPEC(EURO 4 REGULATION),TYPE A:REFER ILLUST.

main55172-KK020iGUN15#..GCC201708-201710

QATAR SPEC,TYPE A:REFER ILLUST.

main55172-KK020iGUN15#..GCC201512-202101

TYPE A:REFER ILLUST.

main55172-KK020iGUN15#..GCC201708-201710

QATAR SPEC(EURO 4 REGULATION),TYPE A:REFER ILLUST.

main55172-KK030iGGN155,165,TGN156,166..GCC201708-201710

SAUDI ARABIA SPEC(EURO4 REGULATION),TYPE B:REFER ILLUST.

main55172-KK030iGGN155,165,TGN156,166..GCC201708-202007

TYPE B:REFER ILLUST.

main55172-KK030iGGN155,165,TGN156,166..GCC201708-201710

SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

8401

9010510542

main90105-10542

9011908C27

main90119-08C27

9017608044

main90176-08044

90178T0062

main90178-T0062

9018508002

main90185-08002

9046706147

main90467-06147

16 parts on this diagram · 2 diagrams in section
