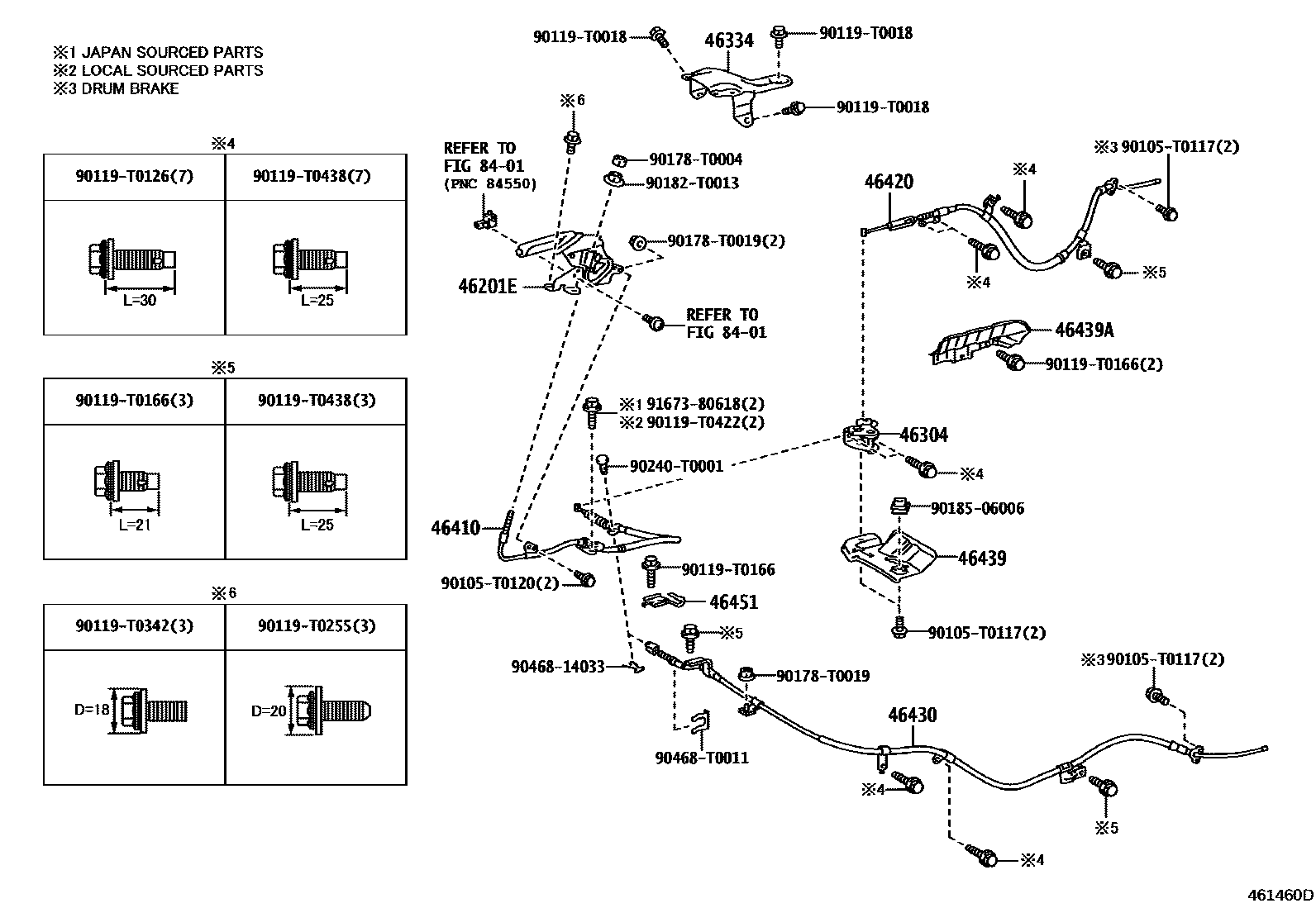

PARKING BRAKE & CABLE

0001 1PARKING BRAKE CABLE 0002 1W(REAR DISC BRAKE)

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K140-C0iGUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..L201601-202008

BLACK,TRIM4#

main46201-0K180-C1iGGN155,165,GUN15#,165,KUN156,TGN156,166..(IDNSU,VNSUV)..(H,M,S)201601-202008

BLACK/BEIGE NO.841,TRIM4#

main46201-0K190-C0iTGN168..5F;GUN156,165,KUN156,TGN156,166..AGTSU..L201512-202010

BLACK,TRIM4#

main46201-0K200-C1iGUN156..6FC..H..BZAGT201512-202010

BLACK/BEIGE NO.841,TRIM4#

main46201-0K200-C1iGUN156..6FC..H..BZAGT201512-202010

BLACK/BEIGE NO.841,TRIM0#,4#

main46201-0K210-C0iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,166..SA201603-202009

BLACK,TRIM4#

main46201-0K230-C0iGUN156..S..ARL201507-202005

BLACK,TRIM3#,4#

main46201-0K230-C0iTGN166..THSUV..L;GUN15#,165,TGN156..(EPTSU,MASUV,THSUV)..L201507-202101

BLACK,TRIM4#

main46201-0K240-C1iGUN156,166,TGN166..IND201507-202104

BLACK/BEIGE NO.841,TRIM4#

main46201-0K240-C2iGUN156..THSUV..H..GEN;GUN15#,166..RHD..THSUV..6FC..M201603-202005

BLACK/CRIMSON NO.69,TRIM3#

main46201-0K250-C0iTGN166..EPT201705-202101

BLACK,TRIM4#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iGUN156,166,TGN166..IND201507-202104

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGUN156,166,TGN166..IND201507-202104

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K090iGGN155,165,GUN15#,165,KUN156,TGN156,166..IDNSU,MASUV,VNSUV201601-202012

main46410-0K100iGGN155,165,GUN15#,16#,TGN156,166..PKNSU,THSUV201507-202104

main46410-0K110iGGN155,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,INDSU,SASUV201512-202012

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K170iGGN155,165,GUN15#,16#,TGN156,166..THSUV..(GCC,TH)201507-201803

main46420-0K190iKUN156,TGN156,166..RHD..M..GEN201601-201708

CS AMERICA SPEC

main46420-0K190iGUN156,166..TH201603-201708

ACCESSORY TYPE 2 PACKAGE

main46420-0K190iGUN156,166..TH201603-201708

ACCESSORY TYPE 1 PACKAGE

main46420-0K190iGUN156,166,TGN166..IND201507-202104

main46420-0K190iGGN155,GUN15#,165,TGN156,166..IDNSU,VNSUV201812-202008

MADE IN THAILAND

main46420-0K230iGGN155..IDNSU..GCC;TGN156,166..IDNSU..5F..GCC;GGN165,GUN15#,165,KUN156,TGN156,166..IDNSU..(5FC,6F,6FC)..(GCC,GEN,IDN,PH,VN)201601-201708

main46420-0K350iGGN155,GUN15#,165,TGN156,166..IDNSU,VNSUV201812-202008

MADE IN INDONESIA

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K130iGGN155..IDNSU..GCC;TGN156,166..IDNSU..5F..GCC;GGN165,GUN15#,165,KUN156,TGN156,166..IDNSU..(5FC,6F,6FC)..(GCC,GEN,IDN,PH,VN)201601-201708

main46430-0K170iGGN155,TGN156,166..EPT201507-201803

main46430-0K190iGGN155,GUN15#,165,TGN156,166..IDNSU,VNSUV201812-202008

MADE IN THAILAND

main46430-0K190iKUN156,TGN156,166..RHD..M..GEN201601-201708

CS AMERICA SPEC

main46430-0K190iGUN156,166..TH201603-201708

ACCESSORY TYPE 1 PACKAGE

main46430-0K190iGUN156,166..TH201603-201708

ACCESSORY TYPE 2 PACKAGE

main46430-0K190iTGN156,166..L..GEN;TGN156,166..IDNSU..S..GCC;GUN156..IDNSU..(GCC,GEN,VN);GGN155,GUN155,165..6FC..(GEN,VN)201507-202104

main46430-0K260iGGN155,GUN15#,165,TGN156,166..IDNSU,VNSUV201812-202008

MADE IN INDONESIA

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iTGN166..5F..GCC;TGN156..6FC..GEN;TGN166..6FC..(GCC,GEN,IDN,PH,TH,VN);GGN155,165,GUN15#,16#,TGN156..GCC,IDN,PH,TH,VN201507-201803

main46439-0K090iGUN156,166..TH201507-201708

ACCESSORY TYPE 1 PACKAGE

main46439-0K090iGUN156,166..TH201507-201708

ACCESSORY TYPE 2 PACKAGE

main46439-0K090iKUN156,TGN156,166..RHD..M..GEN201601-201708

CS AMERICA SPEC

main46439-0K090iGUN156,166,TGN166..IND201507-202104

46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2

main46439-0K070iTGN166..IND201507-202104

46451BRACKET, CABLE SUPPORT

main46451-0K050iGGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

sub46451-0K051

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0255

main90119-T0255

90119T0342

main90119-T0342

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

27 parts on this diagram · 2 diagrams in section
