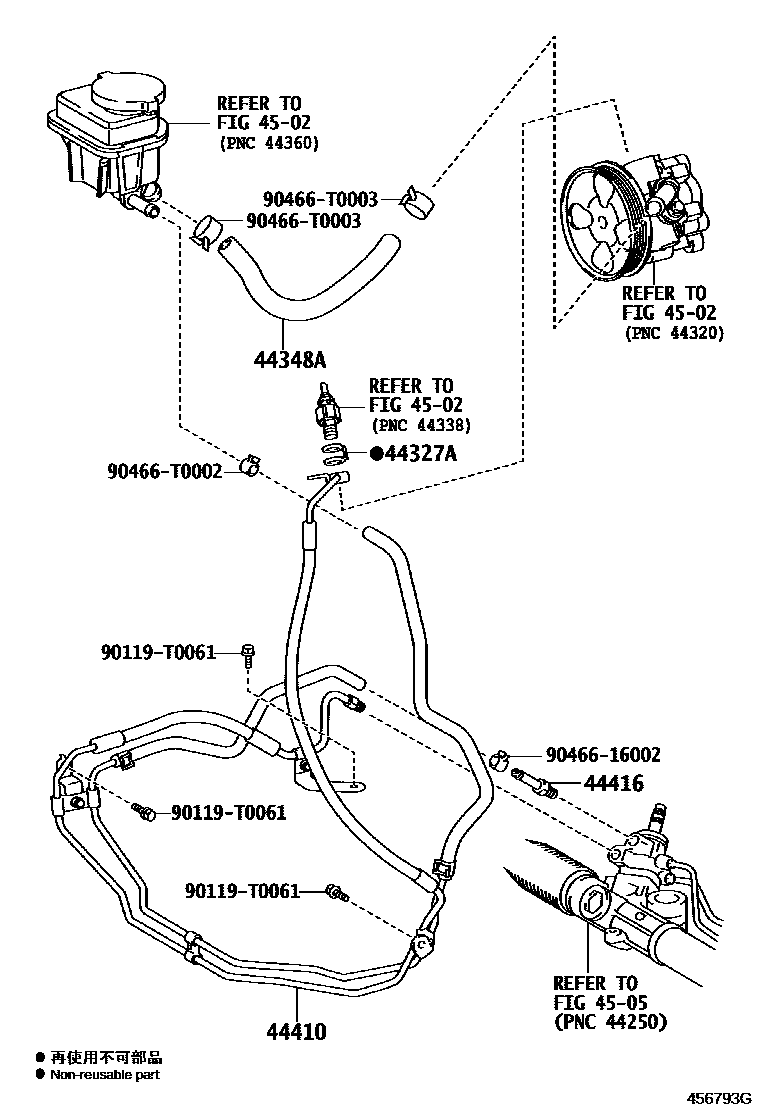

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGUN156,166,TGN166..IND201507-202012

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K060iKUN156,165201512-201709

main44348-0K070iLAN155201603-202009

main44348-0K080iGGN155,165201512-202101

main44348-0K100iGUN15#,16#201507-201904

main44348-0K110iGUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201905-202104

44410TUBE ASSY, PRESSURE FEED

main44410-0K210iTGN166..SA201603-202009

main44410-0K220iKUN156..RHD201601-201709

main44410-0K240iGGN155,165..EPT,GCC201601-202101

main44410-0K250iGGN155..BZAGT,GEN,LA201512-202010

main44410-0K270iGUN15#,16#..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104

main44410-0K280iTGN166..IND201507-202012

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K040iGUN156,166,TGN166..IND201507-202012

4502

4505

90119T0061

main90119-T0061

9046616002

main90466-16002

90466T0002

main90466-T0002

90466T0003

main90466-T0003

10 parts on this diagram · 10 diagrams in section
