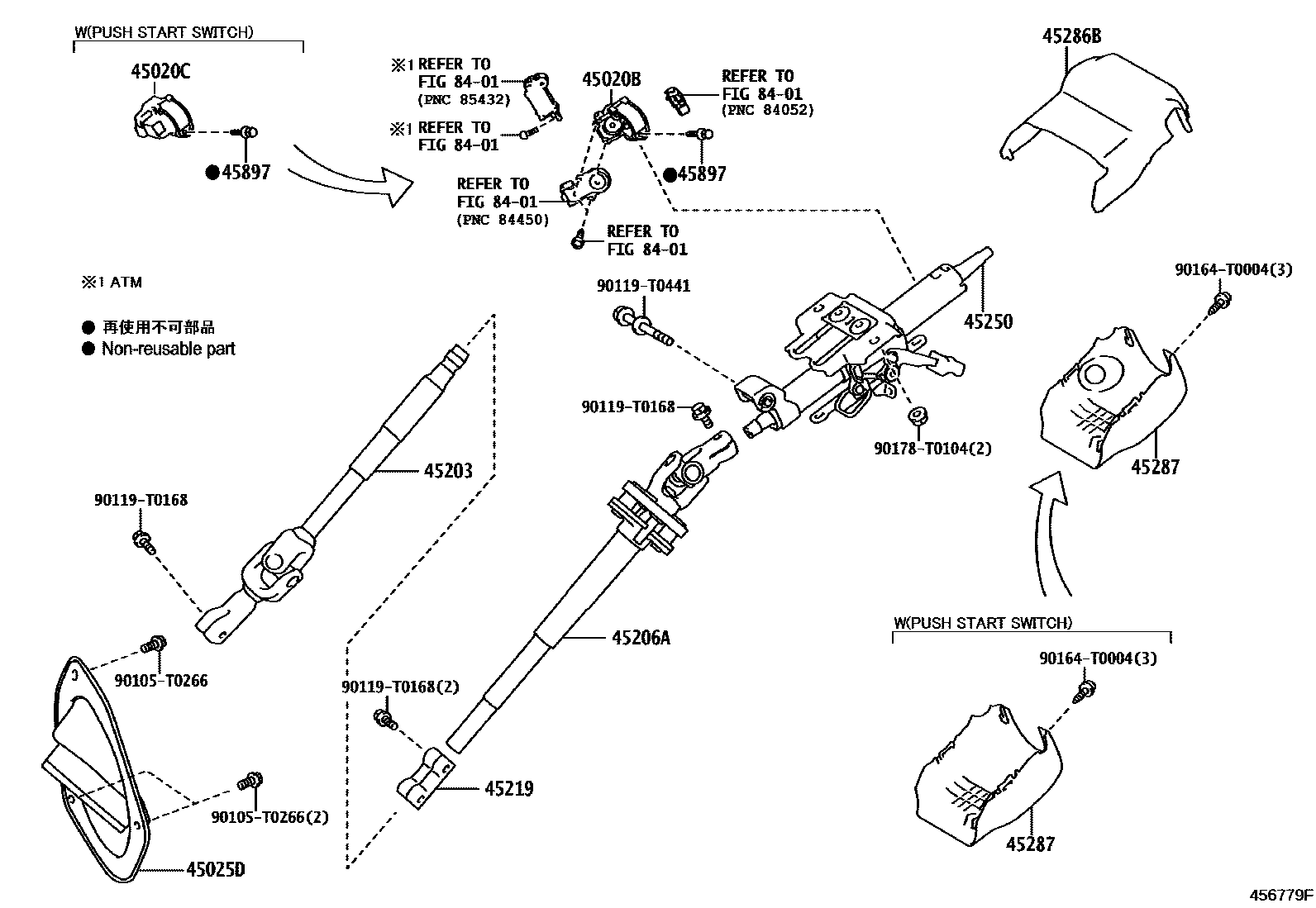

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
main45280-0K120iGUN156..6FC..(L,S)..ARL;GUN156,TGN168..6FC..L..BZAGT;TGN166..(AGTSU,EPTSU,THSUV)..6FC..(L,S);KUN156,TGN156..(AGTSU,EPTSU,PKNSU,SASUV,THSUV)..ATM..(L,S);GGN155,165,G201507-202101
main45280-0K160iTGN156,166..IDNSU..6FC..(L,S)..(GCC,LA,PH);GGN155,165,GUN15#,165,KUN156..IDNSU..ATM..(L,S)201601-202007
main45280-0K180iGUN156..LHD..6F..SA;KUN156..(AGTSU,SASUV)..6F;GUN156..(AGTSU,THSUV)..6F..(L,S);GUN155,165,KUN165,LAN155,TGN156,16#..LHD..(AGTSU,SASUV,THSUV,VNSUV)..MTM201507-202010
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
main45020-0K190iGUN156..RHD..SA;GUN156..S..IART;GUN155,165..RHD..(MA,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);TGN166..(PKNSU,SASUV,THSUV,VNSUV)..(PKN,SA,TH,VN);GUN156,TGN1201507-202104
sub45020-0K201
main45020-0K210iGGN155,165,GUN15#,165,KUN156..IDNSU..(H,M);TGN156,166..IDNSU..(H,M,S)..(GEN,IDN,LA,VN)201601-202007
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main45020-0K210iGGN155,165,GUN15#,165,KUN156..IDNSU..(H,M);TGN156,166..IDNSU..(H,M,S)..(GEN,IDN,LA,VN)201601-202007
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-KK010iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
main45203-0K180iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202104
45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING
main45206-0K070iGGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(IDNSU,MASUV,PKNSU,SASUV,THSUV)201507-202103
sub45206-0K140
sub45206-0K120
45219YOKE, STEERING SLIDING
45250COLUMN ASSY, STEERING
main45250-0K070iGUN156,TGN156,168..L..(BZAGT,GEN);GGN155,GUN15#..(L,S)..(ARL,GCC,IDN);GUN165..(L,S)..(GCC,GEN,IDN,LA,PH,VN);TGN166..(L,S)..(BZAGT,EPT,GCC,GEN,LA,PH);GUN15#..LHD..(L201507-202101
45286BCOVER, STEERING COLUMN, UPR
main45286-0K040-C0iGUN156..6F..S..ARL;GUN156..THSUV..H..GEN;GUN15#,166..RHD..THSUV..6FC..(M,S)201507-202005
BLACK,TRIM3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
main45286-0K080-C0iGUN156..6F..H..BZAGT;GGN155,TGN156..H..BZAGT;GUN156,TGN168..S..(HTWCF,IART)201512-202010
BLACK,TRIM4#
BLACK,TRIM0#,3#,4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM3#,4#
main45287-0K050-C0iGUN156..L..ARL;TGN166..LHD..(EPTSU,THSUV);GGN155,165,GUN15#,165,TGN156..(EPTSU,PKNSU,THSUV,VNSUV)..(L,S)..(EPT,GCC,GEN,KZS,PKN,VN)201507-202101
BLACK,TRIM4#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM4#
BLACK,TRIM3#,4#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
main45287-0K110-C0iGGN155,165,GUN15#,165,KUN156..IDNSU..(L,S);TGN156,166..LHD..IDNSU..(L,S)..(GCC,GEN,LA,PH)201601-202007
BLACK,TRIM4#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM4#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK),BLACK,TRIM4#
main45287-0K120-C0iGUN165..RHD..IDNSU..S;GUN165..IDNSU..S..GCC;GGN155,165,GUN155,TGN156..IDNSU..S..(GCC,IDN)201601-202007
BLACK,TRIM4#
main45287-0K130-C0iGUN156..L..BZAGT;GUN165,KUN156,TGN168..AGTSU..L;GUN156,TGN156,166..AGTSU..(L,S)..(HDCR,HTWC)201512-202010
BLACK,TRIM4#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM4#
BLACK,TRIM0#,3#,4#
BLACK,TRIM3#,4#
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM4#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM4#
45897BOLT, STEERING LOCK SET
8401
90105T0266
main90105-T0266
90119T0168
main90119-T0168
90119T0441
main90119-T0441
90164T0004
main90164-T0004
90178T0104
main90178-T0104
16 parts on this diagram · 1 diagram in section
