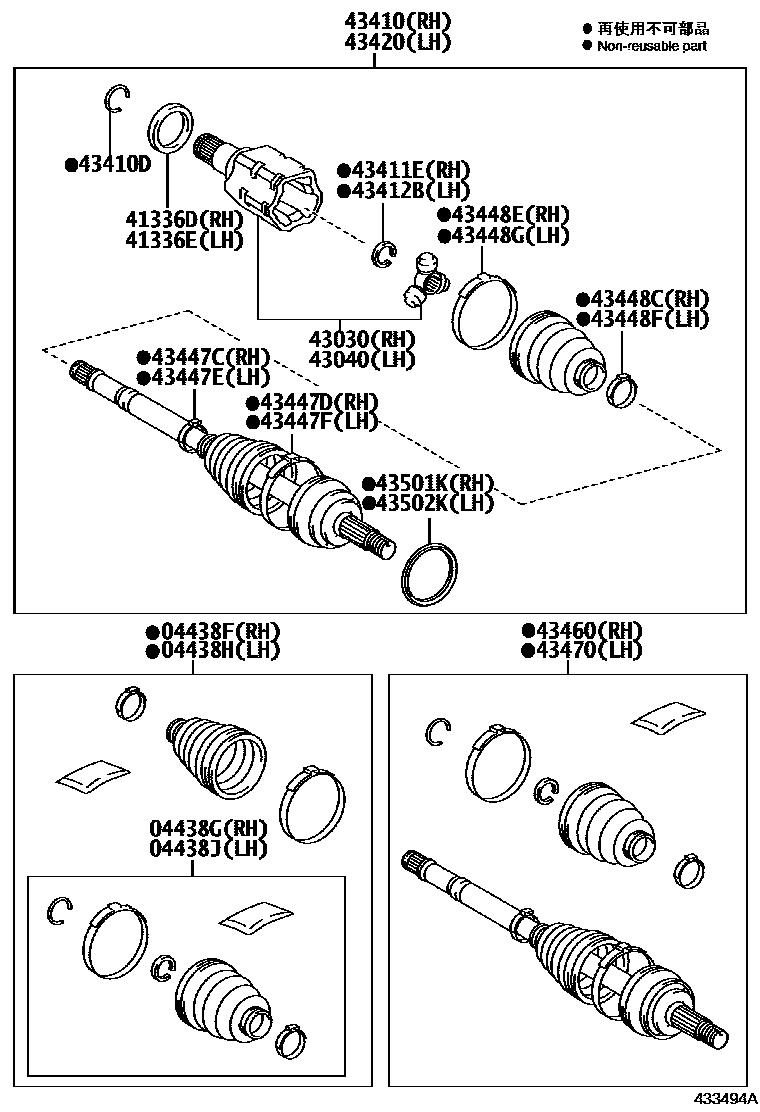

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0K050iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main04427-0K060iTGN156..5F;TGN156..(IDNSU,MASUV,PKNSU)..6FC;GGN155,GUN15#,KUN156..IDNSU,INDSU,MASUV,THSUV201507-201701

sub04427-0K061

main04427-0K061iGGN155,GUN15#,KUN156,TGN156..EPTSU,IDNSU,INDSU,MASUV,PKNSU,THSUV201701-201710

sub04427-0K062

main04427-0K062iTGN156..THSUV..6FC..L201710-202104

sub04427-0K063

main04427-0K070iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-201907

sub04427-0K071

main04427-0K071iGGN155,GUN15#,LAN155,TGN156..SA201907-202009

sub04427-0K072

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0K050iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main04437-0K060iTGN156..5F;TGN156..(IDNSU,MASUV,PKNSU)..6FC;GGN155,GUN15#,KUN156..IDNSU,INDSU,MASUV,THSUV201507-201701

sub04437-0K061

main04437-0K061iTGN156..THSUV..6FC..GCC201701-202104

main04437-0K070iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-201907

sub04437-0K071

main04437-0K071iGGN155,GUN15#,LAN155,TGN156..SA201907-202009

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-0K050iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main04427-0K060iTGN156..THSUV..6FC201507-201701

sub04427-0K061

main04427-0K061iGGN155,GUN15#,KUN156,TGN156..EPTSU,IDNSU,INDSU,MASUV,PKNSU,THSUV201701-201710

sub04427-0K062

main04427-0K062iGGN155,TGN156..EPT201710-202104

sub04427-0K063

main04427-0K070iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-201907

sub04427-0K071

main04427-0K071iGGN155,GUN15#,LAN155,TGN156..SA201907-202009

sub04427-0K072

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-0K050iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main04437-0K060iTGN156..THSUV..6FC201507-201701

sub04437-0K061

main04437-0K061iGGN155,TGN156..EPT201701-202104

main04437-0K070iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-201907

sub04437-0K071

main04437-0K071iGGN155,GUN15#,LAN155,TGN156..SA201907-202009

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0K051iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main41336-0K071iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

main41336-0K080iGUN156..IND201507-202104

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-0K051iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main41336-0K071iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

main41336-0K080iGGN155,TGN156..EPT201507-202104

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-0K050iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main43040-0K060iGUN156..IND201507-202104

main43040-0K070iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-0K050iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main43040-0K060iTGN156..5F;TGN156..IDNSU..6FC..L;TGN156..(IDNSU,MASUV,PKNSU,THSUV)..(M,S);GGN155,GUN15#,KUN156..IDNSU,MASUV,PKNSU,THSUV,VNSUV201507-202104

main43040-0K070iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-0K060iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main43430-0K070iTGN156..THSUV..6FC..L201507-202104

main43430-0K080iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main43425-0K040iGGN155,TGN156..EPT201507-202104

main43425-0K080iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main43425-0K110iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0K130iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main43425-0K140iTGN156..THSUV..6FC..L201507-202104

main43425-0K150iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-0K130iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main43425-0K140iGGN155,TGN156..EPT201507-202104

main43425-0K150iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-0K060iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main43430-0K070iTGN156..THSUV..6FC..L201507-202104

main43430-0K080iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0K070iGUN156..IND201507-202104

main42345-0K090iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main42345-0K150iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0K100iTGN156..THSUV..6FC..L201507-202104

main42345-0K120iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main42345-0K160iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K070iTGN156..THSUV..6FC..L201507-202104

main42345-0K090iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main42345-0K150iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K100iTGN156..THSUV..6FC..L201507-202104

main42345-0K120iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main42345-0K160iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0K040iGUN156..IND201507-202104

main42345-0K060iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main42345-0K140iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0K010iGUN156..IND201507-202104

main42345-0K030iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main42345-0K130iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K040iTGN156..5F;TGN156..IDNSU..6FC..L;TGN156..(IDNSU,MASUV,PKNSU,THSUV)..(M,S);GGN155,GUN15#,KUN156..IDNSU,MASUV,PKNSU,THSUV,VNSUV201507-202104

main42345-0K060iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main42345-0K140iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K010iTGN156..5F;TGN156..IDNSU..6FC..L;TGN156..(IDNSU,MASUV,PKNSU,THSUV)..(M,S);GGN155,GUN15#,KUN156..IDNSU,MASUV,PKNSU,THSUV,VNSUV201507-202104

main42345-0K030iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main42345-0K130iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09Y50iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main43460-09Y60iTGN156..THSUV..6FC201507-201701

sub43460-09Y61

main43460-09Y61iTGN156..THSUV..6FC..GCC201701-202104

sub43460-09Y63

main43460-09Y70iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-09Y50iGGN155,GUN156,KUN156,TGN156..AGTSU201512-202010

main43460-09Y60iTGN156..5F;TGN156..(IDNSU,MASUV,PKNSU)..6FC;GGN155,GUN15#,KUN156..IDNSU,INDSU,MASUV,THSUV201507-201701

sub43460-09Y61

main43460-09Y61iTGN156..THSUV..6FC..L201701-202104

sub43460-09Y63

main43460-09Y70iGGN155,GUN15#,KUN156,LAN155,TGN156..SA201603-202009

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-T0001iGUN156..IND201507-202104

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-T0001iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104

25 parts on this diagram · 1 diagram in section
