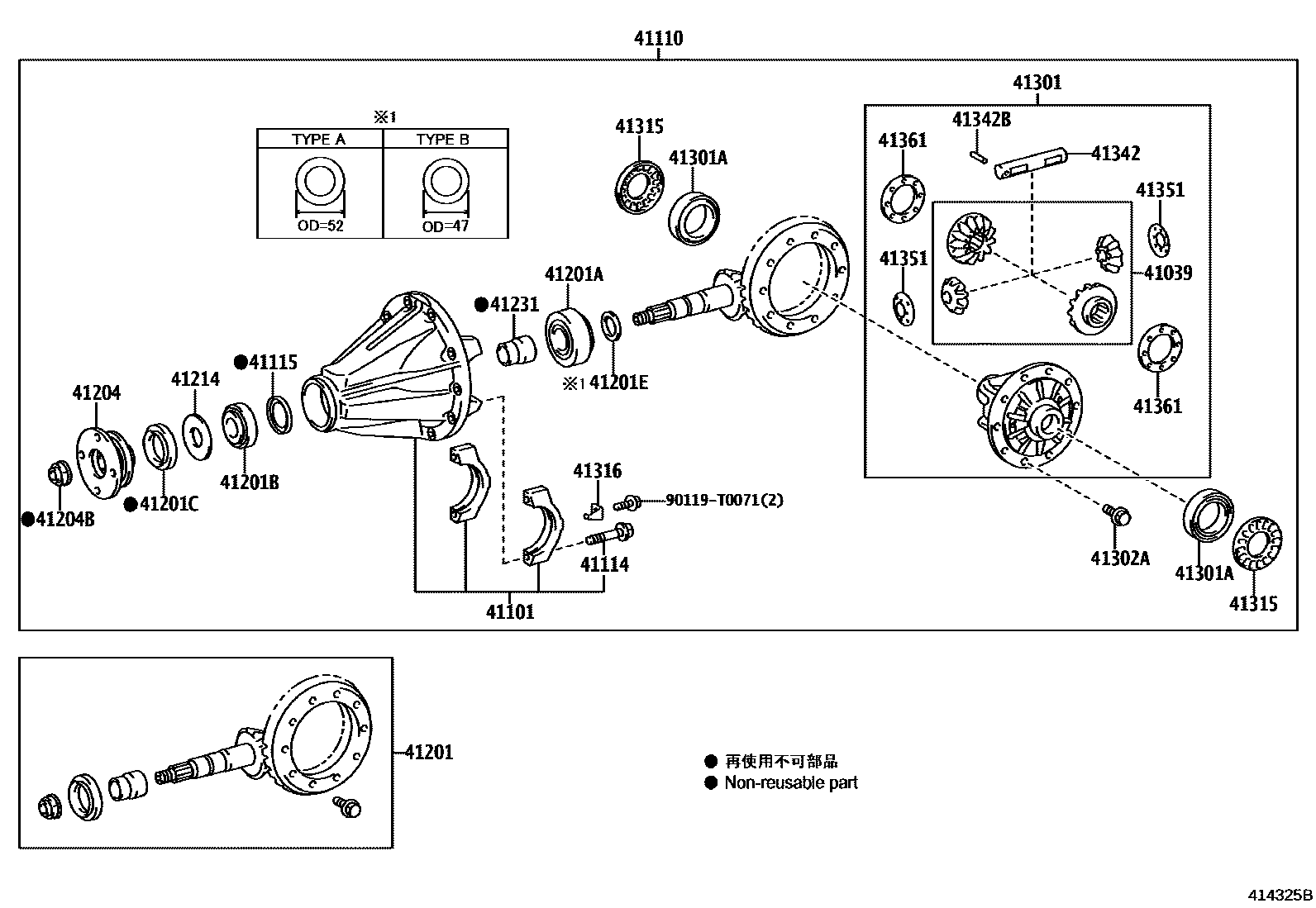

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1W/O(DIFFERENTIAL LOCK) 0010 1W/O(DIFFERENTIAL LOCK) 0012 1W(DIFFERENTIAL LOCK) 0016 1W(DIFFERENTIAL LOCK) 0021 1W(DIFFERENTIAL LOCK) 0028 1 0029 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-0K010iTGN156,166..AGTSU..M;TGN166..BZAGT,GEN,SA;GUN155..RHD..(IDNSU,SASUV);TGN156..BZAGT,KZS,MA,PKN,VN;TGN156,16#..6FC..L..(BZAGT,LA);GGN155,GUN156,16#,KUN156..RHD..SA;GU201507-202104

main41039-0K040iTGN166..IDN,PH,VN201601-202008

main41039-71011iTGN166..TH201507-201904

main41039-71070iGUN155..TH;GUN155..H..GEN;GUN156..RHD..(GEN,TH);GGN155,TGN156..(L,M,S)..(GCC,GEN);GUN156..LHD..(IDNSU,THSUV)..(H,L);GUN155,TGN166..(L,S)..(GCC,MA,PKN);GUN156..LHD..201507-202104

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0K011iTGN166..TH201507-201904

main41101-0K070iGUN155..H..GCC;GGN155..THSUV..H201507-202104

main41101-0K080iTGN166..GEN;GUN156..IDNSU..VN;TGN156..KZS,MA,PKN,VN;TGN156,166..IDNSU..L..LA;GUN155..RHD..(IDNSU,MASUV)..(M,S);GUN156..(PKNSU,THSUV,VNSUV)..(L,M,S)..(ARL,GEN,PKN,VN201507-202104

main41101-0K110iTGN168..6FC..L;TGN156,166..AGTSU201603-202010

DIFFERENTIAL LOCK-WITHOUT

main41101-0K110iGUN165..LA202006-202010

main41101-0K120iTGN168..S;TGN156..SA;TGN168..5F;GGN155,GUN15#,KUN156,165,LAN155..LHD..(AGTSU,SASUV)201512-202010

DIFFERENTIAL LOCK-WITH

main41101-0K140iTGN166..IDN,PH,VN201601-202008

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0K540iTGN166..IDN,PH,VN201601-202008

*FGR=41:9=4.555

main41110-0K570iGUN156..AGTSU..6F201507-202012

*FGR=43:12=3.583

main41110-0K580iGUN156..RHD..(GEN,TH);GGN155..(EPTSU,IDNSU)..H;GGN155..(M,S)..(GCC,GEN);GGN165,GUN166,KUN156..IDNSU,THSUV;GUN156..LHD..IDNSU..M..(GEN,LA,PH);GUN156..LHD..(IDNSU,THS201507-202101

*FGR=43:11=3.909

main41110-0K590iGUN155..TH;GUN155..H..GEN;GUN155..(L,S)..(GCC,MA);GUN165..(IDNSU,MASUV,THSUV,VNSUV)..6FC201507-202012

*FGR=41:10=4.100

main41110-0K610iTGN156..GCC,GEN;TGN166..GCC,PKN;TGN156,166..IDNSU..M..LA201601-202104

*FGR=41:9=4.555

main41110-0K620iGUN156..6F..ARL201507-201805

*FGR=43:12=3.583

main41110-0K630iGGN155..THSUV..H201507-202104

*FGR=43:11=3.909

main41110-0K640iGUN155..RHD..(IDNSU,MASUV)..(M,S)201601-202012

*FGR=41:10=4.100

main41110-0K660iTGN166..GEN;TGN156..KZS,MA,PKN,VN;TGN156,166..IDNSU..L..LA201601-202012

*FGR=41:9=4.555

main41110-0K670iGUN156..AGTSU..6F201603-202010

*FGR=43:12=3.583

sub41110-0K671

main41110-0K680iGUN156..AGTSU..6FC;GGN155,KUN156..AGTSU201603-202010

*FGR=43:11=3.909

sub41110-0K681

main41110-0K710iTGN168..S;TGN168..5F201607-202010

*FGR=41:9=4.555

sub41110-0K711

main41110-0K760iTGN168..6FC..L;TGN156,166..AGTSU201512-202010

*FGR=41:9=4.555

sub41110-0K761

main41110-0K770iGUN15#..LHD..6F..SA201710-202009

*FGR=43:12=3.583

sub41110-0K771

main41110-0K780iKUN156..LHD..SA;GUN156..LHD..6FC..SA201603-202009

*FGR=43:11=3.909

sub41110-0K781

main41110-0K800iKUN165201603-201709

*FGR=43:10=4.300

sub41110-0K801

main41110-0K810iLAN155,TGN156..SA201603-202009

*FGR=41:9=4.555

sub41110-0K811

main41110-0K820iGUN156,16#..RHD..6F..SA201603-202009

*FGR=43:12=3.583

sub41110-0K821

main41110-0K830iKUN156..RHD..SA;GGN155,GUN156,166..RHD..6FC..SA201603-202009

*FGR=43:11=3.909,DIFFERENTIAL LOCK-WITH

sub41110-0K831

main41110-0K830iKUN156..RHD..SA;GGN155,GUN156,166..RHD..6FC..SA201603-202009

*FGR=43:11=3.909

sub41110-0K831

main41110-0K840iGUN155,165..6FC..SA201603-202009

*FGR=41:10=4.100

sub41110-0K841

main41110-0K860iLAN155,TGN156..SA201603-202009

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH

sub41110-0K861

main41110-0K860iTGN166..SA201603-202009

*FGR=41:9=4.555

sub41110-0K861

main41110-0K880iGUN165..LA202006-202010

*FGR=41:10=4.100

sub41110-0K881

main41110-0KB70iTGN166..TH201507-201904

*FGR=41:9=4.555

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-F0001iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

TYPE A:REFER ILLUST.

main90105-T0081iTGN166..TH201507-201904

main90105-T0345iTGN166..IDN,PH,VN201601-202008

main90109-F0001iGUN156,165..SA;KUN156..RHD..SA;GUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

TYPE B:REFER ILLUST.

main90109-T0030iGUN165..LA201507-202104

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0K010iTGN166..TH201507-201904

main41115-0K020iGUN165..LA201507-202104

main41115-0K050iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-201905

main41115-0K070iTGN166..IDN,PH,VN201601-202008

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09B60iGUN156,16#..(IDNSU,INDSU,THSUV,VNSUV)..6F201507-202012

*FGR=43:12=3.583

main41201-09B70iGGN155,165,GUN166,KUN156..IDNSU,THSUV;GUN156..(IDNSU,PKNSU,THSUV,VNSUV)..6FC201507-202104

*FGR=43:11=3.909

main41201-09B80iGUN155,165..(IDNSU,MASUV,THSUV,VNSUV)..6FC201507-202012

*FGR=41:10=4.100

main41201-09C10iTGN166..IND201601-202104

*FGR=41:9=4.555

main41201-09C40iTGN166..TH201507-201904

*FGR=41:9=4.555

main41201-09E40iGUN156,16#..(AGTSU,SASUV)..6F201603-201710

*FGR=43:12=3.583

sub41201-09E41

main41201-09E41iGUN15#,16#..(AGTSU,SASUV)..6F201710-202010

*FGR=43:12=3.583

sub41201-09E42

main41201-09E50iKUN156..AGTSU,SASUV;GGN155,GUN156,166..6FC..SA201603-201905

*FGR=43:11=3.909

sub41201-09E51

main41201-09E60iGUN155,165..6FC..SA201603-201905

*FGR=41:10=4.100

sub41201-09F80

main41201-09E70iKUN165201603-201709

*FGR=43:10=4.300

sub41201-09E71

main41201-09E80iLAN155,TGN156,16#..AGTSU,SASUV201512-201710

*FGR=41:9=4.555

sub41201-09E81

main41201-09E81iLAN155,TGN156,16#..AGTSU,SASUV201710-202010

*FGR=41:9=4.555

sub41201-09E82

main41201-09F00iTGN166..IDN,PH,VN201601-202008

*FGR=41:9=4.555

main41201-09F50iGGN155,GUN156..AGTSU..6FC201710-202010

*FGR=43:11=3.909

sub41201-09F51

main41201-09F70iGGN155,GUN156,166..6FC..SA201905-202009

*FGR=43:11=3.909

sub41201-09F71

main41201-09F80iGUN155,165..6FC..SA201905-202009

*FGR=41:10=4.100

sub41201-09F81

main41201-09G00iGUN165..LA202006-202010

sub41201-09G01

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-S0016iGUN165..LA201512-202010

main90366-T0065iTGN166..(IDNSU,PKNSU,THSUV)..(GCC,GEN,LA,PKN);GGN155,165,GUN15#,16#,KUN156,TGN156..IDNSU,MASUV,PKNSU,THSUV,VNSUV201507-202104

main90366-T0080iTGN166..TH201507-201904

main90366-T0109iTGN166..IDN,PH,VN201601-202008

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-S0013iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

main90366-T0062iTGN166..(IDNSU,PKNSU,THSUV)..(GCC,GEN,LA,PKN);GGN155,165,GUN15#,16#,KUN156,TGN156..IDNSU,MASUV,PKNSU,THSUV,VNSUV201507-202104

main90366-T0083iTGN166..TH201507-201904

main90366-T0110iTGN166..IDN,PH,VN201601-202008

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-S0001iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

sub90311-53001

main90311-T0065iGGN155,GUN156,KUN156..AGTSU201507-202104

main90311-T0068iTGN166..TH201507-201904

main90311-T0089iTGN166..IDN,PH,VN201601-202008

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90201-35497iTGN166..TH201510-201904

OD=47,T=1.70,TYPE B:REFER ILLUST.

main90201-35498iTGN166..TH201510-201904

OD=47,T=1.73,TYPE B:REFER ILLUST.

main90201-35499iTGN166..TH201510-201904

OD=47,T=1.76,TYPE B:REFER ILLUST.

main90201-35500iTGN166..TH201510-201904

OD=47,T=1.79,TYPE B:REFER ILLUST.

main90201-35501iTGN166..TH201510-201904

OD=47,T=1.82,TYPE B:REFER ILLUST.

main90201-35502iTGN166..TH201510-201904

OD=47,T=1.85,TYPE B:REFER ILLUST.

main90201-35503iTGN166..TH201510-201904

OD=47,T=1.88,TYPE B:REFER ILLUST.

main90201-35504iTGN166..TH201510-201904

OD=47,T=1.91,TYPE B:REFER ILLUST.

main90201-35505iTGN166..TH201510-201904

OD=47,T=1.94,TYPE B:REFER ILLUST.

main90201-35506iTGN166..TH201510-201904

OD=47,T=1.97,TYPE B:REFER ILLUST.

main90201-35507iTGN166..TH201510-201904

OD=47,T=2.00,TYPE B:REFER ILLUST.

main90201-35508iTGN166..TH201510-201904

OD=47,T=2.03,TYPE B:REFER ILLUST.

main90201-35509iTGN166..TH201510-201904

OD=47,T=2.06,TYPE B:REFER ILLUST.

main90201-35510iTGN166..TH201510-201904

OD=47,T=2.09,TYPE B:REFER ILLUST.

main90201-35511iTGN166..TH201510-201904

OD=47,T=2.12,TYPE B:REFER ILLUST.

main90201-35512iTGN166..TH201510-201904

OD=47,T=2.15,TYPE B:REFER ILLUST.

main90201-35513iTGN166..TH201510-201904

OD=47,T=2.18,TYPE B:REFER ILLUST.

main90201-35514iTGN166..TH201510-201904

OD=47,T=2.21,TYPE B:REFER ILLUST.

main90201-35515iTGN166..TH201510-201904

OD=47,T=2.24,MARK 01,TYPE B:REFER ILLUST.

main90201-35516iTGN166..TH201510-201904

OD=47,T=2.27,MARK 02,TYPE B:REFER ILLUST.

main90201-35517iTGN166..TH201510-201904

OD=47,T=2.30,MARK 03,TYPE B:REFER ILLUST.

main90201-35518iTGN166..TH201510-201904

OD=47,T=2.33,MARK 04,TYPE B:REFER ILLUST.

main90564-35109iTGN166..TH201507-201904

OD=52,T=1.70,TYPE A:REFER ILLUST.

main90564-35110iTGN166..TH201507-201904

OD=52,T=1.73,TYPE A:REFER ILLUST.

main90564-35111iTGN166..TH201507-201904

OD=52,T=1.76,TYPE A:REFER ILLUST.

main90564-35112iTGN166..TH201507-201904

OD=52,T=1.79,TYPE A:REFER ILLUST.

main90564-35113iTGN166..TH201507-201904

OD=52,T=1.82,TYPE A:REFER ILLUST.

main90564-35114iTGN166..TH201507-201904

OD=52,T=1.85,TYPE A:REFER ILLUST.

main90564-35115iTGN166..TH201507-201904

OD=52,T=1.88,TYPE A:REFER ILLUST.

main90564-35116iTGN166..TH201507-201904

OD=52,T=1.91,TYPE A:REFER ILLUST.

main90564-35117iTGN166..TH201507-201904

OD=52,T=1.94,TYPE A:REFER ILLUST.

main90564-35118iTGN166..TH201507-201904

OD=52,T=1.97,TYPE A:REFER ILLUST.

main90564-35119iTGN166..TH201507-201904

OD=52,T=2.00,TYPE A:REFER ILLUST.

main90564-35120iTGN166..TH201507-201904

OD=52,T=2.03,TYPE A:REFER ILLUST.

main90564-35121iTGN166..TH201507-201904

OD=52,T=2.06,TYPE A:REFER ILLUST.

main90564-35123iTGN166..TH201507-201904

OD=52,T=2.09,TYPE A:REFER ILLUST.

main90564-35124iTGN166..TH201507-201904

OD=52,T=2.12,TYPE A:REFER ILLUST.

main90564-35125iTGN166..TH201507-201904

OD=52,T=2.15,TYPE A:REFER ILLUST.

main90564-35126iTGN166..TH201507-201904

OD=52,T=2.18,TYPE A:REFER ILLUST.

main90564-35127iTGN166..TH201507-201904

OD=52,T=2.21,TYPE A:REFER ILLUST.

main90564-35128iTGN166..TH201507-201904

OD=52,T=2.24,TYPE A:REFER ILLUST.

main90564-35129iTGN166..TH201507-201904

OD=52,T=2.27,TYPE A:REFER ILLUST.

main90564-35130iTGN166..TH201507-201904

OD=52,T=2.30,TYPE A:REFER ILLUST.

main90564-35131iTGN166..TH201507-201904

OD=52,T=2.33,TYPE A:REFER ILLUST.

main90564-78001iGGN155,TGN156,166..EPT201507-202104

T=1.72

main90564-78002iGGN155,GUN156,KUN156..AGTSU201507-202104

T=1.74

main90564-78003iGUN165..LA201507-202104

T=1.76

main90564-78004iGGN155,GUN156,KUN156..AGTSU201507-202104

T=1.78

main90564-78005iGGN155,GUN156,KUN156..AGTSU201507-202104

T=1.80

main90564-78006iGGN155,GUN156,KUN156..AGTSU201507-202104

T=1.82

main90564-78007iGUN165..LA201507-202104

T=1.84

main90564-78008iGGN155,TGN156,166..EPT201507-202104

T=1.86

main90564-78009iGGN155,TGN156,166..EPT201507-202104

T=1.88

main90564-78010iTGN166..(IDNSU,PKNSU,THSUV)..(GCC,GEN,LA,PKN);GGN155,165,GUN15#,16#,KUN156,TGN156..IDNSU,MASUV,PKNSU,THSUV,VNSUV201507-202104

T=1.90

main90564-78011iGUN165..LA201507-202104

T=1.92

main90564-78012iGUN165..LA201507-202104

T=1.94

main90564-78013iGGN155,GUN156,KUN156..AGTSU201507-202104

T=1.96

main90564-78014iGGN155,GUN156,KUN156..AGTSU201507-202104

T=1.98

main90564-78015iGUN156,166,TGN166..IND201507-202104

T=2.00

main90564-78016iGGN155,TGN156,166..EPT201507-202104

T=2.02

main90564-78017iGGN155,GUN156,KUN156..AGTSU201507-202104

T=2.04

main90564-78018iGUN156,166,TGN166..IND201507-202104

T=2.06

main90564-78019iGGN155,TGN156,166..EPT201507-202104

T=2.08

main90564-78020iGGN155,TGN156,166..EPT201507-202104

T=2.10

main90564-78021iGGN155,GUN156,KUN156..AGTSU201507-202104

T=2.12

main90564-78022iGGN155,GUN156,KUN156..AGTSU201507-202104

T=2.14

main90564-78023iGGN155,TGN156,166..EPT201507-202104

T=2.16

main90564-78024iGUN165..LA201507-202104

T=2.18

main90564-S0001iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.025

main90564-S0002iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.050

main90564-S0003iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

T=1.075

main90564-S0004iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.100

main90564-S0005iGUN165..LA201512-202010

T=1.125

main90564-S0006iGUN165..LA201512-202010

T=1.150

main90564-S0007iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

T=1.175

main90564-S0008iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

T=1.200

main90564-S0009iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.225

main90564-S0010iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.250

main90564-S0011iGUN165..LA201512-202010

T=1.275

main90564-S0012iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.300

main90564-S0013iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

T=1.325

main90564-S0014iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.350

main90564-S0015iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.375

main90564-S0016iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.400

main90564-S0017iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.425

main90564-S0018iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

T=1.450

main90564-S0019iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

T=1.475

main90564-T0067iTGN166..IDN,PH,VN201601-202008

T=1.70

main90564-T0068iTGN166..IDN,PH,VN201601-202008

T=1.73

main90564-T0069iTGN166..IDN,PH,VN201601-202008

T=1.76

main90564-T0070iTGN166..IDN,PH,VN201601-202008

T=1.79

main90564-T0071iTGN166..IDN,PH,VN201601-202008

T=1.82

main90564-T0072iTGN166..IDN,PH,VN201601-202008

T=1.85

main90564-T0073iTGN166..IDN,PH,VN201601-202008

T=1.88

main90564-T0074iTGN166..IDN,PH,VN201601-202008

T=1.91

main90564-T0075iTGN166..IDN,PH,VN201601-202008

T=1.94

main90564-T0076iTGN166..IDN,PH,VN201601-202008

T=1.97

main90564-T0077iTGN166..IDN,PH,VN201601-202008

T=2.00

main90564-T0078iTGN166..IDN,PH,VN201601-202008

T=2.03

main90564-T0079iTGN166..IDN,PH,VN201601-202008

T=2.06

main90564-T0080iTGN166..IDN,PH,VN201601-202008

T=2.09

main90564-T0081iTGN166..IDN,PH,VN201601-202008

T=2.12

main90564-T0082iTGN166..IDN,PH,VN201601-202008

T=2.15

main90564-T0083iTGN166..IDN,PH,VN201601-202008

T=2.18

main90564-T0084iTGN166..IDN,PH,VN201601-202008

T=2.21

main90564-T0085iTGN166..IDN,PH,VN201601-202008

T=2.24

main90564-T0086iTGN166..IDN,PH,VN201601-202008

T=2.27

main90564-T0087iTGN166..IDN,PH,VN201601-202008

T=2.30

main90564-T0088iTGN166..IDN,PH,VN201601-202008

T=2.33

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0K100iTGN166..TH201507-201904

main41204-0K110iGGN155,TGN156,166..EPT201507-202104

main41204-0K130iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

sub41204-0K131

main41204-0K140iTGN166..IDN,PH,VN201601-202008

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iTGN166..TH201507-201904

OD=39.5

main90177-T0023iTGN166..IDN,PH,VN201601-202008

OD=39.5

main90178-F0001iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

OD=43.5

main90179-22029iTGN166..(IDNSU,PKNSU,THSUV)..(GCC,GEN,LA,PKN);GGN155,165,GUN15#,16#,KUN156,TGN156..IDNSU,MASUV,PKNSU,THSUV,VNSUV201507-202104

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0K040iGGN155,GUN156,KUN156..AGTSU201507-202104

main41214-0K050iGUN156..6F..S..BZAGT;GGN155,GUN156..(H,S)..(HTWC,IART)..BZAGT;GUN156,KUN156..AGTSU..(H,L,M)..(DCR,HDCR)201512-202010

main41214-0K060iTGN166..IDN,PH,VN201601-202008

main41214-26011iTGN166..TH201507-201904

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-0K030iGUN165..LA201512-202010

main41231-0K040iTGN166..IDN,PH,VN201601-202008

main41231-24010iTGN166..TH201507-201904

main41231-71010iGUN156,166,TGN166..IND201507-202104

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-0K100iTGN168..S;TGN156..SA;TGN168..5F;GGN155,GUN15#,KUN156,165,LAN155..LHD..(AGTSU,SASUV)201603-202010

DIFFERENTIAL LOCK-WITHOUT

main41301-0K100iGUN165..LA202006-202010

main41301-0K110iTGN166..TH201507-201904

main41301-0K120iGGN155,GUN156,KUN156..AGTSU201507-202104

main41301-0K230iTGN166..IDN,PH,VN201601-202008

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-S0019iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

LH

main90366-S0022iGUN156..L..BZAGT;TGN156..AGTSU,SASUV;GUN156,165,KUN156..SA;GUN156..6FC..S..HDCR..BZAGT;GGN155,GUN155,166,KUN165,LAN155,TGN16#..(AGTSU,SASUV)..(L,M,S)201512-202010

RH

main90366-T0010iTGN166..TH201507-201904

main90366-T0068iGUN165..LA201507-202104

LH

main90366-T0071iGUN156,166,TGN166..IND201507-202104

RH

main90366-T0108iTGN166..IDN,PH,VN201601-202008

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-0K020iGUN155..H..GCC;GGN155..THSUV..H201507-202104

main41302-0K030iTGN168..S;TGN156..SA;TGN168..5F;GGN155,GUN15#,KUN156,165,LAN155..LHD..(AGTSU,SASUV)201512-202010

DIFFERENTIAL LOCK-WITH

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-11063iTGN166..TH201507-201903

main90105-12365iGGN155,GUN156,KUN156..AGTSU201507-201903

main90105-F0003iGUN165..LA201512-202010

main90105-T0268iTGN166..GCC,GEN,PKN;GGN155,GUN15#,16#,TGN156..IDNSU,MASUV,PKNSU,THSUV,VNSUV201903-202104

main90105-T0346iTGN166..IDN,PH,VN201601-202008

main90105-T0417iTGN166..TH201903-201904

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-0K010iTGN166201507-201510

main41315-0K010iTGN166..TH201510-201904

(L)

main41315-0K030iTGN166..IDN,PH,VN201601-202008

main41315-35020iTGN166..TH201510-201904

(J)

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-0K010iTGN166201507-201510

main41316-0K010iTGN166..TH201510-201904

(L)

main41316-0K020iTGN166..IDN,PH,VN201601-202008

main41316-35010iTGN166..TH201510-201904

(J)

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0K060iTGN166..TH201507-201904

main41342-0K070iGGN155,GUN156,KUN156..AGTSU201507-202104

main41342-0K080iGUN155..H..GCC;GGN155..THSUV..H201507-202104

main41342-0K130iTGN166..IDN,PH,VN201601-202008

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-T0006iGUN155..H..GCC;GGN155..THSUV..H201507-202104

main90250-T0028iTGN166..IDN,PH,VN201601-202008

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-0K010iTGN166..TH201510-201904

(L)

main41351-0K010iTGN166201507-201510

main41351-0K040iGUN155..H..GCC;GGN155..THSUV..H201507-202104

main41351-0K050iTGN156,166..AGTSU..M;TGN166..BZAGT,GEN,SA;GUN155..RHD..(IDNSU,SASUV);TGN156..BZAGT,KZS,MA,PKN,VN;TGN156,16#..6FC..L..(BZAGT,LA);GGN155,GUN156,16#,KUN156..RHD..SA;GU201507-202104

main41351-0K080iTGN166..IDN,PH,VN201601-202008

main41351-35030iTGN166..TH201510-201904

(J)

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020iTGN166..TH201507-201904

T=1.55

main41361-0K030iTGN166..TH201507-201904

T=1.60

main41361-0K040iTGN166..TH201507-201904

T=1.65

main41361-0K050iTGN166..TH201507-201904

T=1.70

main41361-0K060iTGN166..TH201507-201904

T=1.75

main41361-0K070iTGN166..TH201507-201904

T=1.80

main41361-0K080iTGN166..TH201507-201904

T=1.85

main41361-0K090iTGN166..TH201507-201904

T=1.90

main41361-0K110iGGN155,GUN156,KUN156..AGTSU201507-202104

T=1.45

main41361-0K300iGUN155..TH;GUN155..H..GEN;GUN156..RHD..(GEN,TH);GGN155,TGN156..(L,M,S)..(GCC,GEN);GUN156..LHD..(IDNSU,THSUV)..(H,L);GUN155,TGN166..(L,S)..(GCC,MA,PKN);GUN156..LHD..201507-202104

T=1.50

main41361-0K310iGUN156,166,TGN166..IND201507-202104

T=1.55

main41361-0K320iGGN155,TGN156,166..EPT201507-202104

T=1.60

main41361-0K330iGUN155..H..GCC;GGN155..THSUV..H201507-202104

T=1.65

main41361-0K340iGUN155..TH;GUN155..H..GEN;GUN156..RHD..(GEN,TH);GGN155,TGN156..(L,M,S)..(GCC,GEN);GUN156..LHD..(IDNSU,THSUV)..(H,L);GUN155,TGN166..(L,S)..(GCC,MA,PKN);GUN156..LHD..201507-202104

T=1.70

main41361-0K350iGUN165..LA201507-202104

T=1.75

main41361-0K360iGGN155,GUN156,KUN156..AGTSU201507-202104

T=1.80

main41361-0K370iGGN155,GUN156,KUN156..AGTSU201507-202104

T=1.85

main41361-0K380iTGN166..GEN;GUN156..IDNSU..VN;TGN156..KZS,MA,PKN,VN;TGN156,166..IDNSU..L..LA;GUN155..RHD..(IDNSU,MASUV)..(M,S);GUN156..(PKNSU,THSUV,VNSUV)..(L,M,S)..(ARL,GEN,PKN,VN201507-202104

T=1.1

main41361-0K390iGUN155..H..GCC;GGN155..THSUV..H201507-202104

T=1.2

main41361-0K400iGUN155..H..GCC;GGN155..THSUV..H201507-202104

T=1.3

main41361-0K410iGUN155..H..GCC;GGN155..THSUV..H201507-202104

T=1.4

main41361-0K460iTGN156..AGTSU;TGN168..6FC..L;TGN166..AGTSU,SASUV;GGN155,GUN15#,16#,KUN156..RHD..SA201512-202010

T=1.1

main41361-0K460iTGN168..S;TGN156..SA;TGN168..5F;GGN155,GUN15#,KUN156,165,LAN155..LHD..(AGTSU,SASUV)201512-202010

T=1.1,DIFFERENTIAL LOCK-WITH

main41361-0K470iTGN168..S;TGN156..SA;TGN168..5F;GGN155,GUN15#,KUN156,165,LAN155..LHD..(AGTSU,SASUV)201512-202010

T=1.2

main41361-0K470iTGN168..S;TGN156..SA;TGN168..5F;GGN155,GUN15#,KUN156,165,LAN155..LHD..(AGTSU,SASUV)201512-202010

T=1.2,DIFFERENTIAL LOCK-WITH

main41361-0K480iTGN168..S;TGN156..SA;TGN168..5F;GGN155,GUN15#,KUN156,165,LAN155..LHD..(AGTSU,SASUV)201512-202010

T=1.3

main41361-0K480iTGN156..AGTSU;TGN168..6FC..L;TGN166..AGTSU,SASUV;GGN155,GUN15#,16#,KUN156..RHD..SA201512-202010

T=1.3,DIFFERENTIAL LOCK-WITH

main41361-0K490iTGN156..AGTSU;TGN168..6FC..L;TGN166..AGTSU,SASUV;GGN155,GUN15#,16#,KUN156..RHD..SA201512-202010

T=1.4,DIFFERENTIAL LOCK-WITH

main41361-0K490iTGN156..AGTSU;TGN168..6FC..L;TGN166..AGTSU,SASUV;GGN155,GUN15#,16#,KUN156..RHD..SA201512-202010

T=1.4

main41361-0K550iTGN166..IDN,PH,VN201601-202008

T=1.50

main41361-0K560iTGN166..IDN,PH,VN201601-202008

T=1.55

main41361-0K570iTGN166..IDN,PH,VN201601-202008

T=1.60

main41361-0K580iTGN166..IDN,PH,VN201601-202008

T=1.65

main41361-0K590iTGN166..IDN,PH,VN201601-202008

T=1.70

main41361-0K600iTGN166..IDN,PH,VN201601-202008

T=1.75

main41361-0K610iTGN166..IDN,PH,VN201601-202008

T=1.80

main41361-0K620iTGN166..IDN,PH,VN201601-202008

T=1.85

main41361-0K630iTGN166..IDN,PH,VN201601-202008

T=1.90

90119T0071

main90119-T0071

25 parts on this diagram · 9 diagrams in section
