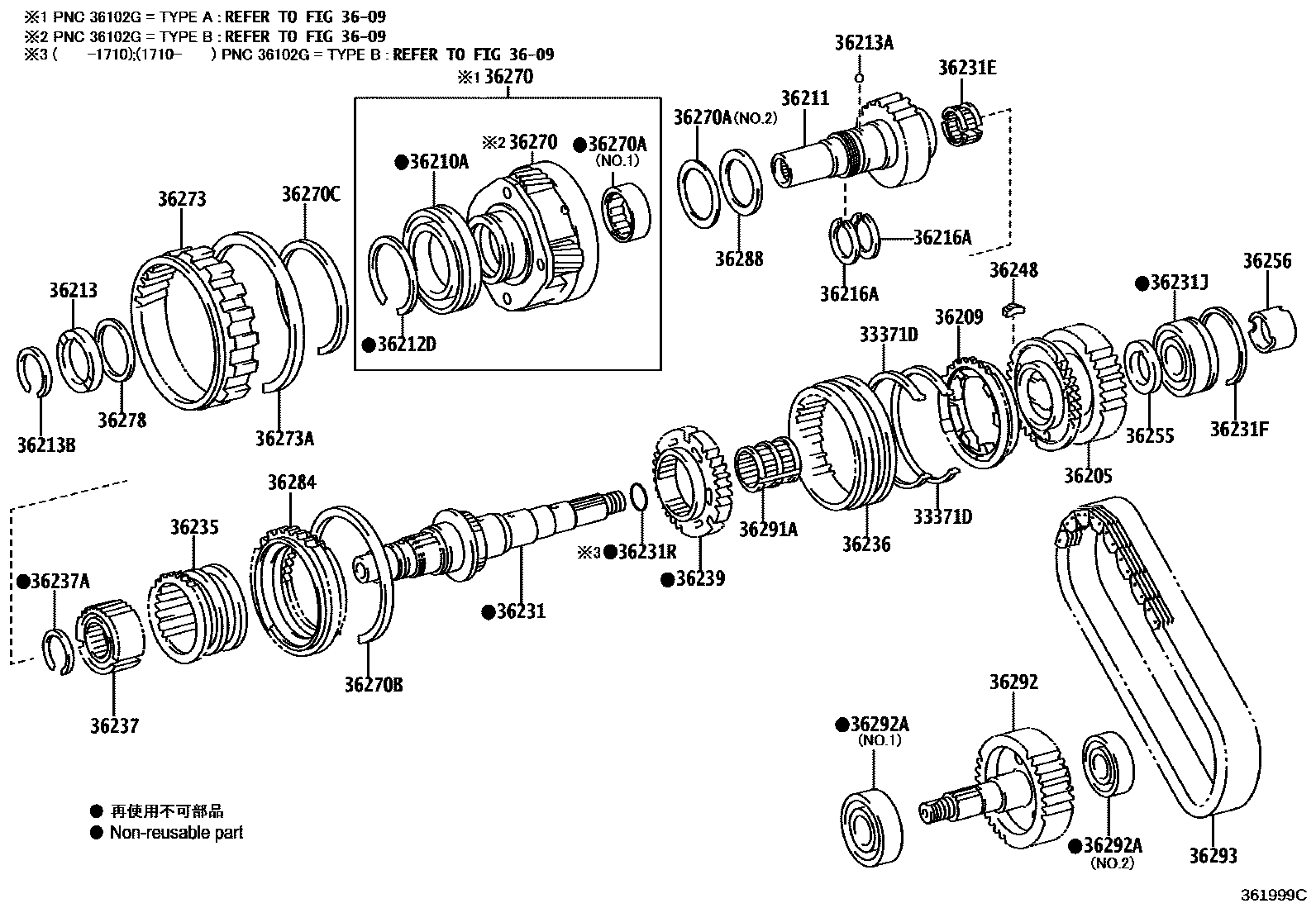

TRANSFER GEAR
33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)
*382,*381
3609
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
main36205-0K040iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
*382
main36205-71010iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥7,200201507-202104
*381
36209RING SET, TRANSFER SYNCHRONIZER
*382
*381
36210ABEARING (FOR TRANSFER INPUT SHAFT)
*381
*382
36211SHAFT, TRANSFER INPUT
*382
*382
*382
*382
*382
*381
main36201-71010iGGN155,GUN15#,KUN156,TGN156..(AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..ATM¥9,300201507-202104
*381
*381
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=1.45,MARK 1,*381
T=1.50,MARK 2,*381
main90520-72003iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥130201507-202104
T=1.55,MARK 3,*381
main90520-72004iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥130201507-202104
T=1.60,MARK 4,*381
main90520-72005iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥130201507-202104
T=1.65,MARK 5,*381
T=1.45,MARK 1,*382
T=1.50,MARK 2,*382
T=1.55,MARK 3,*382
T=1.60,MARK 4,*382
T=1.65,MARK 5,*382
36213STOPPER, TRANSFER INPUT GEAR
main36213-0K010iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
*382
main36213-35020iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥540201507-202104
*381
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
main90360-05012iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥100201507-202104
*381
main90360-T0010iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
*382
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
main90520-44003iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥130201507-202104
T=2.10-2.15,*381
T=2.15-2.20,*381
T=2.20-2.25,*381
T=2.25-2.30,*381
main90520-44007iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥130201507-202104
T=2.30-2.35,*381
main90520-44008iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥130201507-202104
T=2.35-2.40,*381
T=2.40-2.45,*381
T=2.45-2.50,*381
T=2.50-2.55,*381
T=2.55-2.60,*381
T=2.60-2.65,*381
main90520-44014iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥130201507-202104
T=2.65-2.70,*381
T=2.70-2.75,*381
T=2.75-2.80,*381
T=2.80-2.85,*381
main90520-44018iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥130201507-202104
T=2.85-2.90,*381
T=2.90-2.95,*381
T=2.95-3.00,*381
main90520-44021iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥130201507-202104
T=3.00-3.05,*381
T=2.10-2.15,*382
T=2.15-2.20,*382
T=2.20-2.25,*382
T=2.25-2.30,*382
T=2.30-2.35,*382
T=2.35-2.40,*382
T=2.40-2.45,*382
T=2.45-2.50,*382
main90520-T0210iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
T=2.50-2.55,*382
T=2.55-2.60,*382
T=2.60-2.65,*382
T=2.65-2.70,*382
main90520-T0214iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
T=2.70-2.75,*382
T=2.75-2.80,*382
T=2.80-2.85,*382
T=2.85-2.90,*382
T=2.90-2.95,*382
T=2.95-3.00,*382
T=3.00-3.05,*382
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
*382,*381
36231SHAFT, TRANSFER OUTPUT, REAR
*382
main36231-71021iGGN155,GUN15#,LAN155,TGN156..AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥18,400201710-202101
*381
*381
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
*381
main90364-C0016iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥1,640201507-202104
*382
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=1.65,*381
T=1.65,ID=78.1,*382
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
*381
main90363-T0042iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
*382
36231RRING, O (FOR TRANSFER OUTPUT SHAFT)
*381
main90301-T0053iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
*382
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
main36235-35022iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥2,650201507-202104
*381
36236SLEEVE, FRONT DRIVE CLUTCH
main36236-0K040iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
*382
*381
36237HUB, TRANSFER CLUTCH
main36237-0K020iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
*382
*381
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
main90520-39004iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥100201507-202104
T=2.10-2.15,MARK A,*381
main90520-39005iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥100201507-202104
T=2.15-2.20,MARK B,*381
T=2.20-2.25,MARK C,*381
T=2.25-2.30,MARK D,*381
main90520-39008iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥100201507-202104
T=2.30-2.35,MARK E,*381
main90520-39009iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥100201507-202104
T=2.35-2.40,MARK F,*381
T=2.40-2.45,MARK G,*381
T=2.45-2.50,MARK H,*381
T=2.50-2.55,MARK J,*381
T=2.00-2.05,MARK K,*381
main90520-39014iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥100201507-202104
T=2.05-2.10,MARK L,*381
main90520-T0191iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
T=2.10-2.15,*382
T=2.15-2.20,*382
T=2.20-2.25,*382
T=2.25-2.30,*382
main90520-T0195iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
T=2.30-2.35,*382
main90520-T0196iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
T=2.35-2.40,*382
T=2.40-2.45,*382
main90520-T0198iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
T=2.45-2.50,*382
main90520-T0199iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
T=2.50-2.55,*382
T=2.00-2.05,*382
T=2.05-2.10,*382
36239HUB, TRANSFER DRIVE CLUTCH
*382
*381
36248KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1
main36248-0K010iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
*382
*381
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
*381
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
*382
*381
36270GEAR ASSY, TRANSFER LOW PLANETARY
main36270-0K020iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥43,300201507-202104
*382
sub36227-0K011
*381
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
main90374-49001iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV¥1,090201507-202104
*381,NO.2:REFER ILL.
*382,NO.2:REFER ILL.
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
*381
*382
36273GEAR, TRANSFER LOW PLANETARY RING
*382
*381
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
*382,*381
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
main36278-0K010iGGN155,GUN15#,KUN156,LAN155,TGN156..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV201507-202104
T=0.95-1.05,*382
T=0.95-1.05,*381
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
*382
*381
36288RACE, TRANSFER THRUST BEARING, NO.1
*382
*381
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
*381
*382
36292SPROCKET, TRANSFER DRIVEN
*382
*381
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
*381,NO.2:REFER ILL.
*381,NO.1:REFER ILL.
*382,NO.1:REFER ILL.
36293CHAIN, TRANSFER FRONT DRIVE
*382,*381
37 parts on this diagram · 1 diagram in section
