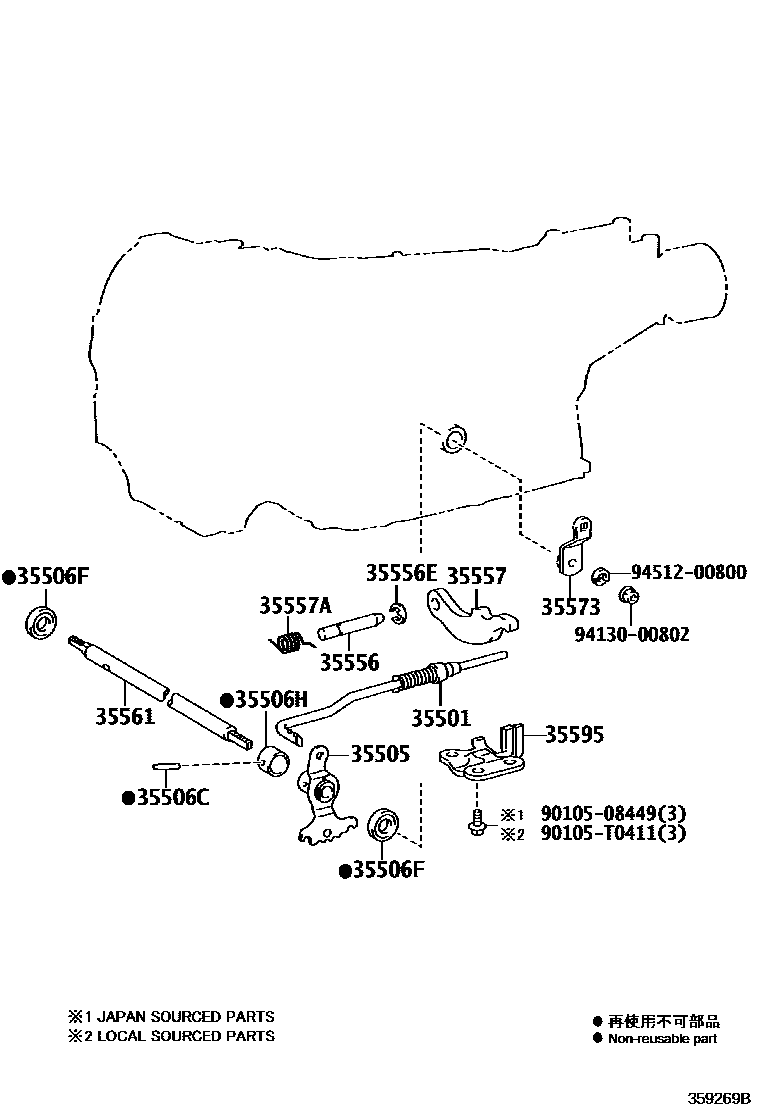

THROTTLE LINK & VALVE LEVER (ATM)

0001 1AC60E,AC60F 0002 1A750F

35501ROD SUB-ASSY, PARKING LOCK

main35501-60030iKUN156..5FC201512-201709

main35501-71020iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-71020iGUN155..IDNSU..(H,M,S)201507-202104

main35505-71030iKUN156..5FC201512-201709

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGUN156,166,TGN166..6FC..IND201507-202104

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGUN15#,16#,TGN156,166..THSUV..6FC201507-202104

main90311-12002iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)201708-202005

(J)

main90311-T0093iGUN165..M..TH201708-202005

TOYOTA STOP & START SYSTEM-WITH

main90311-T0093iGUN156..TH;GUN155,166,TGN156,166..THSUV..6FC201708-202012

(L)

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGUN155..IDNSU..(H,M,S)201507-202104

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGUN155..IDNSU..(H,M,S)201507-202104

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,KUN156,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..ATM201507-202104

35557PAWL, PARKING LOCK

main35557-60040iKUN156..5FC201512-201709

main35557-71010iGUN156,166,TGN166..6FC..IND201507-202104

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGUN155..IDNSU..(H,M,S)201507-202104

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGUN155..IDNSU..(H,M,S)201507-202104

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-0K010iGGN155,GUN15#,16#,TGN156,166..(IDNSU,THSUV,VNSUV)..6FC201912-202012

(L)

main35573-60020iKUN156..5FC201512-201709

main35573-71010iGUN165..THSUV..(H,S)..GCC201507-202104

main35573-71010iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)201708-202012

(J)

35595BRACKET, PARKING LOCK PAWL

main35595-60030iKUN156..5FC201512-201709

main35595-71010iGUN155..IDNSU..(H,M,S)201507-202104

9010508449

main90105-08449

90105T0411

main90105-T0411

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
