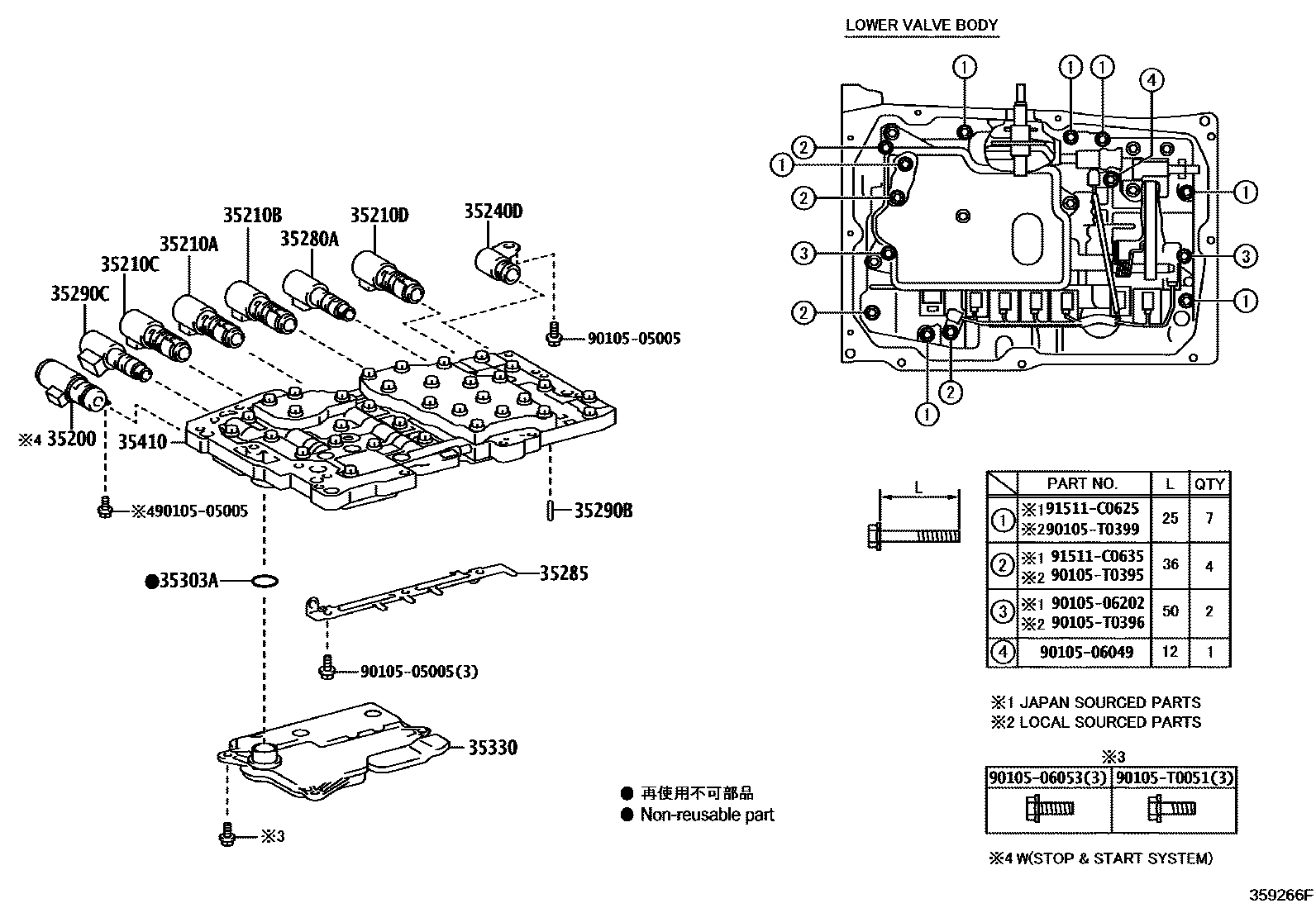

VALVE BODY & OIL STRAINER (ATM)

0001 1AC60E,AC60F 0002 1AC60E,AC60F 0003 1A750F 0004 1A750F

35200PUMP ASSY, OIL, W/SOLENOID

main35200-71010iGUN15#..TH201507-202012

35210AVALVE, SOLENOID(SL1)

main35210-50010iKUN156..5FC201512-201709

main35210-71010iGUN155..IDNSU..(H,M,S)201507-201905

35210BVALVE, SOLENOID(SL3)

main35210-71010iGUN155..IDNSU..(H,M,S)201507-201905

35210CVALVE, SOLENOID(SL2)

main35210-50010iKUN156..5FC201512-201709

main35210-71010iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC201507-202104

35210DVALVE, SOLENOID(SL4)

main35210-71010iGUN155..IDNSU..(H,M,S)201507-201905

35240DVALVE, SOLENOID(SL)

main35240-71010iGUN155..IDNSU..(H,M,S)201507-201905

35280AVALVE, SOLENOID(SLU)

main35280-30050iKUN156..5FC201512-201709

main35280-71010iGUN155..IDNSU..(H,M,S)201507-201905

sub35280-71020

35285PLATE, SOLENOID LOCK

main35285-0K010iGUN165..M..TH201708-202005

TOYOTA STOP & START SYSTEM-WITH

main35285-34010×2iKUN156..5FC201512-201709

main35285-71010iGUN15#,16#,TGN156,166..THSUV..6FC201507-201708

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045×6iGUN155..IDNSU..(H,M,S)201507-201905

35290CVALVE, SOLENOID(SLT)

main35290-34010iKUN156..5FC201512-201709

main35290-71020iGUN155..IDNSU..(H,M,S)201507-201905

35303ARING, O (FOR OIL STRAINER)

main90301-27010iGUN155,165,TGN156..MA201507-202001

main90301-T0071iGUN165..M..TH201708-202005

TOYOTA STOP & START SYSTEM-WITH

35330STRAINER ASSY, VALVE BODY OIL

main35330-60050iKUN156..5FC201512-201709

main35330-71010iGUN155..IDNSU..(H,M,S)201507-201905

35410BODY ASSY, TRANSMISSION VALVE

main35410-0K010iGUN16#,TGN156,166..THSUV..6FC;GUN15#..THSUV..6FC..(ARL,GCC,GEN)201708-201911

(L)

main35410-0K020iGUN15#..TH201708-201911

TOYOTA STOP & START SYSTEM-WITH

main35410-0K030iGUN155,165,TGN156..MA202001-202012

sub35410-0K031

main35410-0K040iGUN15#..TH201912-202005

TOYOTA STOP & START SYSTEM-WITH

sub35410-0K041

main35410-60620iKUN156..5FC201512-201709

sub35410-35880

main35410-71102iGUN155..IDNSU..(H,M,S)201507-201905

sub35410-71103

main35410-71112iGUN156,166..6FC..IND201709-202012

sub35410-71113

9010505005

main90105-05005

9010506049

main90105-06049

9010506053

main90105-06053

9010506202

main90105-06202

90105T0051

main90105-T0051

90105T0395

main90105-T0395

90105T0396

main90105-T0396

90105T0399

main90105-T0399

91511C0625

main91511-C0625

91511C0635

main91511-C0635

23 parts on this diagram · 4 diagrams in section
