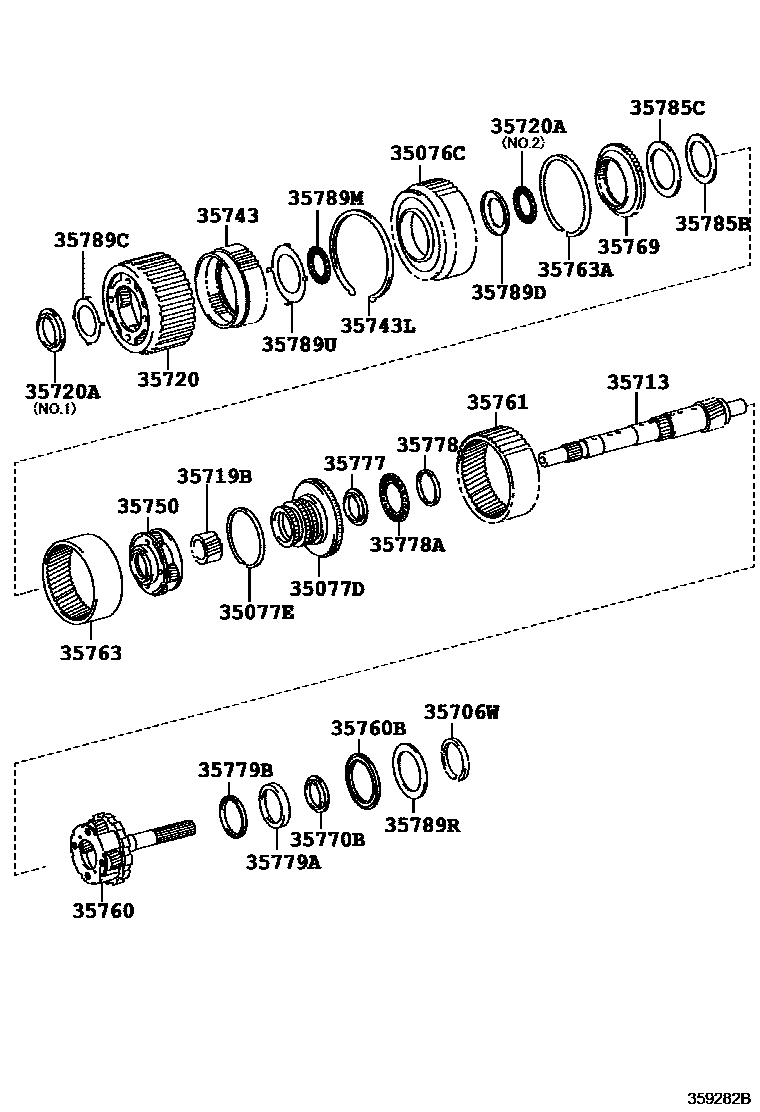

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1AC60E 0002 1AC60F 0003 1A750F

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-71010iGUN155..IDNSU..(H,M,S)¥5,800201507-202104

35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR

main35077-0K010iGUN155,165,TGN156..MA201912-202012

(L)

main35077-60010iKUN156..5FC¥9,100201512-201709

main35077-71010iGUN155,165,TGN156..MA¥8,200201507-202104

main35077-71010iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)¥8,200201708-202012

(J)

35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90520-99073iGUN165..THSUV..(H,S)..GCC¥190201507-202104

main90520-99073iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)¥190201708-202005

(J)

main90520-T0293iGUN165..M..TH201912-202005

TOYOTA STOP & START SYSTEM-WITH

main90520-T0293iGUN165..THSUV;GUN156..THSUV..(ARL,GCC,GEN)201912-202005

(L)

main90520-T0293iGUN156..TH;GUN156,165..(IDNSU,VNSUV)..6FC;GGN155,GUN155,166,TGN156,166..(IDNSU,THSUV,VNSUV)..6FC201912-202012

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34012iGGN165,GUN16#,TGN16#..(AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥100201507-202104

35713SHAFT, INTERMEDIATE

main35713-0K010iGGN155,GUN15#,16#,TGN156,166..(IDNSU,THSUV,VNSUV)..6FC201912-202012

(L)

main35713-60090iKUN156..5FC¥11,100201512-201709

main35713-71010iGUN155..THSUV;TGN156..M..GEN;GUN155..IDNSU..L;GUN165..6FC..L..GCC;TGN156..6FC..(GCC,KZS,VN);GUN165..6FC..(GEN,IDN,PH,TH,VN);TGN166..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN¥10,000201507-202104

main35713-71010iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)¥10,000201708-202012

(J)

35719BGEAR, PLANETARY SUN

main35719-60050iKUN156..5FC¥4,680201512-201709

main35719-71010iGUN155..IDNSU..(H,M,S)¥4,250201507-202104

35720GEAR ASSY, FRONT PLANETARY

main35720-60070iKUN156..5FC¥39,600201512-201709

main35720-71010iGUN155..IDNSU..(H,M,S)¥30,300201507-202104

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-37009iGUN155..IDNSU..(H,M,S)¥1,120201507-202104

NO.1:REFER ILLUST.

main90374-63002iGUN156,166,TGN166..6FC..IND¥1,800201507-202104

NO.2:REFER ILLUST.

35743GEAR, FRONT PLANETARY RING

main35743-60060iKUN156..5FC¥8,000201512-201709

main35743-71010iGUN155..IDNSU..(H,M,S)¥8,500201507-202104

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99160iGUN156,166,TGN166..6FC..IND¥190201507-202104

35750GEAR ASSY, CENTER PLANETARY

main35750-60010iKUN156..5FC¥18,500201512-201709

main35750-71010iGUN155..IDNSU..L;GUN155..(MASUV,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥20,200201507-202104

main35750-71020iTGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥20,200201507-202104

35760GEAR ASSY, REAR PLANETARY

main35760-0K010iGUN156..THSUV..6FC..(ARL,GCC,GEN)201708-201912

(L)

sub35760-0K060

main35760-0K020iTGN156..THSUV..6FC201708-201912

sub35760-0K070

main35760-0K030iGUN166..TH201708-201912

sub35760-0K080

main35760-0K040iGUN165..THSUV..6FC201708-201912

(L)

sub35760-0K090

main35760-0K040iGUN165..THSUV..6FC201708-201912

TOYOTA STOP & START SYSTEM-WITH

sub35760-0K090

main35760-0K050iTGN166..THSUV..6FC201708-201912

sub35760-0K100

main35760-0K060iGUN156..THSUV..(ARL,GCC,GEN)201912-202005

(L)

main35760-0K060iGUN156..TH;GUN156..IDNSU,VNSUV;GGN155,GUN155..IDNSU,THSUV201912-202012

main35760-0K070iTGN156..(IDNSU,THSUV)..6FC201912-202012

main35760-0K080iGUN166..TH201912-202005

main35760-0K090iGUN165..M..TH201912-202005

TOYOTA STOP & START SYSTEM-WITH

main35760-0K090iGUN165..(IDNSU,VNSUV)..6FC201912-202012

main35760-0K090iGUN165..THSUV201912-202005

(L)

main35760-0K100iTGN166..(IDNSU,THSUV,VNSUV)..6FC201912-202008

main35760-60100iKUN156..5FC¥39,200201512-201709

main35760-71030iGUN156..THSUV..6FC..(ARL,GCC,GEN)¥35,700201708-202005

(J)

main35760-71030iGGN155,GUN15#..6FC..(BZAGT,EPT,LA,PKN,SA)¥35,700201507-202104

main35760-71040iGUN165..IDNSU..6FC..L;GUN165..6FC..(GEN,IDN,PH,VN)¥35,700201507-202010

main35760-71040iGUN165..THSUV..6FC¥35,700201708-202005

(J)

main35760-71050iGGN165,GUN166..6FC..(H,S)201507-202012

main35760-71060iTGN156..MA¥35,700201512-202101

main35760-71070iTGN166..(IDNSU,VNSUV)..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN)¥35,700201507-202104

35760BBEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GEAR)

main90374-36001iGUN166,TGN166..H..IND¥1,300201507-202104

35761GEAR, REAR PLANETARY RING

main35761-60040iKUN156..5FC¥17,100201512-201709

main35761-71010iGUN155..IDNSU..(H,M,S)¥8,500201507-202104

35763GEAR, CENTER PLANETARY RING

main35763-60020iKUN156..5FC¥7,400201512-201709

main35763-71010iGUN155..IDNSU..(H,M,S)¥6,700201507-202104

35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)

main90520-99076iKUN156..5FC¥120201512-201709

main90520-99161iGUN155..IDNSU..(H,M,S)¥190201507-202104

35769FLANGE, PLANETARY RING GEAR, CTR

main35769-71010iGUN155..IDNSU..(H,M,S)¥1,220201507-202104

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22190iGUN166,TGN166..H..IND¥520201507-202104

35777RACE, THRUST BEARING, NO.7

main35777-60010iGUN155..IDNSU..(H,M,S)¥520201507-202104

35778RACE, THRUST BEARING, NO.8

main35778-60010iGUN155..IDNSU..(H,M,S)¥1,020201507-202104

35778ABEARING, THRUST NEEDLE ROLLER

main90374-32010iGUN155..IDNSU..(H,M,S)¥1,320201507-202104

35779ARACE, THRUST BEARING, NO.9

main35779-60011iGUN155..IDNSU..(H,M,S)¥670201507-202104

35779BBEARING, THRUST NEEDLE ROLLER

main90374-43007iGUN155..IDNSU..(H,M,S)¥960201507-202104

35785BRACE, THRUST BEARING, NO.4

main35785-60010iGUN155..IDNSU..(H,M,S)¥1,300201507-202104

35785CBEARING, THRUST NEEDLE ROLLER

main90374-55004iGUN155..IDNSU..(H,M,S)¥1,200201507-202104

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-71030iGUN155..IDNSU..(H,M,S)¥640201507-202104

35789DRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR)

main35789-71050iGUN155..IDNSU..(H,M,S)¥700201507-202104

35789MBEARING, THRUST NEEDLE ROLLER

main90374-63002iGUN155..IDNSU..(H,M,S)¥1,800201507-202104

35789RRACE, THRUST BEARING (FOR REAR OUTPUT SHAFT)

main35789-35060iGGN165,GUN16#,TGN16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥520201507-202104

T=3.80

main35789-35070iGGN165,GUN16#,TGN16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥520201507-202104

T=3.90

main35789-35080iGGN165,GUN16#,TGN16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥520201507-202104

T=4.00

main35789-35090iGGN165,GUN16#,TGN16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥520201507-202104

T=4.10

main35789-35100iGGN165,GUN16#,TGN16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥520201507-202104

T=4.20

main35789-50070iGUN166,TGN166..H..IND¥1,290201507-202104

T=3.85

main35789-50080iGUN166,TGN166..H..IND¥1,310201507-202104

T=3.95

main35789-50090iGUN166,TGN166..H..IND¥1,350201507-202104

T=4.05

main35789-50100iGGN165,GUN16#,TGN16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥1,380201507-202104

T=4.15

main35789-50110iGUN166,TGN166..H..IND¥1,410201507-202104

T=4.25

main35789-50120iGUN166,TGN166..H..IND¥1,440201507-202104

T=4.30

main35789-50130iGUN166,TGN166..H..IND¥1,450201507-202104

T=4.35

35789URACE, THRUST BEARING

main35789-71040iGUN155..IDNSU..(H,M,S)¥850201507-202104

30 parts on this diagram · 3 diagrams in section
