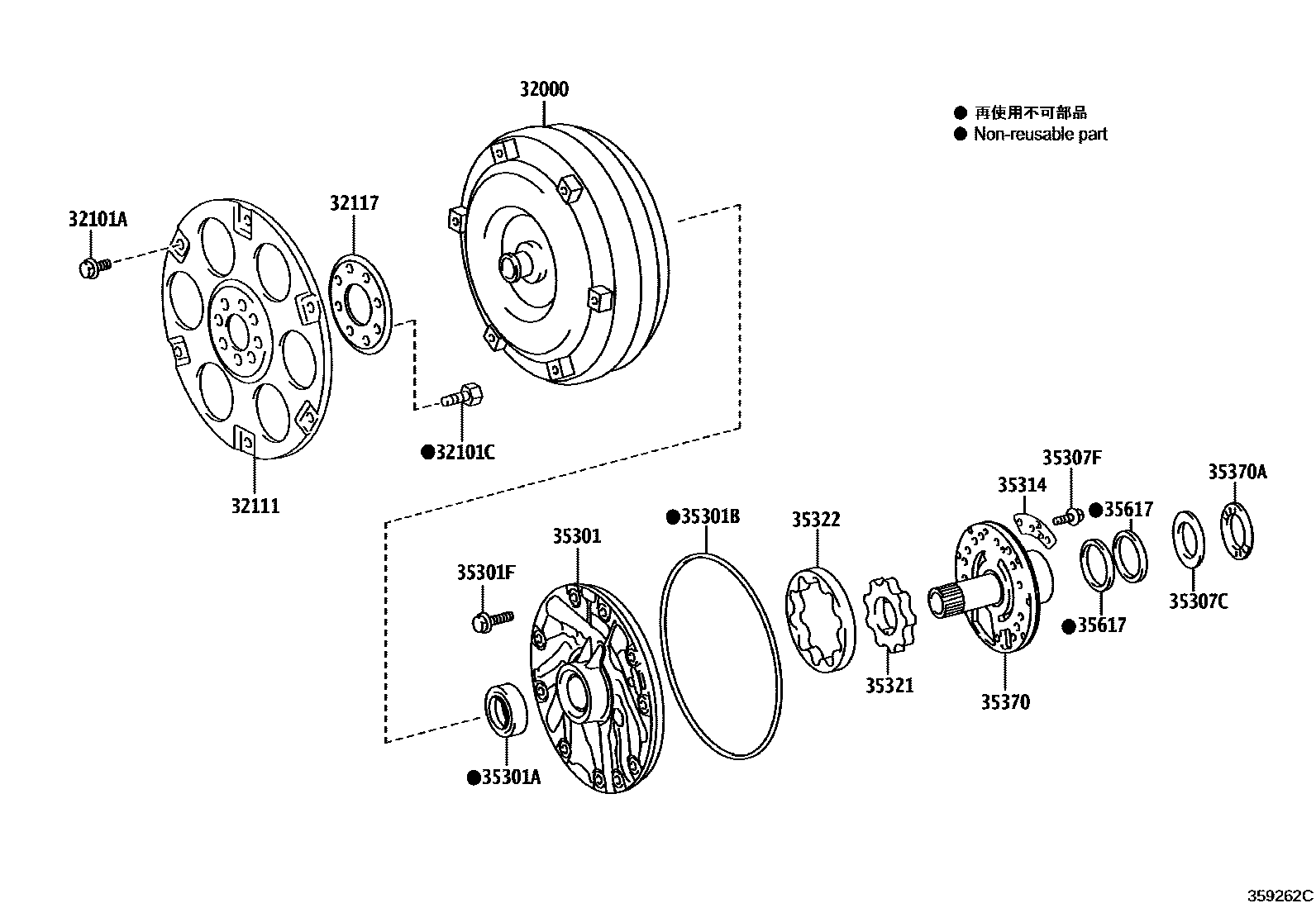

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AC60E,AC60F 0002 1AC60E,AC60F 0003 1A750F

32000CONVERTER ASSY, TORQUE

main32000-0K010iGUN156,166..IDNSU,THSUV,VNSUV201912-202008

(L)

main32000-0K020iGUN155,165..MA201912-202012

(L)

main32000-0K030iTGN156,166..(IDNSU,THSUV,VNSUV)..6FC201912-202012

(L)

main32000-0K040iGGN155..GCC,GEN201912-202007

(L)

main32000-60270iKUN156..5FC¥120,000201512-201709

main32000-71040iGUN165..(H,S)..GCC;GUN155,165..6FC..(LA,SA)¥90,200201507-202010

main32000-71040iGUN155,165..(IDNSU,THSUV,VNSUV)..6FC¥90,200201912-202012

(J)

main32000-71050iTGN156..MA¥81,300201912-202012

(J)

main32000-71050iTGN156..M..GEN;TGN156..6FC..(GCC,KZS,VN);TGN166..6FC..(L,M,S)..(GCC,GEN,IDN,PH,VN)¥81,300201507-202104

main32000-71060iGGN155..GCC,GEN201912-202007

(J)

main32000-71060iGGN165;GGN155..AGTSU,EPTSU,SASUV201512-202101

main32000-71070iGUN156,166..IDNSU,THSUV,VNSUV¥90,200201912-202008

(J)

main32000-71070iGUN156,166..6FC..(ARL,GCC,GEN,PH,TH,VN)¥90,200201507-202104

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥12,900201507-202104

main32101-60060iGGN155,165¥14,400201512-202101

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iGUN15#,16#,KUN156..(AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..ATM¥80201507-202104

*10-1.5PX11-8,(J),SILVER WHITE

main90105-10546iGUN156,166..6FC..IND¥100201507-202012

*10-1.5PX11-8,BLACK

main90105-T0237iGUN15#,16#,KUN156..(AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..ATM201507-202104

*10-1.5PX11-8,(L),SILVER WHITE

main90119-09026iGGN155,TGN156,166..EPT¥80201507-202101

*9-1.25PX12.8-9,BLACK

main90119-09027iTGN166..H..IND¥80201507-202101

*9-1.25PX12.8-8.8,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥570201507-202104

*10-1.25PX30-17.5

main90105-10543iGGN155,165¥100201512-202101

*10-1.25PX22-15

main90105-T0113iGUN15#,16#,KUN156..ATM201507-201805

*13-1.5PX43.5-23.5

main90105-T0203iGUN156,166..6FC..IND201806-202104

*13-1.5PX43.5-23.5

32111PLATE, PUMP IMPELLER DRIVE

main32111-0K030iGUN156,166..6FC..IND201507-202104

(L)

main32111-71010iGUN156,166..6FC..IND¥2,530201507-202104

(J)

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTGN156,16#..(AGTSU,EPTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV)..6FC¥880201507-202104

main32117-60050iGUN156,166..6FC..IND¥950201507-202104

main32117-60060iGGN155,165¥940201512-202101

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-0K010iGUN155,165,TGN156..MA201708-202012

(L)

main35301-60030iKUN156..5FC¥13,000201512-201709

main35301-71010iGGN165;TGN156,166..M..LA;GUN165..IDNSU..(H,S)..GCC;TGN156,166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA)¥18,200201507-202104

main35301-71010iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)¥18,200201708-202012

(J)

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38083iKUN156..5FC¥290201512-201709

main90311-38101iGUN155..IDNSU..(H,M,S)¥400201507-202104

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGUN156,166,TGN166..6FC..IND¥280201507-202104

main35697-60010iKUN156..5FC¥280201512-201709

OUTER

main90301-99148iKUN156..5FC¥200201512-201709

INNER

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGUN155..IDNSU..(H,M,S)¥140201507-202104

*8-1.25PX35-35

main90105-08451iKUN156..5FC¥100201512-201709

*8-1.25PX40-30

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-71070iGUN155..IDNSU..(H,M,S)¥700201507-202104

35307FBOLT (FOR STATOR SHAFT)

main90148-60079iGGN165;TGN156,166..M..LA;GUN165..IDNSU..(H,S)..GCC;TGN156,166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA)¥60201507-202104

main90148-60079iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)¥60201708-202012

(J)

main90148-T0024iGUN15#,16#,TGN156,166..THSUV..6FC201708-202012

(L)

35314PLATE, FRONT OIL PUMP

main35314-0K010iTGN166..THSUV..6FC..GCC;GUN165..THSUV..6FC..(L,M);GUN15#,166,TGN156..THSUV..6FC201708-201906

(L)

sub35314-0K020

main35314-0K020iGUN155,165,TGN156..MA201906-202012

(L)

main35314-71010iGUN15#,16#,TGN156,166..THSUV..6FC¥260201507-201909

sub35314-71020¥200

main35314-71010iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)¥260201708-201909

(J)

sub35314-71020¥200

main35314-71020iGUN156,166,TGN166..6FC..IND¥200201910-202012

(J)

main35314-71020iGGN155..GCC,GEN;GUN155..IDNSU..L;GUN156,165,TGN156,166..(IDNSU,VNSUV)..6FC¥200201910-202104

35321GEAR, FRONT OIL PUMP DRIVE

main35321-0K010iGGN155..GCC,GEN;GUN15#,165,TGN156,166..(IDNSU,VNSUV)..6FC201708-202012

(L)

main35321-50010iKUN156..5FC¥2,940201512-201709

T=10.736-10.742

main35321-50020iKUN156..5FC¥2,940201512-201709

T=10.743-10.749

main35321-50030iKUN156..5FC¥2,940201512-201709

T=10.750-10.756

main35321-50040iKUN156..5FC¥2,940201512-201709

T=10.757-10.763

main35321-50050iKUN156..5FC¥2,940201512-201709

T=10.764-10.770

main35321-50060iKUN156..5FC¥2,940201512-201709

T=10.771-10.777

main35321-50070iKUN156..5FC¥2,940201512-201709

T=10.778-10.784

main35321-71010iGUN155..IDNSU..(H,M,S)¥3,030201507-202104

T=9.977-9.983

main35321-71010iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)¥3,030201708-202012

T=9.977-9.983,(J)

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-0K010iGUN15#,16#,TGN156,166..THSUV..6FC201708-202012

T=9.977-9.983,(L)

main35322-50010iKUN156..5FC¥2,500201512-201709

T=10.736-10.742

main35322-50020iKUN156..5FC¥2,500201512-201709

T=10.743-10.749

main35322-50030iKUN156..5FC¥2,500201512-201709

T=10.750-10.756

main35322-50040iKUN156..5FC¥2,500201512-201709

T=10.757-10.763

main35322-50050iKUN156..5FC¥2,500201512-201709

T=10.764-10.770

main35322-50060iKUN156..5FC¥2,500201512-201709

T=10.771-10.777

main35322-50070iKUN156..5FC¥2,500201512-201709

T=10.778-10.784

main35322-71010iGUN155..IDNSU..(H,M,S)¥3,030201507-202104

T=9.977-9.983

main35322-71010iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)¥3,030201708-202012

T=9.977-9.983,(J)

35370SHAFT ASSY, STATOR

main35370-0K010iGUN15#,16#,TGN156,166..THSUV..6FC201708-202012

(L)

main35370-50030iKUN156..5FC¥14,900201512-201709

main35370-71010iGUN156,166,TGN166..6FC..IND¥14,900201507-202104

main35370-71010iGUN165..THSUV..6FC;GUN156..THSUV..6FC..(ARL,GCC,GEN)¥14,900201708-202012

(J)

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-71002iGUN155..IDNSU..(H,M,S)¥1,200201507-202104

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030iKUN156..5FC¥280201507-202104

18 parts on this diagram · 3 diagrams in section
