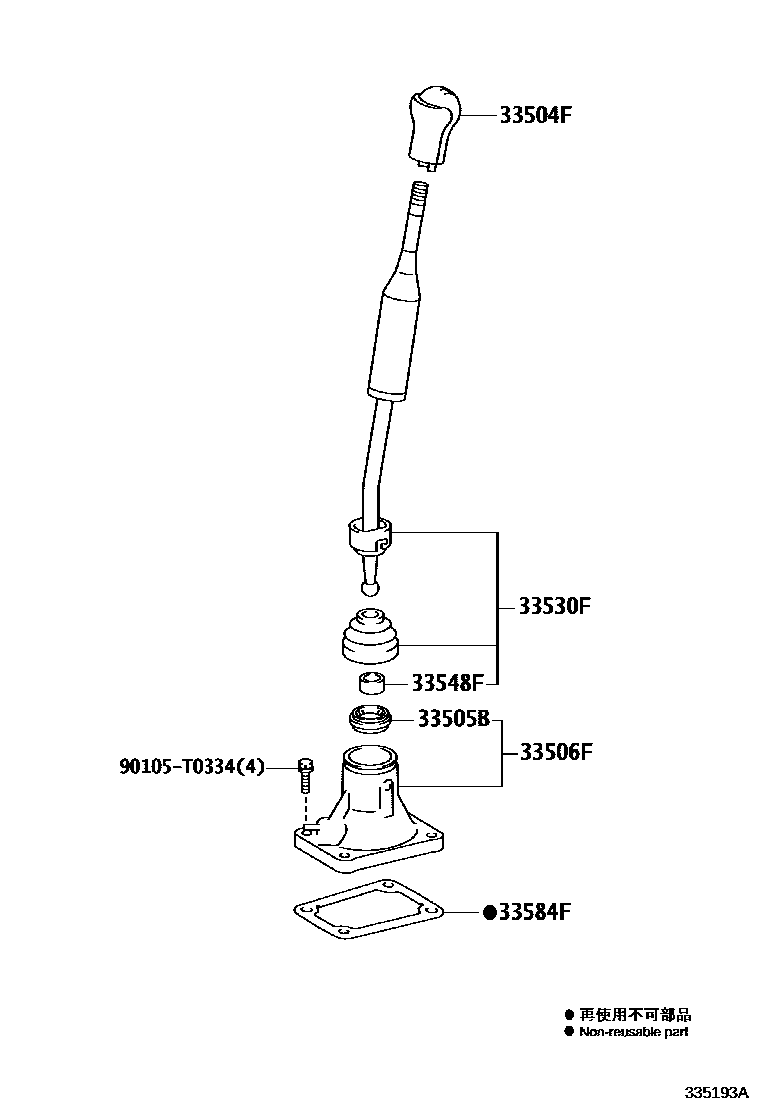

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0K050iLAN155201603-202009

main33504-0K060-C0iTGN156,16#..(AGTSU,THSUV)..5F201601-202010

BLACK,TRIM4#

main33504-0K090-C0iGUN156,165,KUN156..(AGTSU,THSUV)..6F..L201507-202010

BLACK,TRIM4#

main33504-0K100-C0iGUN156..6F..M;GUN15#,16#,KUN156..6F..S..(BZAGT,SA,TH)201507-201906

BLACK,TRIM4#

sub33504-0K101

main33504-0K100-C0iGUN156..6F..S..ARL;GUN156..6F..H..BZAGT201507-201906

BLACK,TRIM3#,4#

sub33504-0K101

main33504-0K101-C0iGUN156,166..6F..(BZAGT,SA)201907-202010

BLACK,TRIM4#

main33504-0K120-C0iTGN168..6FC..L;TGN166..6FC..(H,M,S);TGN156..(AGTSU,IDNSU,PKNSU,SASUV,THSUV)..(M,S);GUN156,166..6FC..(H,M,S)..(GCC,GEN,IND,LA,PH,SA,VN);GGN155,165,GUN155,165,KUN156.201507-201801

BLACK,TRIM3#,4#

sub33504-0K121

main33504-0K120-C0iGGN155,GUN166,TGN156..(H,M)..(BZAGT,TH);GUN156,TGN168..6FC..(M,S)..(ARL,BZAGT,TH)201507-201801

BLACK,TRIM4#

sub33504-0K121

main33504-0K120-C0iGUN156..6FC..H..BZAGT201512-201801

BLACK,TRIM0#,3#,4#

sub33504-0K121

main33504-0K121-C0iGUN156,166,TGN166..6FC..IND201802-202104

BLACK,TRIM4#

main33504-0K121-C0iGUN155..SA201906-202009

STEERING WHEEL-LEATHER & WOOD LIKE,BLACK,TRIM4#

main33504-0K121-C0iGUN156..6FC..H..BZAGT201802-202010

BLACK,TRIM0#,4#

main33504-0K121-C0iGUN156..THSUV..H..GEN;GUN156..6FC..(M,S)..ARL201802-202005

BLACK,TRIM3#,4#

main33504-0K130-C0iGUN15#,165,KUN156,TGN156,166..ATM..L201507-201801

BLACK,TRIM4#

sub33504-0K131

main33504-0K131-C0iGUN15#,165,TGN156,166..6FC..L201802-202101

BLACK,TRIM4#

main33504-0K150-C0iTGN156,166..IDNSU..5F201601-202007

BLACK,TRIM4#

main33504-0K200-C0iTGN166..M..IND201610-201906

BLACK,TRIM4#

sub33504-0K201

main33504-0K201-C0iTGN166..M..IND201907-202012

BLACK,TRIM4#

main33504-0K220-C0iGUN156,165,KUN156..(IDNSU,VNSUV)..6F..L201601-202008

BLACK,TRIM4#

main33504-0K230-C0iGUN165,KUN165..6F..SA201603-202009

BLACK,TRIM4#

main33504-0K240-C0iGUN165..IDNSU..6F..S201601-201906

BLACK,TRIM4#

sub33504-0K241

main33504-0K241-C0iGUN165..6F..S201907-202007

BLACK,TRIM4#

main33504-0K260-C0iGUN156,166..6F..IND201610-201906

BLACK,TRIM4#

sub33504-0K261

main33504-0K261-C0iGUN156,166..6F..IND201907-202012

BLACK,TRIM4#

main33504-0K310-C0iGUN15#,166..TH201507-201801

ACCESSORY TYPE 1 PACKAGE,BLACK & SILVER,TRIM3#

sub33504-0K311

main33504-0K310-C0iGUN15#,166..TH201507-201801

ACCESSORY TYPE 2 PACKAGE,BLACK & SILVER,TRIM3#

sub33504-0K311

main33504-0K311-C0iGUN15#,166..TH201802-202002

ACCESSORY TYPE 1 PACKAGE,BLACK & SILVER,TRIM3#

main33504-0K311-C0iGUN15#,166..TH201802-202002

ACCESSORY TYPE 2 PACKAGE,BLACK & SILVER,TRIM3#

main33504-0K311-C1iGUN15#,166..TH202002-202005

ACCESSORY TYPE 1 PACKAGE,BLACK,TRIM3#

main33504-0K311-C1iGUN15#,166..TH202002-202005

ACCESSORY TYPE 2 PACKAGE,BLACK,TRIM3#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iGUN15#,16#,KUN156,165,TGN156,16#..MTM..(ARL,BZAGT,GCC,IDN,IND,KZS,LA,PH,SA,TH,VN)201507-202012

TYPE A:REFER 33-01

main33505-0K010iTGN156,166..L..GEN201507-202012

TYPE B:REFER 33-01

main33505-0K010iLAN155201603-202009

main33505-0K010iTGN156,16#..5F201601-202012

TYPE C:REFER 33-01

main33505-35030iTGN156,16#..5F201601-202008

TYPE A:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0K070iGUN16#,KUN165..6F201507-202012

TYPE A:REFER 33-01

main33506-0K090iGUN16#,KUN165..6F201507-202012

TYPE B:REFER 33-01

main33570-0K050iTGN156..5F201601-201811

TYPE A:REFER 33-01

sub33570-0K051

main33570-0K051iTGN156..5F201811-202007

TYPE A:REFER 33-01

main33570-0K060iTGN156..5F201601-201812

TYPE B:REFER 33-01

sub33570-0K061

main33570-0K061iTGN156..L..KZS201812-202005

main33570-0K070iTGN156..5F201601-201905

TYPE C:REFER 33-01

sub33570-0K071

main33570-0K070iLAN155201603-201905

sub33570-0K071

main33570-0K071iTGN156..5F201905-202007

TYPE C:REFER 33-01

main33570-0K071iLAN155201905-202009

main33570-0K080iTGN16#..5F201601-202008

TYPE A:REFER 33-01

main33570-0K090iTGN16#..5F..(BZAGT,GCC,IND)201601-202012

TYPE B:REFER 33-01

main33570-0K100iTGN16#..5F201601-202012

TYPE C:REFER 33-01

main33570-0K110iGUN15#,KUN156..6F201507-201906

TYPE A:REFER 33-01

sub33570-0K111

main33570-0K111iGUN156..6F201906-202012

TYPE A:REFER 33-01

main33570-0K120iGUN15#,KUN156..6F201507-201812

TYPE B:REFER 33-01

sub33570-0K121

main33570-0K121iGUN15#..6F201812-202012

TYPE B:REFER 33-01

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K620iTGN16#..(AGTSU,THSUV)..5F201601-201908

sub33530-0K621

main33530-0K621iTGN168..5F201909-202010

main33530-0K630iTGN156..THSUV..5F201601-201908

sub33530-0K631

main33530-0K631iTGN156..L..KZS201909-202005

main33530-0K660iTGN156..IDNSU..5F201601-201907

sub33530-0K661

main33530-0K661iTGN156..L..GEN201908-202007

main33530-0K680iGUN16#,KUN165..(SASUV,THSUV)..6F201507-201908

sub33530-0K681

main33530-0K681iGUN16#..6F..SA201909-202009

main33530-0K690iGUN15#,KUN156..(AGTSU,SASUV,THSUV)..6F201507-201908

sub33530-0K691

main33530-0K691iGUN156..(AGTSU,SASUV)..6F201909-202010

main33530-0K700iGUN165..IDNSU..6F201601-201902

sub33530-0K701

main33530-0K701iGUN165..(IDNSU,VNSUV)..6F201903-201907

sub33530-0K702

main33530-0K702iGUN165..(IDNSU,VNSUV)..6F201908-202008

main33530-0K710iGUN156,KUN156..IDNSU..6F201601-201805

sub33530-0K711

main33530-0K720iGUN166..M..IND201610-202003

sub33530-0K721

main33530-0K721iGUN166..M..IND202004-202012

main33530-0K730iGUN156..6F..IND201610-202003

sub33530-0K731

main33530-0K731iGUN156..6F..IND202004-202012

main33530-0K770iTGN166..(IDNSU,INDSU)..5F201601-201907

sub33530-0K771

main33530-0K771iTGN166..5F201908-202012

main33530-0K780iLAN155201603-201908

sub33530-0K781

main33530-0K781iLAN155201909-202009

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iLAN155,TGN156,16#..5F201601-202012

main33548-22020iGUN15#,KUN156..6F201507-202012

main33548-60040iGUN16#,KUN165..6F201507-202012

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-0K010iGUN15#,KUN156..6F201507-202012

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33584-0K020iGUN16#,KUN165..6F201507-202012

TYPE B:REFER 33-01,TYPE A:REFER 33-01

main33584-0K030iTGN156..5F..(GCC,KZS)201601-202005

TYPE B:REFER 33-01

main33584-0K040iTGN166..L..GEN201704-202012

TYPE B:REFER 33-01

main33584-60070iTGN156..5F201601-202007

TYPE A:REFER 33-01,TYPE C:REFER 33-01

main33584-60070iLAN155201603-202009

main33584-71010iTGN16#..5F201601-202012

TYPE C:REFER 33-01

main33584-71010iTGN16#..5F201601-201703

TYPE B:REFER 33-01

main33584-71010iTGN16#..5F201601-202008

TYPE A:REFER 33-01

90105T0334

main90105-T0334

7 parts on this diagram · 6 diagrams in section
