EPC Data

TRANSMISSION GEAR (MTM)

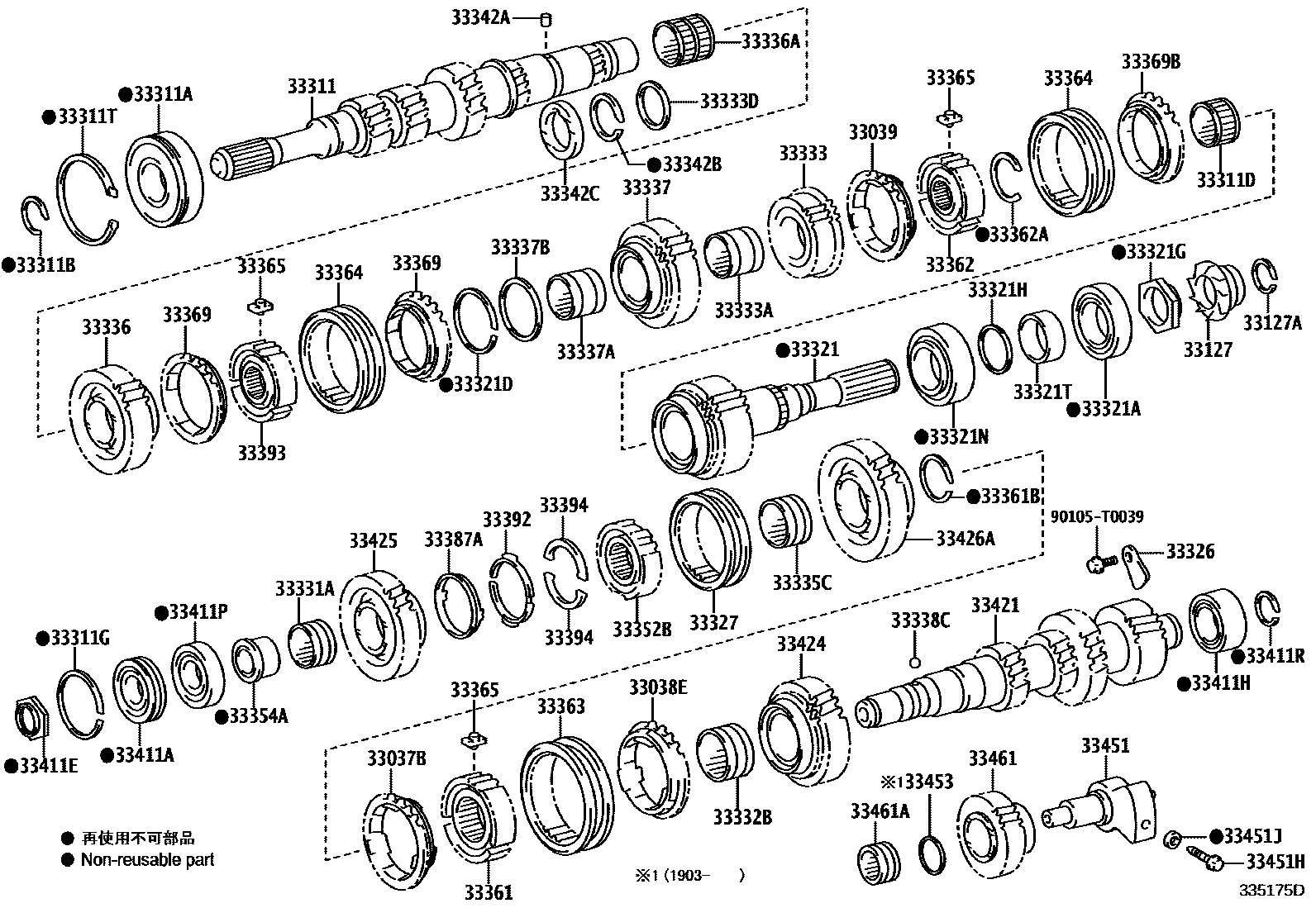

Parts diagram
33037BRING SET, SYNCHRONIZER, NO.1
main33037-0K010i201601-202012
T/P A:SEE 33-01,NO.2
main33037-0K030i201601-202012
T/P C:SEE 33-01,NO.2
sub33037-0K150
main33037-0K060i201601-202004
T/P B:SEE 33-01,NO.2
main33037-0K070i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33037-0K130i201601-202012
T/P A:SEE 33-01,NO.1
main33037-0K140i201603-202009
NO.1:REFER ILLUST.
sub33037-0K160
main33037-35030i201601-202004
T/P B:SEE 33-01,NO.1
33038ERING SET, SYNCHRONIZER, NO.2
main33038-0K040i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub33038-0K090
main33038-0K050i201601-202012
TYPE A:REFER 33-01
main33038-0K060i201601-202004
TYPE B:REFER 33-01
main33038-0K070i201601-202012
TYPE C:REFER 33-01
33039RING SET, SYNCHRONIZER, NO.3
main33039-0K010i201507-201801
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33039-0K011i201801-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub33034-04020
sub33034-0K140
sub33034-0K160
33127RUNNER, TRANSMISSION OIL
main33127-0K010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33127ARING, SNAP (FOR OUTPUT SHAFT)
main90520-33029i201507-202012
33311SHAFT, INPUT
main33301-0K051i201601-201602
TYPE C:REFER 33-01
main33301-0K052i201603-202009
main33301-0K070i201601-201604
TYPE B:REFER 33-01
main33301-0K090i201601-202012
TYPE A:REFER 33-01
main33301-0K120i201604-202004
TYPE B:REFER 33-01
main33311-0K070i201507-202012
TYPE A:REFER 33-01
main33311-0K080i201507-202012
TYPE B:REFER 33-01
33311ABEARING (FOR INPUT SHAFT FRONT)
main90363-T0021i201601-202012
TYPE B:REFER 33-01
main90363-T0030i201603-202009
main90363-T0041i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90363-T0048i201601-202012
TYPE A:REFER 33-01
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-38008i201601-202012
T=2.10,MARK A,TYPE A:REFER 33-01
main90520-38009i201601-202012
T=2.15,MARK B,TYPE A:REFER 33-01
main90520-38010i201601-202012
T=2.20,MARK C,TYPE A:REFER 33-01
main90520-38011i201601-202012
T=2.25,MARK D,TYPE A:REFER 33-01
main90520-38012i201601-202012
T=2.30,MARK E,TYPE A:REFER 33-01
main90520-38013i201601-202012
T=2.35,MARK F,TYPE A:REFER 33-01
main90520-38014i201601-202012
T=2.40,MARK G,TYPE A:REFER 33-01
main90520-T0049i201601-202004
T=2.10,MARK A,TYPE B:REFER 33-01
main90520-T0050i201601-202012
T=2.15,MARK B,TYPE B:REFER 33-01
main90520-T0051i201601-202004
T=2.20,MARK C,TYPE B:REFER 33-01
main90520-T0052i201601-202012
T=2.25,MARK D,TYPE B:REFER 33-01
main90520-T0053i201601-202004
T=2.30,MARK E,TYPE B:REFER 33-01
main90520-T0054i201601-202012
T=2.35,MARK F,TYPE B:REFER 33-01
main90520-T0055i201601-202004
T=2.40,MARK G,TYPE B:REFER 33-01
main90520-T0142i201507-202012
T=2.65,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0143i201507-202012
T=2.70,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0144i201507-202012
T=2.75,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0145i201507-202012
T=2.80,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0146i201507-202012
T=2.85,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0147i201507-202012
T=2.90,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0239i201603-202009
T=2.10,MARK A
main90520-T0240i201601-202012
T=2.15,MARK B,TYPE C:REFER 33-01
main90520-T0241i201603-202009
T=2.20,MARK C
main90520-T0242i201601-202012
T=2.25,MARK D,TYPE C:REFER 33-01
main90520-T0243i201601-202012
T=2.30,MARK E,TYPE C:REFER 33-01
main90520-T0244i201603-202009
T=2.35,MARK F
main90520-T0245i201603-202009
T=2.40,MARK G
33311DBEARING, INPUT SHAFT
main90364-T0014i201601-202012
TYPE A:REFER 33-01
main90364-T0019i201601-202004
TYPE B:REFER 33-01
main90364-T0024i201601-202012
TYPE C:REFER 33-01
main90364-T0038i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
main90520-67003i201507-202012
TYPE A:REFER 33-01
main90520-88001i201601-202012
TYPE C:REFER 33-01
main90520-T0040i201601-202012
TYPE B:REFER 33-01
main90520-T0141i201507-202012
TYPE B:REFER 33-01
main90520-T0284i201601-202012
TYPE A:REFER 33-01
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
main90520-81008i201507-202012
T=2.4,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33321SHAFT, OUTPUT
main33302-0K010i201507-202012
TYPE A:REFER 33-01
main33302-0K020i201507-202012
TYPE A:REFER 33-01
main33302-0K030i201507-202012
TYPE B:REFER 33-01
main33302-0K040i201507-202012
TYPE B:REFER 33-01
main33321-0K041i201601-202005
TYPE B:REFER 33-01
main33321-0K051i201601-202004
TYPE B:REFER 33-01
main33321-0K060i201601-201603
TYPE C:REFER 33-01
main33321-0K061i201603-202012
TYPE C:REFER 33-01
main33321-0K070i201601-201603
TYPE C:REFER 33-01
main33321-0K071i201603-202007
TYPE C:REFER 33-01
main33321-0K120i201601-201711
TYPE A:REFER 33-01
main33321-0K121i201711-202012
TYPE A:REFER 33-01
main33321-0K130i201601-201711
TYPE A:REFER 33-01
main33321-0K131i201711-202007
TYPE A:REFER 33-01
33321ABEARING (FOR OUTPUT SHAFT REAR)
main90363-T0020i201601-202012
TYPE B:REFER 33-01
main90363-T0032i201603-202009
main90363-T0049i201601-202012
TYPE A:REFER 33-01
main90366-T0074i201507-202012
TYPE B:REFER 33-01
main90366-T0129i202003-202012
TYPE A:REFER 33-01
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
main90520-30014i201601-202012
T=1.80,MARK A,TYPE A:REFER 33-01
main90520-30015i201601-202012
T=1.85,MARK B,TYPE A:REFER 33-01
main90520-30016i201601-202012
T=1.90,MARK C,TYPE A:REFER 33-01
main90520-30017i201601-202012
T=1.95,MARK D,TYPE A:REFER 33-01
main90520-30018i201601-202012
T=2.00,MARK E,TYPE A:REFER 33-01
main90520-30019i201601-202012
T=2.05,MARK F,TYPE A:REFER 33-01
main90520-30020i201601-202012
T=2.10,MARK G,TYPE A:REFER 33-01
main90520-T0063i201601-202012
T=1.80,MARK A,TYPE B:REFER 33-01
main90520-T0064i201601-202004
T=1.85,MARK B,TYPE B:REFER 33-01
main90520-T0065i201601-202012
T=1.90,MARK C,TYPE B:REFER 33-01
main90520-T0066i201601-202004
T=1.95,MARK D,TYPE B:REFER 33-01
main90520-T0067i201601-202004
T=2.00,MARK E,TYPE B:REFER 33-01
main90520-T0068i201601-202004
T=2.05,MARK F,TYPE B:REFER 33-01
main90520-T0069i201601-202012
T=2.10,MARK G,TYPE B:REFER 33-01
main90520-T0148i201507-202012
T=1.80,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0149i201507-202012
T=1.85,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0150i201507-202012
T=1.90,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0151i201507-202012
T=1.95,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0152i201507-202012
T=2.00,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0153i201507-202012
T=2.05,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0276i201603-202009
T=1.80,MARK A
main90520-T0277i201601-202012
T=1.85,MARK B,TYPE C:REFER 33-01
main90520-T0278i201603-202009
T=1.90,MARK C
main90520-T0279i201601-202012
T=1.95,MARK D,TYPE C:REFER 33-01
main90520-T0280i201601-202012
T=2.00,MARK E,TYPE C:REFER 33-01
main90520-T0281i201603-202009
T=2.05,MARK F
main90520-T0282i201603-202009
T=2.10,MARK G
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
main90179-48004i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
main90564-T0020i201507-202012
T=2.222,MARK 01,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0021i201507-202012
T=2.238,MARK 02,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0022i201507-202012
T=2.254,MARK 03,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0023i201507-202012
T=2.270,MARK 04,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0024i201507-202012
T=2.286,MARK 05,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0025i201507-202012
T=2.302,MARK 06,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0026i201507-202012
T=2.318,MARK 07,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0027i201507-202012
T=2.334,MARK 08,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0028i201507-202012
T=2.350,MARK 09,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0029i201507-202012
T=2.366,MARK 10,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0030i201507-202012
T=2.382,MARK 11,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0031i201507-202012
T=2.398,MARK 12,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0032i201507-202012
T=2.414,MARK 13,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0033i201507-202012
T=2.430,MARK 14,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0034i201507-202012
T=2.446,MARK 15,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0035i201507-202012
T=2.462,MARK 16,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0036i201507-202012
T=2.478,MARK 17,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0037i201507-202012
T=2.494,MARK 18,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0038i201507-202012
T=2.510,MARK 19,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0039i201507-202012
T=2.526,MARK 20,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0040i201507-202012
T=2.542,MARK 21,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0041i201507-202012
T=2.558,MARK 22,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0042i201507-202012
T=2.574,MARK 23,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0043i201507-202012
T=2.590,MARK 24,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0044i201507-202012
T=2.606,MARK 25,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0045i201507-202012
T=2.622,MARK 26,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0046i201507-202012
T=2.638,MARK 27,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0047i201507-202012
T=2.654,MARK 28,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0048i201507-202012
T=2.670,MARK 29,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0049i201507-202012
T=2.686,MARK 30,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0050i201507-202012
T=2.702,MARK 31,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0051i201507-202012
T=2.718,MARK 32,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0052i201507-202012
T=2.734,MARK 33,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0053i201507-202012
T=2.750,MARK 34,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0054i201507-202012
T=2.766,MARK 35,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0055i201507-202012
T=2.782,MARK 36,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0056i201507-202012
T=2.798,MARK 37,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0057i201507-202012
T=2.814,MARK 38,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0058i201507-202012
T=2.830,MARK 39,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0059i201507-202012
T=2.846,MARK 40,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0060i201507-202012
T=2.862,MARK 41,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0061i201507-202012
T=2.878,MARK 42,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0062i201507-202012
T=2.894,MARK 43,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0063i201507-202012
T=2.910,MARK 44,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0064i201507-202012
T=2.926,MARK 45,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0065i201507-202012
T=2.942,MARK 46,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90564-T0066i201507-202012
T=2.958,MARK 47,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33321NBEARING (FOR OUTPUT SHAFT FRONT)
main90366-50155i201507-202012
TYPE A:REFER 33-01
main90366-T0077i201507-202012
TYPE B:REFER 33-01
33321TSPACER (FOR OUTPUT SHAFT)
main35469-0K040i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main35469-0K050i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90387-T0007i201601-202012
TYPE A:REFER 33-01
main90387-T0010i201601-202012
TYPE C:REFER 33-01
main90387-T0011i201601-202012
TYPE B:REFER 33-01
33326PLATE, BEARING LOCK
main33326-0K010i201507-202012
TYPE A:REFER 33-01
main33326-0K020i201507-202012
TYPE B:REFER 33-01
33327SLEEVE, TRANSMISSION HUB, NO.4
main33327-0K010i201507-202012
TYPE A:REFER 33-01
main33327-0K020i201507-202012
TYPE B:REFER 33-01
33331GEAR, REVERSE
main33331-0K031i201601-202004
TYPE B:REFER 33-01
main33331-0K040i201603-202009
main33331-0K060i201601-202012
TYPE A:REFER 33-01
33331ABEARING (FOR REVERSE GEAR)
main90364-T0040i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33332GEAR, 2ND
main33033-0K030i201601-202004
TYPE B:REFER 33-01
main33033-0K050i201603-202009
main33033-0K070i201601-202012
TYPE A:REFER 33-01
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
main90364-T0011i201601-202012
TYPE A:REFER 33-01
main90364-T0020i201601-202012
TYPE B:REFER 33-01
main90364-T0026i201601-202012
TYPE C:REFER 33-01
main90364-T0035i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33333GEAR, 3RD
main33034-0K070i201601-202004
TYPE B:REFER 33-01
main33034-0K080i201603-202009
main33034-0K090i201507-202012
TYPE A:REFER 33-01
sub33034-0K140
main33034-0K100i201507-202012
TYPE B:REFER 33-01
sub33034-0K160
sub33369-26010
main33034-0K110i201601-202012
TYPE A:REFER 33-01
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
main90364-T0012i201601-202012
TYPE A:REFER 33-01
main90364-T0022i201601-202012
TYPE B:REFER 33-01
main90364-T0027i201601-202012
TYPE C:REFER 33-01
main90364-T0036i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33333DSPACER (FOR 3RD GEAR)
main90560-T0025i201507-202012
TYPE B:REFER 33-01
main90562-42002i201507-201903
TYPE A:REFER 33-01
33335GEAR, 1ST
main33032-0K041i201601-202004
TYPE B:REFER 33-01
main33032-0K071i201603-202009
main33032-0K100i201601-202012
TYPE A:REFER 33-01
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
main90364-T0010i201601-202012
TYPE A:REFER 33-01
main90364-T0021i201601-202012
TYPE B:REFER 33-01
main90364-T0025i201603-202009
main90364-T0034i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33336GEAR, 5TH
main33036-0K010i201507-202009
TYPE A:REFER 33-01
main33036-0K020i201507-202012
TYPE A:REFER 33-01
main33036-0K030i201507-202009
TYPE B:REFER 33-01
main33036-0K040i201507-202012
TYPE B:REFER 33-01
main33336-0K012i201601-201602
TYPE A:REFER 33-01
main33336-0K031i201603-201709
main33336-0K032i201709-202012
TYPE C:REFER 33-01
main33336-0K110i201601-202004
TYPE B:REFER 33-01
main33336-0K130i201602-202012
TYPE A:REFER 33-01
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
main90364-45018i201906-202012
TYPE B:REFER 33-01
main90364-T0037i201507-201907
TYPE A:REFER 33-01
main90364-T0056i201907-202012
TYPE A:REFER 33-01
33337GEAR SUB-ASSY, 6TH
main33037-0K080i201507-202012
TYPE A:REFER 33-01
main33037-0K100i201507-202012
TYPE B:REFER 33-01
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
main90364-T0039i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33337BSPACER (FOR 6TH GEAR)
main90560-T0017i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33338CBALL, REVERSE SHIFT RESTRICT
main90360-06004i201507-201704
TYPE A:REFER 33-01
main90360-T0009i201507-202012
TYPE B:REFER 33-01
main90360-T0011i201704-202012
TYPE A:SEE 33-01,(L)
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
main90250-05026i201507-202012
TYPE A:REFER 33-01
main90250-T0021i201507-202012
TYPE B:REFER 33-01
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
main90520-T0155i201507-202012
T=2.07,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0156i201507-202012
T=2.12,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0157i201507-202012
T=2.17,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0158i201507-202012
T=2.22,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0159i201507-202012
T=2.27,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0160i201507-202012
T=2.32,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33342CWASHER, 3RD GEAR THRUST
main33342-0K010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub33342-0K011
33352BHUB, TRANSMISSION CLUTCH, NO.4
main33352-0K010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33354ARACE, REVERSE GEAR BEARING, INNER
main33354-0K010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33361HUB, TRANSMISSION CLUTCH, NO.1
main33361-0K021i201601-201606
TYPE A:REFER 33-01
main33361-0K031i201601-202012
TYPE B:REFER 33-01
main33361-0K050i201601-202012
TYPE C:REFER 33-01
main33361-0K070i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33361-0K090i201607-202012
TYPE A:REFER 33-01
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
main90520-T0168i201507-202012
T=2.28,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0169i201507-202012
T=2.33,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0170i201507-202012
T=2.38,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0171i201507-202012
T=2.43,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0172i201507-202012
T=2.48,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0173i201507-202012
T=2.53,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33362HUB, TRANSMISSION CLUTCH, NO.2
main33362-0K031i201601-202004
TYPE B:REFER 33-01
main33362-0K040i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33362-0K050i201601-202012
TYPE A:REFER 33-01
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
main90520-T0161i201507-202012
T=2.50,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0162i201507-202012
T=2.55,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0163i201507-202012
T=2.60,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0164i201507-202012
T=2.65,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0165i201507-202012
T=2.70,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0166i201507-202012
T=2.75,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33363SLEEVE, TRANSMISSION HUB, NO.1
main33363-0K010i201507-202012
TYPE A:REFER 33-01
main33363-0K020i201507-202012
TYPE B:REFER 33-01
33364SLEEVE, TRANSMISSION HUB, NO.2
main33364-0K020i201601-202012
TYPE B:REFER 33-01
main33364-0K030i201601-202012
TYPE C:REFER 33-01
main33364-0K040×2i201507-202012
TYPE A:REFER 33-01
main33364-0K050×2i201507-202012
TYPE B:REFER 33-01
main33364-0K060i201601-202012
TYPE A:REFER 33-01
33365KEY, SYNCHROMESH SHIFTING, NO.1
main33365-0K010×3i201601-202012
TYPE B:REFER 33-01
main33365-0K020×3i201601-202012
TYPE A:REFER 33-01
main33365-0K030×9i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33365-35060×3i201603-202009
33369RING, SYNCHRONIZER, NO.3
main33369-0K010×2i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33369BRING, SYNCHRONIZER, NO.4
main33381-0K020i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33387ARING, REVERSE SYNCHRONIZER
main33387-0K020i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
main33392-0K010i201601-202012
TYPE A:REFER 33-01
main33392-35010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33392-60040i201601-202004
TYPE B:REFER 33-01
33393HUB, TRANSMISSION CLUTCH, NO.3
main33393-0K010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33394KEY, SYNCHROMESH SHIFTING, NO.3
main33394-20020×2i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
main90365-T0004i201601-202012
TYPE B:REFER 33-01
main90365-T0006i201601-202012
TYPE A:REFER 33-01
main90365-T0011i202008-202012
TYPE C:REFER 33-01
main90369-T0011i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33411ENUT(FOR COUNTER GEAR SHAFT)
main90179-32002i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
main90365-T0010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33411PBEARING, COUNTERSHAFT CENTER
main90365-T0003i201601-202012
TYPE B:REFER 33-01
main90365-T0007i201601-202012
TYPE A:REFER 33-01
main90365-T0009i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90365-T0012i202008-202012
TYPE C:REFER 33-01
33411RRING, SNAP, COUNTER GEAR REAR BEARING
main90520-T0175i201507-202012
T=2.45,MARK A,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0176i201507-202012
T=2.50,MARK B,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0177i201507-202012
T=2.55,MARK C,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0178i201507-202012
T=2.60,MARK D,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0179i201507-202012
T=2.65,MARK E,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0180i201507-202012
T=2.70,MARK F,TYPE B:REFER 33-01,TYPE A:REFER 33-01
main90520-T0181i201507-202012
T=2.75,MARK G,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33421GEAR, COUNTER
main33421-0K082i201601-202012
TYPE C:REFER 33-01
main33421-0K100i201507-202009
TYPE A:REFER 33-01
main33421-0K110i201507-202012
TYPE A:REFER 33-01
main33421-0K120i201507-202009
TYPE B:REFER 33-01
main33421-0K130i201507-202012
TYPE B:REFER 33-01
main33421-0K140i201601-202004
TYPE B:REFER 33-01
main33421-0K160i201601-202012
TYPE A:REFER 33-01
33424GEAR, COUNTERSHAFT 2ND SPEED
main33424-0K010i201507-202012
TYPE A:REFER 33-01
main33424-0K020i201507-202012
TYPE B:REFER 33-01
33425GEAR, COUNTERSHAFT REVERSE
main33425-0K010i201507-202012
TYPE A:REFER 33-01
main33425-0K020i201507-202012
TYPE B:REFER 33-01
33426AGEAR, COUNTERSHAFT, 1ST SPEED
main33426-0K010i201507-202012
TYPE A:REFER 33-01
main33426-0K020i201507-202012
TYPE B:REFER 33-01
33451SHAFT, REVERSE IDLER GEAR
main33450-0K010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main33451-0K010i201601-202012
TYPE A:REFER 33-01
main33451-0K030i201601-202004
TYPE B:REFER 33-01
main33451-0K040i201603-202009
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
main90109-10178i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
main90430-T0016i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33453SPACER, REVERSE IDLER GEAR SHAFT
main90560-T0034i201903-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33461GEAR, REVERSE IDLER
main33461-0K080i201507-202012
TYPE A:REFER 33-01
main33461-0K090i201507-202012
TYPE B:REFER 33-01
33461ABEARING, REVERSE IDLER GEAR
main90364-T0041i201507-201903
TYPE B:REFER 33-01
main90364-T0057i201903-202012
TYPE B:REFER 33-01
90105T0039
main90105-T0039

69 parts on this diagram · 4 diagrams in section

TRANSMISSION GEAR (MTM) — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
