CLUTCH & RELEASE FORK

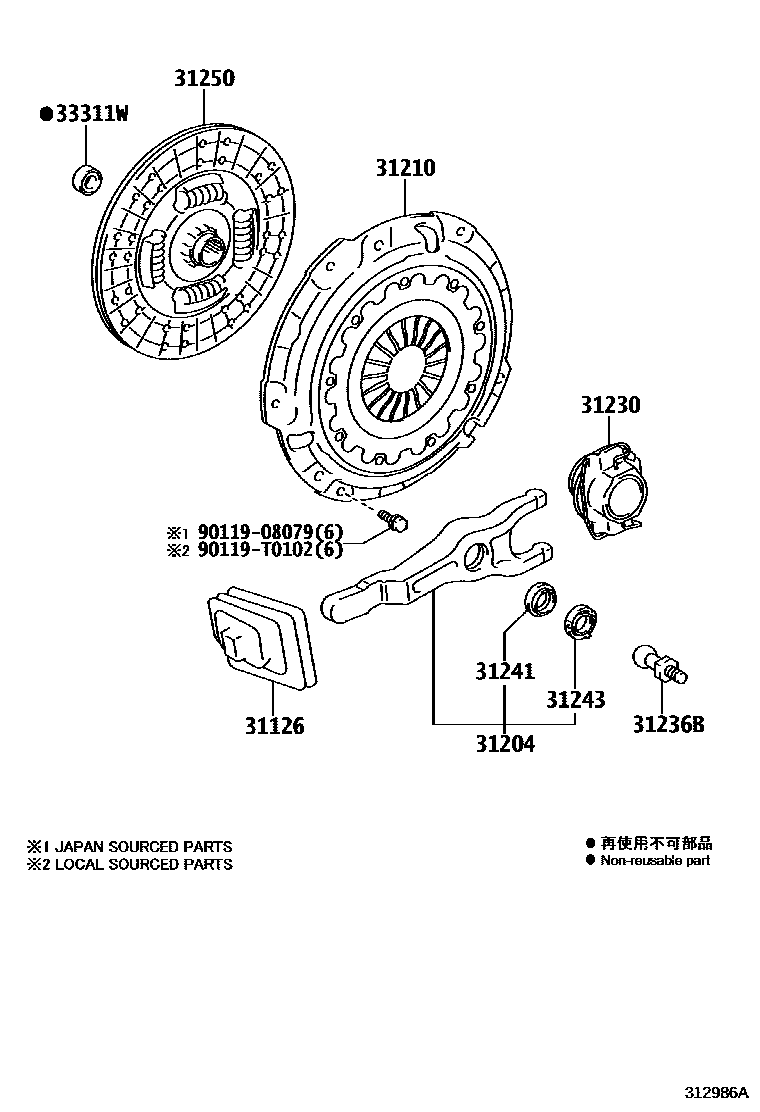

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-0K080i201507-202012
main31126-0K090i201601-202012
TYPE B:REFER 33-01
main31126-0K090i201601-202012
TYPE C:REFER 33-01
main31126-0K090i201601-202008
TYPE A:REFER 33-01
main31126-0K110i201603-202009
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-0K110i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31204-0K120i201601-202008
TYPE A:REFER 33-01
main31204-0K120i201603-202009
main31204-0K120i201601-202012
TYPE C:REFER 33-01
main31204-0K120i201601-202012
TYPE B:REFER 33-01
31210COVER ASSY, CLUTCH
main31210-0K260i201601-202012
main31210-0K280i201710-201711
TYPE B:REFER ILLUST.
sub31210-0K281
main31210-0K280i201507-201710
sub31210-0K281
main31210-0K281i201711-202012
main31210-0K281i201711-202010
TYPE B:REFER ILLUST.
main31210-0K310i201601-201707
main31210-0K340i201512-201709
main31210-0K410i201603-201709
main31210-0K420i201603-202009
main31210-0K460i201603-201709
31230BEARING ASSY, CLUTCH RELEASE
main31230-71050i201507-201805
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub31230-71051
main31230-71051i201806-201810
TYPE B:REFER 33-01,TYPE A:REFER 33-01
sub31230-71052
main31230-71052i201810-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31230-71060i201601-201903
TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01
sub31230-71061
main31230-71060i201603-201903
sub31230-71061
main31230-71061i201903-202012
TYPE B:REFER 33-01
main31230-71061i201903-202012
TYPE C:REFER 33-01
main31230-71061i201903-202008
TYPE A:REFER 33-01
main31230-71061i201903-202009
31236BSUPPORT, RELEASE FORK
main31236-0K010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31236-0K020i201601-202012
TYPE C:REFER 33-01
main31236-0K020i201601-202012
TYPE B:REFER 33-01
main31236-0K020i201603-202009
main31236-0K020i201601-202008
TYPE A:REFER 33-01
31241SEAL, CLUTCH RELEASE FORK DUST
main31241-71010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
31243COLLAR, CLUTCH RELEASE FORK
main31243-0K010i201507-202012
TYPE B:REFER 33-01,TYPE A:REFER 33-01
31250DISC ASSY, CLUTCH
main31250-0K260i201601-201709
sub31250-0K261
main31250-0K261i201710-202012
sub31250-0K262
main31250-0K280i201507-201712
sub31250-0K281
main31250-0K280i201710-201712
TYPE B:REFER ILLUST.
sub31250-0K281
main31250-0K281i201801-202012
main31250-0K281i201801-202010
TYPE B:REFER ILLUST.
main31250-0K340i201512-201709
sub31250-0K341
main31250-0K360i201603-201709
sub31250-0K361
main31250-0K410i201603-201709
sub31250-0K411
main31250-0K440i201603-202009
33311WBEARING (FOR INPUT SHAFT)
main90363-12002i201603-201808
sub90363-12024
main90363-12024i201808-202007
main90363-T0006i201507-202012
main90363-T0019i201601-202012
9011908079
main90119-08079
90119T0102
main90119-T0102

11 parts on this diagram · 6 diagrams in section
